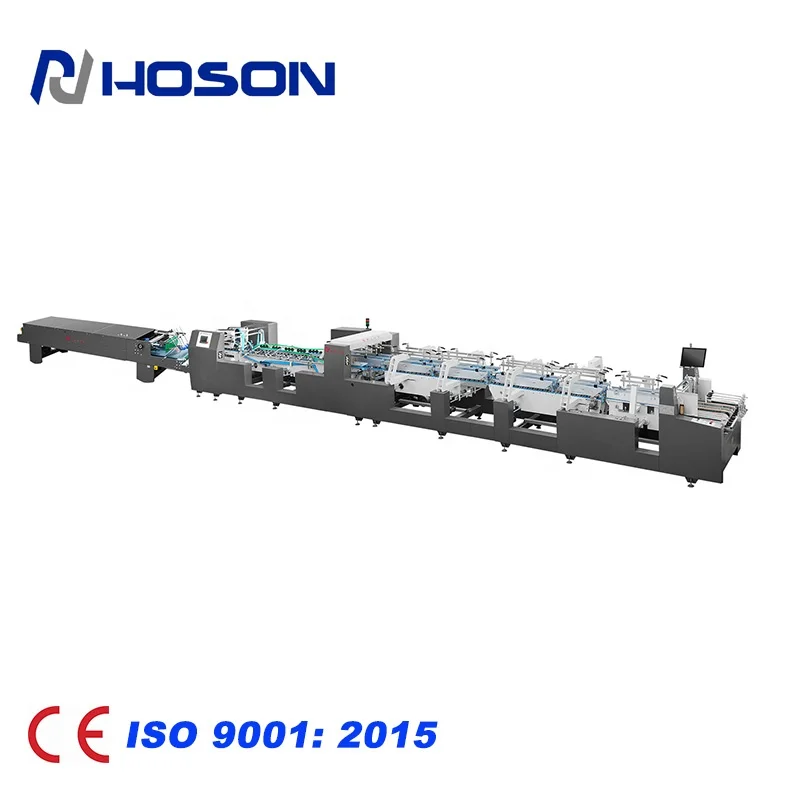

ZH-1200BFT-H Paper Carton Box Making Machine

Feature

1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.

2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.

3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.

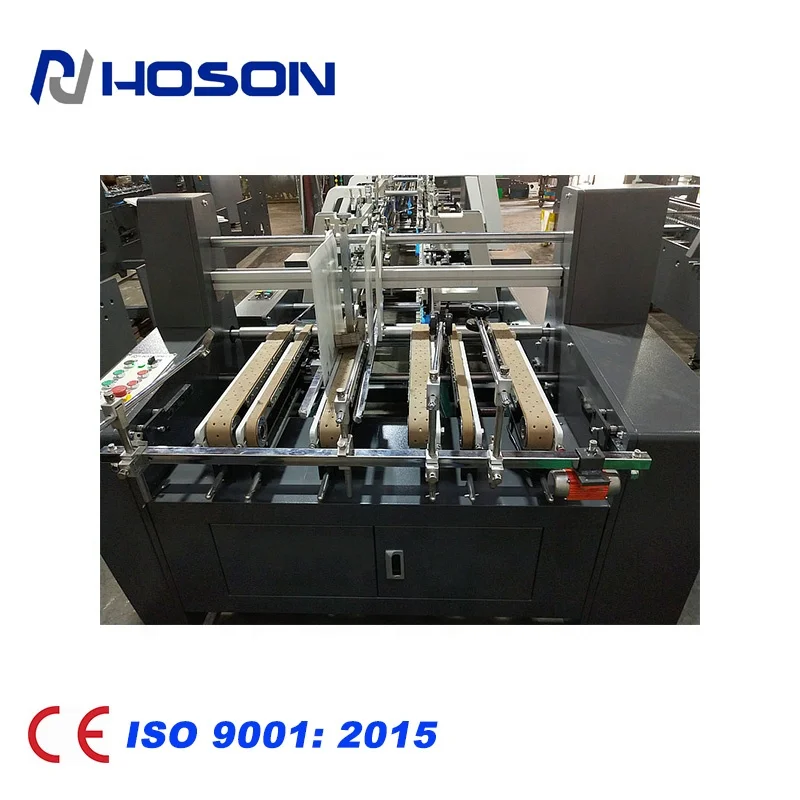

4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.

5.Grinders are provided in both sides of machine, to make gluing more stable and firm.

6.Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.

7.PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote diagnosis helps to maintenance (remote controller system included), and a photo electric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.

8.Pressing unit with pneumatic design. And the upper belt is able to work separately.Pressing also by a sponge belt in this section to keep out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.

9.Pre-folding section or correction section is for option as per real need. In the pre-folding part, the 1st fold at 180°, the 3rd fold at 90°, the 2nd & 4th fold box at 180°. The correction section helps paper running and folding in the right line.

10.To make the un-symmetric folding corrected, an option of separate governor which cna control speed in each side solely is offered to the corrugated board products in folding section.

11.The spare parts are: Siemens Motor, Schneider Electric/PLC/Transducer(inverter), Japanese NITTA Belts, YHY/NSK Bearings, Continental Timing Belts. All these will make running more quick and stable. Except the normal cardboard boxes, E/B flute is also able to be done.

Main Technical Parameters:

ZH-1200BFT-H FITTING PARTS LIST

We Wenzhou Hoson Printing Machinery Co., Ltd ( Hongye Factory) started in 1990s, who is the earliest manufacturer of folder and gluer machinery in Wenzhou,Zhejiang,China

Through about 20 years' efforts, a mode integrated with production-sale-service has been built and completed.

Our main series of folder gluers are 4/6 corner type, crash-lock bottom type, pre-folding type and two-fold type, etc. We have these advantages: special design, easy operation, quick adjustment and high automation.

Warranty: one year. The manufacturer will send the buyer new parts ( no intentional damage). However, the courrier should be covered  by the customer.   Please note that the belts are excluding the one year's warranty.

According to the customer's requirement, we will arrange one technician to help you to install the machine and train the worker, but all the expenses like round-trip air tickets, accommodation, meals and salary USD80/day, incurred therefrom shall be born by the buyer.
