Легкая установка энергосберегающие солнечные панели для бассейнов 1 33*3
- Категория: Solar Collectors >>>
- Поставщик: Dongguan,Xindong,Rubber.,Plastics,&,Hardware,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 102.5 $* | 107.44 $* |
| Aug-19-2025 | 101.66 $* | 106.4 $* |
| Jul-19-2025 | 85.69 $* | 89.12 $* |
| Jun-19-2025 | 100.7 $* | 105.6 $* |
| May-19-2025 | 87.52 $* | 91.99 $* |
| Apr-19-2025 | 98.1 $* | 103.64 $* |
| Mar-19-2025 | 97.17 $* | 102.97 $* |
| Feb-19-2025 | 96.75 $* | 101.99 $* |
| Jan-19-2025 | 95.12 $* | 100.39 $* |
Характеристики
Product Description
| Solar pool heating mat-EPDM | ||||
| Width | Length | packaging size (cm) | Eight-hole tube meters | N.W(KG) |
| 0.33 | 3 | 60*20*20 | 6 | 3.9 |
| 4 | 60*20*20 | 8 | 4.9 | |
| 4.5 | 60*20*20 | 9 | 5.4 | |
| 5 | 60*35*35 | 10 | 5.9 | |
| 6 | 60*35*35 | 12 | 6.8 | |
| 0.67 | 3 | 97*20*20 | 12 | 7.9 |
| 4 | 97*20*20 | 16 | 9.9 | |
| 4.5 | 97*20*20 | 18 | 10.9 | |
| 5 | 97*35*35 | 20 | 11.9 | |
| 6 | 97*35*35 | 24 | 13.9 | |
| 1.33 | 3 | 130*20*20 | 24 | 16 |
| 4 | 130*20*20 | 31 | 19.7 | |
| 4.5 | 130*20*20 | 35 | 21.6 | |
| 5 | 130*35*35 | 39 | 23.6 | |
| 6 | 130*35*35 | 47 | 27.5 | |

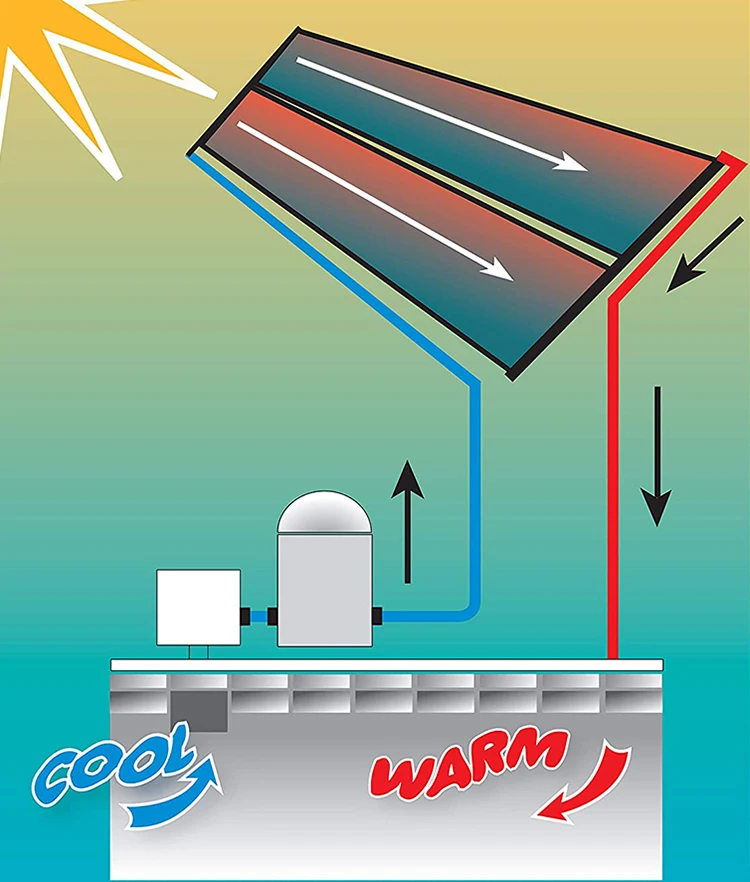

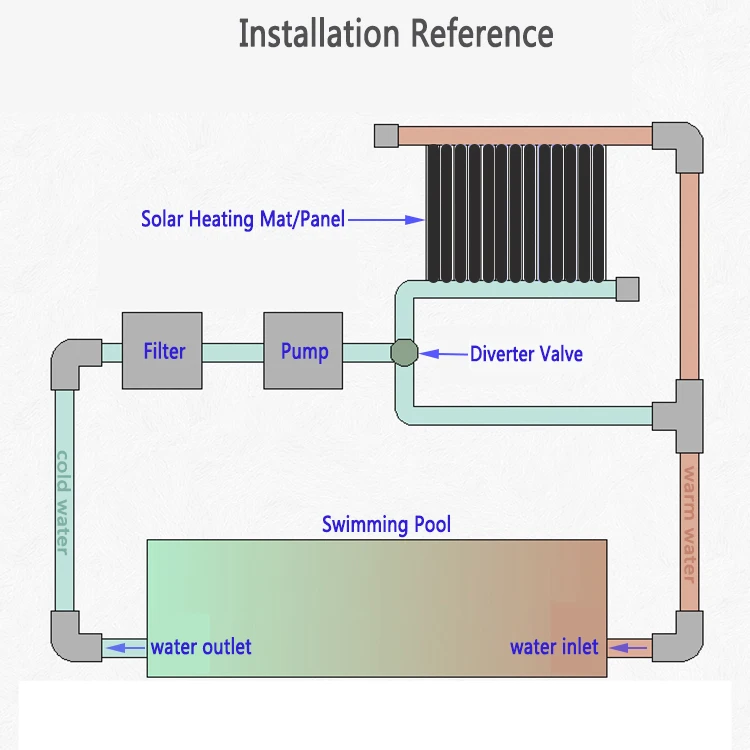

The working principle of swimming pool heating solar collector:
Solar collectors for swimming pool heating are installed on the roof with plenty of sunlight. The water in the pool is pumped through hundreds of tubes in the collector, where it absorbs solar energy. Then return the hot water to the pool for you to enjoy.
Features of solar collectors for swimming pool heating:
EPDM material is inert to light and chemicals.
High efficiency. Modular and rigid, each tube extends along the length.
EPDM has excellent heat resistance, ozone resistance, steam resistance and weather resistance.
It is an electrical insulator.
The temperature resistance range of EPDM material is -40℃ to 120℃.

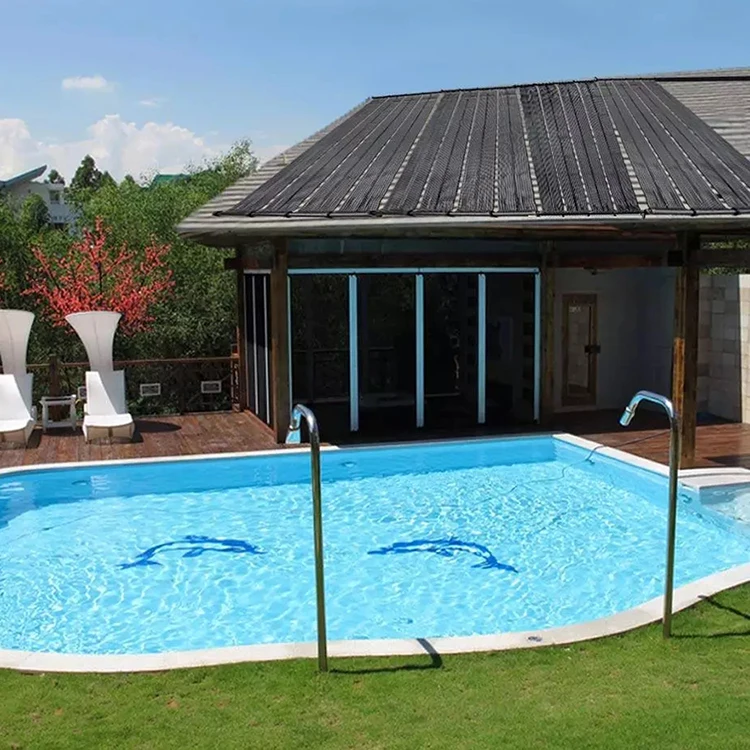

Can be installed on any type of roof.
Easy to install.
Standard size is 1.33mx3m(According to your swimming pool size change amount)
Ultraviolet resistance and long service life.
Why choose EPDM solar pool collector?
1. Anti-aging
EPDM has excellent weather resistance, ozone resistance, heat resistance, acid and alkali resistance, water vapor resistance, color stability, electrical properties, oil injection and room temperature fluidity. EPDM rubber hose can be used for a long time at 120 degrees Celsius, and can be used briefly or intermittently at 150-200 degrees Celsius.
2. Corrosion resistance
EPDM has good resistance to a variety of polar chemicals (such as alcohols, acids, alkalis, oxidants, refrigerants, detergents, animal and vegetable oils, ketones and lipids), but it has good resistance to oils and aromatic solvents (such as gasoline). , Benzene, etc.) in poor stability. )
3. Heat resistance
EPDM has good heat resistance, but it is closely related to all vulcanization systems.
