Splitting machine hydraulic concrete stone breaker rock

Splitting machine hydraulic concrete stone breaker rock

Категория: Rock Splitter >>>
Поставщик: Fujian,Pawacker,Technology,Co.,Ltd.

Цена:80 252,75 ₽ - 891 697,20 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	95500.76 $*	100275.13 $*
Aug-17-2025	94697.46 $*	99432.26 $*
Jul-17-2025	79449.95 $*	83421.91 $*
Jun-17-2025	93092.30 $*	97747.47 $*
May-17-2025	81055.36 $*	85108.74 $*
Apr-17-2025	91487.5 $*	96061.0 $*
Mar-17-2025	90685.61 $*	95219.89 $*
Feb-17-2025	89882.6 $*	94376.7 $*
Jan-17-2025	89080.96 $*	93534.30 $*

Характеристики

concrete stone breaker rock splitter machine

Product Description

_01_02

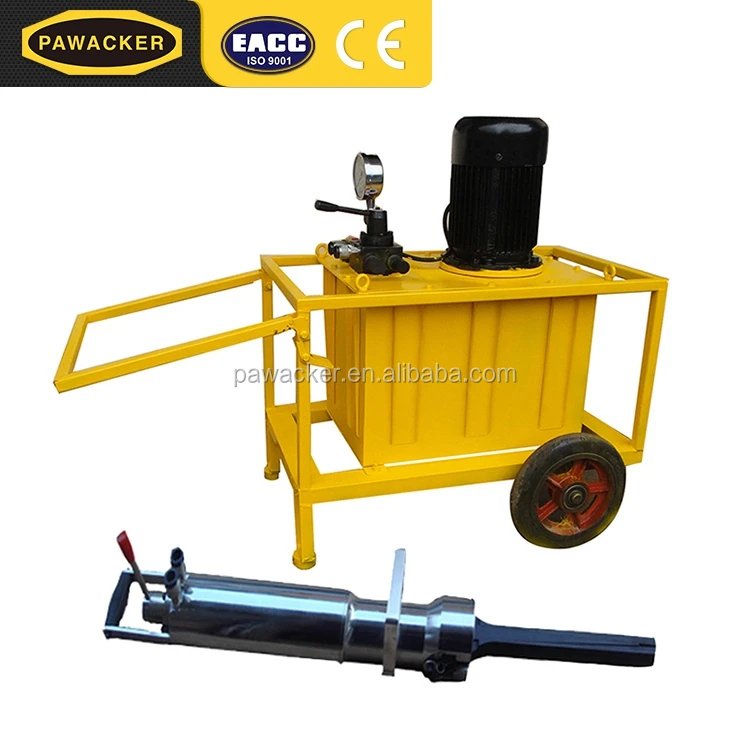

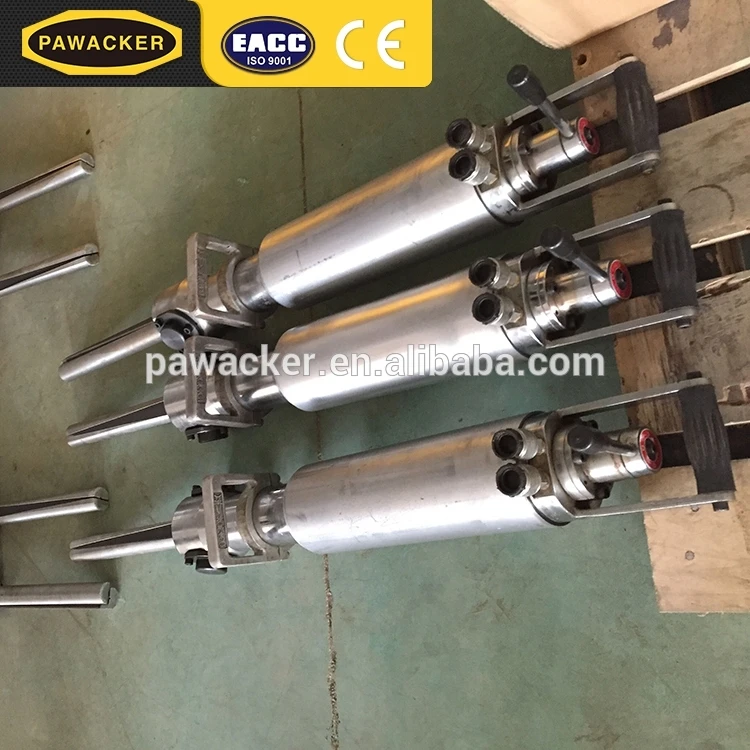

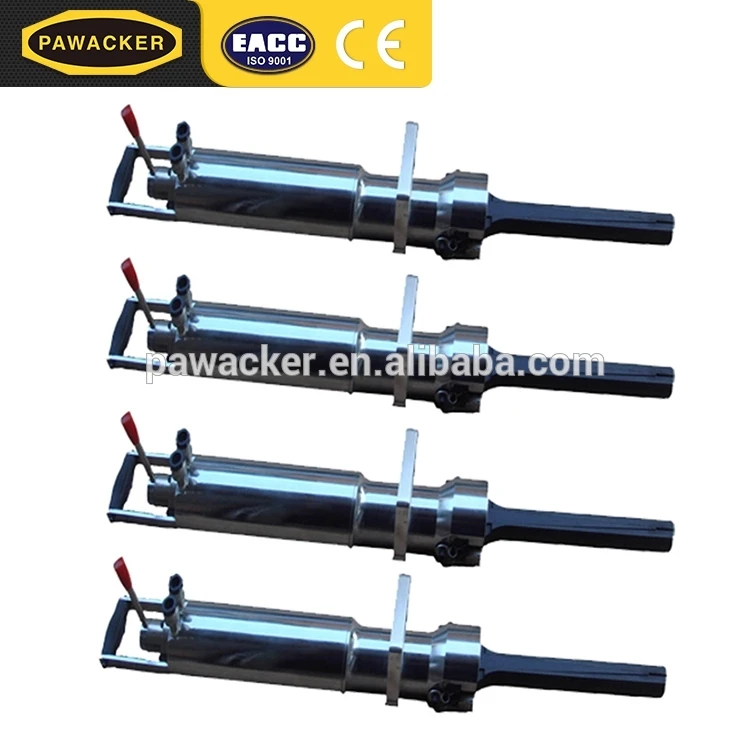

The hydraulic rock splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also widely use in the place where need non-explosive and blast forbidden.

Model	Drill hole diameter	Pistion inner diameter	Minimum drill hole depth	Length wedge	Splitting distance	Splitting time	Splitting force theoretical	Splitting force effective	Weight
Model	(MM)	(MM)	(MM)	(MM)	(MM)	(S)	(T)	(T)	(KG)
DS80A	Φ38~42	80	≥450	150	10~40	5~12	500	280	20
DS80B	Φ40~42	80	≥500	200	10~40	5~12	600	300	21
DS80C	Φ40~42	80	≥600	300	10~40	5~12	680	420	25
DS80D	Φ45~48	80	≥800	450	10~40	5~12	720	450	27
DS90A	Φ38~42	90	≥450	150	10~40	5~12	680	420	26
DS90B	Φ40~42	90	≥500	200	10~40	5~12	720	450	26.5
DS90D	Φ40~42	90	≥600	300	10~40	5~12	780	480	27
DS90E	Φ45~48	90	≥700	380	10~40	5~12	820	500	28

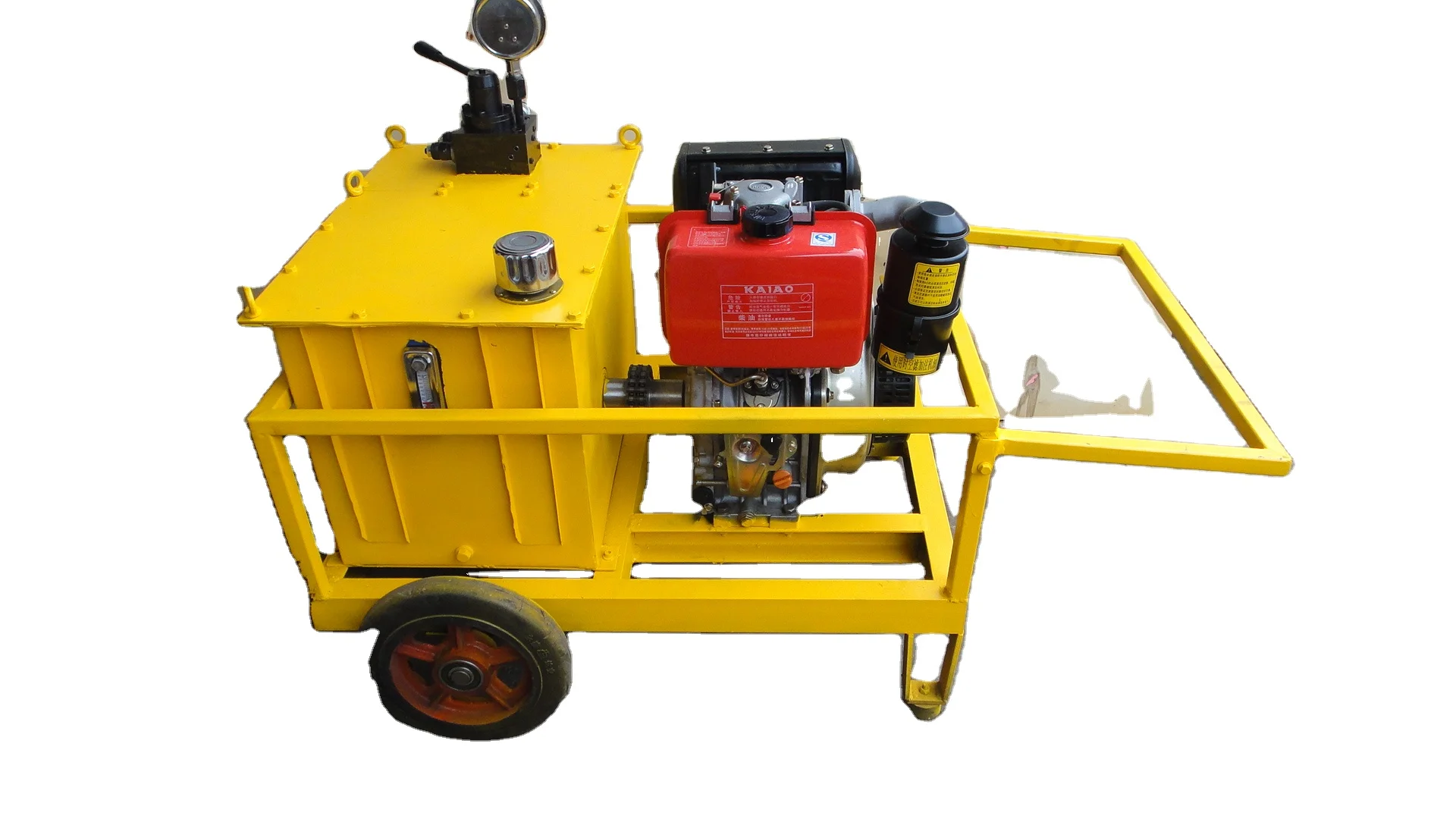

Engine type	Specifications (MM)	Weight (KG)	Fuel tank capacity (L)	Working medium	Engine power	Working pressure (Mpa)	Work flow (L/Min)	Configurable splitting machine number
Electric type	384280 620	75	30	46 or 68 anti-wear hydraulic oil	0.75KW 2.2KW 4KW 7.5KW (380V)	55~60	2.13	1 2~3 4~6 7~10
Diesel type	11501180 940	120	40	46 or 68 anti-wear hydraulic oil	4.2KW	55~60	2.13	1~10 handle
Gasoline type	12001170 800	100	40	46 or 68 anti-wear hydraulic oil	7.5HP	55~60	2.13	1~10 handle
Pneumatic type	364280 620	100	40	46 or 68 anti-wear hydraulic oil	4.04kw 5.5HP require compressor: 0.63mpa 4.8m3/min	55~60	13	1~10 handle
