Умные многофункциональные лезвия светодиодная плата печатная V Cut PCB Depanel Machine Groove Cutter

Описание и отзывы

Трекер стоимости

Характеристики

Intelligent Multiple Blades LED Board Circuit Board V Cut PCB Depanel Machine V Groove PCB Cutter Separator



• PCB Thinness: 0.2-5mm ( Multi-connected PCB )


• Suitable PCb: Aluminum PCB, copper substrate, FR4, Glass fiber Board etc.

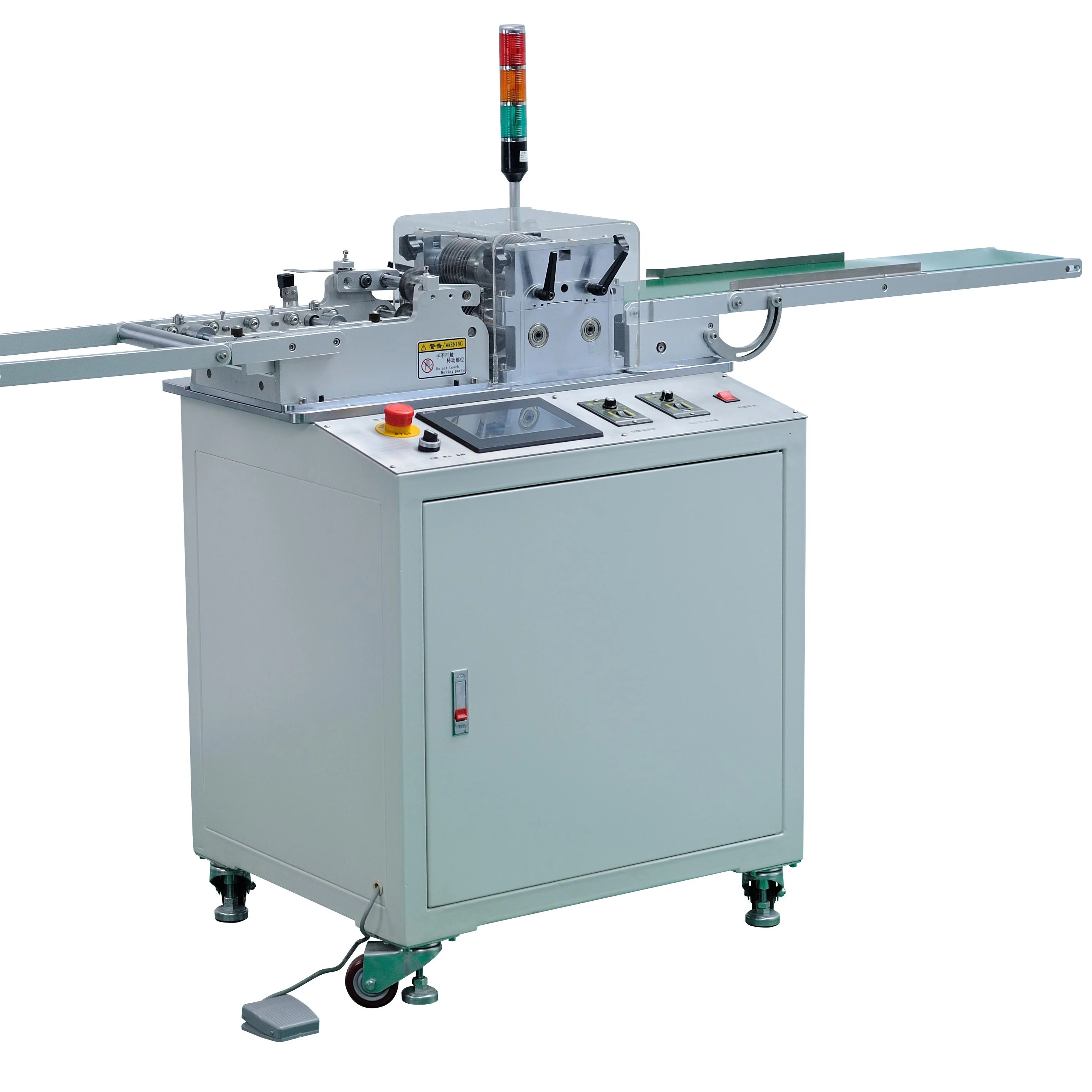

PCB cutting/Depaneling machine working pictures



Key Features



1.Separating the whole light bar board one time, high-efficient cutting machine recommendation.

2.The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the  screen.

3.It can cut many boards with multiple sets of knives work at the same time.

4.The blade flywheel is adjustable as a whole from 0 to 5mm

5.The distance between blade is regular as well, applying to PCB with width from 15mm to 20mm.

6.The blade is make of imported SKH51 high speed steel material, which is durable and have a long service life.

7.It is convenient to adjust the cutting speed through rotary knob.

8.No limits of the cutting length.

9.Thickness range of PCB: 0.2-5.0mm

10.With a conveyor belt line, the separated PCB can be send out directly to reduce pick-and-place machine.

11.The machine adopts multiple blade to separate PCB with simple operation and high efficiency, fitted for batch production.



Specification



Model No.	JX-900 PCB cutting/depaneling Machine
Dimension	2160*570*1050MM
Max. Cutting Length of PCB	No Limit
Cutting Speed	80, 120, 200, 400mm/s
Cutting Thinness	0.2-5mm
Voltage	230V/50Hz or 110V/60Hz
Weight	158KG
Power	120W



More advantages:

1. The upper and below blade can be adjusted accuracy. The cutting thinness shall be in the range of 0.6-3.5mm.


2. The space of upper and below blade can be adjusted between 8-25mm. Control the accuracy around 0.1mm


3. The distance of border upon 2 group blade can be adjusted from 8mm to 25mm, this can raise your adjusting speed.


4. Speed of transport belt can be adjustable.

Multi-blades for cutting several pcbs at same time



Welcome to contact me for more about pcb cutting machines
