Характеристики
Product Description

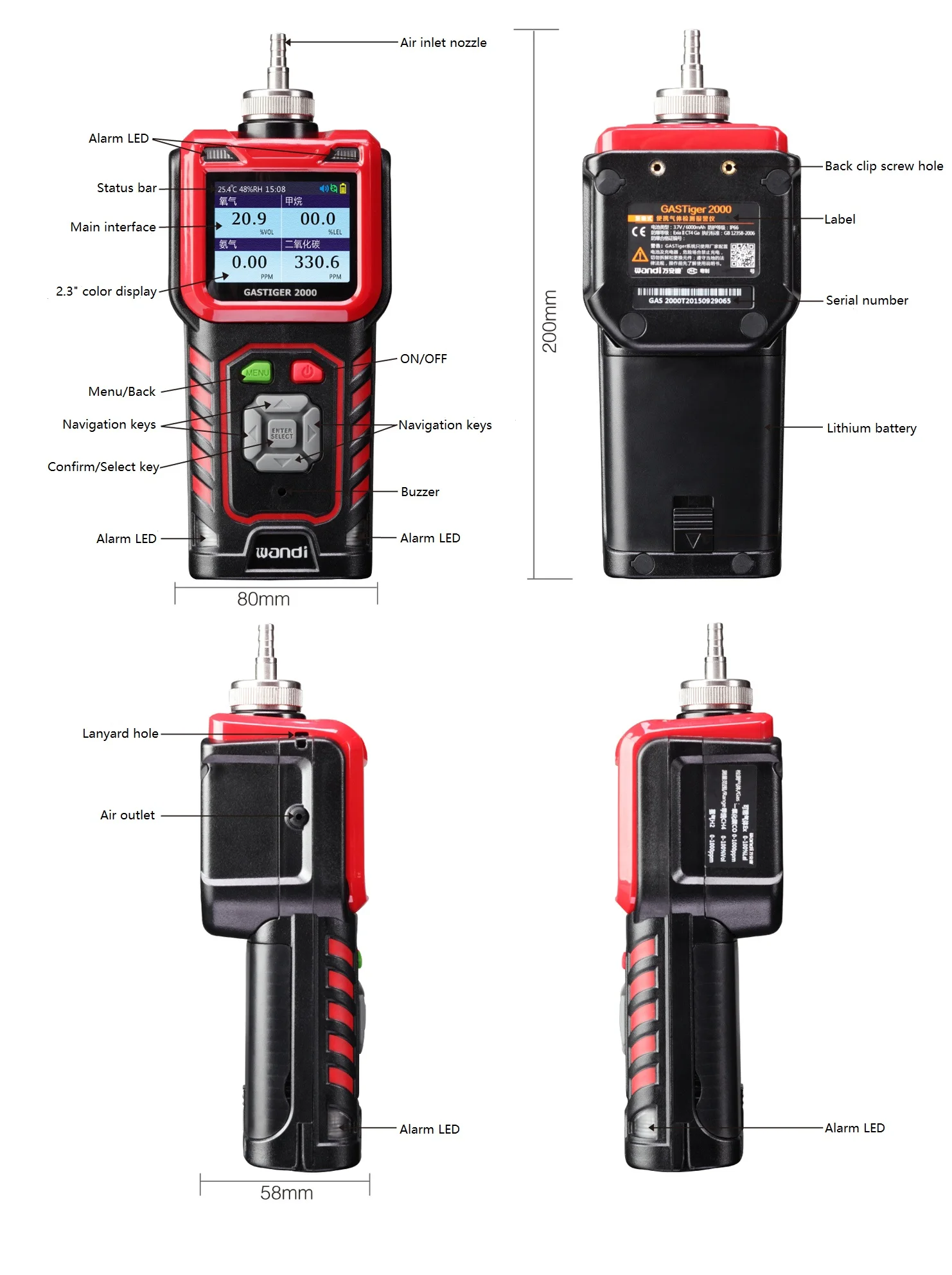

GASTiger2000 pump suction portable nitrous oxide gas detector adopts imported high performance nitrous oxide sensor, is an intelligent high-performance detection alarm that can continuously detect and monitor nitrous oxide gas and with function of people falling alarm. It is built-in temperature and humidity sensors, display temperature and humidity real-time. GASTiger2000 wireless function allows the security personnel can get a real-time equipment data and alarm status in any place. Visual data displays, large 2.3 inch full-color screen and quicker response time help improve personnel safety and protection to a whole new level.
Main Features
1. Imported high-performance sensor, 2~3 years long service life.
2. Active pump suction, short response time, embedded 32-bit ultra-low power microprocessor, small error and high resolution.
3. Built-in temperature and humidity sensors, real-time display temperature and humidity.
4. Intelligent temperature, humidity and zero point compensation algorithm, 3 to 8 level of the target-point automatic calibration function by software, ensure the accuracy of measurement results; auto detection working status of various sensors and components.
5. 2.3 inch full-color screen, large and clear back light ensure measurement information can be displayed in any lighting
conditions, simple UI color icon menu, 7 buttons navigation friendly user interface, shows the design of humanization, international.
6. Support free switch of PPM, %VOL, mg/m3, mg/L concentration unit, support Chinese and English interface free switch.
7. Standard 6000 mAh capacity lithium battery, more than 30 hours continuous working time, support mobile power supply and charging, USB port mobile phone charger compatible.
8. Standard 5V 2.1A USB quick charger, plug removable, each charger is equipped with four plugs (US, Europe, UK/HK, AU standard).
9. Real-time data transmission in 5 different alarm modes accurately sent to both local and remote alarm notification, including security personnel falling alarm.
10. First class mechanical design, high strength abrasion resistant polycarbonate enclosure, rugged, waterproof and anti-corrosion, anti-electromagnetic radiation; reasonable scientific gas chamber design, ensure sensors are not affected by environment; IP66 protection degree.
11. Real-time detection and timing detection 2 modes for choice, multiple storage modes such as auto storage, manual storage and single point storage. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery.
12. RTU short distance wireless transmission or any place that unlimited distance of GPRS wireless transmission modes are both available through the built-in wireless module. Sending the real-time detection results and alarm status to security center;
13. Support USB data download, support micro-portable printer, bluetooth wireless printing.
3. Built-in temperature and humidity sensors, real-time display temperature and humidity.
4. Intelligent temperature, humidity and zero point compensation algorithm, 3 to 8 level of the target-point automatic calibration function by software, ensure the accuracy of measurement results; auto detection working status of various sensors and components.
5. 2.3 inch full-color screen, large and clear back light ensure measurement information can be displayed in any lighting
conditions, simple UI color icon menu, 7 buttons navigation friendly user interface, shows the design of humanization, international.
6. Support free switch of PPM, %VOL, mg/m3, mg/L concentration unit, support Chinese and English interface free switch.
7. Standard 6000 mAh capacity lithium battery, more than 30 hours continuous working time, support mobile power supply and charging, USB port mobile phone charger compatible.
8. Standard 5V 2.1A USB quick charger, plug removable, each charger is equipped with four plugs (US, Europe, UK/HK, AU standard).
9. Real-time data transmission in 5 different alarm modes accurately sent to both local and remote alarm notification, including security personnel falling alarm.
10. First class mechanical design, high strength abrasion resistant polycarbonate enclosure, rugged, waterproof and anti-corrosion, anti-electromagnetic radiation; reasonable scientific gas chamber design, ensure sensors are not affected by environment; IP66 protection degree.
11. Real-time detection and timing detection 2 modes for choice, multiple storage modes such as auto storage, manual storage and single point storage. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery.
12. RTU short distance wireless transmission or any place that unlimited distance of GPRS wireless transmission modes are both available through the built-in wireless module. Sending the real-time detection results and alarm status to security center;
13. Support USB data download, support micro-portable printer, bluetooth wireless printing.
Technical Parameters
Name | Portable nitrous oxide gas detector |
Model | GASTiger2000 |
Detection gas | Nitrous oxide gas (N2O) in air |
Working principle | TCD thermal conduction(Infrared is optional) |
Detection range | 0~10ppm, 0~50ppm, 0~100ppm, 0~500ppm, 0~1000ppm, 0~2000ppm, 0~10000ppm(optional) |
Resolution | 0.01ppm(0~100ppm); 0.1ppm(0~1000ppm); 1ppm(>1000ppm) |
Sampling method | Active pump suction, built in air pump can open or close independently Flow speed: 500mL/min |
Accuracy | ≤±3% F.S. |
Repeatability | ≤±1% |
Zero drift | ≤±1%(F.S./year) |
Response time | ≤20s(T90) |
Recovery time | ≤30s |
Dimensions | 80mm×200mm×58mm(L*H*W) |
Shell material | High strength abrasion resistant polycarbonate enclosure Stainless steel |
Weight | 0.52Kg |
Battery | Standard 6000 mAh capacity lithium battery, more than 30 hours continuous working time, charging time less than 7 hours, support mobile power supply and charging, USB port mobile phone charger compatible. |
Charger | Standard 5V 2.1A USB quick charger, plug removable, each charger is equipped with four plugs (US, Europe, UK/HK, AU standard). |
Alarm method | Sound alarm 95 dB@30cm, red LED alarm light, personnel falling alarm, short distance wireless and long distance GPRS alarm. |
Alarm value setting | A1 alarm value, A2 alarm value TWA, STEL and low concentration alarm value can be set individually. |
Screen | 2.3 inch TFT |
Backlight | Manual, automatic when alarming |
Button | 7 buttons navigation |
Direct reading | Measured value, data logging status, pump working status, environment temperature and humidity, maximum value, minimum value, average value |
Data storage | Auto storage, manual storage and single point storage. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery. |
Data download | Support USB data download; support GPRS wireless transmission (optional) |
Data print | Support micro-portable printer, bluetooth wireless printing. |
Calibration | 3 to 8 level of the target-point automatic calibration, can set the calibration certified value, zero setting. |
Explosion proof | ExdⅡCT4 Ga (Intrinsically Safe) |
Protection class | IP66 (water and dust proof) |
Operation mode | User mode, administrator mode |
Working temperature | -40℃~70℃ (If match with high temperature sample handles, can measure up to 800℃) |
Working humidity | 0-95%RH (Non-condensing) |
Standards | GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010 |
Patent certificate | Patent No.: ZL 2015 3 0122378.4 |
QA | One year, maintenance free in warranty time |
Application
