#Cement Brick Making Machine#Paving Brick Machine#Concrete brick block machine

•Applications:

QT4-24 brick machine,use cement and aggregates to make mortar,then presss mortar into bricks,blocks.

By changing the mold, you can make diffenrent shape/size of cement bricks,paving bricks,holllow bricks.Big size blocks

are also available.

• Working Principle

Table vibration plus upmold pressing,which can maximum keep air out the concrete,ensuring the high strength of finished bricks.

• Power Source

3phase power,also callded industrial electricity,industrial power.

You need get it from local grid company.

• Raw Material

It uses sand, gravel and cement as raw material, This is the most popular proportion in making block making machine:
1. Standard cement brick: Cement 9-12%, sand 40%, stone 45%, water 3%

• Capacity

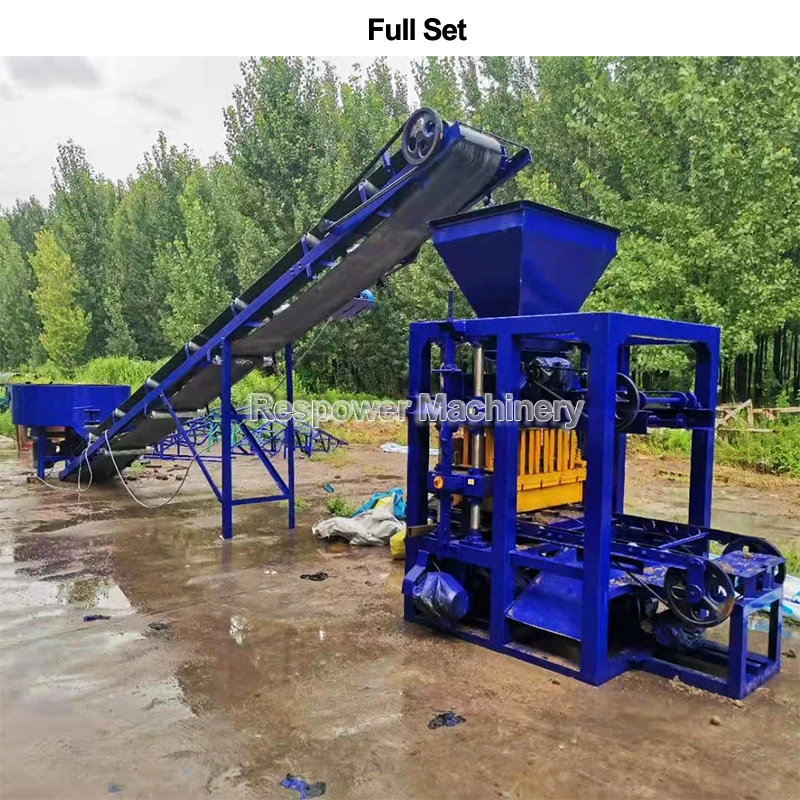

Full set of semiauto block production line can make 3000pcs of 20X20X40CM (8X8X16")conrete brick/cement brick.

Or 150m2 paving bricks,pavers.

Size (L*W*H)	Pcs/Mould	Pcs/Hr	Pcs / 8 Hr
400*100*200mm	7	720-900	5760-7200
400*127*200mm	6	420-450	3360-3600
400*150*200mm	5	450-560	3600-4480
400*200*200mm	4	360-450	2880-3400
245*130*60mm	9	810-1012	6480-8096

• Specification of Cement brick making machine

Model	QT4-24	Brand	Respower
Size(L x W x H)	2200*1600*2540mm	Weight	2600kg
Block molding period	50s	Vibration force	40kn
Pallet size	850X550X20mm	Vibration Type	Table Vibration
Block moulding machine Power	13.45kw	Vibration frequency	3500r/min
Full production line Power	22.05kw	Motor	Chinese Brand

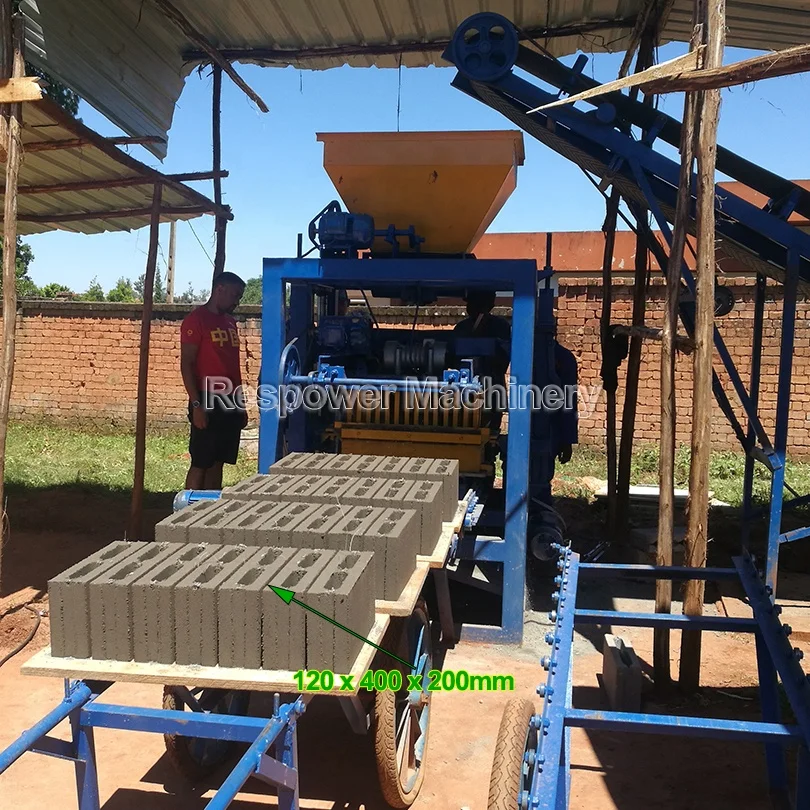

• Product Show

• Packaging and shipping

This semi automatic brick making machine need a full 20ft container to ship.
