7 00 мм пластина для флексографической печати
- Категория: Printing Plate >>>
- Поставщик: Shanghai,Shangkai,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.20 $* | 0.77 $* |
| Aug-16-2025 | 0.38 $* | 0.72 $* |
| Jul-16-2025 | 0.21 $* | 0.33 $* |
| Jun-16-2025 | 0.12 $* | 0.69 $* |
| May-16-2025 | 0.83 $* | 0.45 $* |
| Apr-16-2025 | 0.94 $* | 0.17 $* |
| Mar-16-2025 | 0.70 $* | 0.90 $* |
| Feb-16-2025 | 0.70 $* | 0.30 $* |
| Jan-16-2025 | 0.1 $* | 0.16 $* |
Характеристики
Product Description
Specification
1- Item

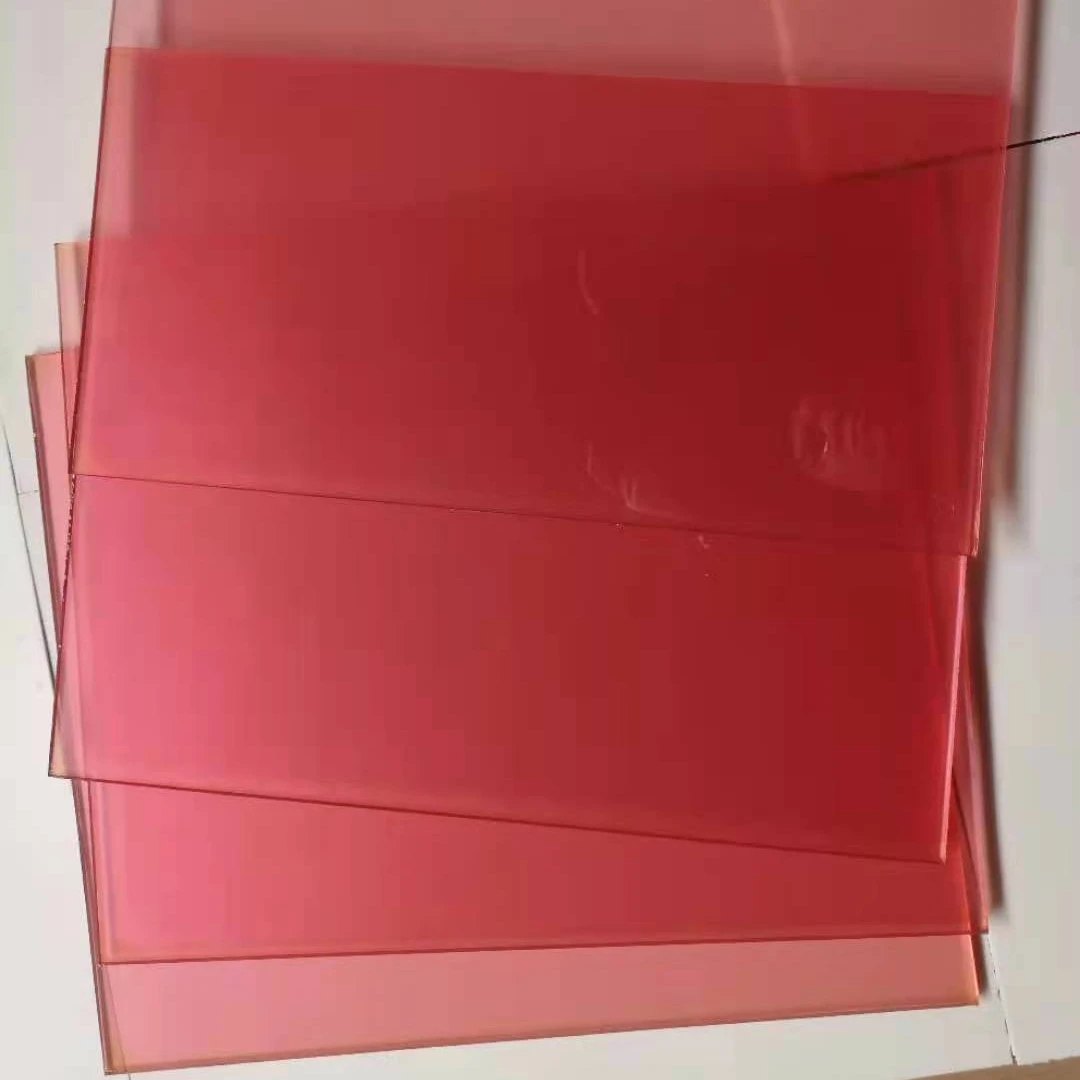

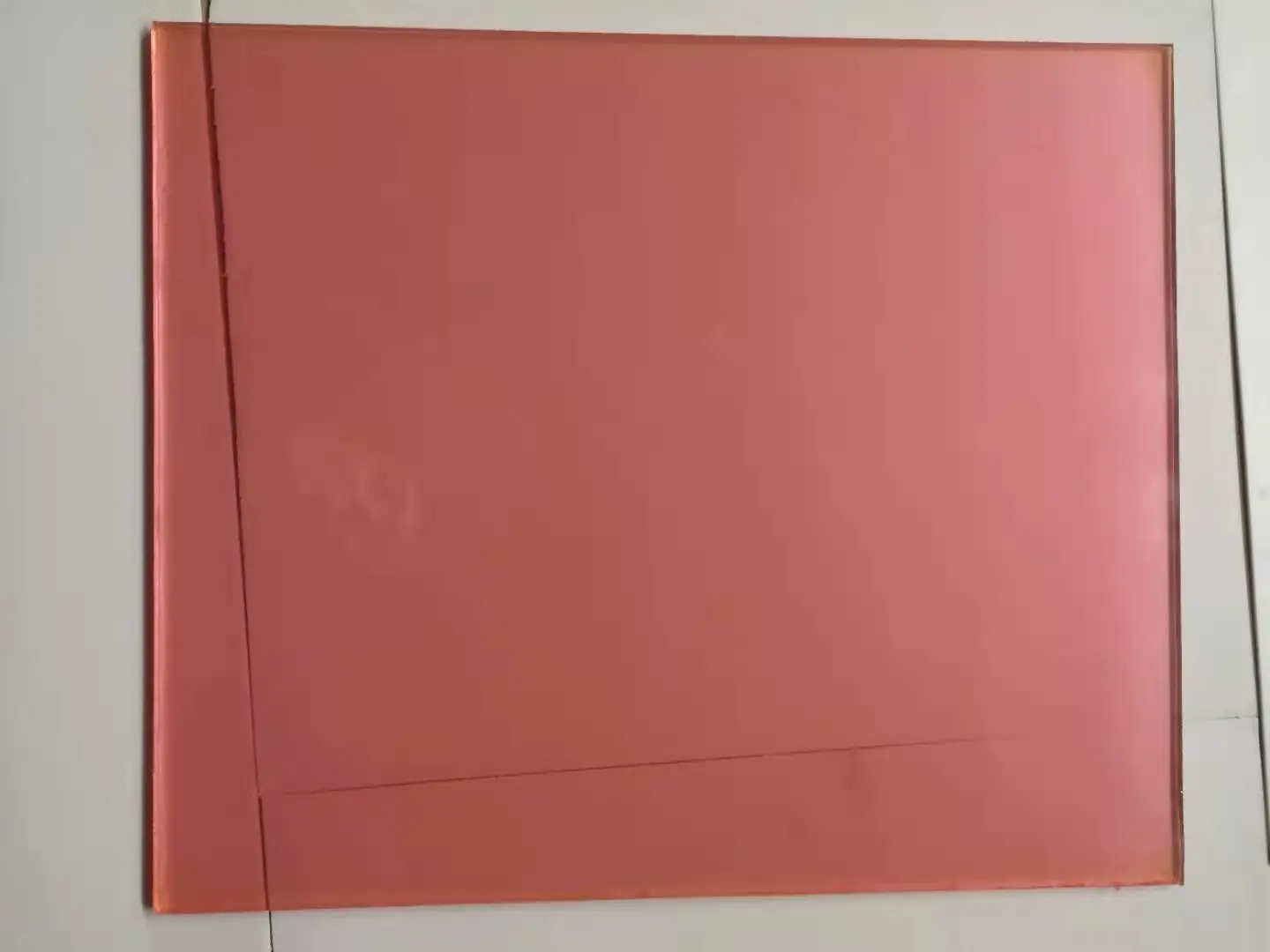

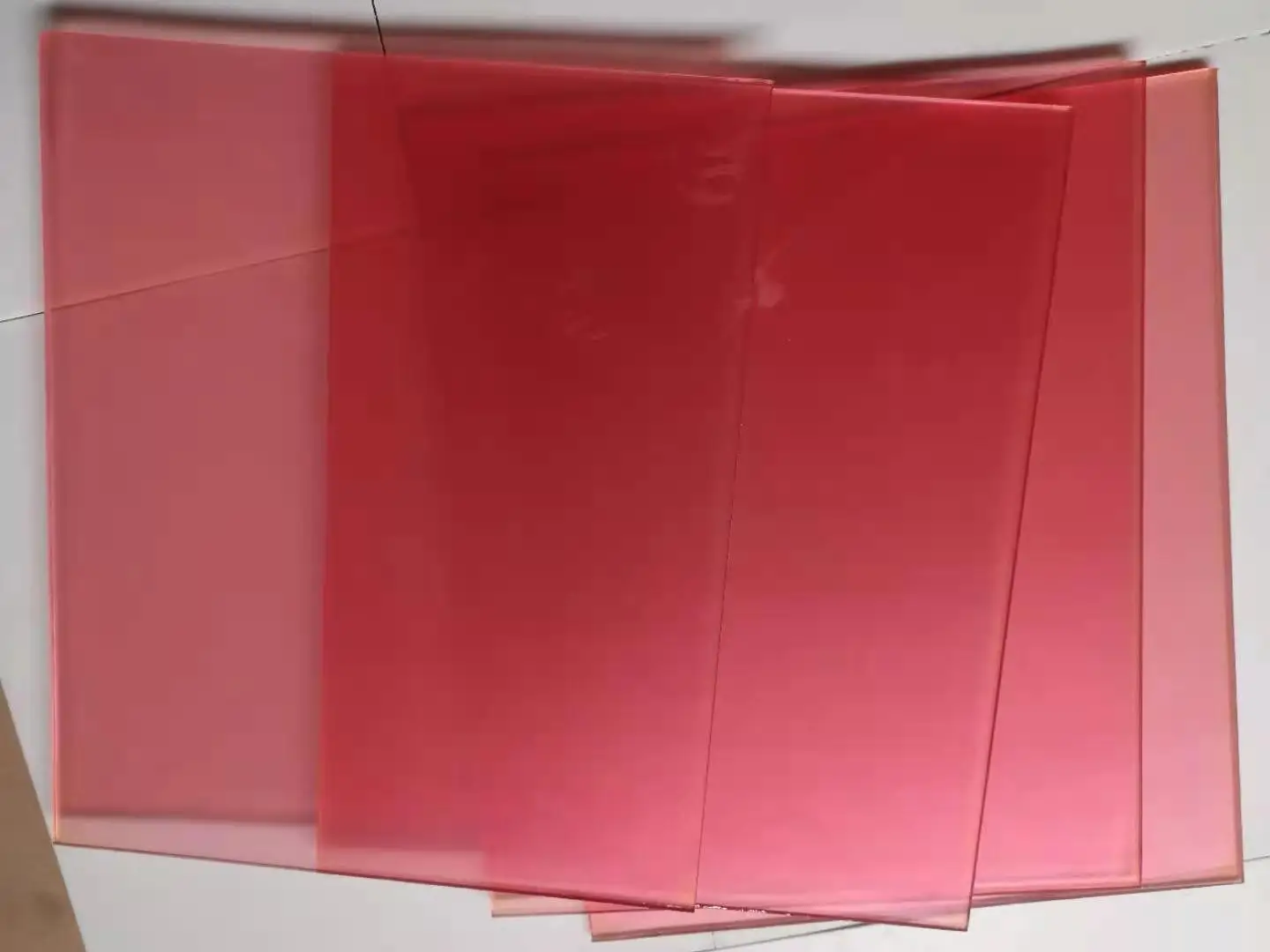

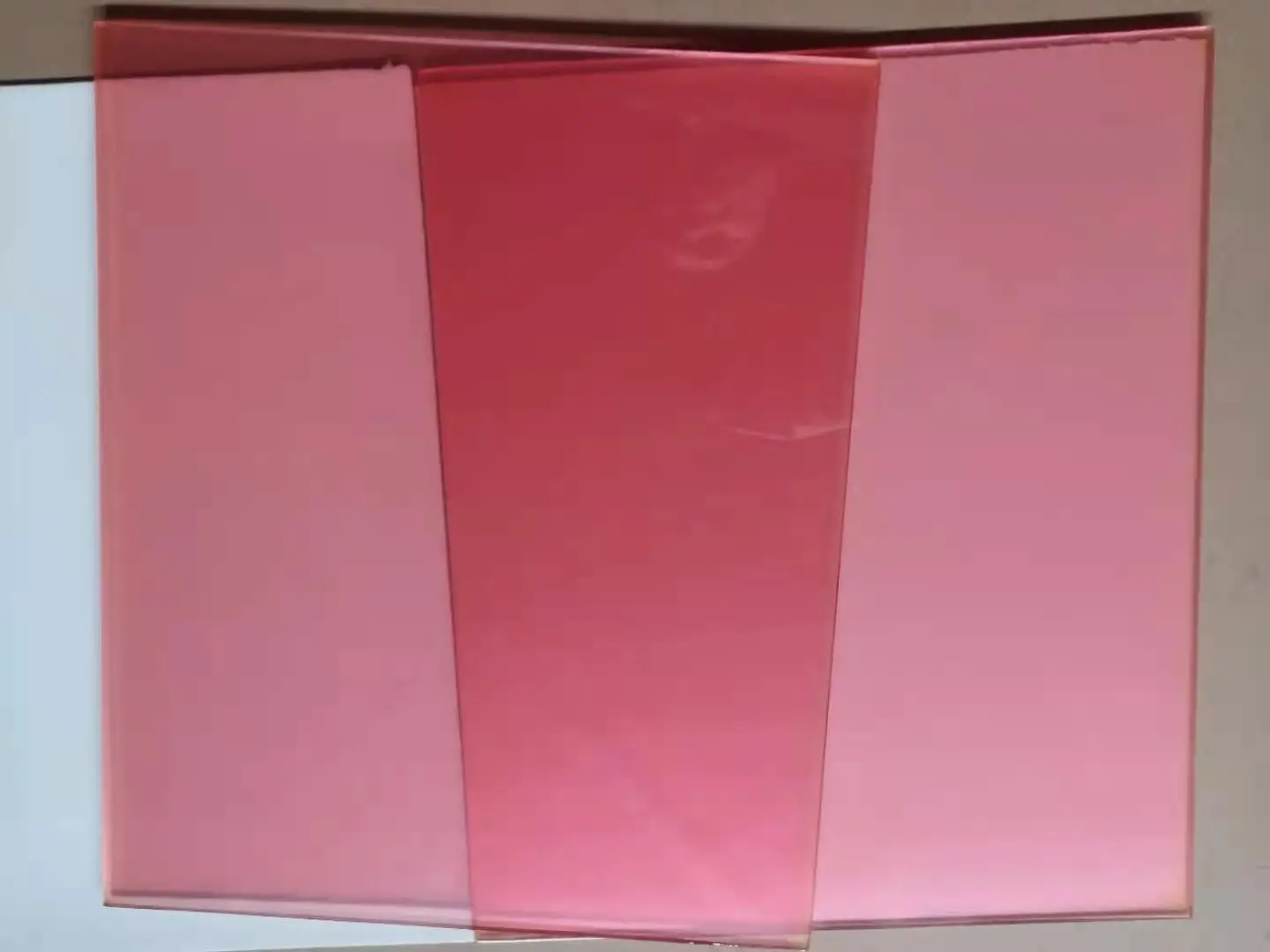

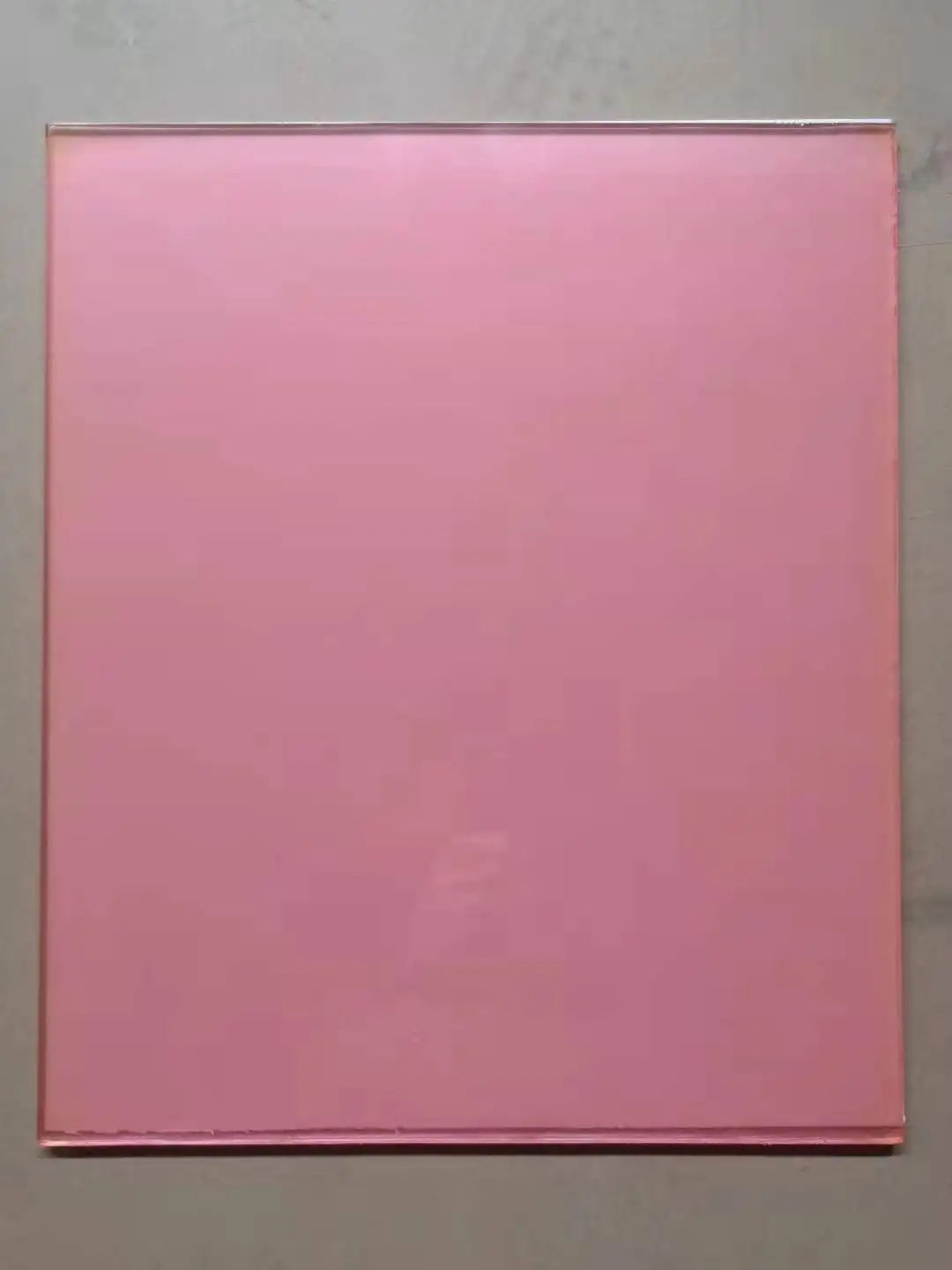

SK700 L flexo flexographic printing plate
2- Description
1,Excellent dot and isolated line reproduction
2,Solid printing performance
3,High latitude of exposure and processing
4, High impression
5 ,Good ink transfer
SK700 L flexo flexographic printing plate
2- Description
1,Excellent dot and isolated line reproduction
2,Solid printing performance
3,High latitude of exposure and processing
4, High impression
5 ,Good ink transfer
6,High Resolution Imaging Strong Toughness
3-Technical Parameters
Type: SK700L
Color : Pink
Thickness(mm): 7.00mm
Rigidity(Shore A): 35
Recommend relief depth(mm) :3.5-4.2
Image reproduction: 3%~95%
Maximum line line/inch: 60
Minimum isolated line :0.3mm (0.012inch)
Minimum isolated dot :0.5mm (0.0197inch)
Size mm (inch): 1067*1524 (42*60), 1067*2032 (42*80), 1321*2032 (52*80),
Plate Making Data:
Back exposure (seconds) : 280--310
Main exposure (minutes) : 12-18
Washing plate (minutes) : 8-13
Dry (hours) : 2-3
Detackfying(minutes) : 6-10
Post exposure(minutes)： 7-10
Note: Platemaking conditions: VUA lamp 80 ,Temperature of plate maker:20-30°C
Suitable ink Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing
ethyl acetate of more than 25%
Storage—raw plates Unexposed plates should be stored in cool areas (4-32°C)away from heat. The plates must be placed flatly, and
protected from contacting UV light. It is recommended to unpacked and handled in yellow light.
Storage—finished Plates Printing plate should be avoid excessive white light, irradiating from sunlight and exposing in high
concentrated ozone environments for a long time either. After being unloaded, the plates should be cleaned thoroughly.
Guarantee Period Under the recommended storage condition, guarantee period of Flexographic Printing Plate is 24 months.
Please feel free to contact me online or send me a message if you are interested in our products, thank you!
3-Technical Parameters
Type: SK700L
Color : Pink
Thickness(mm): 7.00mm
Rigidity(Shore A): 35
Recommend relief depth(mm) :3.5-4.2
Image reproduction: 3%~95%
Maximum line line/inch: 60
Minimum isolated line :0.3mm (0.012inch)
Minimum isolated dot :0.5mm (0.0197inch)
Size mm (inch): 1067*1524 (42*60), 1067*2032 (42*80), 1321*2032 (52*80),
Plate Making Data:
Back exposure (seconds) : 280--310
Main exposure (minutes) : 12-18
Washing plate (minutes) : 8-13
Dry (hours) : 2-3
Detackfying(minutes) : 6-10
Post exposure(minutes)： 7-10
Note: Platemaking conditions: VUA lamp 80 ,Temperature of plate maker:20-30°C
Suitable ink Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing
ethyl acetate of more than 25%
Storage—raw plates Unexposed plates should be stored in cool areas (4-32°C)away from heat. The plates must be placed flatly, and
protected from contacting UV light. It is recommended to unpacked and handled in yellow light.
Storage—finished Plates Printing plate should be avoid excessive white light, irradiating from sunlight and exposing in high
concentrated ozone environments for a long time either. After being unloaded, the plates should be cleaned thoroughly.
Guarantee Period Under the recommended storage condition, guarantee period of Flexographic Printing Plate is 24 months.
Please feel free to contact me online or send me a message if you are interested in our products, thank you!
Company Profile
Shanghai shangkai industry co,Ltd is a joint-stock enterprises ,the company specializes in sales of flexo printing plates and flexo printing consumables,offering accomplished after-sale services.shanghai shangkai industry has more than 12 years of sales history and a professional enterprise with advanced managerial and technological system.
The products by the company are highly recognized for their reasonable prices and superb qualities,quality、price and service are the majorconcern of the company currently.
Shanghai shangkai industry is proud of its over 400 clients in China and other countries,which both the printing factory direct users,but also the various size professional plate-making company.
Shanghai shangkai industry adhrers to the principle of customer first,striving to improve the overall quality of its staff, to further training programs regarding service quality and to perfect the order-delivrey-settlement flow process and the customer information management.The company is confident in the provision of high-quality products and after-sale services to meet the various demands by its customers and clients.
The products by the company are highly recognized for their reasonable prices and superb qualities,quality、price and service are the majorconcern of the company currently.
Shanghai shangkai industry is proud of its over 400 clients in China and other countries,which both the printing factory direct users,but also the various size professional plate-making company.
Shanghai shangkai industry adhrers to the principle of customer first,striving to improve the overall quality of its staff, to further training programs regarding service quality and to perfect the order-delivrey-settlement flow process and the customer information management.The company is confident in the provision of high-quality products and after-sale services to meet the various demands by its customers and clients.
Exhibition
Main Market
Packing And Shipping
Our Services
1. We have our own brand,currently the sales region covers 20 countries and regions around the world. We specialize in this field for more than 12 years, with the strength of market, with good quality and pretty competitive price.
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
3. We can give customer the most competitive price to meet your budget
4、If customers pay for the freight, we can send you some samples for testing
5. Experienced staffs answer all your questions.
Please feel free to contact me online or send me a message if you are interested in our products, thank you!
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
3. We can give customer the most competitive price to meet your budget
4、If customers pay for the freight, we can send you some samples for testing
5. Experienced staffs answer all your questions.
Please feel free to contact me online or send me a message if you are interested in our products, thank you!
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
