Характеристики
Recommend Products
Product Description
Brief Introduction
The machine adopts ISO international Code,Keyboard Manual Data Input, it is also provided with program of power cut-off protection and the functions of automatic diagnosis, and with RS232 interface.Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
The machine adopts ISO international Code,Keyboard Manual Data Input, it is also provided with program of power cut-off protection and the functions of automatic diagnosis, and with RS232 interface.Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
Characteristic
Either gang tool post or 4-way automatic tool post can be selected. Both chuck and tailstock are supplied with hydranlic of manual
or pneumatic type. Infinitely variable speed change for spindle.
Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
This machine is an economical CNC lathe controlled by a micro computer and driven by servo motors. It is suitable for turning
cylindrical and taper faces, boring, grooving and cutting threads.(Including taper threads)
Either gang tool post or 4-way automatic tool post can be selected. Both chuck and tailstock are supplied with hydranlic of manual
or pneumatic type. Infinitely variable speed change for spindle.
Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
This machine is an economical CNC lathe controlled by a micro computer and driven by servo motors. It is suitable for turning
cylindrical and taper faces, boring, grooving and cutting threads.(Including taper threads)
This series lathe machine is an economical ,practical type machine tools with good quality , they are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, whitworth, module and diameteral pitch threads as well as taper turning, facing, drilling, reaming and broaching for oil grooves and keyways etc. The workpiece produced on machine can achieve good accuracy and surface roughness Ra1.6um.
Specification
Items | 32902 | 32903 | 32901 | ||

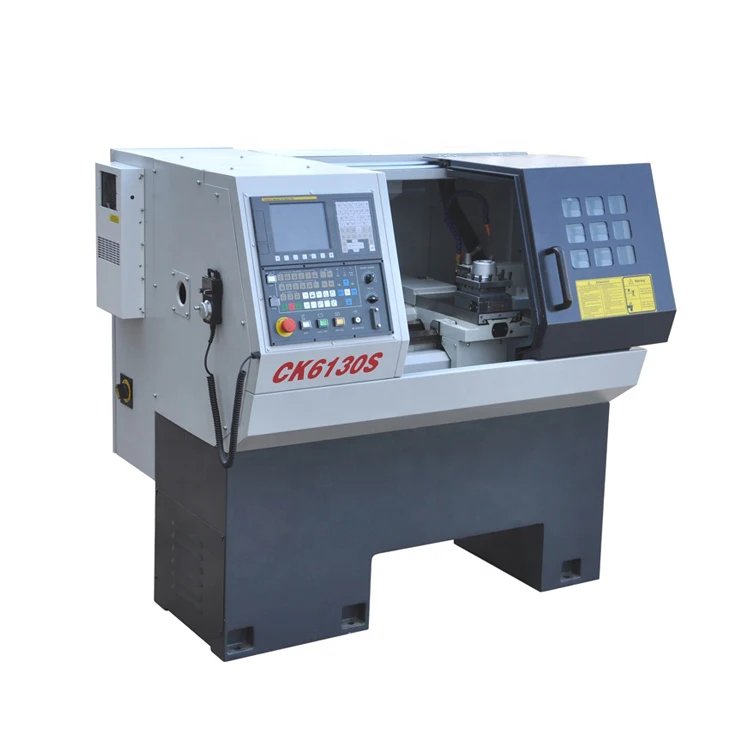

CK6130S | CK6136S | CK6140S | |||
Max.swing over bed | F300mm | F360mm | F410mm(16") | ||
Max.swing over slide | F135mm/100mm(gang tools) | F270/180mm(gang tools) | F240mm/F150mm(gang tools) | ||
Max.cross travel(X) | 180/270mm(gang tools) | 230/300mm(gang tools) | 235/300mm(gang tools) | ||
Max.length of workpiece | 500mm | 500、750、1000mm | |||
Rapid feed for Axis X | 5m/min | ||||
Rapid feed for Axis Z | 8m/min | ||||
Range of spindle speeds(Stepless) | 200-3500r/min | 200-2800r/min | |||
Spindle bore | F40mm | F40 | F52 | ||
Taper bore of spindle | MT No.5 | MT No.6 | |||
3-jaw chuck of collet | F160 or 5c | F200 or 5c | |||
Tool post | 4-way or 6-way or gang tools | ||||
Servomotor power(X/Z) | 0.75/1.0kW | ||||
servomotors | |||||
Size of tool shank | 20x20mm | ||||
Min.input | 0.001mm | ||||
Repeatability(X/Z) | 0.0075/0.01mm | ||||
Surface roughness | ≤Ra0.8µm(Nonferrous)≤Ra1.6µm(Steel part) | ||||
Main motor power | 3KW(4HP) | 3.7KW(5HP) | |||
Overall dimensions(L X W X H) | (1870,2120,2370)x1200x1415mm | ||||
Net weight | 950 | 1700,2000,2200 | 1800,2100,2300 | ||
