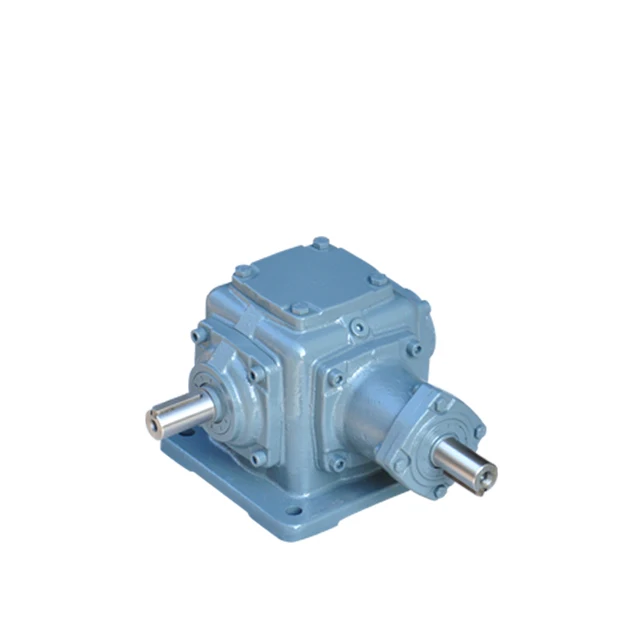

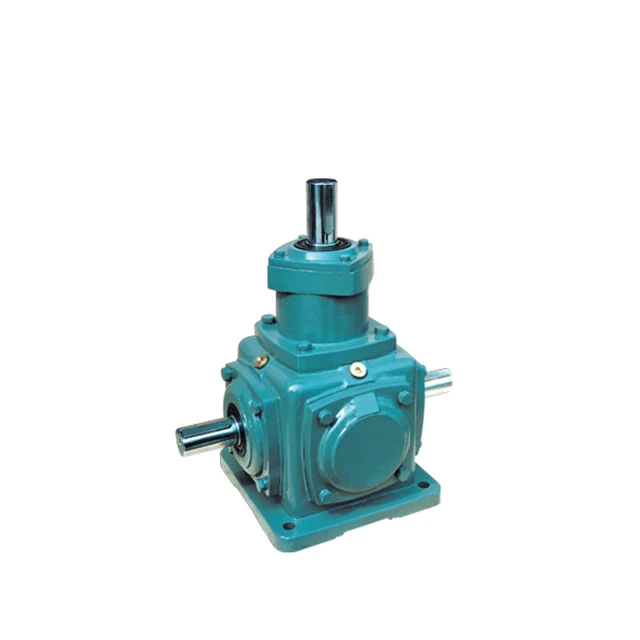

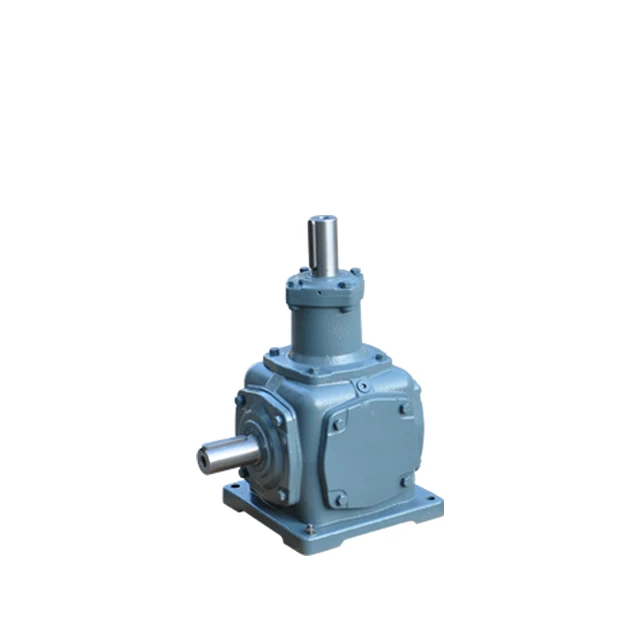

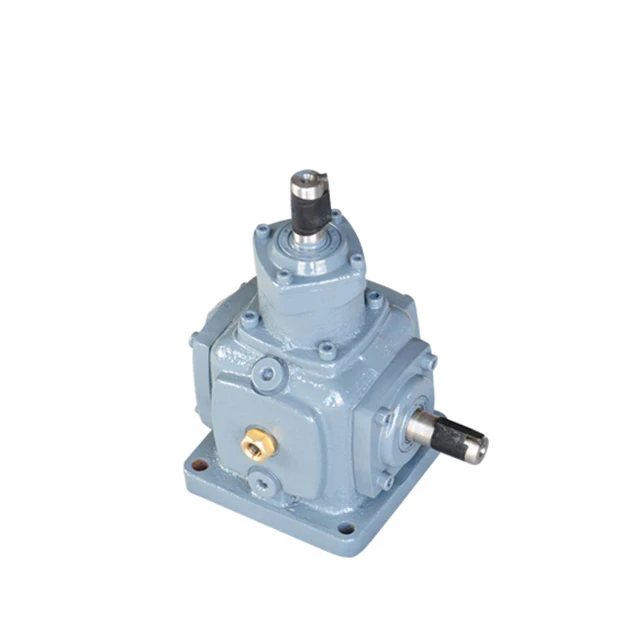

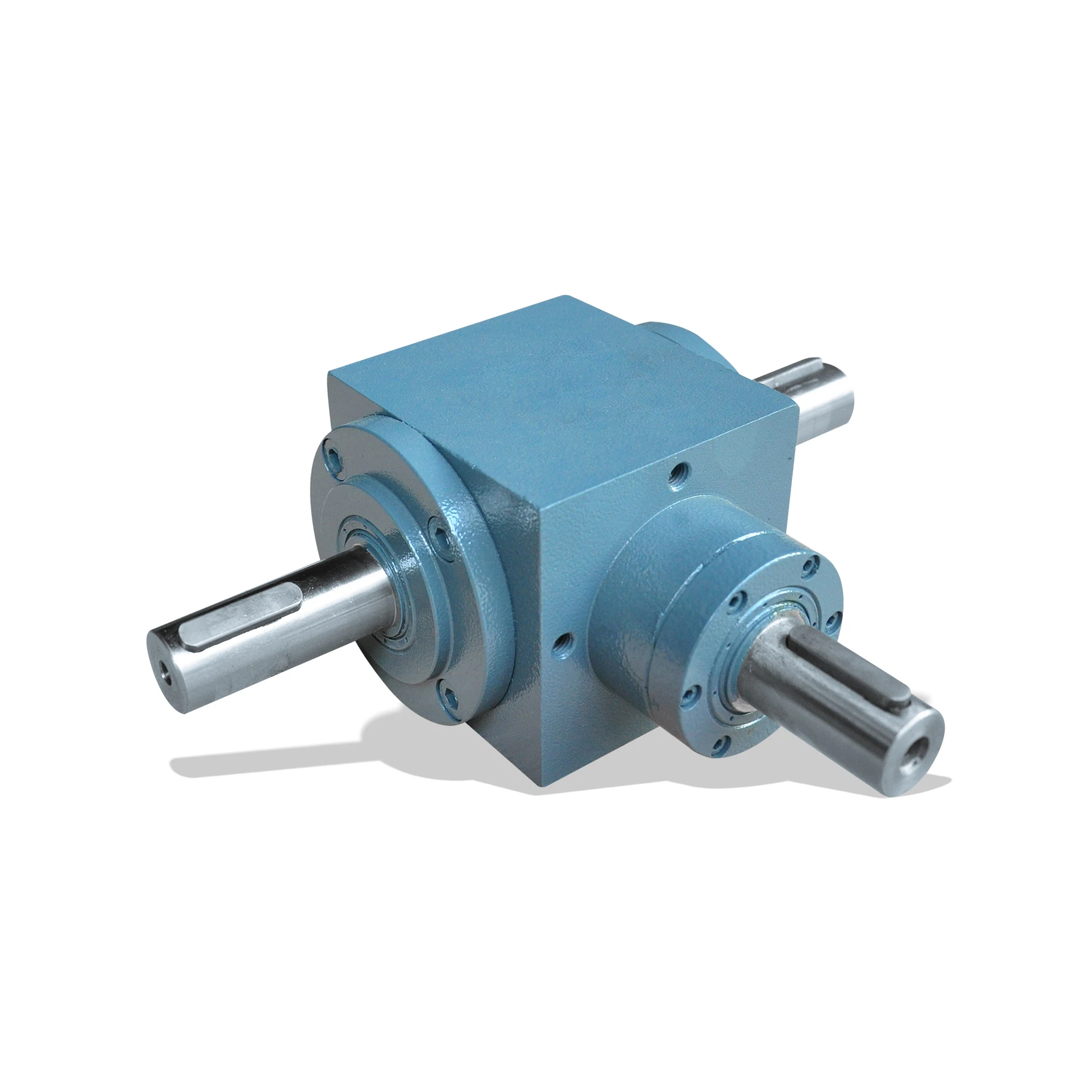

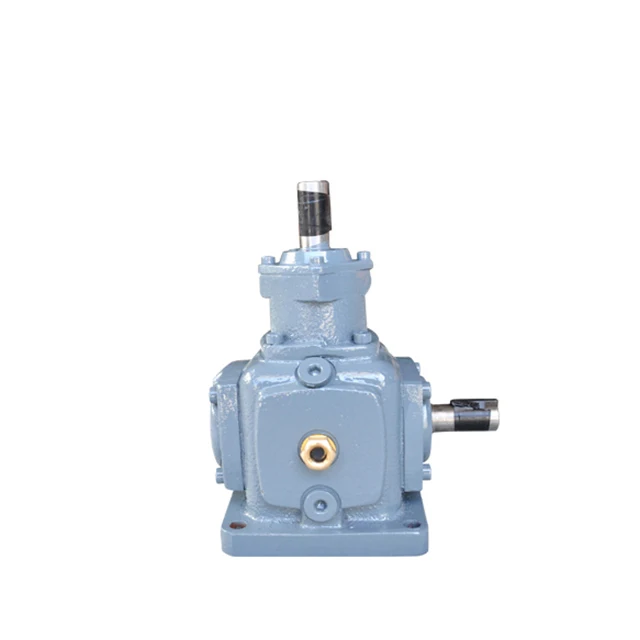

T Series 90 градусов 2: 1 отношение прямоугольный редуктор коробки передач рулевой привод

Описание и отзывы

Трекер стоимости

Характеристики

Features.
Standard and various, ratio 1:1,1.5:1,2:1,3:1, all are exact ratio.
When the ratio is not 1:1 and pinion shaft is input, so cross shaft is reduced output. When cross shaft is input, the pinion shaft is increased output.
Spiral bevel gear, stable transmission, low noise level, small vibration and strong loading capacity.
Double input shaft is available.
Multiple output shaft is available.
Any mounting position is available.

Main applied for
Agriculture and food
Building and construction
Forest and paper
Metal processing
Chemical industry and environmental protection

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58~62
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	Accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, cementiting, quenching, etc.
Efficiency	98%
Noise (MAX)	60~68dB
Vibration	≤20µm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal	NAK --- Taiwan or other brands requested



Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have other question, freely to contact us,please.
