Machine

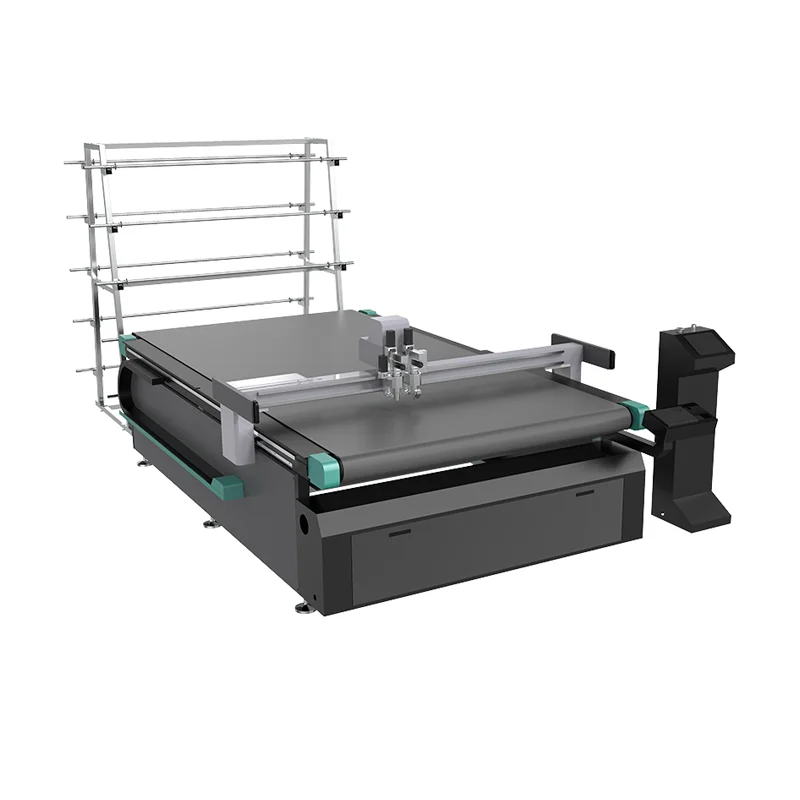

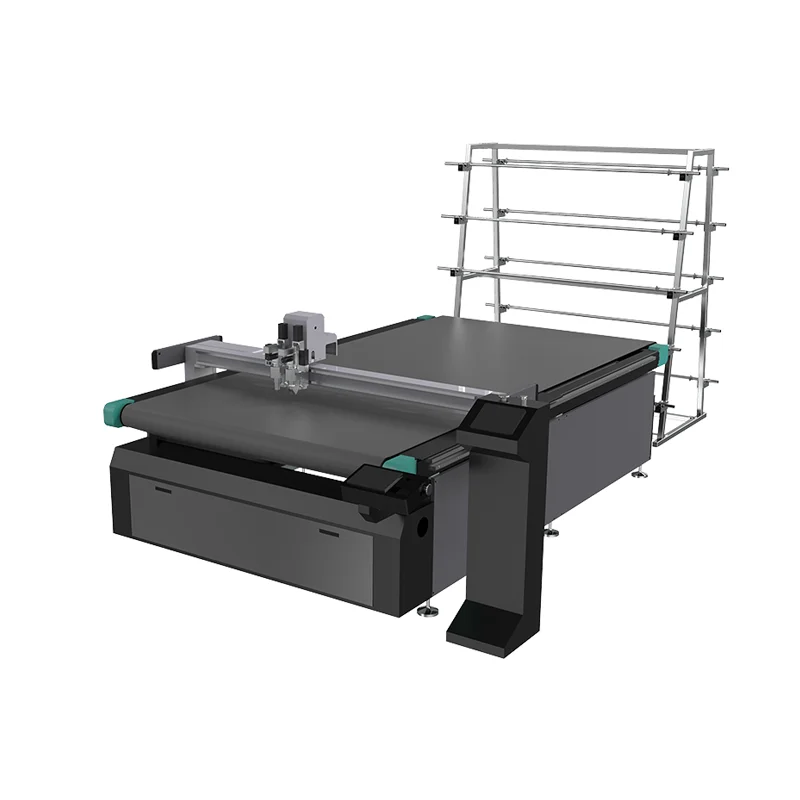

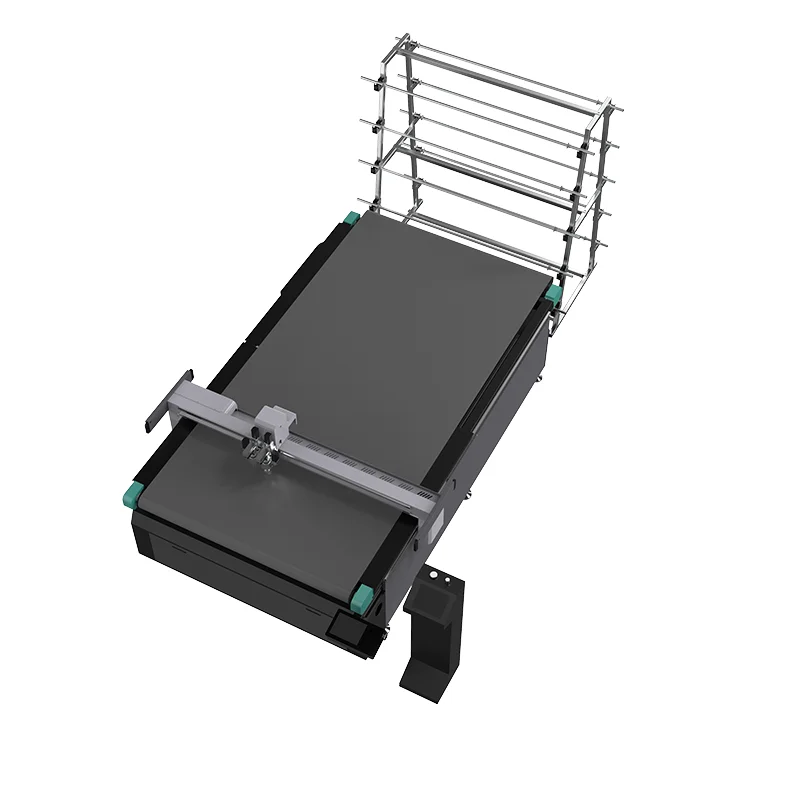

Fixed Table Double Heads Digital Knife Cutting Machine

Model

2516D/ 1531D/ 2516S/ 1531S

Cutting tools

Big Power Oscillating cutting tool

Driven Rotary Tool

Driven Rotary Tool Optional

Tool head

One

Working area

2500mm (Width Y Axis)*1600mm (Length X1, X2 Axis)

Cutting speed

0-1,500mm/s(according to different cutting materials)

Cutting thickness

≤10mm

Cutting accuracy

≤0.1mm

Drive system

Delta servo motors and drivers

Transmission system

HIWIN linear square guide rails

Instruction system

HP-GL compatible format

Vacuum pump power

9 KW

Graphic format supported

PLT, DXF, AI, etc.

Auto Loading Table

Auto Loading Table Optional

Compatible

CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.

Safety device

Infrared sensors and and emergency stop devices

Working voltage

AC 220V/ 380V±10%, 50Hz/60Hz

Package

Wooden case

Machine size

3.2x2.2x1.35 Meters

Packing Size

3.27x2.28x1.57 Meters

Net weight

1050KGS

Gross weight

1150KGS
