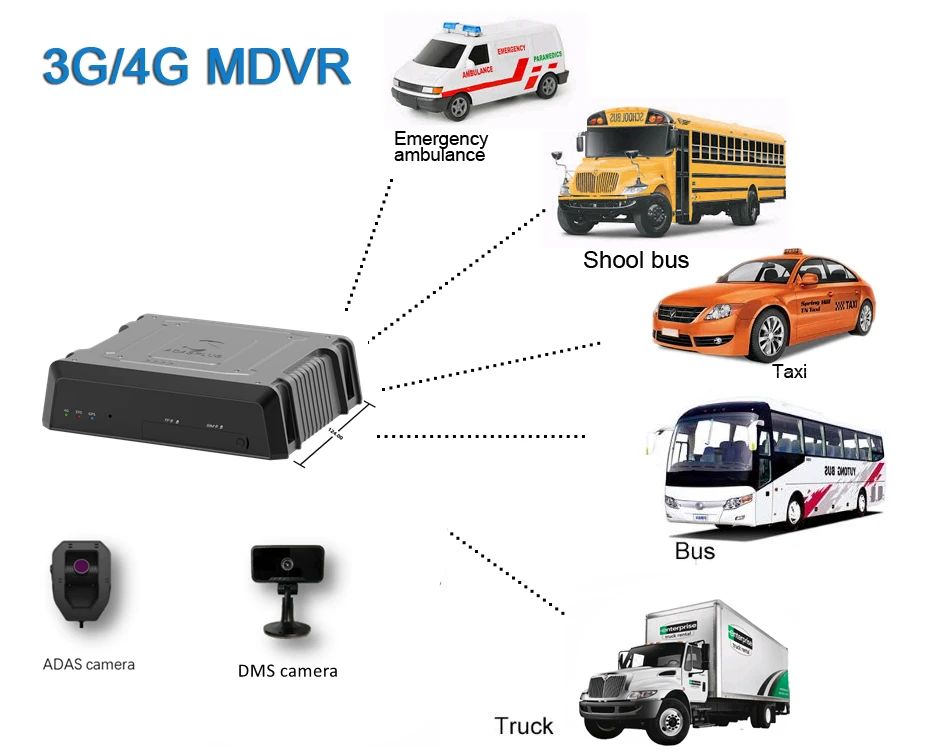

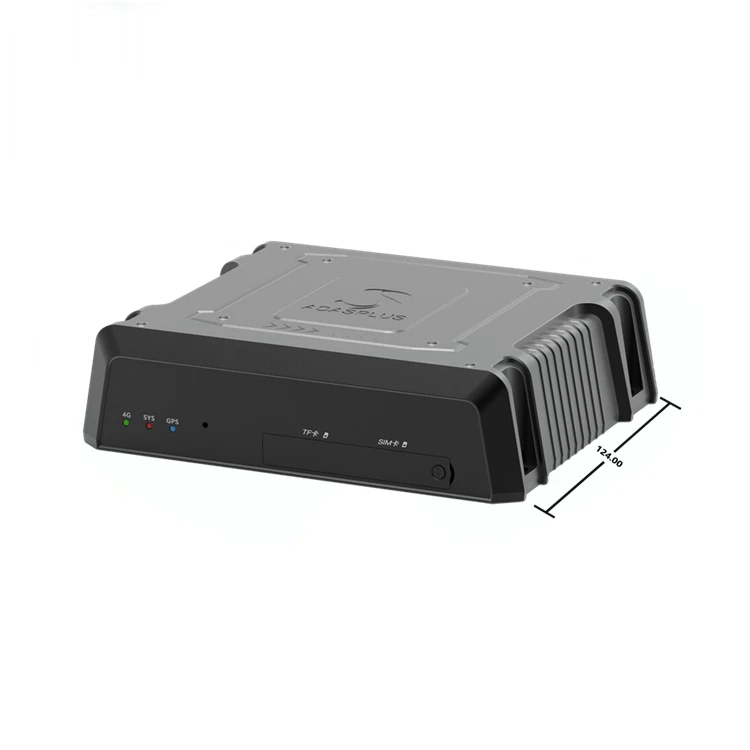

Smart ADAS DMS HD 1080P MDVR GPS WIFI 3CH HDD 4G Mobile DVR bus MDVR with Smart CMS software



Features:
1.Supports 3 channels of high-definition video capture, has good scalability and It provides multiple functions in one machine to meet different customer needs.
2.Through the instant information interconnection with the cloud platform, users can view the driving scene video, location, driving behavior and other information at any time and carry out targeted management.
3.With strong stability, it can operate normally even in complex working conditions such as rain, snow, and haze.
4.Built-in six-axis sensor, TTS voice broadcast;
5.Equipped with high-performance deep learning algorithms.
6.High-accuracy ADAS function.
7.High-accuracy DMS function.
8.High-accuracy pedestrian collision warning function and speed limit plate recognition.
9.Automatic calibration and can be quickly installed.
10.Support to connect multiple platforms.
11.Support to be equipped with hands off from steering wheel, blind spot detection.
12.Support passenger counting statistics and tire pressure monitoring equipment to be accessed.

Project instruction		Performance
Operating system		KeytechOS
Master		Binuclear the ARM the Cortex the A7-900MHz @, . 1 .0Tops neural network computing performance
ROM&RAM		1GB&8GB
Video	Video input	Support 3 channels of video input ( 2 channels 1080P, 1 channel 720P)
	Standard	PAL,NTSC
	Fps	PAL 1~25 fps , NTSC 1~30fps
	Image compression	H.264 /H.265Main profile
	Video output	Support 1channel HDMI HD output
Audio	Voice	Support 1 audio input
	Audio output	1 channel audio output
Image processing and storage	TTS voice	Support online TTS
	Image format	CIF/HD1/D1/960H/720P/1080P optional
	Dual stream	Main stream video, sub stream network transmission
	Audio compression standard	ADPCM,G.726,G.711
	data storage	1 TF card, maximum support 256 G
Input signal	Switch	Support 4 roads, which can be connected to the left /right turn signal, reversing signal and door signal of the vehicle
	ACC signal	ACC
	Emergency alarm	Support 1 emergency button
Voltage output	2 channels power output	1 channel 12VDC output
		1channel 5VDC output
Communication interface	Ethernet interface	1pcs 100M ethernet interface
	RS232	1pcs RS232
	RS485	1pcs RS232
	Wi-Fi	Support 2.4G Wi-Fi AP communication mode
	CAN	1pcs CAN
	USB	1pcs USB 2.0
	4G	Support FDD-LTE/TDD-LTE
Satellite positioning	Support GPS and Beidou dual-mode positioning
Sensor	Built-in six-axis sensor
Other parameters	Operating Voltage	9V-36V DC
	Temperature	-20℃~70℃
	Working humidity	10%~90%

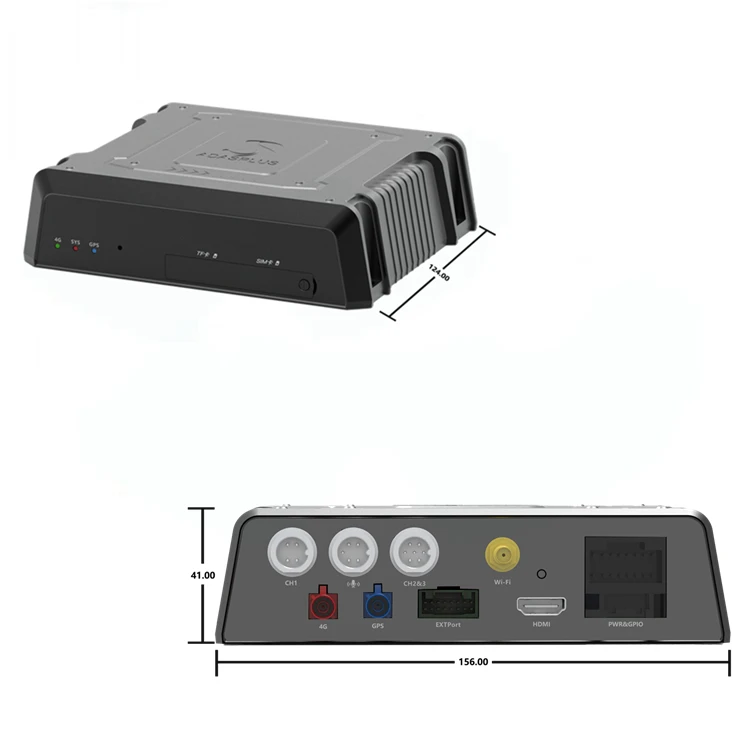

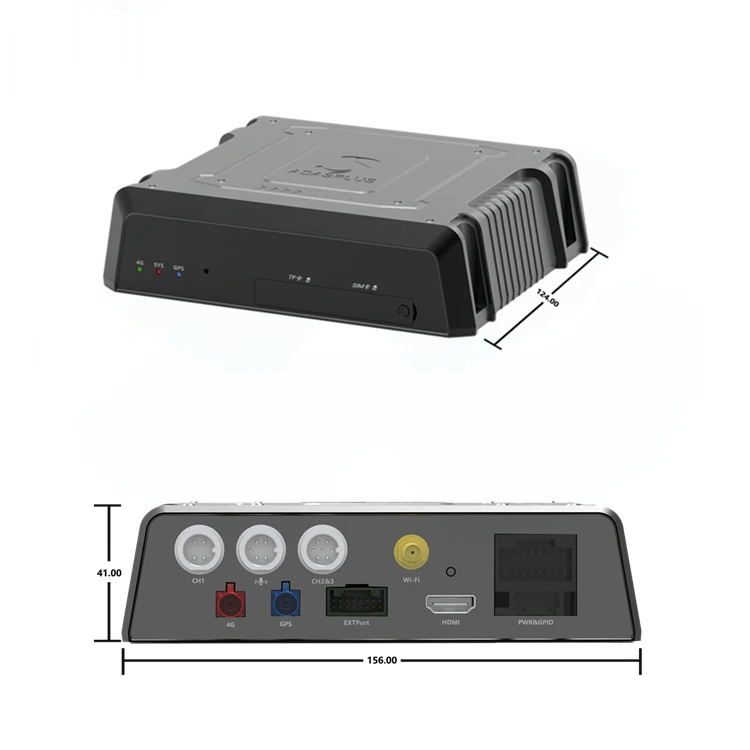

	Size	156×124×41.5 mm

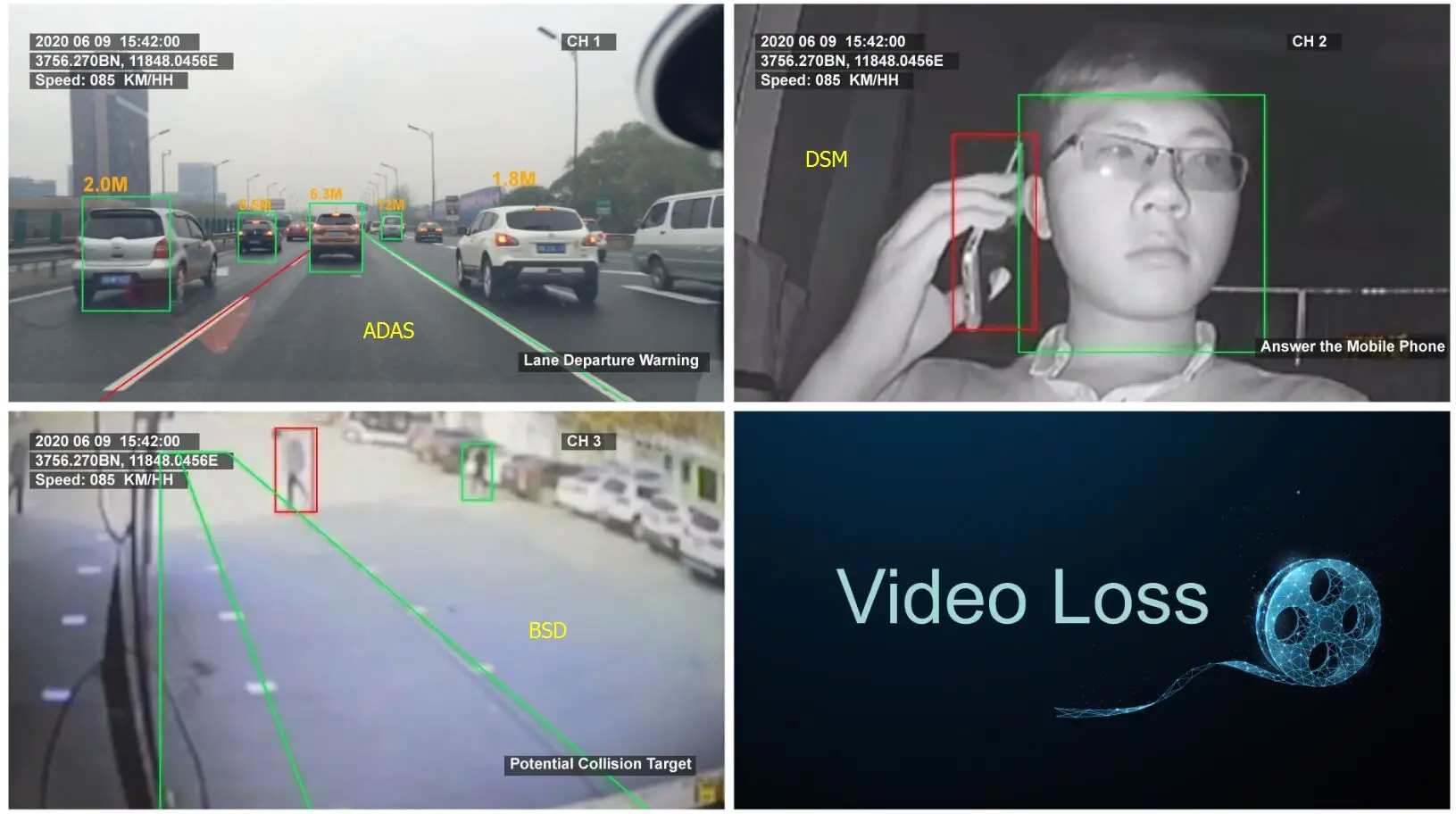

ADAS (Advanced Driving Assistance System)
1.LDW (Lane departure Warning): Identify the lane line on the road ahead through the forward-looking camera and detect the lateral position of the vehicle in the current lane in real time. When it detects that the vehicle has deviated from the current lane, the system would make a sound warning to the driver so that can improve driving safety.
2.FCW (Forward collision warning): Identify the forward vehicles
through the forward-looking camera and detect the relative speed in real time. When it is detected that the vehicle is in danger of colliding with the forward vehicle, the system would make a sound warning to the driver so that can improve driving safety.
3.PCW (Pedestrian collision warning): Identify the forward pedestrians
through the forward-looking camera and detect the distance in real time. When it is detected that the pedestrians are in the same lane ahead, the system would make a sound warning to the driver so that can avoid the accident of pedestrian collision.
4.HW (Headway warning): Identify the forward vehicles through the
forward-looking camera and detect the relative distance in real time. When it is detected that the relative distance is less than the threshold, the system would make a sound warning to the driver so as to improve driving safety.
DMS (Driver Monitoring System)
1.Fatigue driving: When the terminal detects the driver is closing eyes, yawning, overtime driving or other behaviors, the device would make a fatigue driving sound warning.
2.Calling: When the driver is detected to answer the phone, the device would make a sound warning
3.Distraction: When the driver is detected not looking straight forward or bow his head, the device would make a sound warning.
4.Smoking: When the driver is detected smoking, the device would make a sound warning.
5.Lens blocking: When the camera video signal is detected to be normal but no facial features are detected, the device would make a sound warning
6.Infrared blocking sunglasses recognition: It can recognize if the drivers are wearing infrared blocking sunglasses in all working conditions, including but not limited to day, night, forward light, backlight, side light, shaded sunlight alternately flashing, vehicle vibration, etc.

BSD (Blind Spot Detection)
BSD system can detect vehicles, moving people and objects in the blind spot. When a vehicle approaches or an obstacle appears in the blind spot, the monitoring system reminds the driver by sound, to avoid accidents caused by the blind spot.
Vehicle Monitoring Functions
1.Real-time location query: check real-time vehicle status and report a current location.
2.Regular monitoring: The terminal can upload the location information to the platform automatically after the vehicle is fired according to the time set by the administrator.
3.Specified distance monitoring:when the vehicle travels to a specified distance, it will automatically report location information to the platform.
4.Over-speed alarm: After the vehicle exceeds the speed set by the administrator, the terminal will automatically report the over- speed alarm to the platform.
5.Fatigue driving alarm: When the driving time exceeds the time set by the administrator, the terminal will automatically report the fatigue driving warning to the platform.
6.In/out of the designated area alarm: Platform setting is required to support rectangular, circular and polygonal area alarms.
7.Route deviation alarm: Support route deviation prompt and alarm, sectional speed limit prompt and alarm, in/out of the designated area or route prompt and upload information, etc.
8.Video signal loss alarm: Support camera signal identification then the terminal will automatically report fault alarm to the platform.
9.Low voltage alarm: When the main power supply voltage of the active safety intelligent terminal is 24V, when it is lower than 18V, A battery lower voltage alarm will occur at the terminal; the main power supply is 12V. When it is lower than 9V, the terminal will bottle lower voltage alarm.
10.Location antenna disconnection alarm: When the antenna is not connected or the link is damaged, the terminal will give a voice prompt.

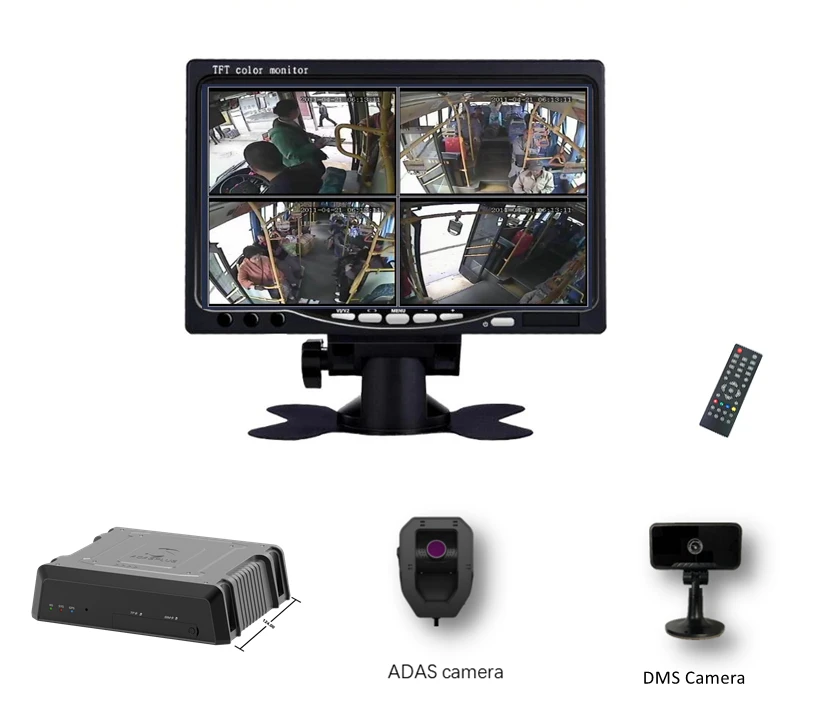

Packing List
1 x ADAS camera
1 x DMS camera
1 x 4G antenna
1 x GPS antenna
1 x Power cable
Optional:
1 x BSD camera
1 x TF card
1 x Microphone
1 x Warning Displayer
1 x HDMI cable
1 x Emergency alarm button
