Разъем ftth esc250d sc/lc apc быстрый коннектор rapido fiber optica
- Категория: Communication Cables >>>
- Поставщик: Hunan,Zhongruiguang,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.64 $* | 0.97 $* |
| Aug-15-2025 | 0.67 $* | 0.83 $* |
| Jul-15-2025 | 0.16 $* | 0.4 $* |
| Jun-15-2025 | 0.20 $* | 0.97 $* |
| May-15-2025 | 0.32 $* | 0.42 $* |
| Apr-15-2025 | 0.66 $* | 0.59 $* |
| Mar-15-2025 | 0.37 $* | 0.7 $* |
| Feb-15-2025 | 0.55 $* | 0.69 $* |
| Jan-15-2025 | 0.8 $* | 0.69 $* |
Характеристики
Products Description

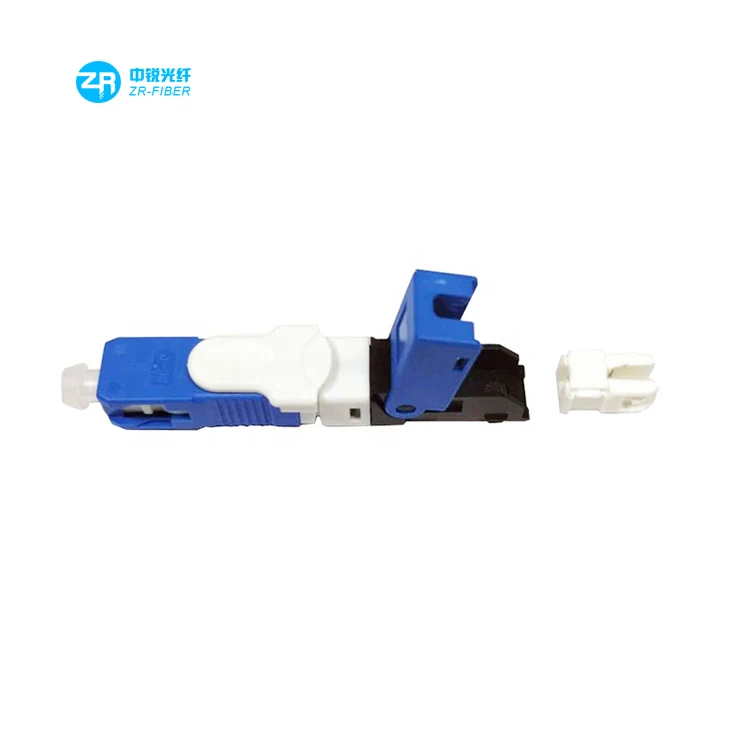

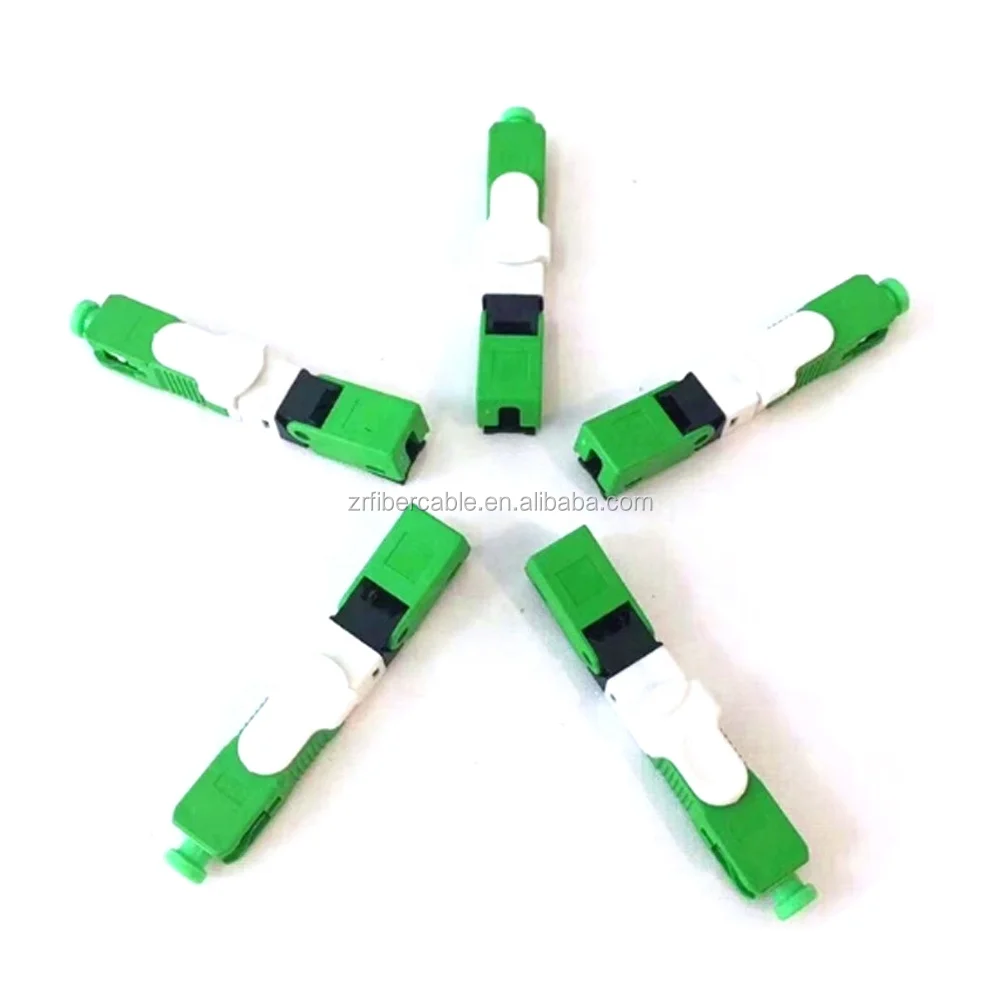

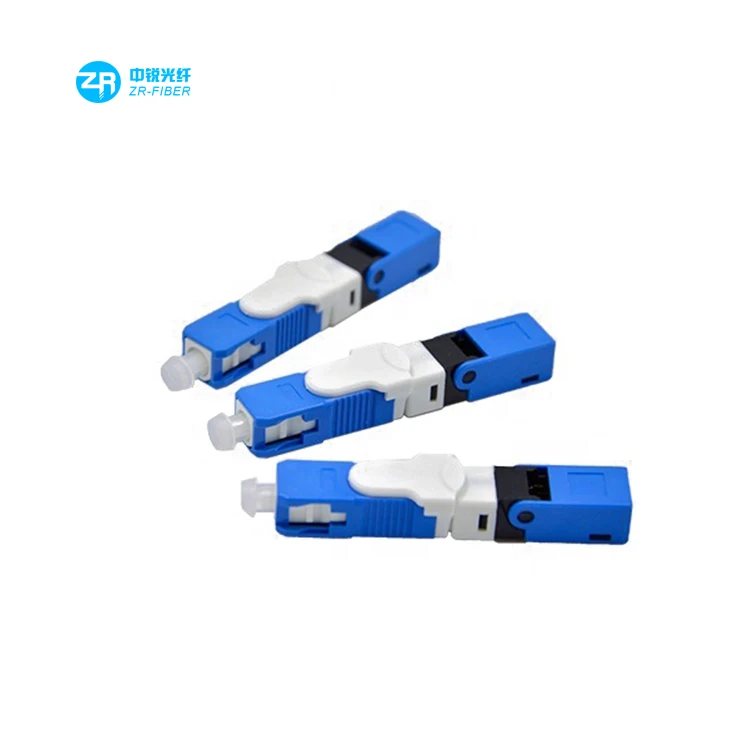

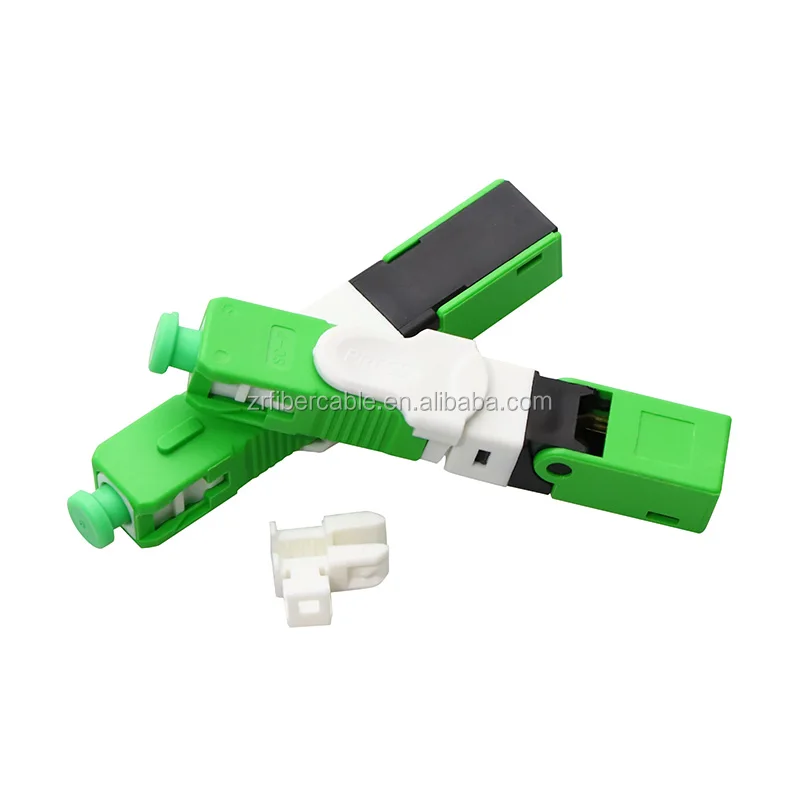

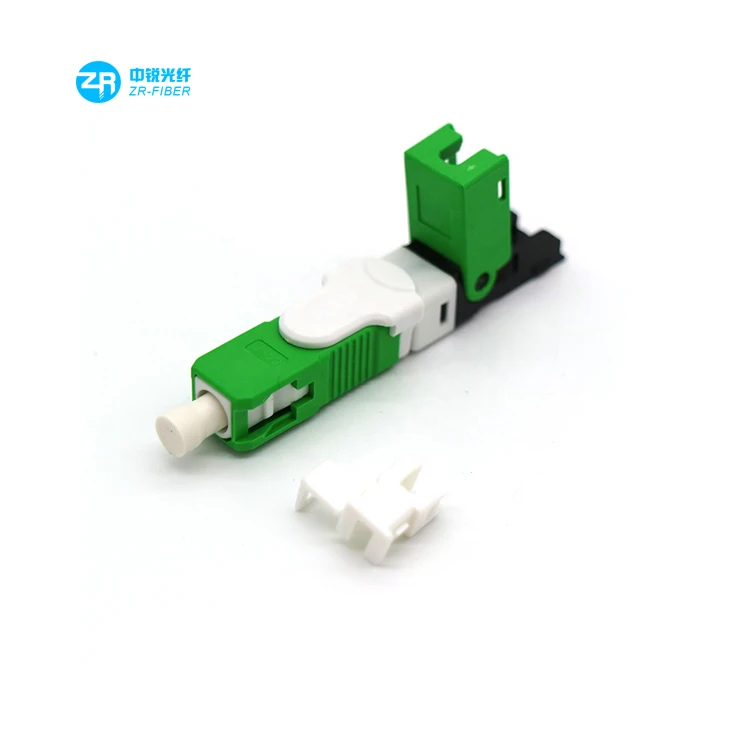

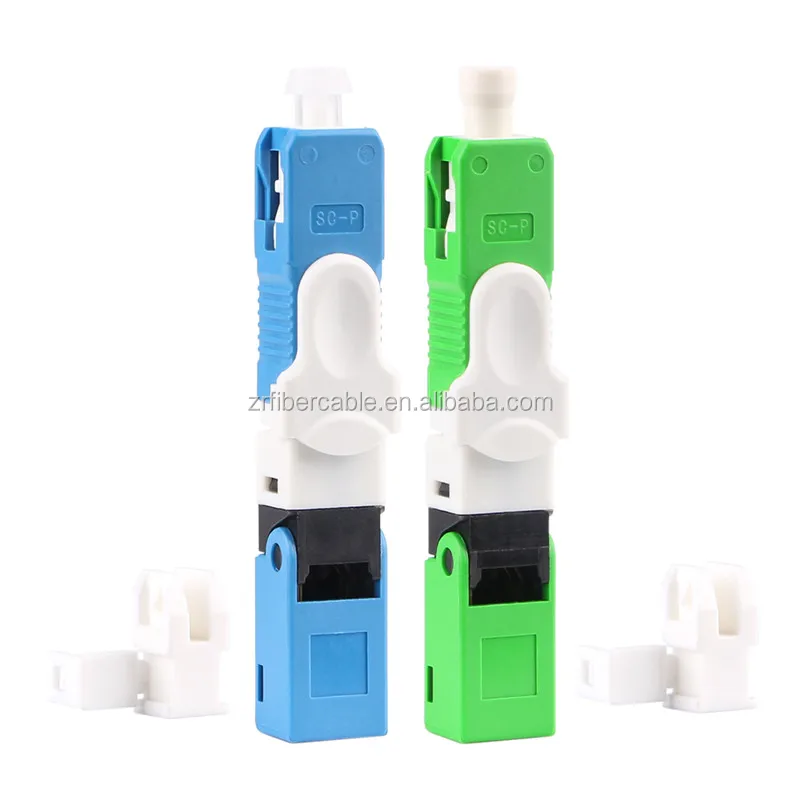

ftth esc250d sc/lc upc connector rapido fibra optica fast conector sc apc
Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. All primary fiber types are supported. and each connector is color per industry standard requirments to aid in identification during and afger installation. Incorporated in device is an innovation. Translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Applicaiton:
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
Product description
Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber
optic fast in products.
Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .
Can be reused, the scene is simple.
Easy to carry
optic fast in products.
Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .
Can be reused, the scene is simple.
Easy to carry
Fast Connector Specification | ||||||
Mode | SM | MM | ||||
Polish | UPC | APC | PC | |||
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | ||||
Return Loss | ≥50dB | ≥65dB | ≥35dB | |||
Interchangeability | ≤0.2dB | |||||
Repeatability | ≤0.1dB | |||||
Durability | ≤0.2dB (1000 times mating) | |||||
Tensile Strengh | > 10kg | |||||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |||||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |||||
company information
Our high quality products and outstanding service win the customer from all the world, ZR fiber optic is looking forward to
cooperate with you.ZR fiber focus on providing first-class solutions for domestic and foreign telecom operators and system integrators, as well as OEM service.
ZR fiber is committed to invest in advanced manufacturing equipment, like Tight-set optical fiber cable production line, Flexible optical fiber cable sheath production line, FTTH Bow-type drop cable optical fiber cable production line, fiber coloring machine, Optical fiber cable loose tube production line, SZ optical fiber cable stranded synthetic cable production line, 90 # optical fiber cable sheath production line, ADSS optical fiber cable production line and so on; also owns some quality inspection equipment, like Yokogawa OTDR of Japan, PK2800 optical fiber geometric parameters test of the United States, optical fiber cable mechanical tensile tester, water penetration tester, High-and-low temperature test box and other inspection equipment.
cooperate with you.ZR fiber focus on providing first-class solutions for domestic and foreign telecom operators and system integrators, as well as OEM service.
ZR fiber is committed to invest in advanced manufacturing equipment, like Tight-set optical fiber cable production line, Flexible optical fiber cable sheath production line, FTTH Bow-type drop cable optical fiber cable production line, fiber coloring machine, Optical fiber cable loose tube production line, SZ optical fiber cable stranded synthetic cable production line, 90 # optical fiber cable sheath production line, ADSS optical fiber cable production line and so on; also owns some quality inspection equipment, like Yokogawa OTDR of Japan, PK2800 optical fiber geometric parameters test of the United States, optical fiber cable mechanical tensile tester, water penetration tester, High-and-low temperature test box and other inspection equipment.
