Серийный 5V желтый синий модуль IIC 20x4 characer 2004 I2C lcd для
- Категория: Character Display >>>
- Поставщик: Wuxi,Siminuo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.14 $* | 0.75 $* |
| Aug-16-2025 | 0.17 $* | 0.58 $* |
| Jul-16-2025 | 0.64 $* | 0.60 $* |
| Jun-16-2025 | 0.42 $* | 0.37 $* |
| May-16-2025 | 0.11 $* | 0.2 $* |
| Apr-16-2025 | 0.52 $* | 0.61 $* |
| Mar-16-2025 | 0.40 $* | 0.91 $* |
| Feb-16-2025 | 0.38 $* | 0.2 $* |
| Jan-16-2025 | 0.33 $* | 0.90 $* |
Характеристики
Friendly Reminder：
If you want to learn more about products and information, please visit the company website:www.simair-lcd.com
Product Description
Features
Model | SMR2004A1 | ||||||||
Model size | 98(L)x60(W)x14(H)mm | ||||||||
View Area | 76x26 mm | ||||||||
View Direction | 6 O'clock | ||||||||
LCD Mode | STN(Blue/yellow-green)、FSTN（Gray) | ||||||||
Operating voltage | 5V | ||||||||
Driver IC | SPLC780D or Equivalent | ||||||||
Net weight（g） | 90 | ||||||||
Driving Method | 1/16 DUTY,1/5 BIAS | ||||||||
Number of chracter | 20 characters x 4 lines | ||||||||
Operating Temperature | -20℃ ~ +70℃ | ||||||||
Storage Temperature | -30℃ ~ +80℃ | ||||||||

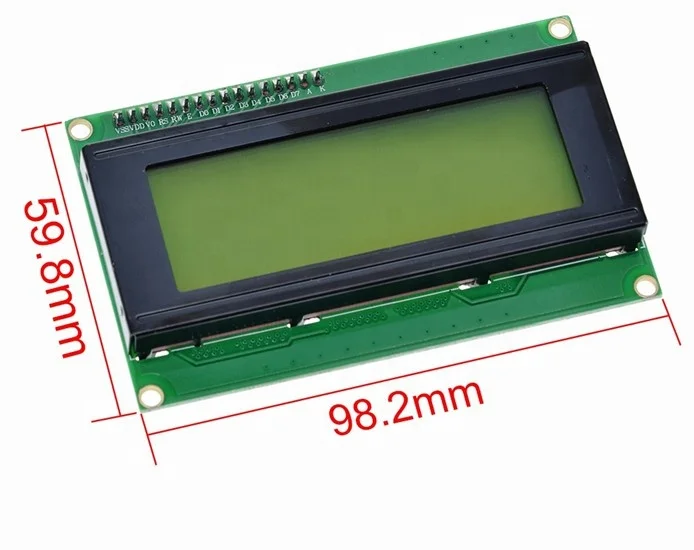

Extenal Dimensions
Pin Description
Details display
Description:
SMR2004A1 Most characters LCD in our store can be configured with adapter board, and the parallel port can be converted into IIC serial port. Customers can directly buy with good, can also buy their own adapter plate welding!
If you need SPI and IIC interface lcd,please click the link below:
https://www.alibaba.com/product-detail/Serial-SPI-IIC-Blue-Screen-1602_1600220134068.html?spm=a2747.manage.0.0.7ce571d2YMqXZ0
If you need the adapter board,please click the link below:
https://www.alibaba.com/product-detail/1602-Character-LCD-adapter-SPF8574 LCD_1600224411504.html?spm=a2747.manage.0.0.1ce471d2UqTyZ3

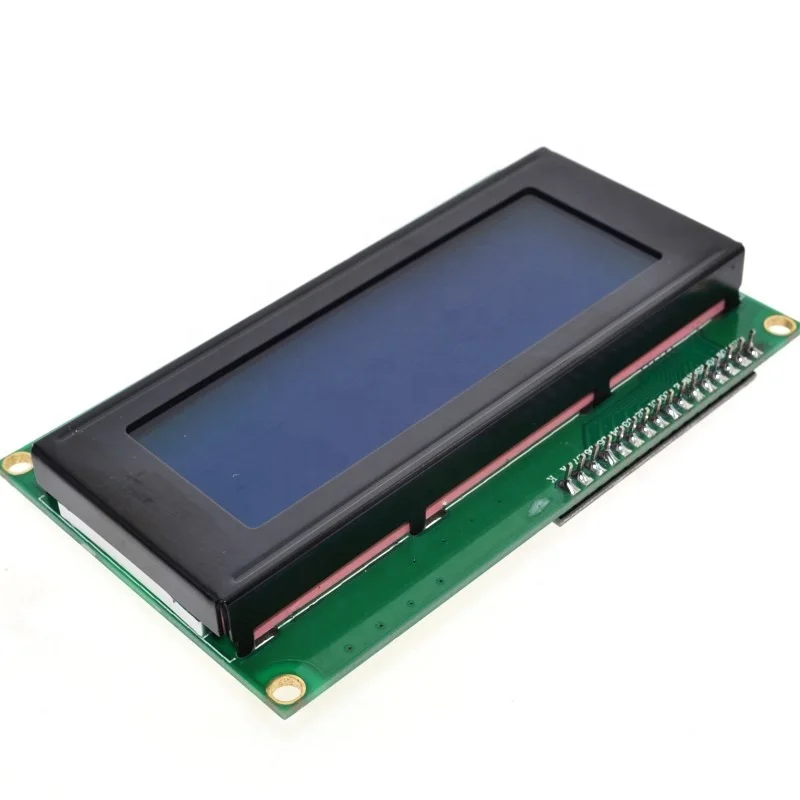

2004 LCD Display
Because of focus
So professional
Stable Supply
Technical Support
With LED backlight

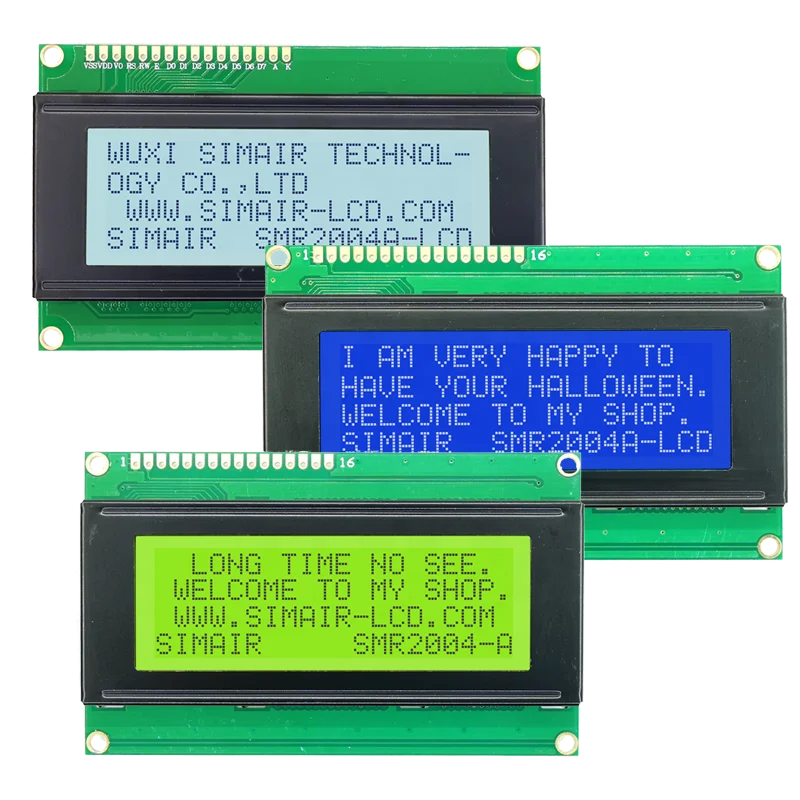

Multiple display effects
Low power consumption

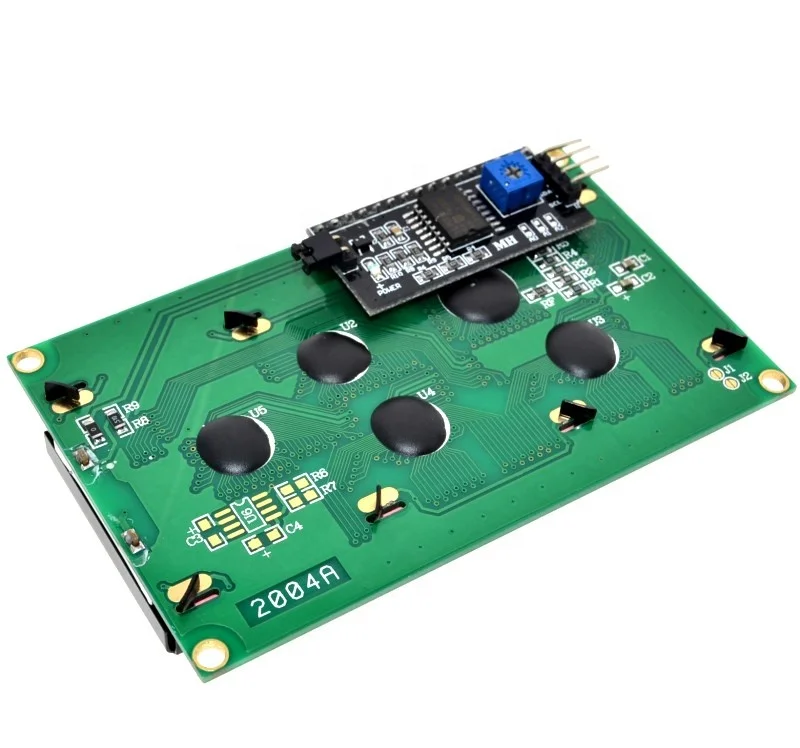

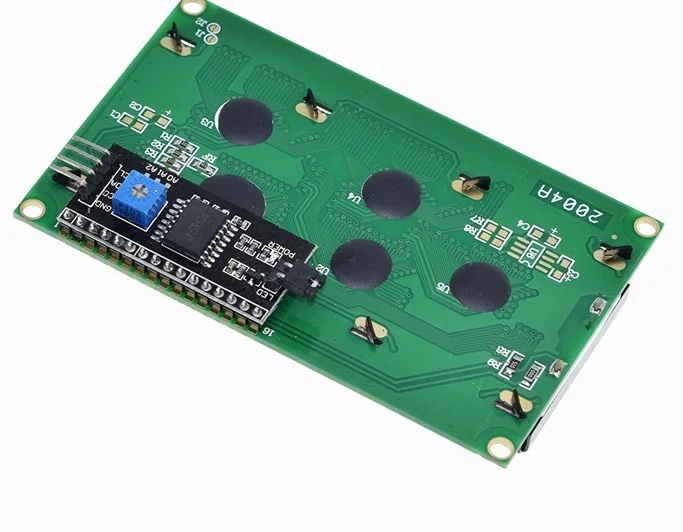

2004 IIC LCD
Reasonable line layout
More stable performance
High quality gold plated PCB
Recommend Products
Certifications
Manufacturing Technique
Company Profile
About US
Wuxi simair Technology Co., Ltd., founded in 2012, is a high-tech enterprise specializing in the production and R & D of LCD,LED, LCM, OLED, TFT and related components.
We has perfect quality management system. We have powerful LCM R&D, manufacturing and quality control team, which can quickly provide solutions according to the diversified needs of customers.
Our LCD is widely used in communication equipment, electronic products, household appliances, instrument panel, etc. it is mainly sold to European, American, Asian, Australian, Hong Kong and domestic markets.
We has perfect quality management system. We have powerful LCM R&D, manufacturing and quality control team, which can quickly provide solutions according to the diversified needs of customers.
Our LCD is widely used in communication equipment, electronic products, household appliances, instrument panel, etc. it is mainly sold to European, American, Asian, Australian, Hong Kong and domestic markets.
Shipment & Payment
FAQ
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.
Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 10 years.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.
Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 10 years.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
