4 аппарат не привязан к оператору сотовой связи Cat9 беспроводной модуль Fibocom L850-GL FRU 01AX792 M.2 WWAN карты для ThinkPad X1 углерода Gen6 X280 T580 T480s L480

Product manual:

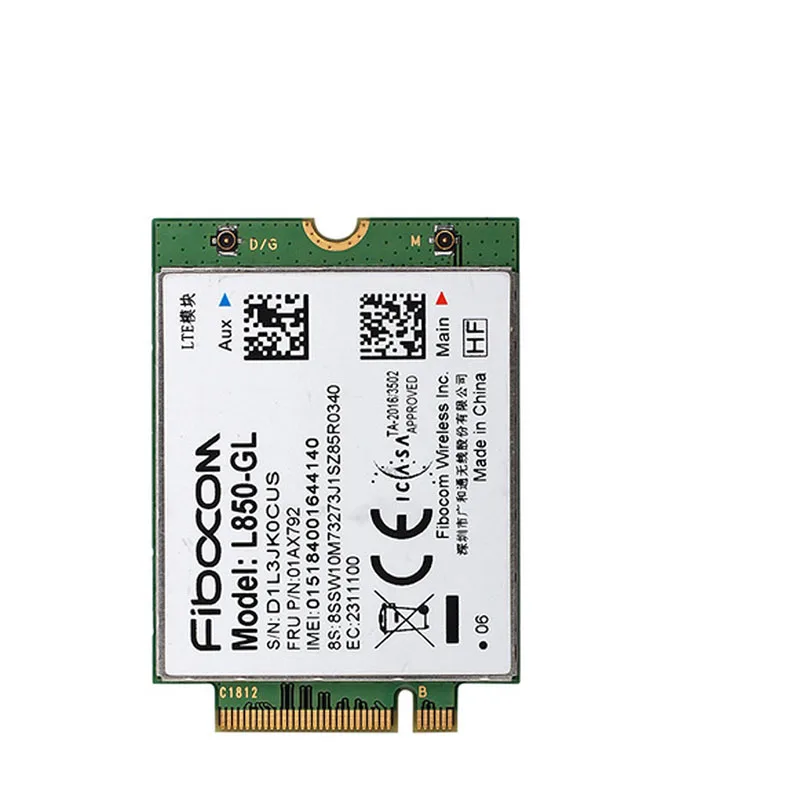

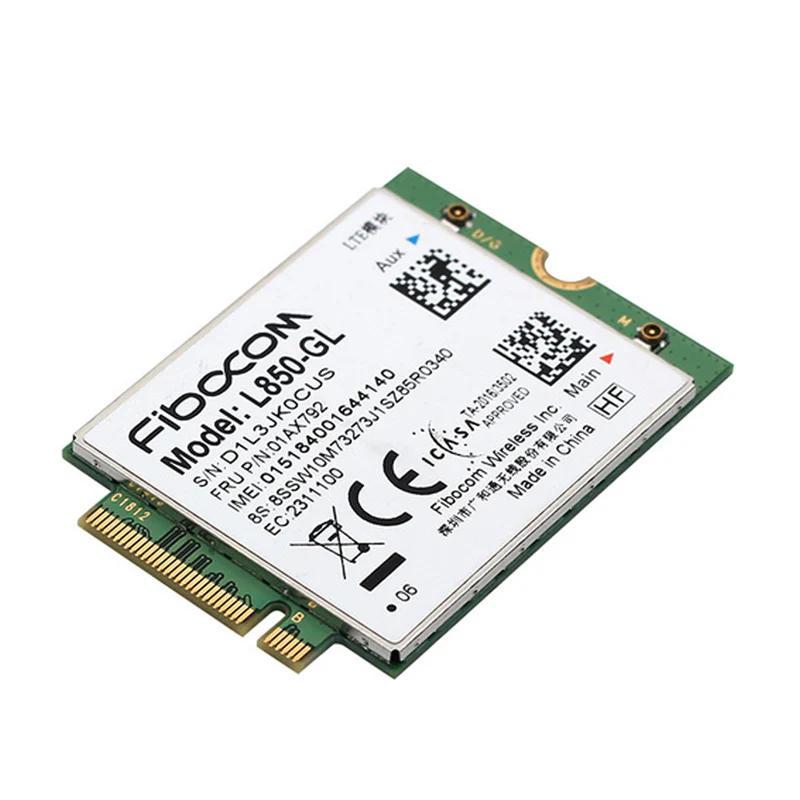

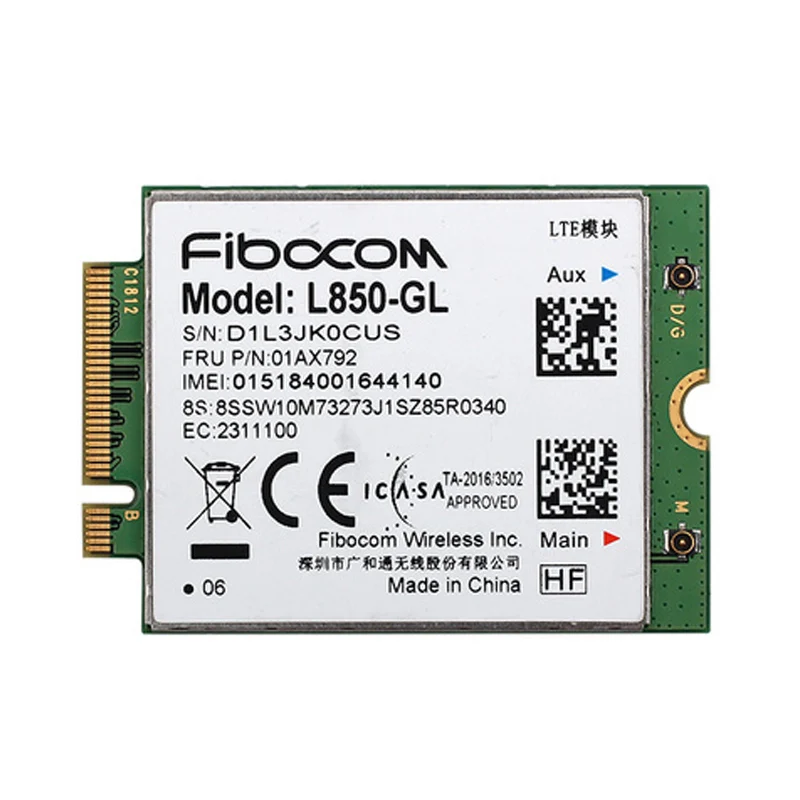

The L850-GL is an industry-leading LTE Cat9 high-speed full-memory module. It is based on the Intel7360 platform and is based on
the M.2 interface. The size of the L850-GL is 30*42*2.3mm. It supports LTE FDD, LTE TDD, WCDMA and many other formats. The
application of the notebook computer is preferred, and it can be widely applied in fields such as gateways, industrial monitoring,
and telemedicine. The Fibocom L850 has 450Mbps downlink speed, supports 2*2MIMO, supports 3CA combination and 2CA combination.
Supports eSIM at the same time, can meet users' fast commercial demand.

Product Introduction:
Dimension(mm):42.00 x 30.00 x 2.30;
Interface: M.2;
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B11/B12/B13/B17/B18/B19/B20/B21/B26/B28/B29/B30/B66;
LTE TDD: B38/B39/B40/B41; WCDMA: B1/B2/B4/B5/B8;
Power Supply: 3.135V~4.4V(Typical3.3V);
Operating Temp.: -20℃~+65℃;
OS Driver: Win10/Android*/Linux/Chrome OS Data Transmission:
LTE FDD(Mbps):450(DL)/50(UL) (Cat9);
LTE TDD(Mbps):347(DL)30(UL)(Cat9);
UMTS(kbps):384(DL)/384(UL); DC-HSPA+ (Mbps):42(DL)/5.76(UL).

Compatibility:
ThinkPad X280 (20KE,20KF);
ThinkPad T580 (20L9,20LA);
ThinkPad P52s (20LB,20LC);
ThinkPad X1 Yoga Gen 3 (20LD,20LE,20LF,20LG);
ThinkPad T480s (20L7,20L8);
ThinkPad X1 Carbon Gen6 (20KH,20KG);
ThinkPad T480 (20L5,20L6);
ThinkPad L480 (20LS,20LT);
ThinkPad L580 (20LW,20LX);
ThinkPad X380 Yoga (20LH,20LJ);
ThinkPad P52 (20M9,20MA)
