Промышленная Складная запираемый Штабелируемый стальной металлической проволочной сетки для
- Категория: Crates >>>
- Поставщик: Dalian,Huameilong,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 67.46 $* | 68.85 $* |
| Jul-16-2025 | 55.86 $* | 56.30 $* |
| Jun-16-2025 | 66.61 $* | 67.7 $* |
| May-16-2025 | 66.33 $* | 67.92 $* |
| Apr-16-2025 | 52.73 $* | 53.91 $* |
| Mar-16-2025 | 65.45 $* | 66.20 $* |
| Feb-16-2025 | 64.96 $* | 65.28 $* |
| Jan-16-2025 | 64.27 $* | 65.64 $* |
Характеристики
Product Description
Specification of wire mesh crate
| Same design, different sizes | |||||
| Model No. | Exterior dimension | Wire Guage | Dimension of Grid | Loading capacity | Loaded in 1*40'GP |
| LxWxH(mm) | mm | mm | kg | sets | |
| W-1 | 1030x840x850 | 6 | 50*50 | 1300 | 470 |
| L-1 | 1030x840x850 | 6 | 50*50 | 800 | 470 |
| W-2 | 1230x1040x890 | 6.2 | 50*50 | 1700 | 320 |
| L-2 | 1230x1040x900 | 6.2 | 50*50 | 1200 | 320 |
| S-1 | 1230x1040x950 | 6.2 | 50*50 | 1700 | 320 |
| W-3 | 1030x840x500 | 6 | 50*50 | 800 | 470 |
| Material | Mild steel Q235 | ||||
Available design | Top lid/bar runner/forklift guide/with inner divider | ||||
Available accessories | Wheels/inner PP sheet or PP hollow sheet/bag | ||||
Application area | Warehouse, logistic, recycling industry | ||||
| Finish | Zinc/hot-dip galvanized/powder coating | ||||
| Remark | Customized or OEM support | ||||
Product Features | 1.Collapsible-save space when not in use, ideal for return journeys ventilation and cleanness. 5. Easily moved around by forklift, even when fully loaded | ||||
Benefits & Designs
Uses & packaging

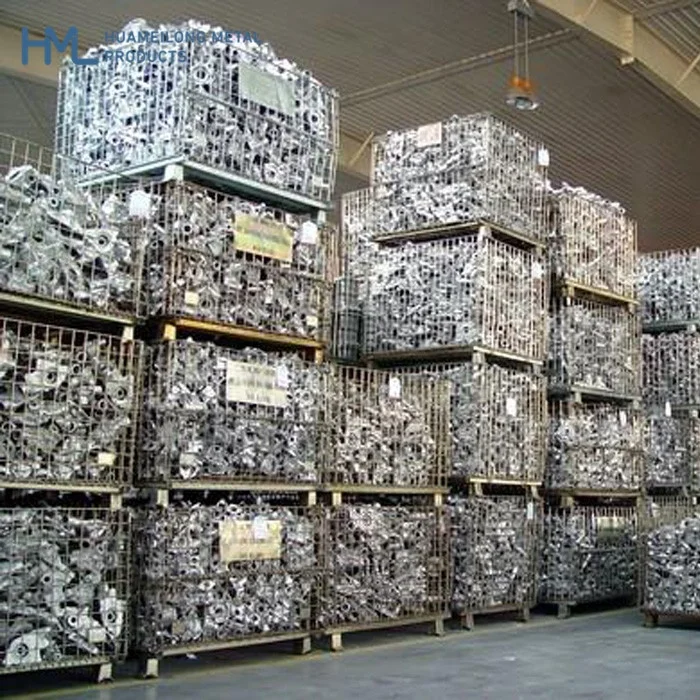

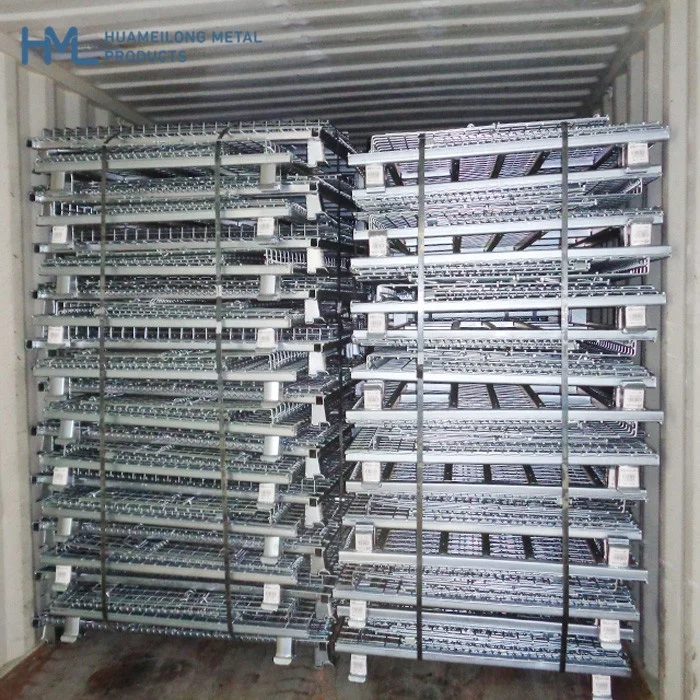

Application, packaging & loading for wire mesh crate
Main Categories
Click to other kinds of material handling products for your choice
Client Testimonial
QC & product tests
Who we are
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How are the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard
forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP, etc
4, What kind of finish do you provide for your goods?
---A.Electro-galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc
(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder
(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium-duty(400~800kg) model
and heavy-duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack, wire container, and roll cage are all widely used in cold storage.
7 I like your design, but couldn‘t find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have a drawing or picture available for the custom products, could you design it for me?
--Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - quantity is variable depending on the size
11 What is your average production lead time?
--3-4 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in the case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry, and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized)
