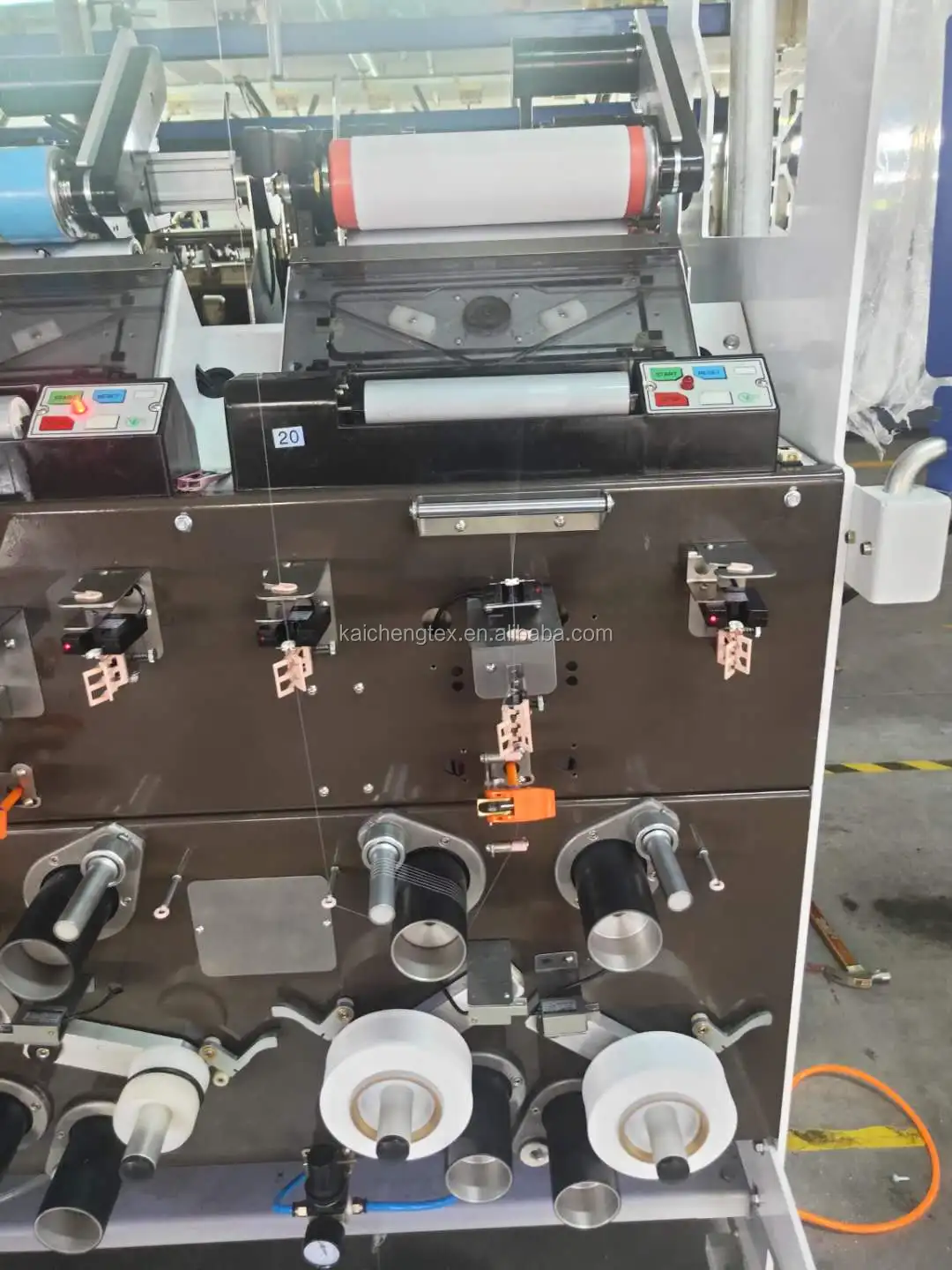

KC215B air covering yarn coil winder high efficiency winding machine for spandex
- Категория: Winding Machines >>>
- Поставщик: Zhejiang,Kaicheng,Intelligent,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2261.96 $* | 2374.60 $* |
| Aug-15-2025 | 2242.29 $* | 2354.38 $* |
| Jul-15-2025 | 1881.56 $* | 1975.88 $* |
| Jun-15-2025 | 2204.11 $* | 2314.61 $* |
| May-15-2025 | 1919.69 $* | 2015.21 $* |
| Apr-15-2025 | 2166.25 $* | 2274.51 $* |
| Mar-15-2025 | 2147.65 $* | 2254.88 $* |
| Feb-15-2025 | 2128.74 $* | 2234.59 $* |
| Jan-15-2025 | 2109.99 $* | 2214.13 $* |
Характеристики
No | Item | Details |
1 | Machine structure | Single sided, single layer, 4 spindles per sections, 10 sections, 40spindles/set |
2 | Spindle gauge | 485mm |
3 | Type of winding | Digital winding or precision winding |
4 | Linear speed | Up to 1100m/min (depend on the process parameters) |
5 | Type of tension | Electronic Gate tension |
6 | Take-up tube | Cylindrical |
7 | Package shape | Straight edge or tapered edge shape (The taper angle can be adjusted) |
8 | Traverse length | 130mm-250mm(It can be changed according to the actual situation |
9 | Take-up package diameter | Up to 280mm(depend on the tank size, there are certain limitations) |
10 | Rated power | 580W/spindle |
11 | Compression air | 6Pa(depend on the process parameters) |
