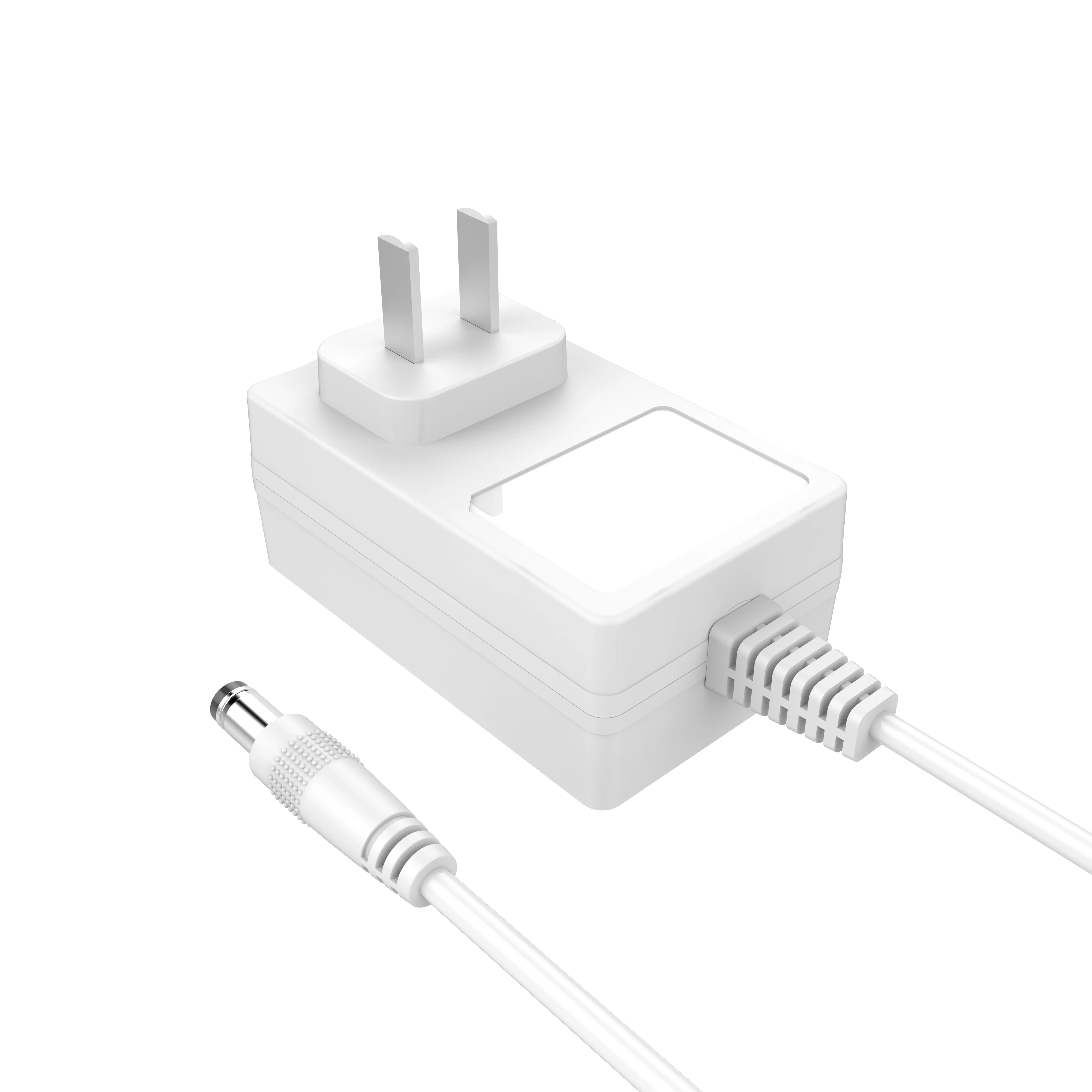

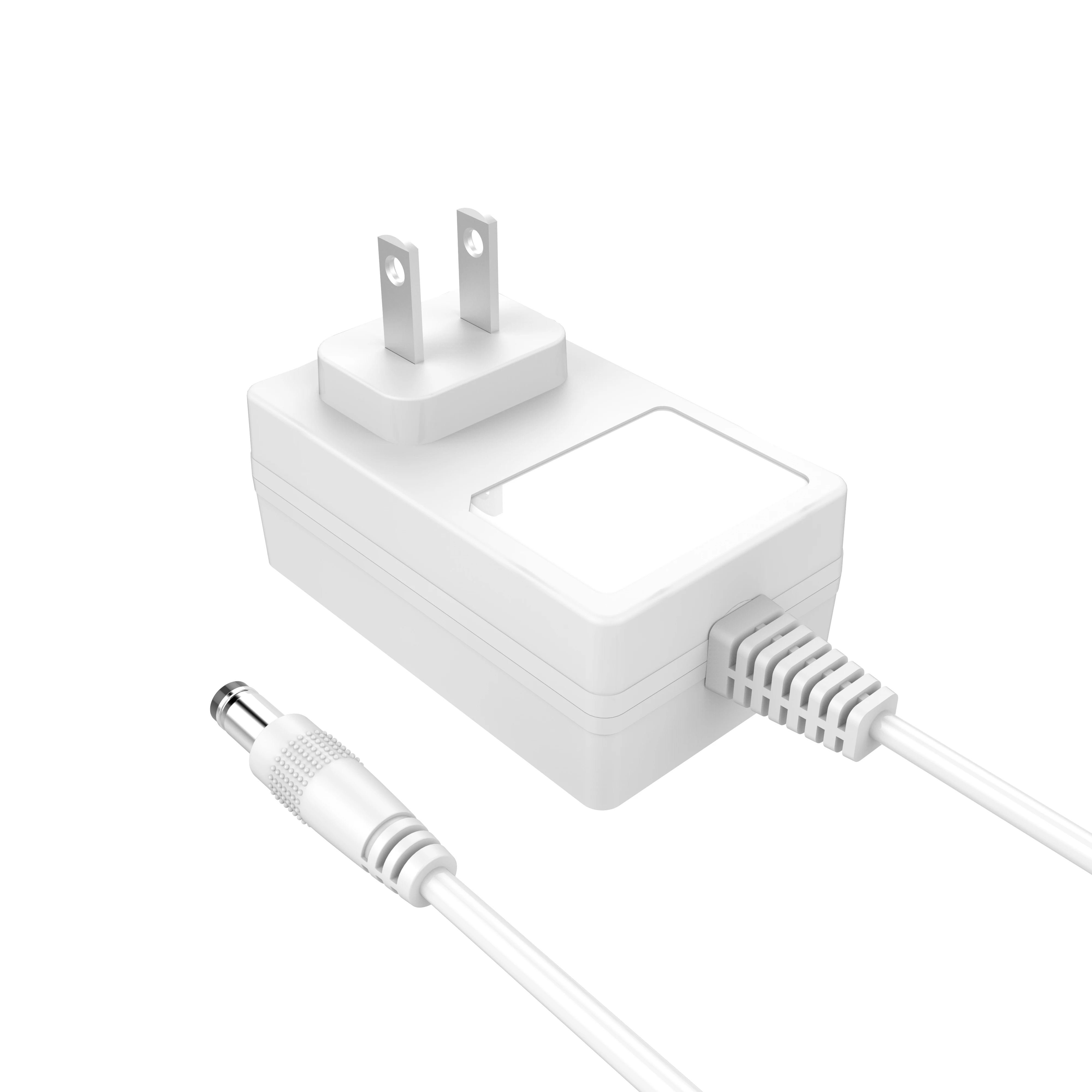

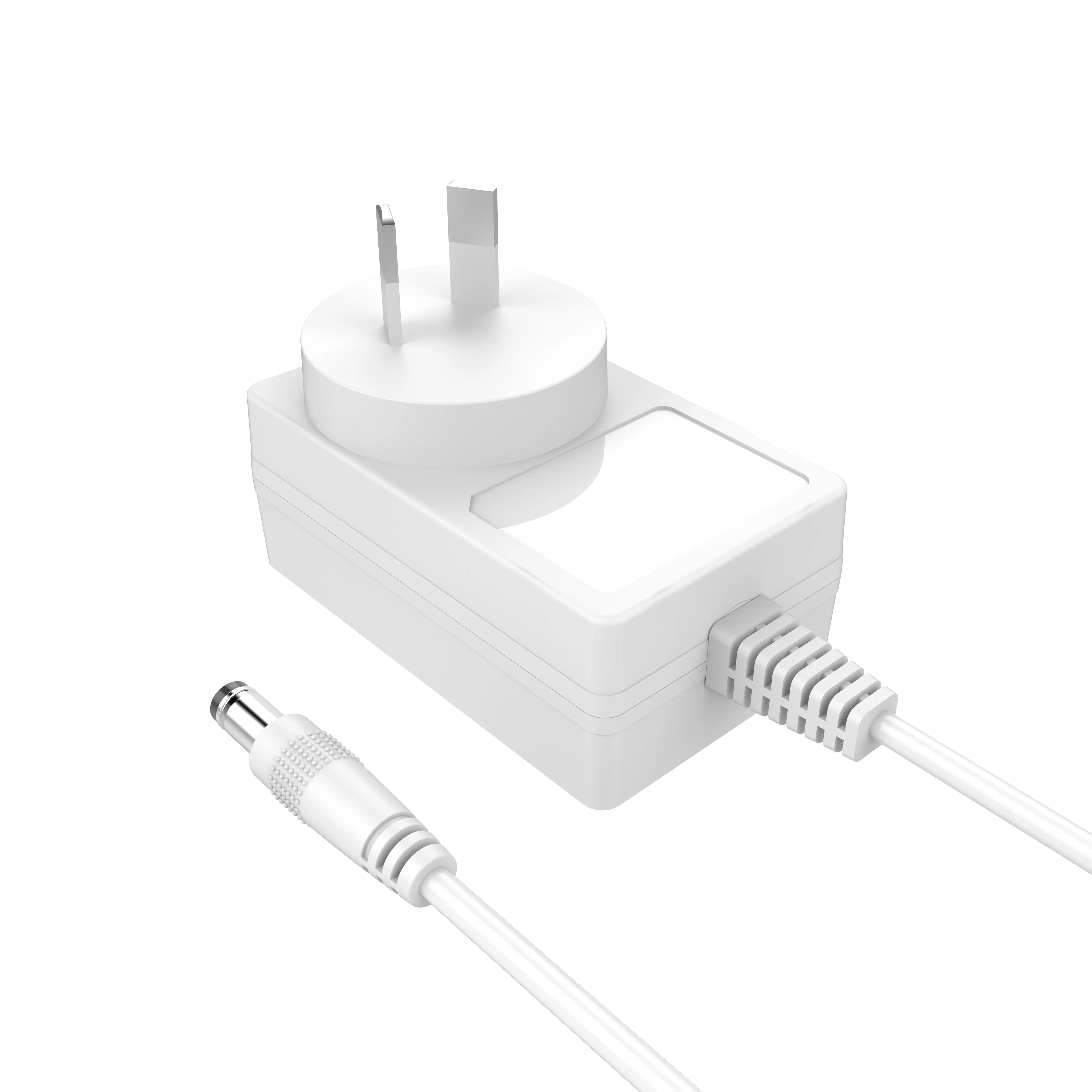

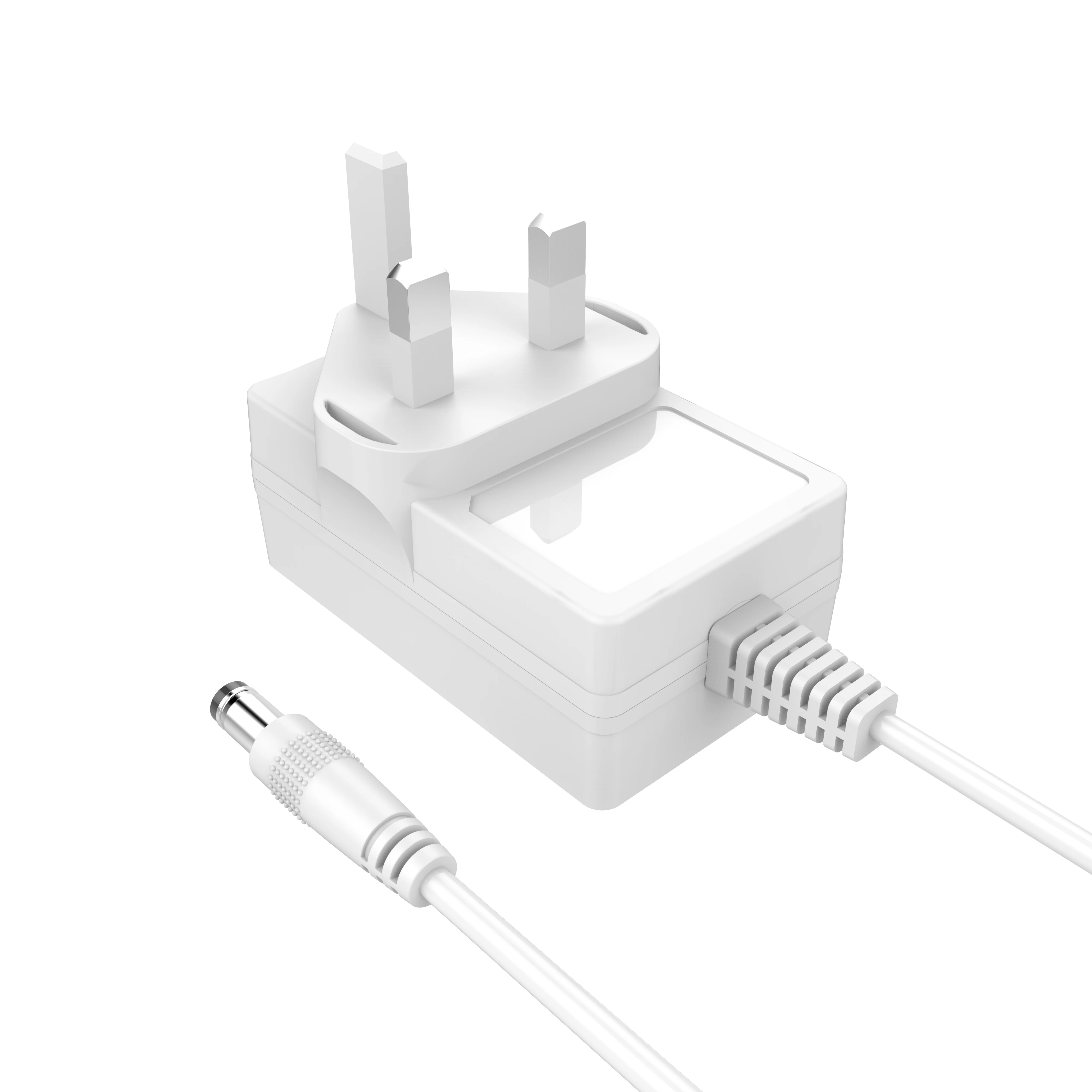

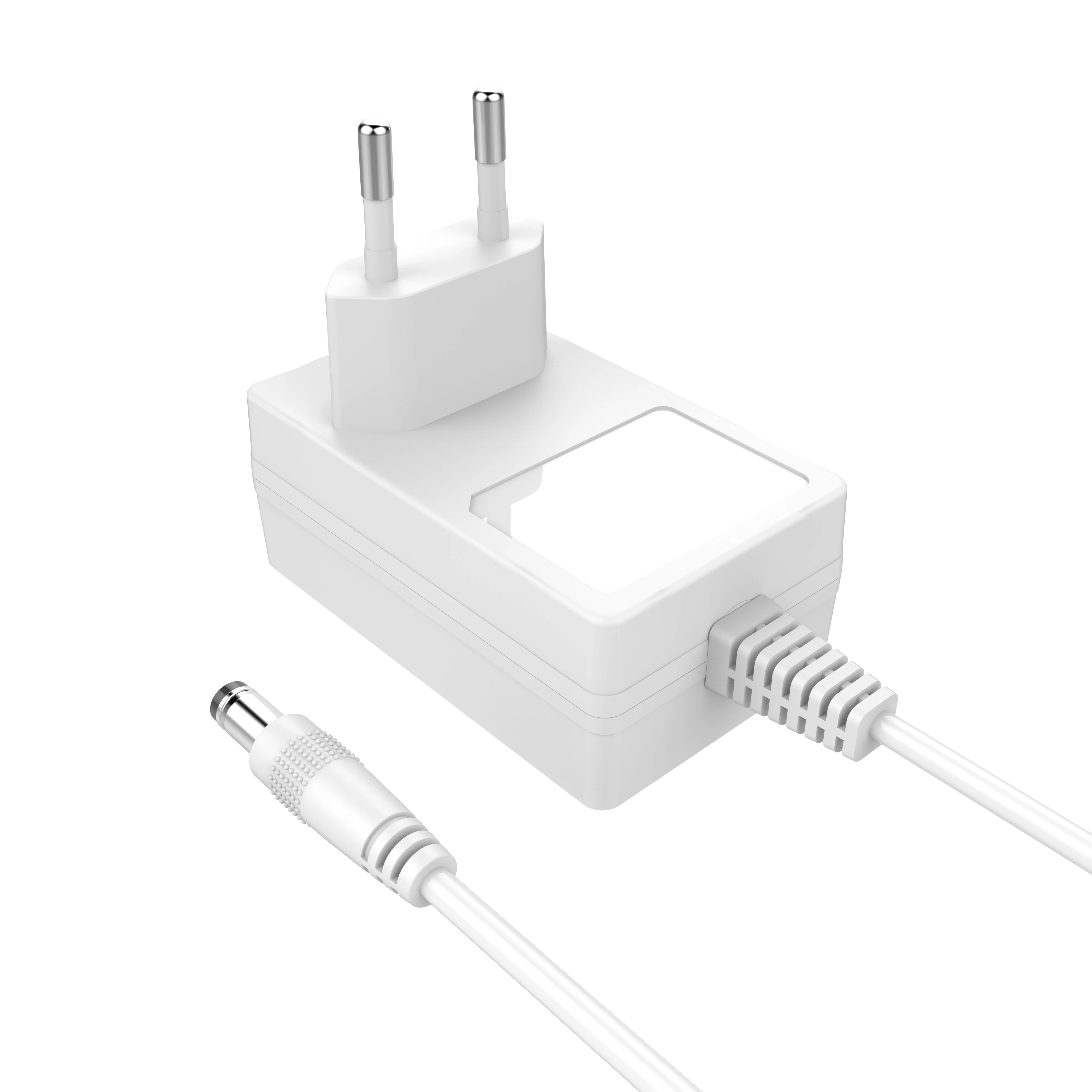

Оптовая продажа Белый адаптер питания 24 Вт 12 В 2 а с UL62368 EN62368
- Категория: Power Adapters >>>
- Поставщик: Y&L,Electronics,(Shenzhen),Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.17 $* | 0.88 $* |
| Aug-16-2025 | 0.64 $* | 0.86 $* |
| Jul-16-2025 | 0.34 $* | 0.65 $* |
| Jun-16-2025 | 0.82 $* | 0.10 $* |
| May-16-2025 | 0.52 $* | 0.88 $* |
| Apr-16-2025 | 0.84 $* | 0.3 $* |
| Mar-16-2025 | 0.34 $* | 0.45 $* |
| Feb-16-2025 | 0.10 $* | 0.57 $* |
| Jan-16-2025 | 0.72 $* | 0.44 $* |
Характеристики
Product Description
Power supply model number | YL241-XXXYYYYZ | ||
Output | DC voltage | 5V - 30V | |
Rated Current | MAX 3.7A | ||
Current Range | 0-3.7A | ||
Rated Power | 24W | ||
Ripple & Noise | 120Vp-p Max | ||
Voltage Tolerence | +/- 5% | ||
Input | Voltage Range | 100-240V AC 50/60Hz | |
Safety Standard | IEC 62368-1B / IEC 61558-2-16E / ETL 1310 | ||
Safety Certification | EN62368:UL/CB/CE/GS/EMC/LVD/SAA/KC/FCC/PSE/CCC | ||
EN61558:CE/GS/CB/FCC/LVD/SAA ETL 1310 | |||
Operating temperature | 0-40 C° | ||
Storage temperature | -20-60 C° | ||
Hi-pot test | Primary To Secondary: 3000VAC 10mA 1 minute or 4242VDC 10mA 3 Sec | ||
Burn-in test | 80% to 100% load, 40 C°± 5℃ for 4 hours | ||
Length of DC cord | Optional | ||
DC plug | Optional | ||
RoHS/Reach | Yes | ||
Package | White box or plastic bag with outer carton | ||

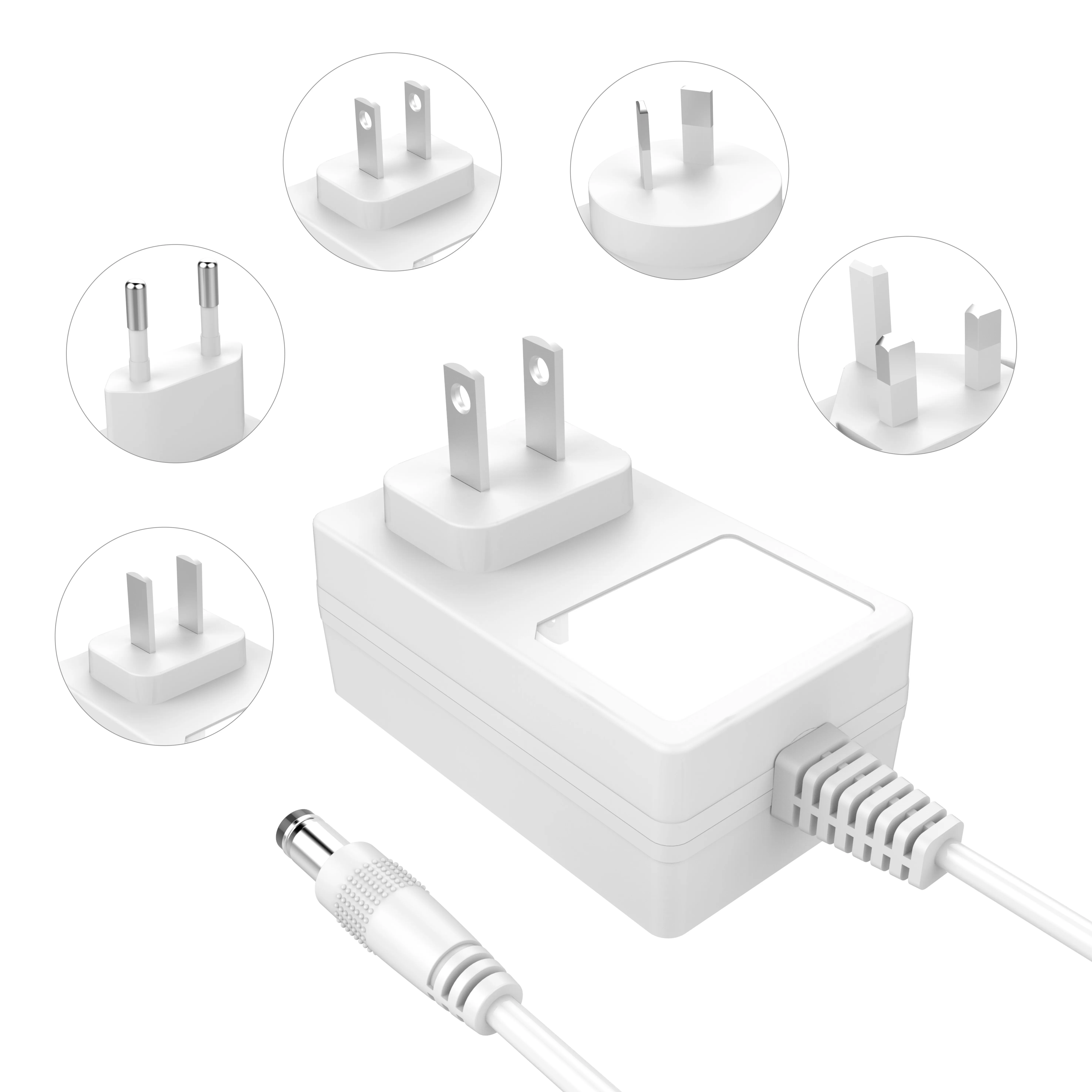

AC Fix PLUG (Interchangeable Plug) | UL/CE/UK/PSE/KC/SAA/CCC or More | ||
Desktop Type | Avalible | ||
Efficiency Level | VI | ||
load Regulation | +/-5% | ||
Surge | Over 1 KV | ||
No Load power consumption | < 0.1w | ||
Protections | Short-circuit/OCP/OVP | ||
Warranty | 2 years | ||
Our certificate
Company Profile
Packing & Delivery
FAQ
Q1. How to get your samples?
- Our samples less 5pcs will be free of charge, we will offer 3-5pcs in usual. Customer need offer us express account and address to send samples, samples lead time 7-10 days.The normal express account should be Fedex, TNT, UPS, DHL or EMS.
Q2. What is your terms and payment terms?
- T/T, L/C or negotiable with sales representative.
Q3. Do you inspect the finished products?
- Yes. Each product is 200% tested and inspected before package, then we have OQC to make sampling inspecttion to ensure good quality products. Our current quality level for linear adapters is below 100PPM.
Q4. How do you ship the finished products?
- By sea &Air
- Our samples less 5pcs will be free of charge, we will offer 3-5pcs in usual. Customer need offer us express account and address to send samples, samples lead time 7-10 days.The normal express account should be Fedex, TNT, UPS, DHL or EMS.
Q2. What is your terms and payment terms?
- T/T, L/C or negotiable with sales representative.
Q3. Do you inspect the finished products?
- Yes. Each product is 200% tested and inspected before package, then we have OQC to make sampling inspecttion to ensure good quality products. Our current quality level for linear adapters is below 100PPM.
Q4. How do you ship the finished products?
- By sea &Air
Contact us
Jenny Jiang
TEL: +86-18933349958
Email: sales10@ylelectronics.com.cn
www.ylelectronics.com.cn
