Лучше всего 1-3 тонный экскаватор мощность ведро наклона гидравлический быстроразъемный соединитель rotarty Быстрый Hitch для
- Категория: Construction Machinery Attachments >>>
- Поставщик: Changzhou,Raymond,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4106.75 $* | 4311.47 $* |
| Aug-15-2025 | 4071.27 $* | 4275.21 $* |
| Jul-15-2025 | 3416.51 $* | 3587.7 $* |
| Jun-15-2025 | 4002.6 $* | 4202.52 $* |
| May-15-2025 | 3485.53 $* | 3659.28 $* |
| Apr-15-2025 | 3933.14 $* | 4130.21 $* |
| Mar-15-2025 | 3899.24 $* | 4094.41 $* |
| Feb-15-2025 | 3864.97 $* | 4057.24 $* |
| Jan-15-2025 | 3830.93 $* | 4022.68 $* |
Характеристики
Products Description

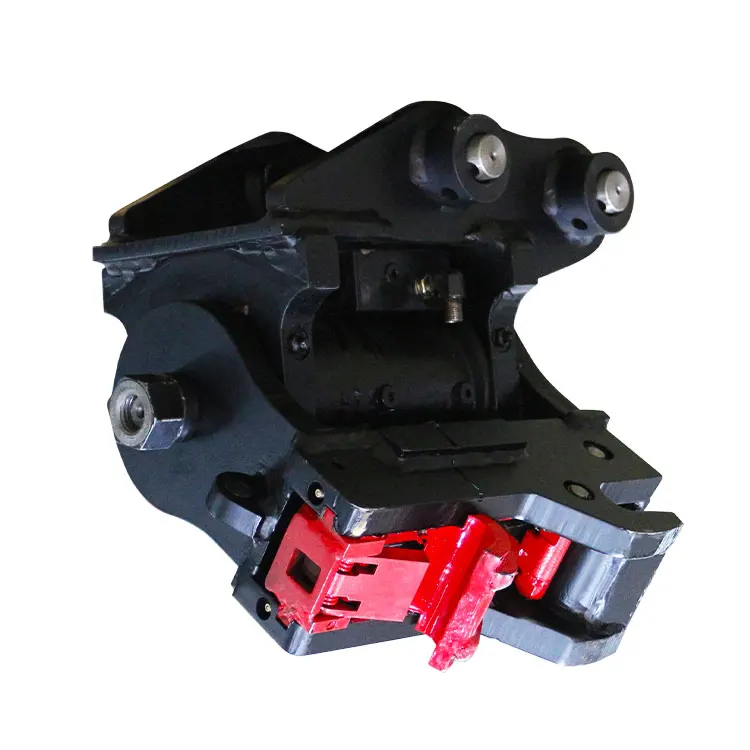

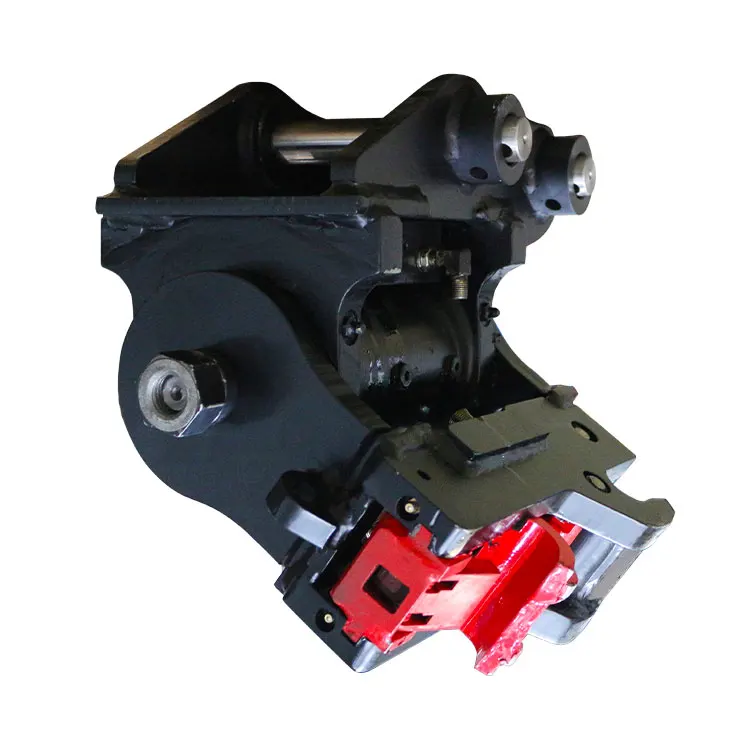

RAY Quick Couplers
Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.

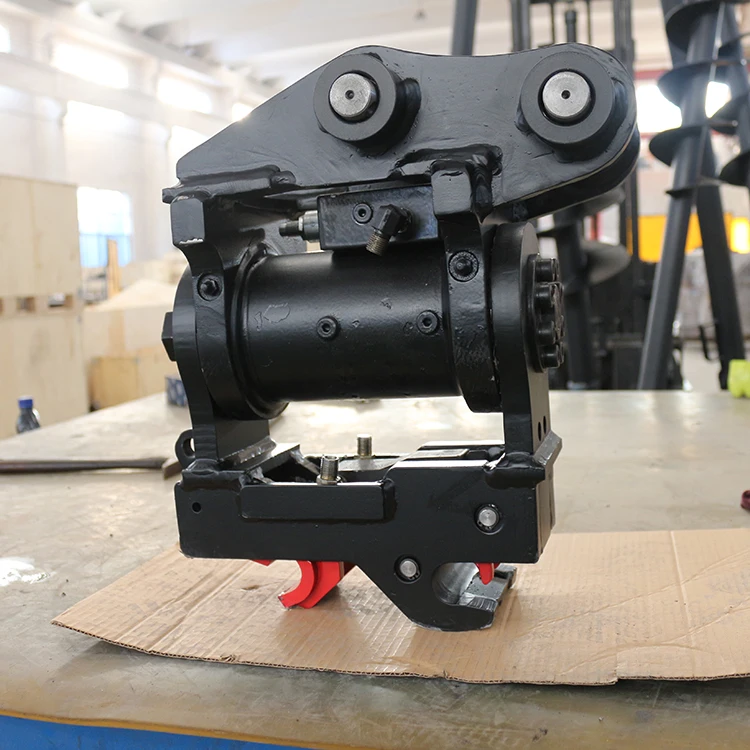

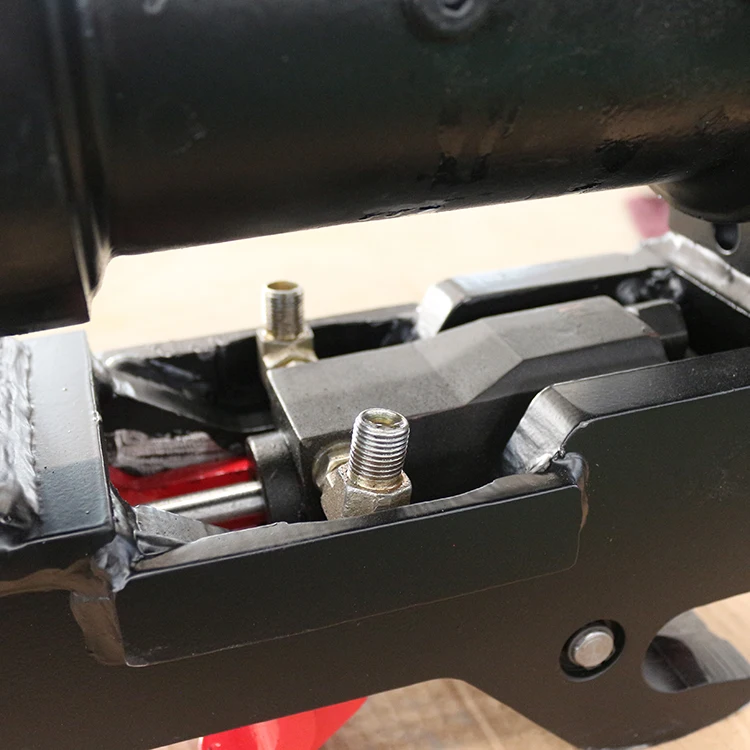

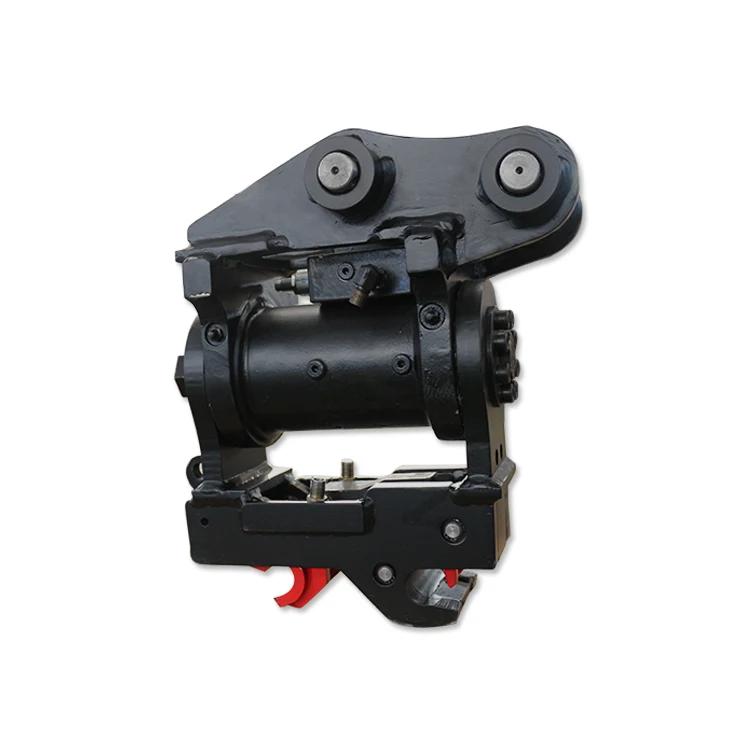

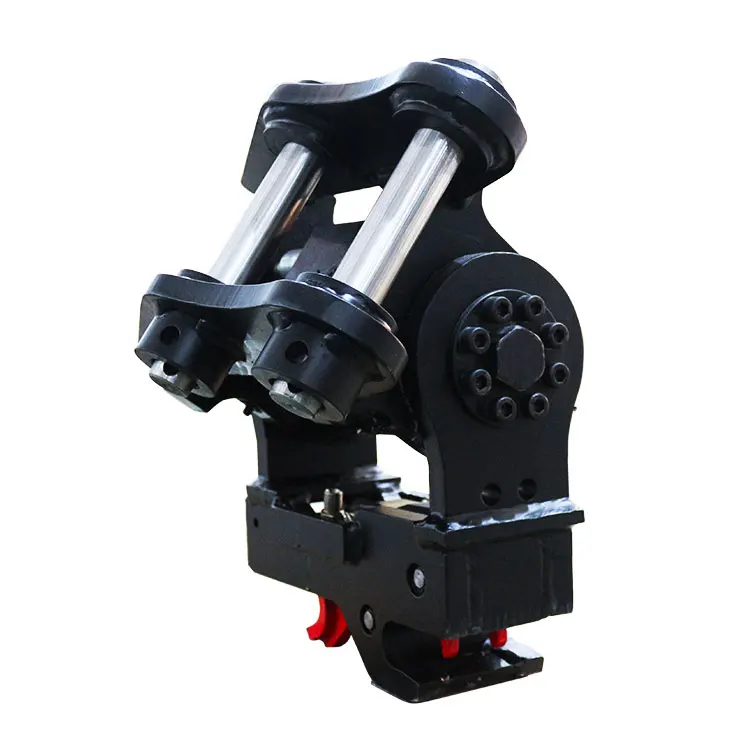

Details Images
1.Tilt any bucket or attachment up to 180 degrees2.Better stabilty, increased productivity, more secure
3. Available with common couplers
4.Adaptable to a variety of buckets and attachments
3. Available with common couplers
4.Adaptable to a variety of buckets and attachments
Specification
Model | Unit | RQH01T | RQH02T | RQH04T | RQH06T | RQH08T | |
Excavator | T | 1-3 | 4-6 | 6-8 | 10-15 | 15-23 | |
Cylinder | Max pressure | Bar | 200 | 200 | 200 | 200 | 200 |
Psi | 2900 | 2900 | 2900 | 2900 | 2900 | ||
Operation flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | |
Gpm | 2.6-5.2 | 2.6-5.2 | 2.6-5.2 | 2.6-5.2 | 2.6-5.2 | ||
Tilting cylinder | Max pressure | Bar | 210 | 210 | 210 | 210 | 210 |
Psi | 3046 | 3046 | 3046 | 3046 | 3046 | ||
Oil flow | L/min | 2-3 | 6-10 | 15-20 | 20-25 | 25-32 | |
Gpm | 0.52-0.79 | 1.6-2.6 | 3.9-5.3 | 5.3-6.6 | 6.6-8.5 | ||
Tilt Angle | 140/180 | 140/180 | 140/180 | 140/180 | 140 | ||
Tilt Torque | N.m | 900 | 3200 | 7000 | 9000 | 15000 | |
Remaining Torque | N.m | 2400 | 7200 | 20000 | 26000 | 43000 |
1. Open the cylinder, and ensure slide is fully extended with front jaw safety lock open.
2. Line up attachments and engage front attachments pin.
3. Close the cylinder. This will retract the slide mechanism and this will visibly lock the front jaw safety latch around front
attachment pin.
4. Open the cylinder again. The sliding mechanism will extend and engage the rear slide hook onto the rear attachment pin.
5. Proceed with connection test.
2. Line up attachments and engage front attachments pin.
3. Close the cylinder. This will retract the slide mechanism and this will visibly lock the front jaw safety latch around front
attachment pin.
4. Open the cylinder again. The sliding mechanism will extend and engage the rear slide hook onto the rear attachment pin.
5. Proceed with connection test.
Product packaging
Customer Photos
Company Profile
RAYMOND is a factory with authorized Imp. & Exp. right which including two companies, Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City, Jiangsu Province, China, Factory building areas cover around 20,000 square meters. Raymond Precision Machinery Co.,Ltd was established in 2002, committed to focus on the development, production and sales of construction machinery and their spare parts.
Exhibition
FAQ
1. Are you manufacturer?
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes. RAY tilt htich has 12 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Exceed warranty, all parts are offered at cost prices.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes. RAY tilt htich has 12 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Exceed warranty, all parts are offered at cost prices.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
