Product description

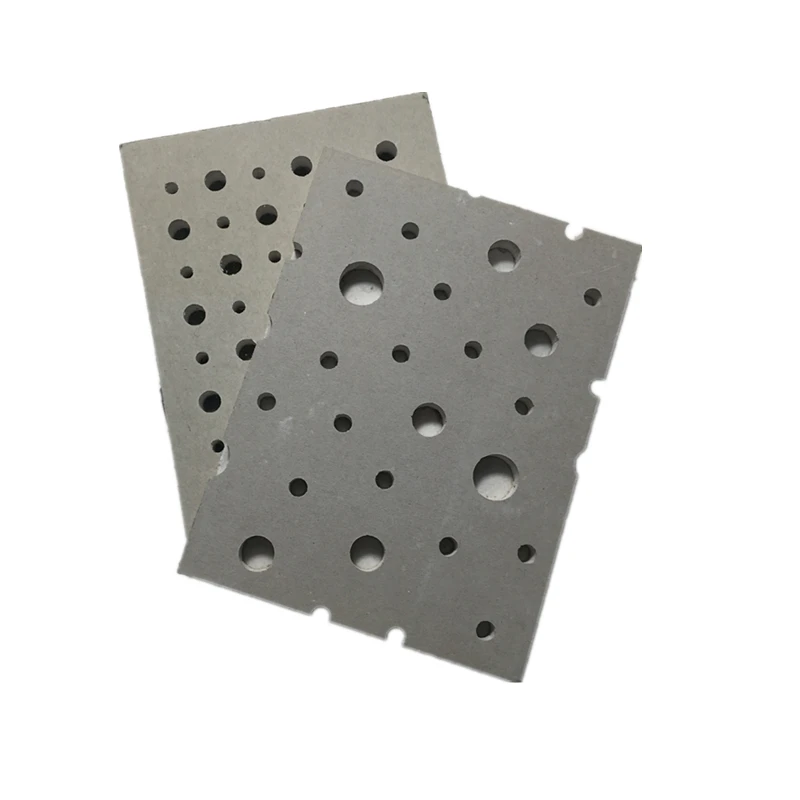

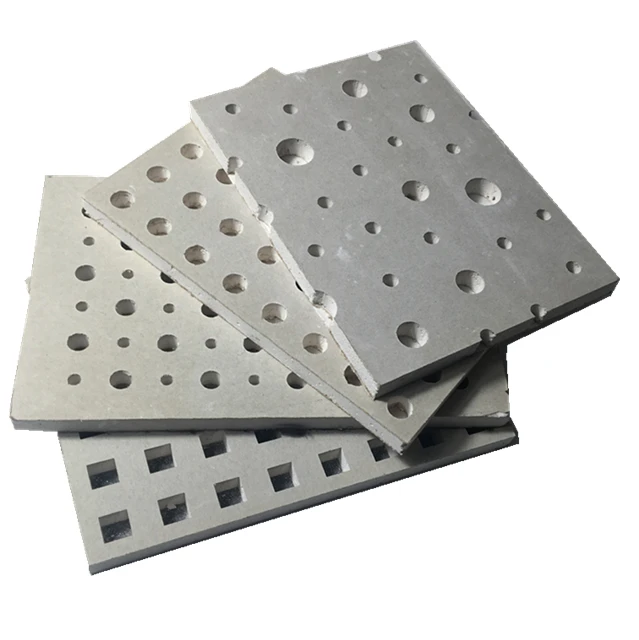

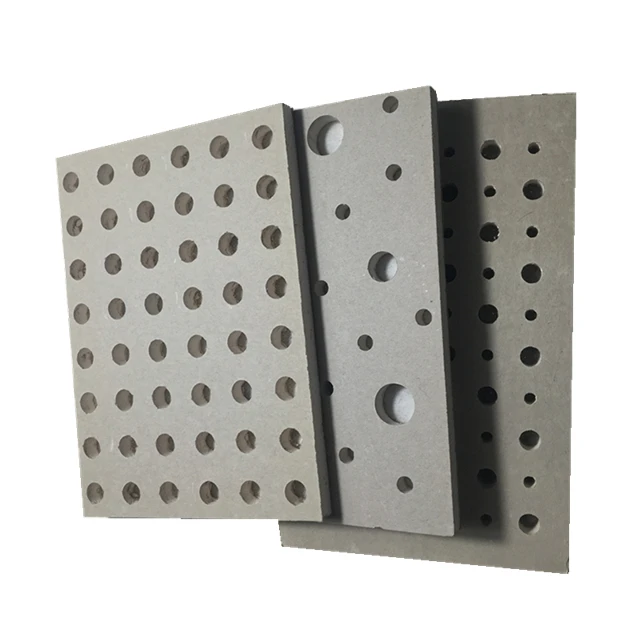

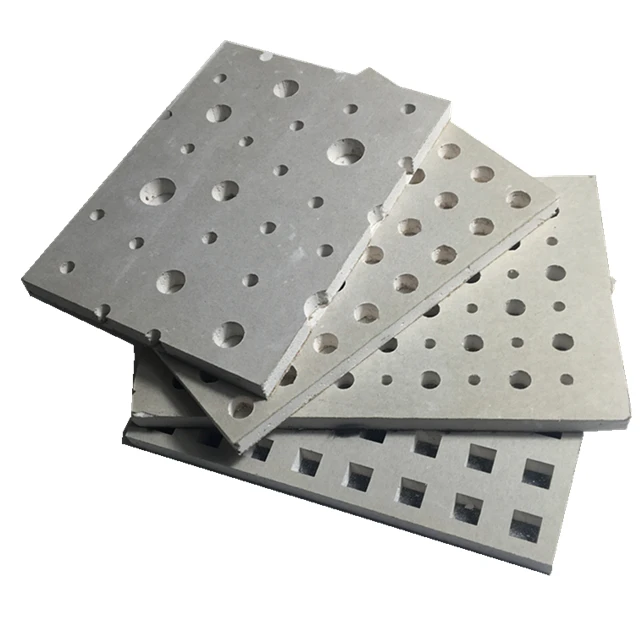

regular hole acoustic non sound perforated gypsum board

Wellyoung acoustic perforated gypsum board is designed on the basis of helholtz resonance theorem. After perforation, the holes, board and the wall make up of many resonant cavities, when air molecules pass the holes, the resonant cavities will consume large quantities of sound energy. Perforated boards have been designed for the usage of ceilings and walls, where an increased level of sound attenuation is required. The acoustic property of the board is achieved by perforations of the board surface that absorbing sound to reduce echoes and reverberation.







Specification

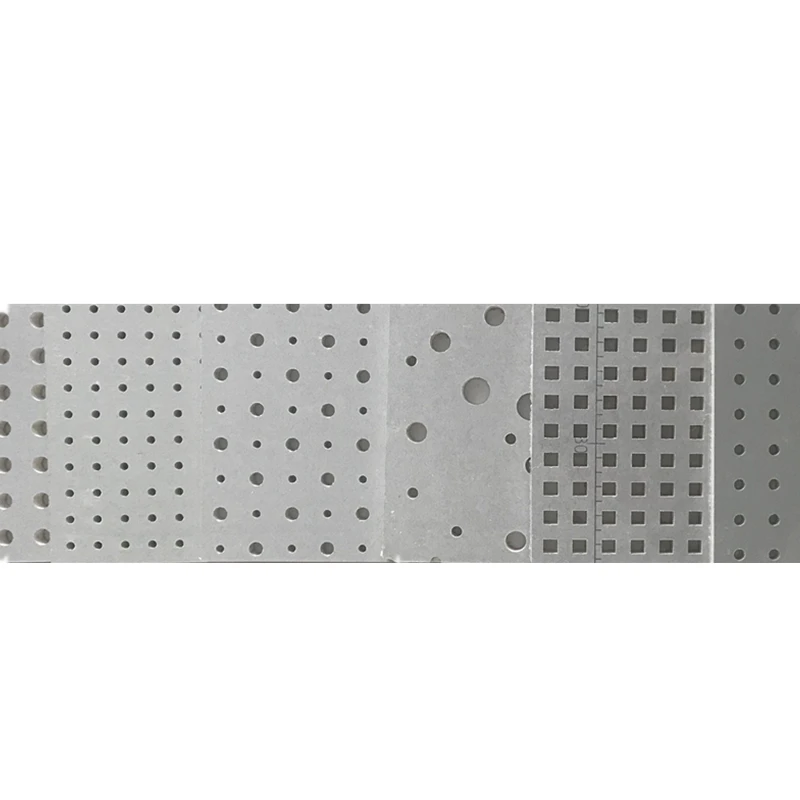

Coer Material	high quality glass fiber reiforced gypsum board	Perforation	Micro hole 3/8.33R Square hole 10/20Q 12/25Q Circle hole 6/25(18)R 8/25R 12/25R Cross hole 8/12/50R Long round hole 4*14LR Irregular hole (pop hole) 8/15/20R More desgins can be available according to your requirements.
Suface finish	Surface: white thick paper covering, 160g/sqm Backside: High quality EU standard Almstrom non-woven fabric
Thickness	12.5mm
Density	9.4kgs/m2	Patterns	H8-L4W2
Edge	Square	Perforation rate	8.8-14.2%
Color	White	NRC	0.7
Size	1200*2400mm	RH	70







Key Facts
Completely seamless and monolithic.
Achieves the maximum Class A BREEAM rating.
Installed on to the Suspended ceiling system.
Ideal solution to building regulations.
Impact resistant option ideal for sports halls.
Access hatches that match the board pattern.
Takes up to 5kg/m² without any additional support.
Perforation size - Dia. 6mm, cc 18mm
Perforation area - 8.7%







Absorption Coefficient









Application

Wellyoung perforated gypsum board offers the perfect combination of acoustic performance and creativity with its seamless and monolithic ceiling system that is fixed to theSuspended Ceiling System, completely removing any framing from sight. It uses an innovative technology to improve indoor air quality by permanently removing formaldehyde from the air. This technology provides for healthier living, learning and working environments. Wellyoung perforated gypsum board is one of the best sound absorption products, and it is widely used in Auditorium, Library, Office, Cinema, Church, Hospital, School, Exhibition, Studios and so on
