Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Поделиться:
Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-19-2025 | 24395.80 $* | 25615.83 $* |
Aug-19-2025 | 24190.23 $* | 25400.3 $* |
Jul-19-2025 | 20295.46 $* | 21310.27 $* |
Jun-19-2025 | 23780.53 $* | 24969.89 $* |
May-19-2025 | 20705.15 $* | 21740.95 $* |
Apr-19-2025 | 23370.31 $* | 24539.91 $* |
Mar-19-2025 | 23165.88 $* | 24323.83 $* |
Feb-19-2025 | 22960.96 $* | 24108.83 $* |
Jan-19-2025 | 22755.53 $* | 23893.91 $* |
item | value | |

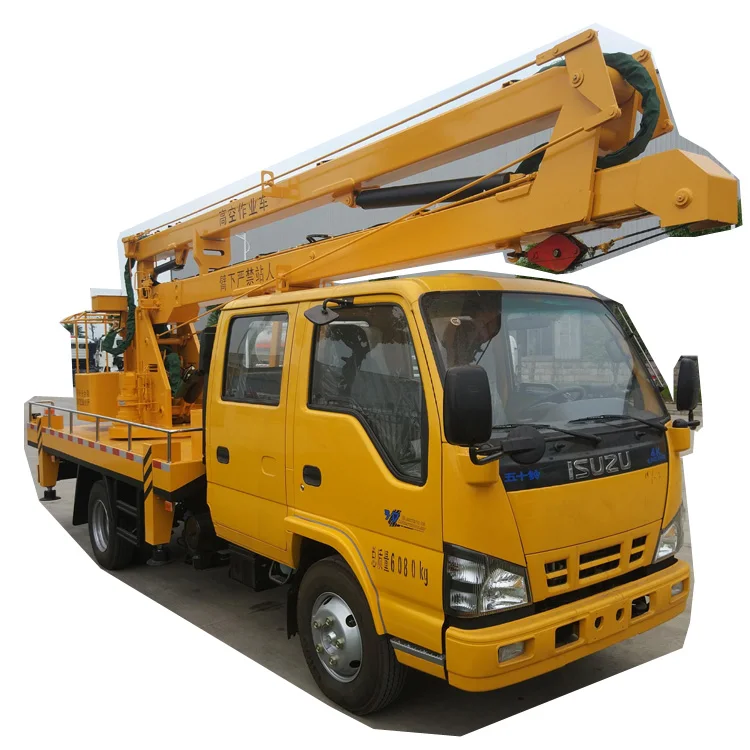

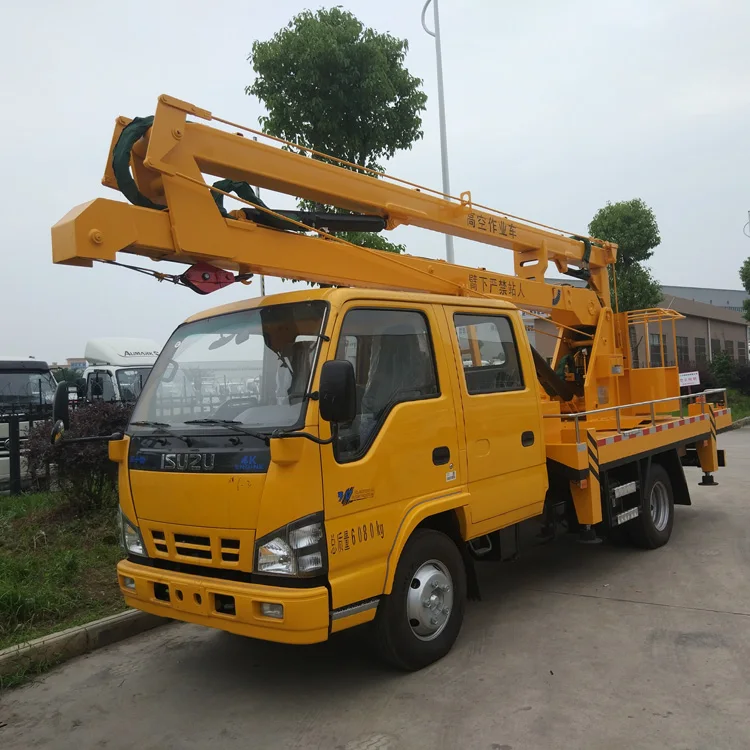

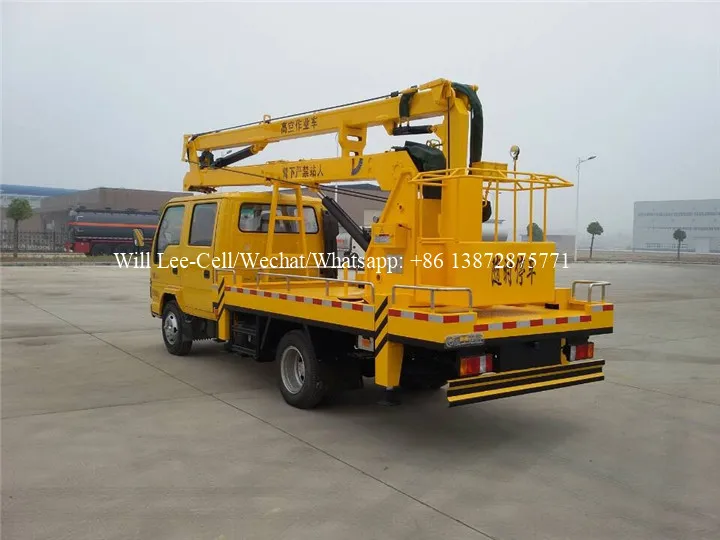

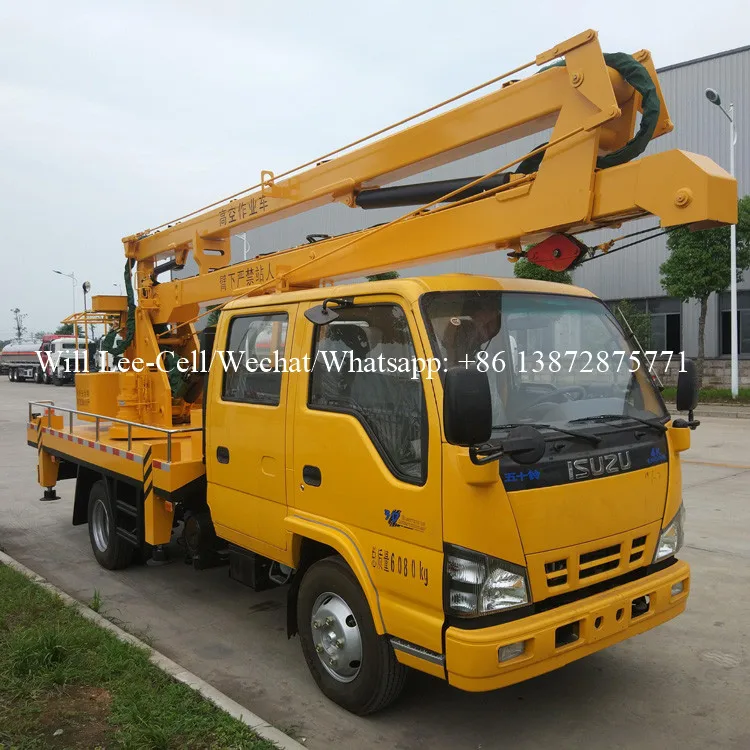

Vehicle Name | ISUZU 14M bucket truck aerial platform Vehicle | |
Chassis brand | ISUZU | |
GVW | 5430KG | |
Curb weight | 5100kg | |
Cab seat | 2+3 person | |
Air Conditoner | Yes | |
Fuel type | Diesel | |
Engine Model | 4KH1CN5LS | |
Engine brand | ISUZU | |
Power | 98HP | |
Emission Standard | Euro 3,Euro 5,Euro 6 | |
Drive Type | 4*2 | |
Transmission | 5 forward gear,1 reverse gear, Manual | |
Wheelbase(mm) | 3360 | |
Tyre Specification | 7.00R16 | |
Tyre No.(pcs) | 6+1 | |
Max Speed(km/h) | 105 | |
Paint | as your required | |
ABS | Yes | |
Upper parameter | ||

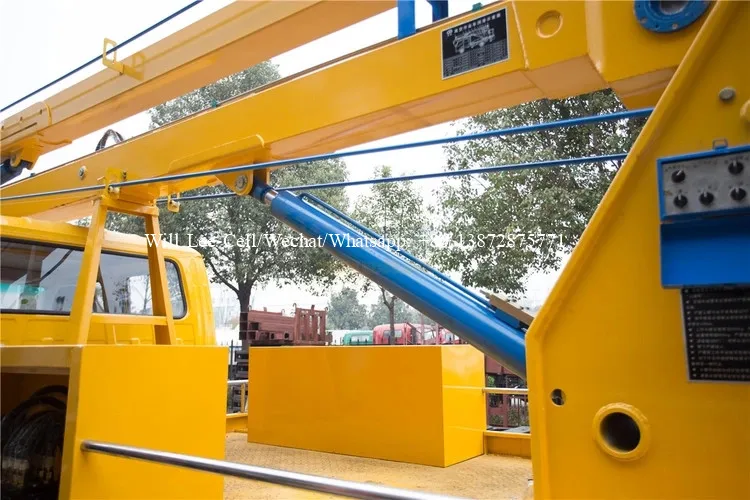

Boom structure | 3 section telescopic boom, internal oil cylinder drive | |
Material | 4mm, high strength steel | |
Boom section | quadrangle | |
Rolling angle | 0°-70°(Relative horizontal) | |
Max working height | 14m | |
Max working radius at maximum working height | 2m | |
Maximum working radius | 6.3m | |
Working height at maximum working radius | 8m | |
Rotation | Left/Right, 180° rotation | |

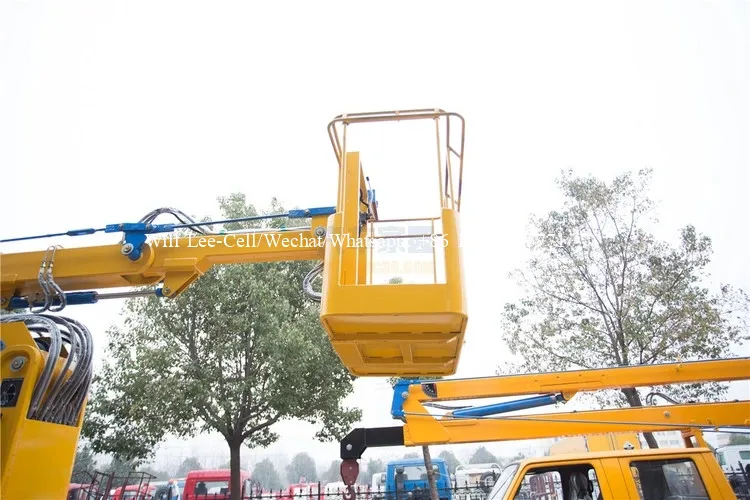

Basket | ||
Rated load weight | ≤200Kg | |
Dimension | L*W*H(mm):1080x620x1150 | |
Leveling | Static, hydraulic and automatic leveling | |
Safety belt | one | |
Leveling device | Oil cylinder automatic leveling | |
Operation System | ||
Ground leg | Manual, adjusted separately | |
Operation mode | Manual and electric,elector-hydraulic proportional speed control | |
Boom action | Electric control on the ground and in the basket, with controller and display, remote control for basket | |
Engine start/stop control | On the ground and in the basket | |
Engine accelerator | Manual cable or electronic throttle |
