Охлаждающая башня для машины для литья под давлением
US $900.00-$1000
Черный полипропиленовый масляный сепаратор коалессирующие среды биоразлагаемые сетки для охлаждающей
- Категория: Cooling Tower >>>
- Поставщик: Jiangxi,Aite,Mass,Transfer,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.29 $* | 0.17 $* |
| Aug-15-2025 | 0.99 $* | 0.80 $* |
| Jul-15-2025 | 0.52 $* | 0.27 $* |
| Jun-15-2025 | 0.88 $* | 0.50 $* |
| May-15-2025 | 0.21 $* | 0.49 $* |
| Apr-15-2025 | 0.51 $* | 0.54 $* |
| Mar-15-2025 | 0.45 $* | 0.12 $* |
| Feb-15-2025 | 0.78 $* | 0.27 $* |
| Jan-15-2025 | 0.56 $* | 0.13 $* |
Характеристики
Product Description

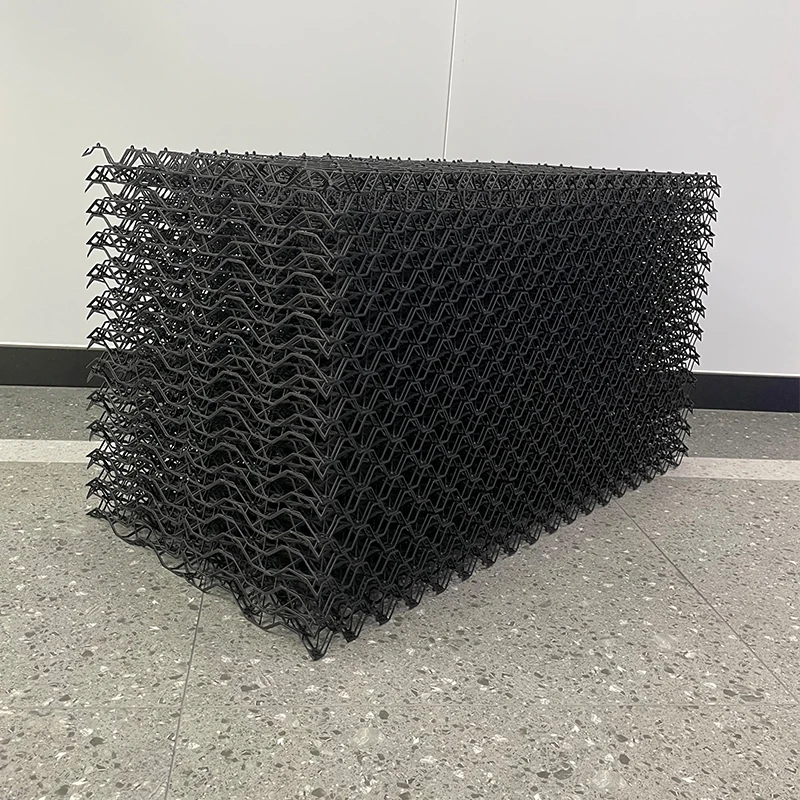

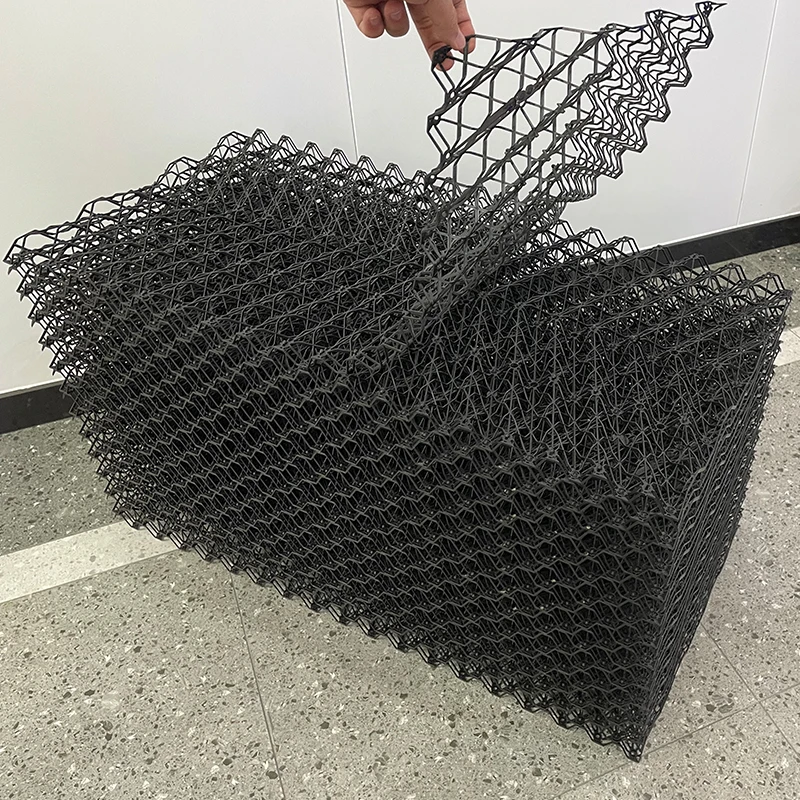

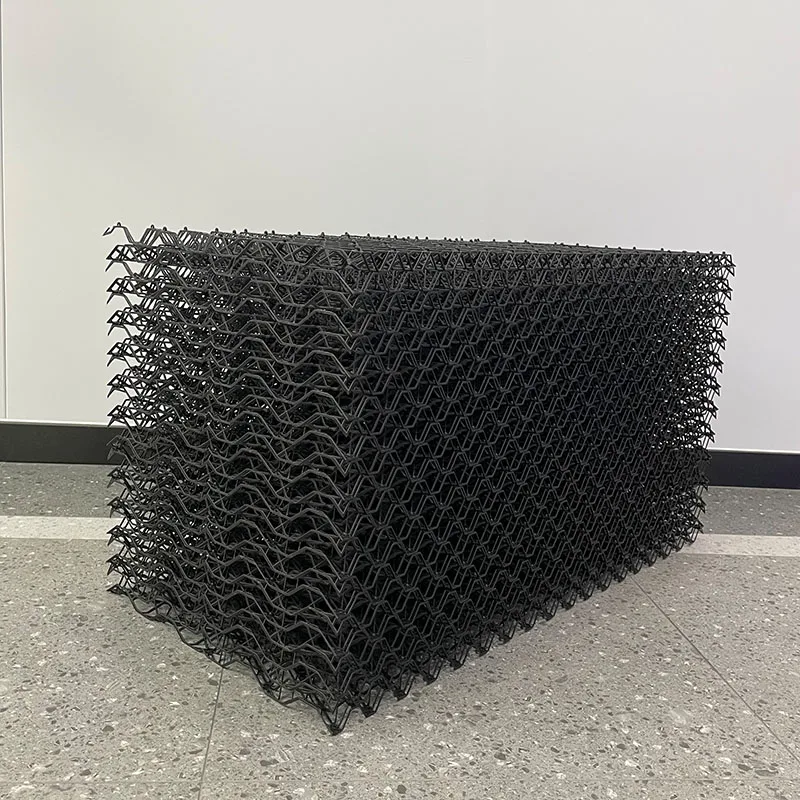

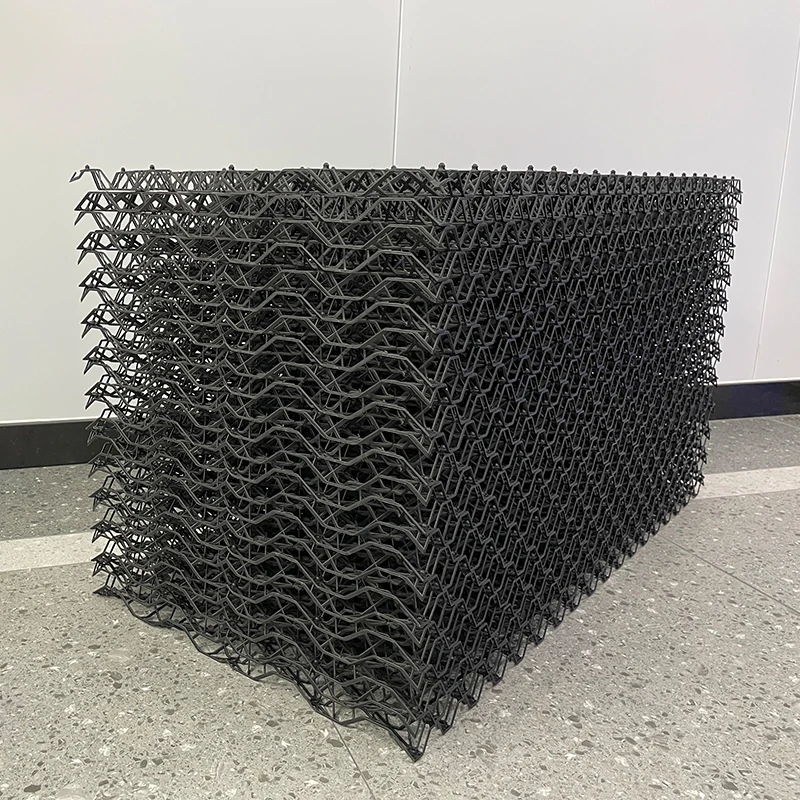

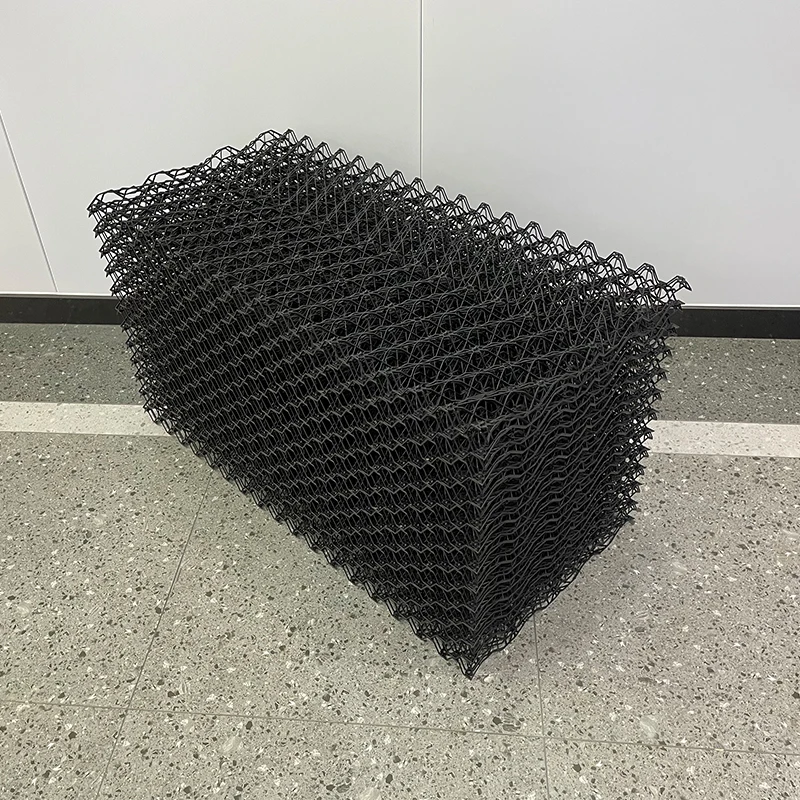

Wet Net Filler Cooling filler
This filler is different from film filler & grid filler. The feature as follows:
1: Unique mesh-designed can achieved liquid drop quickly Polymerization and dispersion
2: The open cross-diagonal/vertical grid structure promotes high frequency contact and renewal of gas and liquid, overcomes filler
clogging and improve the overall cooling performance significantly.
It is very suitable in cooling tower, agricultural and highly complex mass transfer applications.
Feature:
1: Unique connection way ensures the assembled filler block firm & reliable.
2:Big Void ratio, High heat transfer coefficient
3:High temperature resistance, corrosion resistance
4:Quickly forming film,no easy to scale
5: Three-dimensional flow, uniform water distribution
1: Unique mesh-designed can achieved liquid drop quickly Polymerization and dispersion
2: The open cross-diagonal/vertical grid structure promotes high frequency contact and renewal of gas and liquid, overcomes filler
clogging and improve the overall cooling performance significantly.
It is very suitable in cooling tower, agricultural and highly complex mass transfer applications.
Feature:
1: Unique connection way ensures the assembled filler block firm & reliable.
2:Big Void ratio, High heat transfer coefficient
3:High temperature resistance, corrosion resistance
4:Quickly forming film,no easy to scale
5: Three-dimensional flow, uniform water distribution
1) Products suitable for inferior water qualities
2) Chemical and high temperature resistance of Polypropylene
3) High stability
4) Cleaning with high pressures cleaners possible
5) Long service life
6) Impact resistant
7) Environmentally friendly
8) Economical installation
Technical Data:
1) Length: 900mm
2) Width: 450mm
3) Flute: 19mm
4) Special heating exchange area: 125 square meter / cubic meter
5) Thickness: 1.8mm
6) Conection: wedged joint
7) Maximum total suspended solid: 300 ppm continuoous operation and can be bear under 500 ppm within 10 hours
8) Usage life: ≥ 20 years
2) Chemical and high temperature resistance of Polypropylene
3) High stability
4) Cleaning with high pressures cleaners possible
5) Long service life
6) Impact resistant
7) Environmentally friendly
8) Economical installation
Technical Data:
1) Length: 900mm
2) Width: 450mm
3) Flute: 19mm
4) Special heating exchange area: 125 square meter / cubic meter
5) Thickness: 1.8mm
6) Conection: wedged joint
7) Maximum total suspended solid: 300 ppm continuoous operation and can be bear under 500 ppm within 10 hours
8) Usage life: ≥ 20 years
Technical Properties: | |||||||
SIZE | TSS SHORT/LONG TERM PPM | Effective surface area | Material | Sheet vertical height mm | |||
910*600*450 | 500/300 | 125 | PP | 20 | |||
910*600*450 | 500/300 | 125 | PP | 20 | |||
910*600*450 | 500/300 | 125 | PP | 20 | |||
910*600*450 | 1000/500 | 100 | PP | 25 | |||
480*600*445 | 1000/500 | 100 | PP | 25 | |||
Details Images

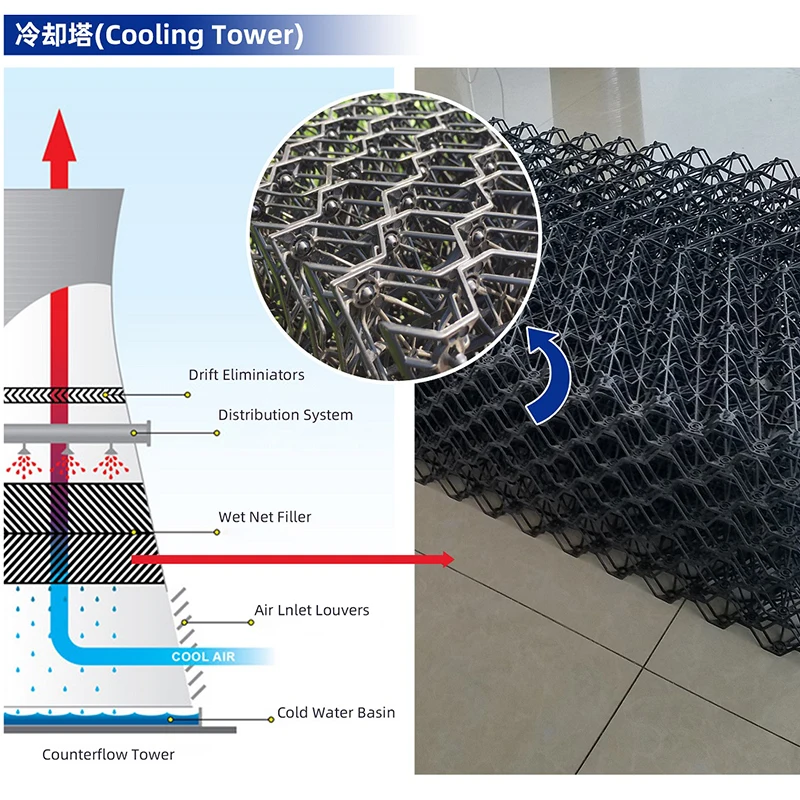

Application Scene
Company Profile
Packing&Shipping
FAQ
Q1.What strength does the factory have?
A:The world's most advanced 5g + intelligent digital chemical factory has been established, which is the first industrial 4.0 operation mode in the field of mass transfer in the world.
Q2.what's your Storage capacity of warehouse?
A:The world's most advanced 5g + intelligent digital chemical factory has been established, which is the first industrial 4.0 operation mode in the field of mass transfer in the world.
Q2.what's your Storage capacity of warehouse?
A:We have built the first intelligent three-dimensional warehouse in the industry, with a capacity of 80000 cubic meters.A total of 2466 locations, it can meet 40 days no delivery.
Q3.What is the production capacity of the factory?
A:The annual production capacity is 300000 cubic meters.
Q4. How many people are there in the factory?
Q3.What is the production capacity of the factory?
A:The annual production capacity is 300000 cubic meters.
Q4. How many people are there in the factory?
A:There are 300 employees in total.
Q5.What is the company's philosophy?
A:Excellent in quality, loyal to integrity.
Q5.What is the company's philosophy?
A:Excellent in quality, loyal to integrity.
