Products Description

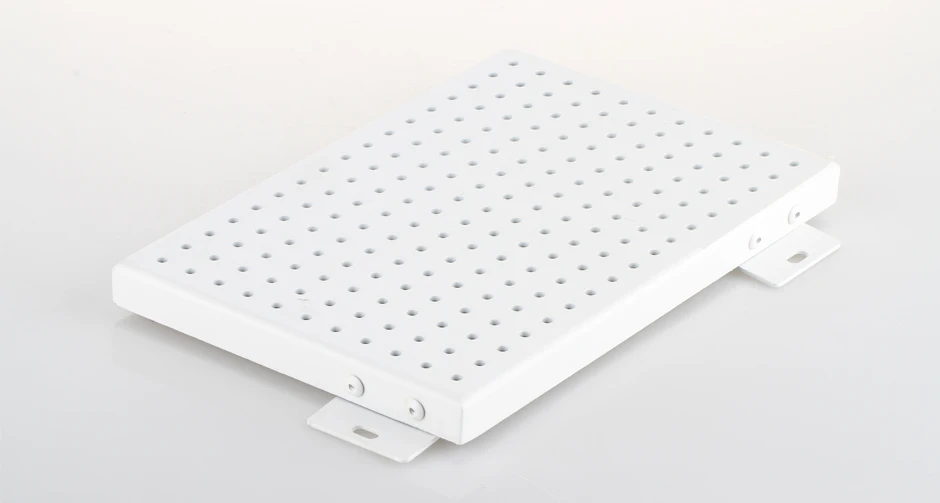

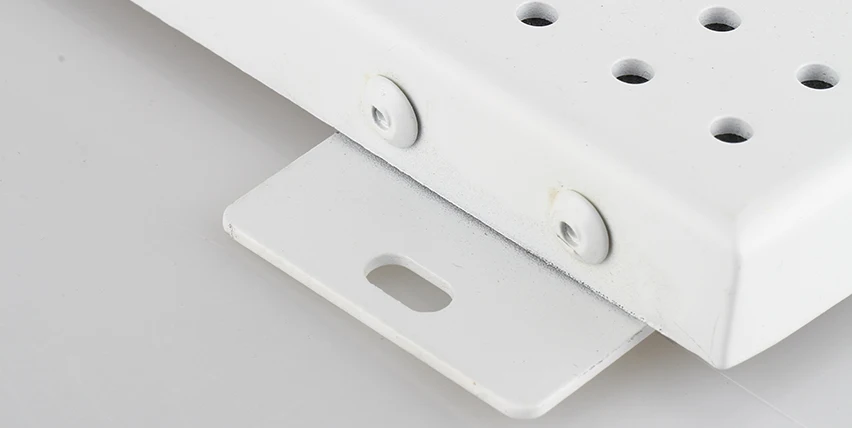

ALUMINIUM WALL PANEL
The aluminum wall panel is also called the aluminum cladding, cladding panel, and aluminum solid sheet. It’s processed from high-quality aluminum plates. With a variety of processing procedures such as of shearing, punching, bending, arc-rolling, welding, burnishing, riveting assembling, rib assembling, polishing and spray coating, then the aluminum plate processes into wall panel, the material of metal curtain wall/façade.
As the main choice of exterior façade decoration, comparing with tiles, glass, aluminum composite panels, aluminum honeycomb panels and the marble, particular superiority of aluminum wall panel bring much more possibility to the construction area.
As the main choice of exterior façade decoration, comparing with tiles, glass, aluminum composite panels, aluminum honeycomb panels and the marble, particular superiority of aluminum wall panel bring much more possibility to the construction area.
Normally, aluminum facade panels can be subdivided into three types: aluminum cladding, aluminum composite panel, and aluminum honeycomb panel. Panel types are selected according to the specific application, and budget consideration for whole project.
Some keywords and different name: Solid aluminium cladding, Aluminium cladding panels, Powder coated aluminium cladding, Reverse cut aluminium cladding, Aluminium exterior wall panels, Aluminium cladding panels, Aluminium cladding, Aluminium exterior wall cladding, Aluminium wall cladding, External aluminium cladding systems
Technical Specs
MATERIAL | Aluminium alloy 3003 / 1100; Zinc-aluminium (ZA) alloys |
MAX. SIZE | 1800*6000mm; Other sizes on request |
THICKNESS | 1.5mm/2.0mm/2.5mm/3.0mm/3.5mm/4.0mm; Other sizes on request |
COATING | Polyester powder coating; PVDF, PE coating; Other surface finishes on request |
COATING BRANDS | AkzoNobel, Tiger, PPG or Chinese brands |
COLOUR | White (RAL9010, RAL9003); Grey (RAL9006); Wood grain colors (oak, maple, walnut, dark cherry, etc); Other RAL colors on request |
WARRANTY | 10-yrs limited quality assurance for interior ceilings 25-yrs limited quality assurance for exterior ceilings(super durable weather-resistance) 30-yrs limited quality assurance for products with PVDF coatings |
STYLES | Normal square(the most common) , Hook-On, H Shape, C Shape, Non-Standard styles(Customized Request) |
Main features of the aluminum wall panel
Compared with ceramics, glass, and other materials, aluminum wall panel has the characteristics of lightweight, high strength, good rigidity, and easy processing.
With PVDF coating on the surface, the aluminum wall panel has excellent weather ability, UV resistance ability, and corrosion resistance ability. The color and luster can be maintained very long time. The panels can be used under harsh conditions from -50°C to 80°C.
Good acid and alkali resistance. PVDF coating is the most excellent coatings for outdoor use. We often use world famous brand PVDF coating material like PPG/ AkozeNobel.
Excellent processing performance. It’s easy to cut, weld, bend, and made into different special shapes and install on the site. It’s unmatched by other decorative materials.
Good sound insulation, shock absorption performance. It’s easy to add sound-absorbing cotton, rock wool and other
sound-absorbing insulation materials behind the aluminum wall panel. Good flame retardancy, no toxic smoke in case fire.
Varied color choices. RAL color and customized color are acceptable by us.
Not easy to stain, convenient to clean and maintain.
100% Recyclable, friendly to the environment.

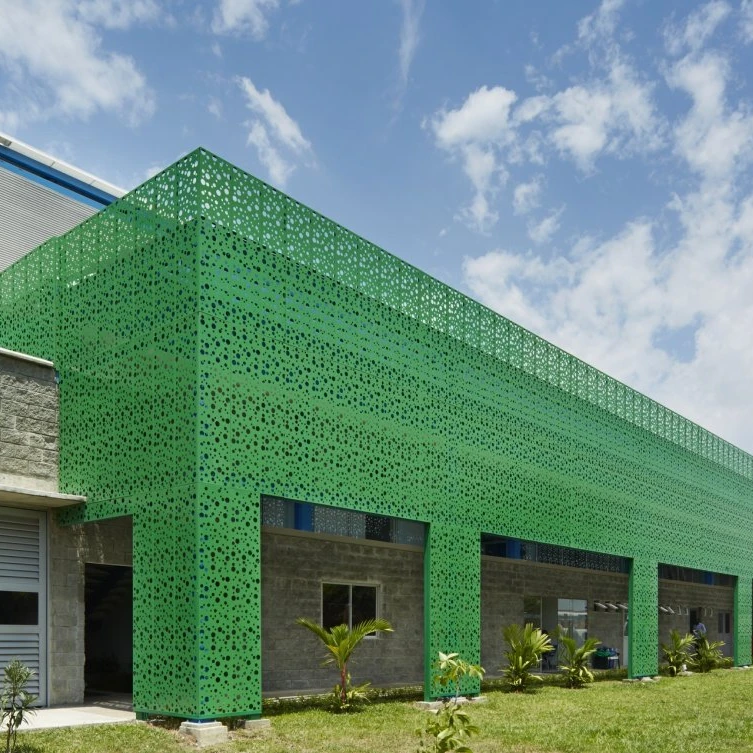

Application Examples
Packaging and Delivery
Standard Packing: Surface protective film + Bubble film + Paper corner protector;
High-End Packing: Plywood Case or Plywood frame
FAQ
Profile Length for Delivery
Max. L=2000 mm for LCL / FLC goods by sea
Max. L=600 mm for Parcel
What is your MOQ?
No MOQ, as this type goods are customized.
No MOQ, as this type goods are customized.
How long for the sample?
Sample: within 7 days after payment & drawing are confirmed by clients.
Standard section size: 1 day(ready)
What is your delivery time?
Batch Production: 20-25 days after sample confirmed & down payment received.
Batch Production: 20-25 days after sample confirmed & down payment received.
Special Period, such as the end of the year busy production schedule: 30~35 days after sample confirmed & down payment received.
What should I provide for a quote from you?
Drawing is necessary, and CAD drawing will be best.
Required quantity for each profile/ aluminum alloy and temper / surface finishing / dimension tolerance / quality standard.
Section size details.
Can I get a sample?
If it is customized samples and we confirm the specific dimension and surface details we can produce a sample and charge a little sample fee, but the EXPRESS charge will be in your account. The sample fee will be part of the deposit since the bulk order is placed.
If requiring the regular type samples, we provide them for free, but the air freight will be collected.
What is your payment term?
30% T/T in advance, 70% T/T should be paid before delivery.
L/C at sight based of the total amount beyond 60000USD.
Note: Settlement term for balance payment: final quantity shall be based on actual physical weight including packing (standard
pound worse tolerance ± 3%)
