Солнечный глубоководный насос 67
- Категория: Солнечный водяной насос >>>
- Поставщик: Taizhou,Waterlink,Pump,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 220.2 $* | 224.56 $* |
| Jul-18-2025 | 178.27 $* | 182.7 $* |
| Jun-18-2025 | 216.89 $* | 220.63 $* |
| May-18-2025 | 215.63 $* | 219.24 $* |
| Apr-18-2025 | 171.73 $* | 174.50 $* |
| Mar-18-2025 | 211.78 $* | 215.30 $* |
| Feb-18-2025 | 209.73 $* | 213.95 $* |
| Jan-18-2025 | 208.69 $* | 212.48 $* |
Характеристики
Product Description
ADVANTAGES OF DC SOLAR PUMP
1.Permanent magnet DC brushless synchronous motor: The efficiency is improved by 25%;
Save energy; Reduce the consumption of solar panels
2.304 S/S pump shaft
3. Brass or stainless steel outlet/connector/ oil cylinder.
4.Japanese NSK bearing: prolong the working life
5. Double bearing motor base: can work under more axial pressure
6. Alloy mechanical seal: Longer working life and high reliability
7. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved
8.Intelligent water shortage protection: The pump stops working automatically when there is no water in the well,and automatically
start working 30 minutes later

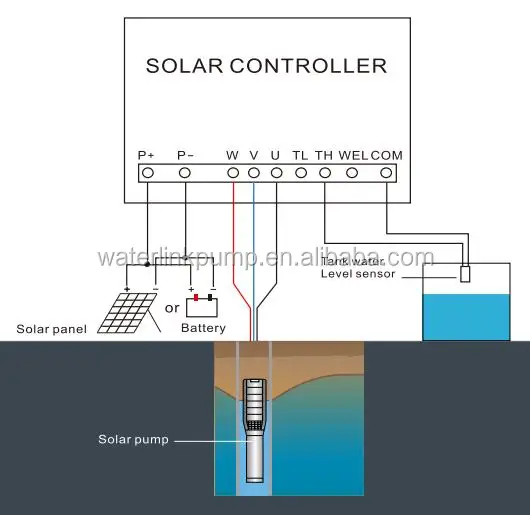

ADVANTAGES OF CONTROLLER
(1)Waterproof grade: IP65
(2) Ambient temperature:-15℃-60℃
(3 )MPPT function, the solar power utilization rate is higher
(4)Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery;And when there is no sunshine,
the battery can make the pump continuously working
(5 )LED displays the power, voltage, current, speed etc working condition
(6 )Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also
can change the speed of pump manually
(7)Automatically start and stop working
(8)Water proof and leak-proof: Double seal effect
(9 )Soft start: No impulse current, protect the pump motor.
(10)High voltage/Low voltage/Over-current/High temperature protection
1.Permanent magnet DC brushless synchronous motor: The efficiency is improved by 25%;
Save energy; Reduce the consumption of solar panels
2.304 S/S pump shaft
3. Brass or stainless steel outlet/connector/ oil cylinder.
4.Japanese NSK bearing: prolong the working life
5. Double bearing motor base: can work under more axial pressure
6. Alloy mechanical seal: Longer working life and high reliability
7. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved
8.Intelligent water shortage protection: The pump stops working automatically when there is no water in the well,and automatically
start working 30 minutes later
ADVANTAGES OF CONTROLLER
(1)Waterproof grade: IP65
(2) Ambient temperature:-15℃-60℃
(3 )MPPT function, the solar power utilization rate is higher
(4)Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery;And when there is no sunshine,
the battery can make the pump continuously working
(5 )LED displays the power, voltage, current, speed etc working condition
(6 )Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also
can change the speed of pump manually
(7)Automatically start and stop working
(8)Water proof and leak-proof: Double seal effect
(9 )Soft start: No impulse current, protect the pump motor.
(10)High voltage/Low voltage/Over-current/High temperature protection
Specification
Model | Voltage (v) | Power (w) | Max flow (m3/h) | Max head (m) | Outlet (inch) |
4SSC5.2-45-48-500 | 48 | 500 | 5.2 | 45 | 1.25" |
4SSC5.2-67-48-750 | 48 | 750 | 5.2 | 67 | 1.25" |
4SSC5.2-67-72-750 | 72 | 750 | 5.2 | 67 | 1.25" |
4SSC5.2-101-72-1100 | 72 | 1100 | 5.2 | 101 | 1.25" |
4SSC5.2-101-110-1100 | 110 | 1100 | 5.2 | 101 | 1.25" |
4SSC5.2-146-110-1300 | 110 | 1300 | 5.2 | 146 | 1.25" |
4SSC4.8-203-110-1500 | 110 | 1500 | 4.8 | 203 | 1.25" |
4SSC7.5-80-110-1300 | 110 | 1300 | 7.5 | 80 | 1.25" |
4SSC7.5-100-110-1500 | 110 | 1500 | 7.5 | 100 | 1.25" |
4SSC11-60-110-1500 | 110 | 1500 | 11 | 60 | 2" |
4SSC19-35-110-1500 | 110 | 1500 | 19 | 35 | 2" |
4SSC25-26-110-1500 | 110 | 1500 | 25 | 26 | 2" |
4/6SSC30-19-72-1100 | 72 | 1100 | 30 | 19 | 3" |
4/6SSC34-22-110-1500 | 110 | 1500 | 34 | 22 | 3" |
Outlet:
-Brass
-Stainless steel
Joint/ oil chamber:
-Brass
-Stainless steel
MPPT controller:
-High voltage/Low voltage/ Over-current/High temperature protection
How to select the suitable model?
1. Where will the pump be used?
e.g.: Borehole.
2. How much water demand(liters or gallon or m3)required per day(suppose 6-8H working time) or per hour?
e.g.:5000 liters per hour
3.The depth from the pump to the ground?(H1)
e.g.:20m
4. The height from the ground to the water tank?(H2)
e.g.:30m
5. The horizontal distance from the well to the water tank?(H3)
e.g.:50m
The pumping head=H1+H2+H3/10
The pumping flow=per day flow/6hours=per hour flow
