HC1450 флексографская печатная машина для упаковки продуктов питания и

HC1450 флексографская печатная машина для упаковки продуктов питания и

Категория: Boxing Machines >>>
Поставщик: Wenzhou,Xinguang,International,Trade,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.78 $*	0.27 $*
Aug-17-2025	0.45 $*	0.0 $*
Jul-17-2025	0.84 $*	0.40 $*
Jun-17-2025	0.26 $*	0.61 $*
May-17-2025	0.87 $*	0.68 $*
Apr-17-2025	0.63 $*	0.85 $*
Mar-17-2025	0.20 $*	0.29 $*
Feb-17-2025	0.19 $*	0.14 $*
Jan-17-2025	0.29 $*	0.95 $*

Характеристики

Our Services

As distributor, our most advantage is competitive price and effective aftersale service.

we offer on-the-spot serivice within 24 hours worldwide

Your one stop solution for Printing&Packaging

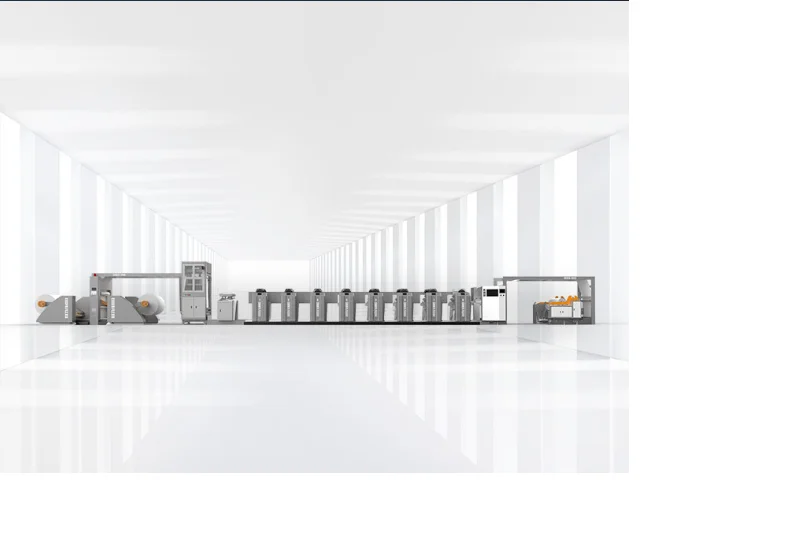

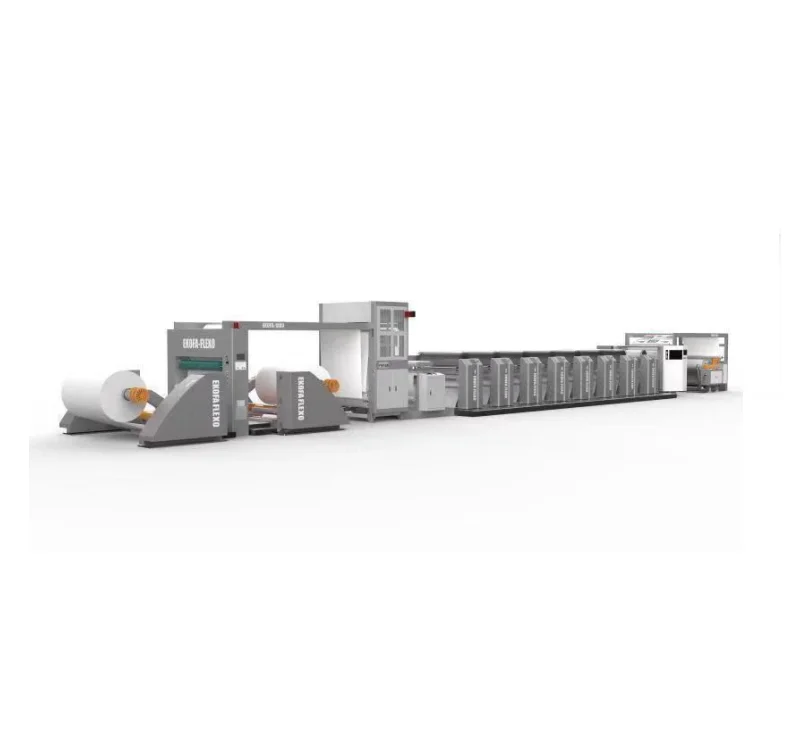

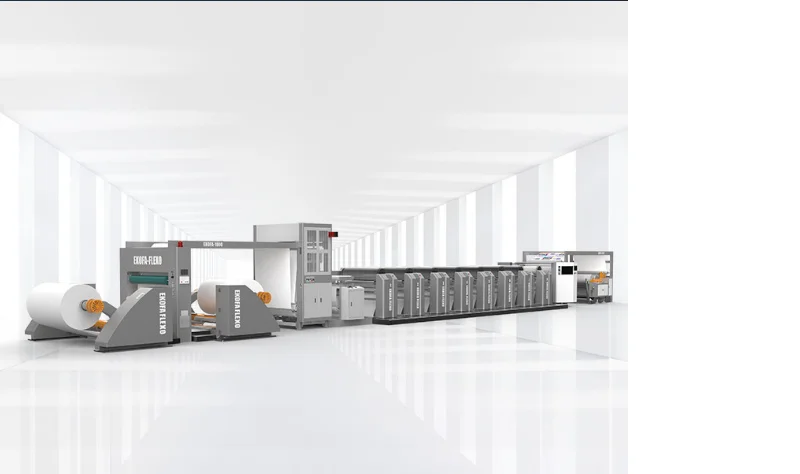

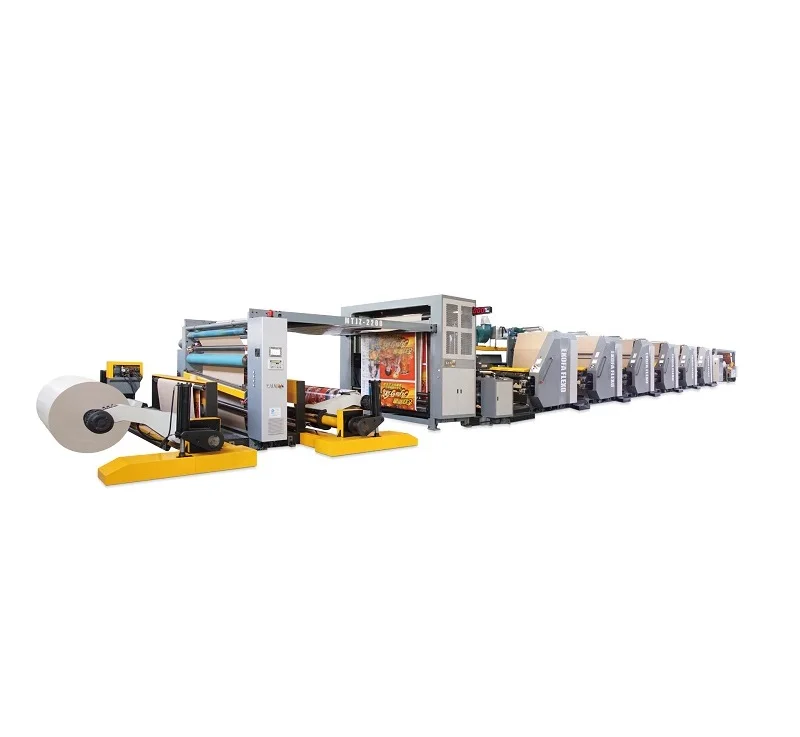

Flexo Printing Machine

Product Description

Function and Characteristics

1.PLC central integrated control system;
2.Automaticmonitoringthe performance of the whole control system before operation;
3.Various parameters setting, operation data checking andtension controlchecking in the working process;
4.Automatic operation control of pneumatic components;
5.Standard sealed electriccabinet, equipped with fan circulation cooling device, and grouped by functions;
6.Equipped with LED power supply voltage, frequency, motor current and other instruments;
7.The whole system has perfect protection and anti-jamming measures;
8.All motor drive inverter specifications are the same as those of the corresponding motor;

Main technical Parameter

Maximum Paper Width	1470mm
Maximum Printing Width	1410mm
Printing Repeat	280-1200mm
Maximum Unwinder Diameter	60’’ diameter (1524mm)
Maximum Rewinder Diameter	60’’ diameter (1524mm)
Gearing	1/8''CP,Tooth pitch3. 175mm
Maximum Mechanical Speed	200 m/min
Plate Thickness	1.7mm(TBD ,Can be changed according to customer requirements)
Tape Thickness	0.5mm(TBD ,Can be changed according to customer requirements)
Substrate	70-260gsm Paper Printing
Press Color	gray&white colour
Control	Chinese/English
Lubricating System	AutomaticLubrication. With time and quantity adjustment. When the lack of lubrication or system failure, the indicator light alarm
Control Panel	In the front of the press

Carton GS and size:
Model	650GS	800GS	1100GS
A	650-100	800-100	1100-100
B	500-60	800-60	800-60
Size of two-sides glue box and folded box
Model	650GS	800GS	1100GS
A	500-100	800-150	1100-250
B	400-60	800-60	800-60
H	150-20	150-20	150-20
Size of bottom-locked carton and folding carton
Model	650GS	800GS	1100GS
A	650-146	800-146	1100-250
B	450-60	700-60	1700-80
H	180-20	180-20	100-25
Size of 4 corners box and folding box
Model	650GS	800GS	1100GS
A	500-120	800-120	1100-120
B	400-120	800-130	800-130
C	150-20	150-30	150-30
Size of 6 folds box and folding box
Model	650GS	800GS	1100GS
A	500-120	800-120	1100-250
B	400-100	800-130	800-130
C	150-30	150-30	150-30
