Микро-Инверторные системы Off Grid 150 Вт 155 160 165 1 кВт комплект заводской Золотой мощности глубокий цикл гель поликристаллическая солнечная
- Категория: Solar Cells >>>
- Поставщик: Foshan,Esg,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 29.90 $* | 30.57 $* |
| Aug-19-2025 | 28.20 $* | 29.21 $* |
| Jul-19-2025 | 24.20 $* | 25.42 $* |
| Jun-19-2025 | 28.32 $* | 29.92 $* |
| May-19-2025 | 24.31 $* | 25.25 $* |
| Apr-19-2025 | 27.59 $* | 28.51 $* |
| Mar-19-2025 | 27.95 $* | 28.23 $* |
| Feb-19-2025 | 27.40 $* | 28.44 $* |
| Jan-19-2025 | 27.20 $* | 28.37 $* |
Характеристики
Why Choose Us？

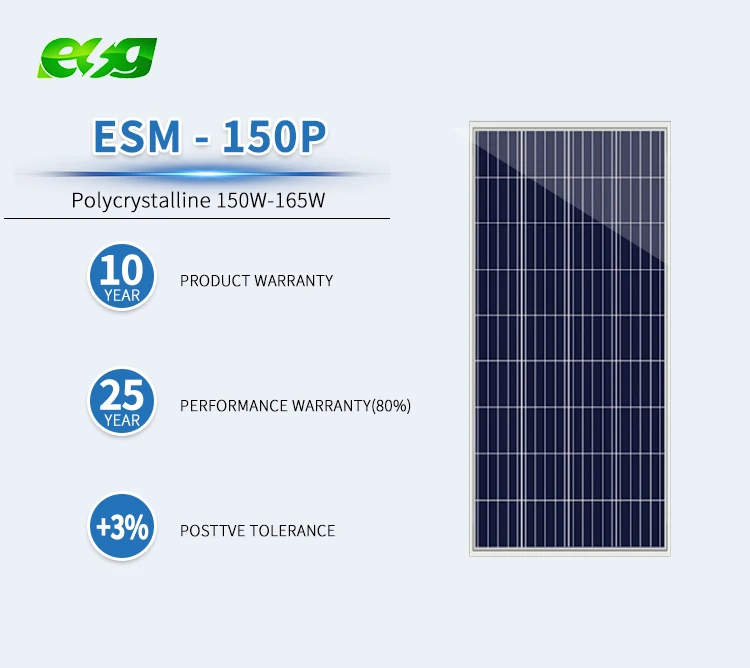

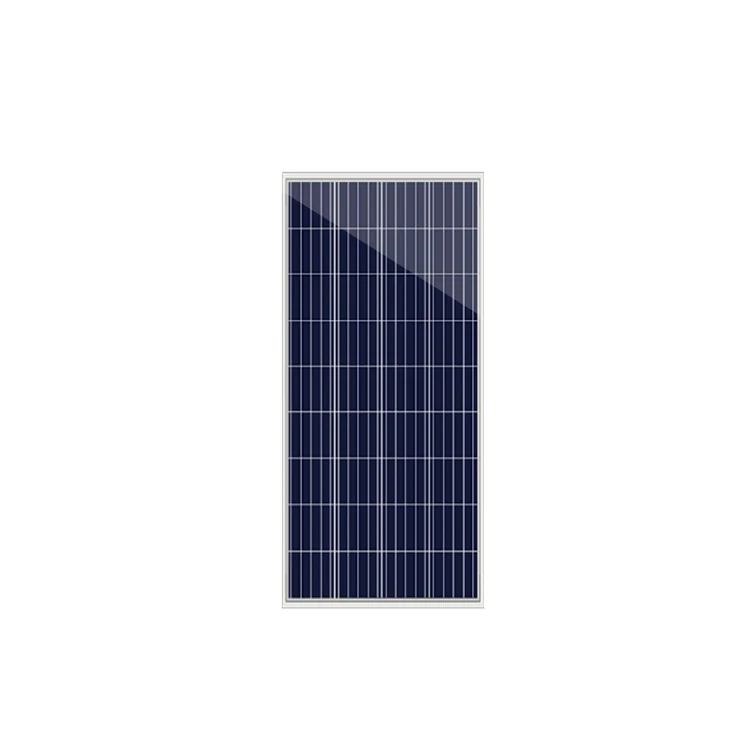

Products Description
Model | ES150W | ES155W | ES160W | ES165W | |||
Peak Power Watts(Pmax/W) | 150 | 155 | 160 | 165 | |||
Tolerance (%) | 0~+3% | ||||||
Open Circuit Voltage(Voc) [V] | 22.5 | 22.7 | 22.9 | 23.2 | |||
Short Circuit Current(Isc) [A] | 8.56 | 8.75 | 8.94 | 9.20 | |||
Maximum Power Voltage (V) | 18.5 | 18.6 | 18.8 | 19.0 | |||
Maximum Power Current (A) | 8.11 | 8.33 | 8.51 | 8.68 | |||
Maximum system voltage (V) | 1000V | ||||||
Operating Temperature(℃) | -40 -- +85 ℃ | ||||||

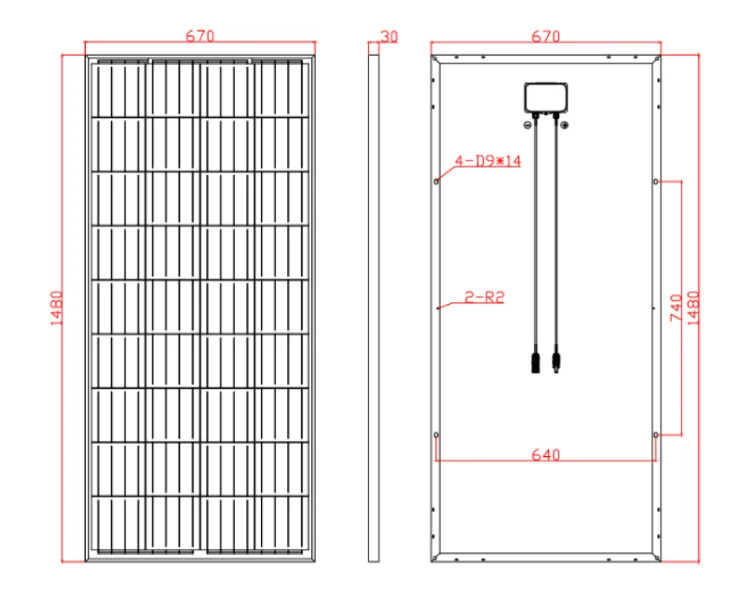

Physical Specification：
Dimension:1480*670*30MM
Weight:10.2KG/PCS
Packing: Each box capacity: 36 pcs
Product Feature
● Bypass diode minimizes the power drop by shade.
● The conversion efficiency of solar cell is above 21%.
● White tempered glass,EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.
● Waterproof Perfect for grid applications.
● Product guarantee 10 years.
Quality Assurance
●Electrical Insulation test
●Outdoor exposure test
●Hot-spot endurance test
●UV-exposure
●Thermal cycling test
●Humidity freeze test
●Damp heat Test
●Outdoor exposure test
●Hot-spot endurance test
●UV-exposure
●Thermal cycling test
●Humidity freeze test
●Damp heat Test
Electric Performance Typical Performance Characteristics | ES320W | |
Short Circuit Current Temperature Coefficient %/℃ | 0.048 | |
Open Circuit Voltage Temperature Coefficient %/℃ | -0.290 | |
Maximum Power Temperature Coefficient %/℃ | -0.370 | |
Performance Warranty: 90%output:12 years; 80%output:25 years | ||
GLASS
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
TEVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Junction Box, Cable and MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
More Related Products:
Our Factory
Certifications
Our Exhibition
Our Team
Packing & Transport
Our Project：
100MW floating PV plant in Weishan, Jining
100kW commercial rooftop PV plant in Japan
40MW floating PV plant in Panji, Anhui
FAQ
Q1:What’s A grade wholesale price payment terms?
A1:We accepted almost all payment terms,like T/T,L/C,DA,DP,Western Union,MoneyGram
Q2: OEM Service
A2：reached 100PCS，we also can pintingyour LOGO on solar panel carton.
Q3: Warranty process.
A3: We can provide 1 ~ 8 years different warranty.
Q4:How long is your delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have stock.
A1:We accepted almost all payment terms,like T/T,L/C,DA,DP,Western Union,MoneyGram
Q2: OEM Service
A2：reached 100PCS，we also can pintingyour LOGO on solar panel carton.
Q3: Warranty process.
A3: We can provide 1 ~ 8 years different warranty.
Q4:How long is your delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have stock.
