400 м пневматическая установка для бурения скважин серии
- Категория: Mining Machinery >>>
- Поставщик: Quzhou,Jugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 17850.4 $* | 18743.65 $* |
| Aug-18-2025 | 17700.36 $* | 18585.85 $* |
| Jul-18-2025 | 14850.58 $* | 15593.58 $* |
| Jun-18-2025 | 17400.42 $* | 18270.73 $* |
| May-18-2025 | 15150.46 $* | 15908.36 $* |
| Apr-18-2025 | 17100.26 $* | 17955.46 $* |
| Mar-18-2025 | 16950.46 $* | 17798.32 $* |
| Feb-18-2025 | 16800.51 $* | 17640.72 $* |
| Jan-18-2025 | 16650.19 $* | 17483.66 $* |
Характеристики

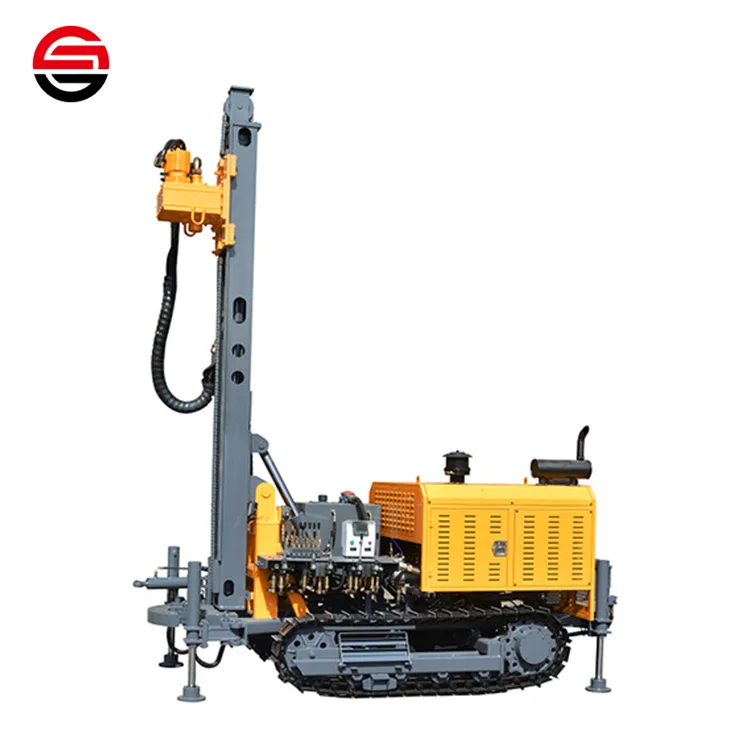

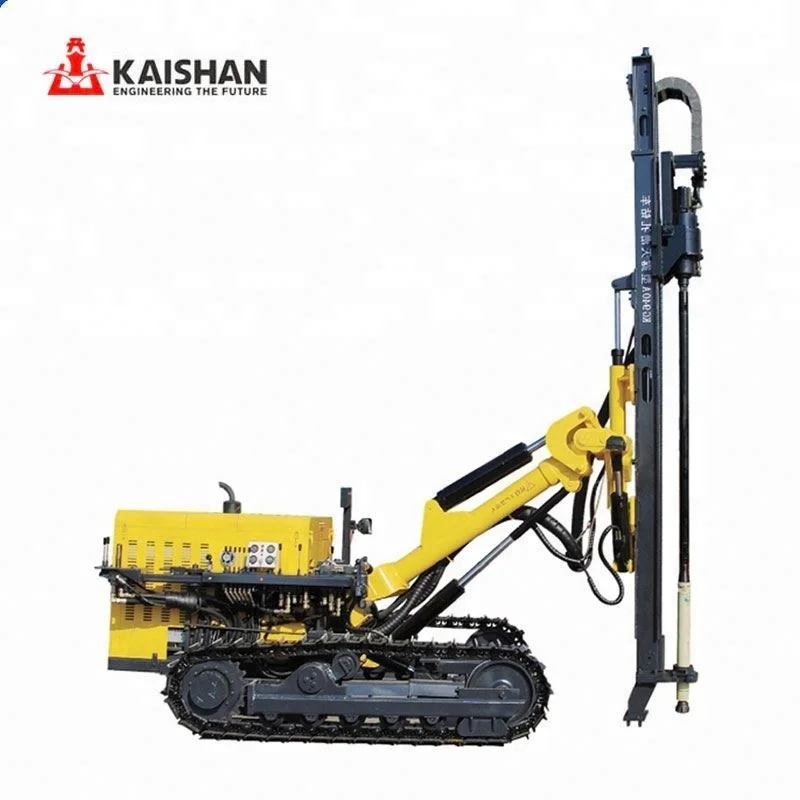

Chinese supplier Kaishan KT10 blasting drilling rig equipment
ABOUT KT SERIES DRILLING RIG |
KT series integrated DTH drilling rig is an advanced drilling equipment which is the DTH drilling system combined with the screw air compressore system.With compact structure,good integrity and mobile convenience.The characteristics of drilling rig are energy-saving efficient,safe environmental production,flexible and convenient operation,stable performance,etc. |
THE TECHNOLOGY CORE OF KT SERIES |
 | Air end: Driling rig is equipped with single stage high air pressure screw air end which is core konwledge products of the company.The application of international leading towne Y line,large flow,high pressure,to provide strong power to high air pressure pneumatic impactor.The drilling speed is higher than middle air pressure drilling rig in 20%-50%. |
 | Walking mechanism: The left and right crawler frame assemblies, each crawler frame assembly includes, a track beam, a guide wheel assembly, a drive wheel, five roller assemblies, a carrier sprocket assembly, a travel motor, a track assembly, and a track stop and more. |
 | Dust collecting system: The drilling rig is equipped with hydraulic dry integrator to collect dust and reduces the pollution of the environment.When the dust collector works backflush, the damper is closed, so that there is no suction in the dust collector, and the dust on the filter element can be easily blown off, thereby preventing dust accumulation in the dust collector The operation time is saved, and the work efficiency is improved. |
 | Hydraulic system: Driling rig is equipped with hydraulic manipulator,the drill pipe warehouse which disassemble the drill pipe and the floating joint which protect thread of drill pipe.One can disassemble the drill pipe. |
MORE MODEL SHOW |

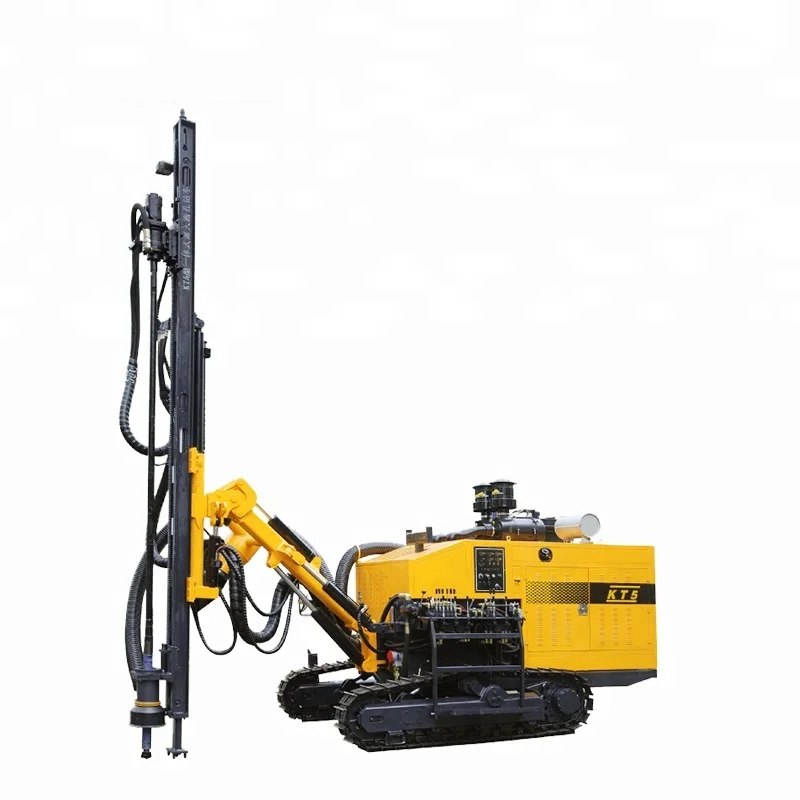

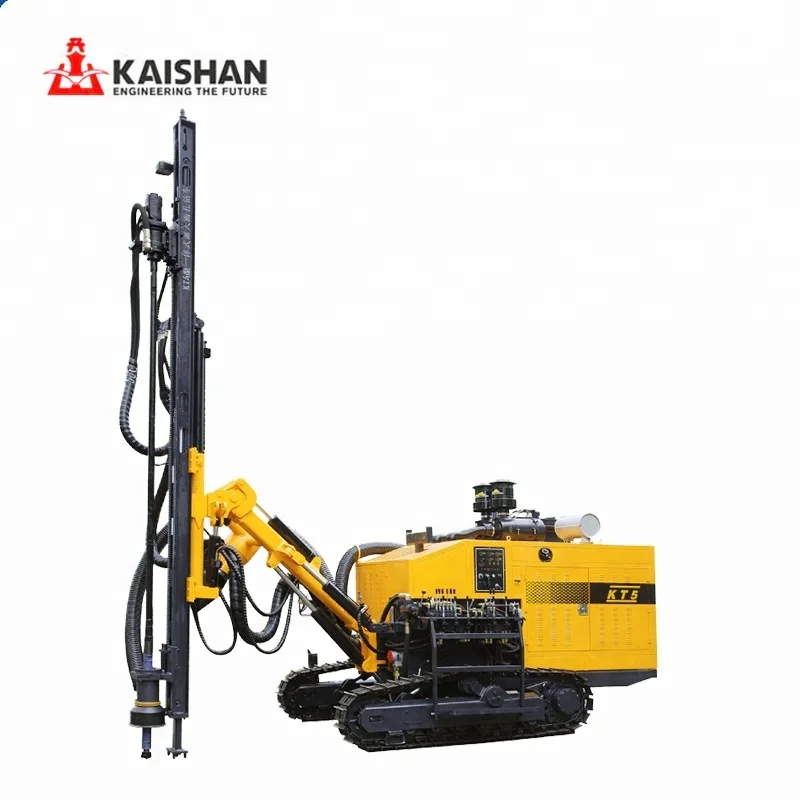

 | Model:KT5 Drilling hole depth:25m Max.feed force:25000N Climb capacity:30° Guide tilt:147° Boom lift:54°up,26°down Crawler balance angle:10°up,9°down Engine model:Yucai6A180Z-T21 Power:140kw Working pressure:15bar Air consumption:≥10m3/min Weigth:8000kg Dimension:6500*2400*2600mm |
 | Model:KT10 Drilling hole depth:32m Max.feed force:25000N Climb capacity:25° Guide tilt:114° Boom lift:47°up,20°down Crawler balance angle:10°up,10°down Engine model:CumminsC325 Power:242kw Working pressure:17bar Air consumption:≥18m3/min Weigth:14500kg Dimension:9100*2450*3200mm |

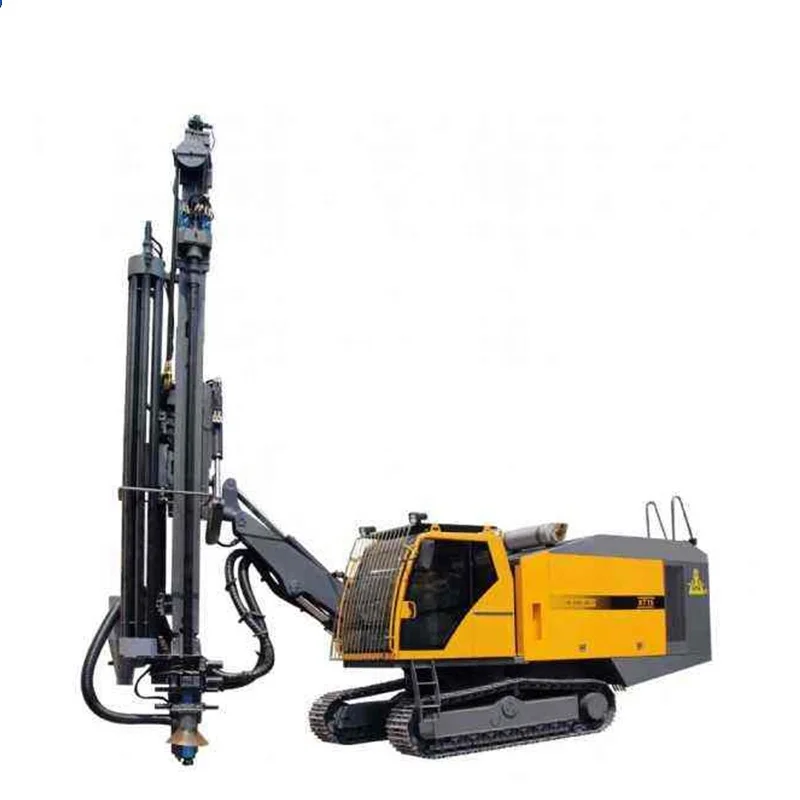

 | Model:KT15 Drilling hole depth:35m Max.feed force:65000N Climb capacity:25° Guide tilt:125° Boom lift:42°up,20°down Crawler balance angle:10°up,10°down Engine model:CumminsQSZ13-C400 Power:298kw Working pressure:20bar Air consumption:≥22m3/min Weigth:8000kg Dimension:11500*2716*3540mm |
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
