W-WRS термоусадочная; Обвивающиеся вокруг ноги ремонт рукава для


Поделиться:


Цена:0,48 $ - 0,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.66 $* 0.61 $*
Aug-16-2025 0.39 $* 0.66 $*
Jul-16-2025 0.92 $* 0.5 $*
Jun-16-2025 0.0 $* 0.45 $*
May-16-2025 0.15 $* 0.36 $*
Apr-16-2025 0.6 $* 0.5 $*
Mar-16-2025 0.8 $* 0.9 $*
Feb-16-2025 0.2 $* 0.90 $*
Jan-16-2025 0.54 $* 0.92 $*

Характеристики



Product Description


˙Materials: Corss-linked modified polyolefin
Application:
it is widely used for the application to seal wire and cable connections, 6:1 ratio make it cover the largest application range offered

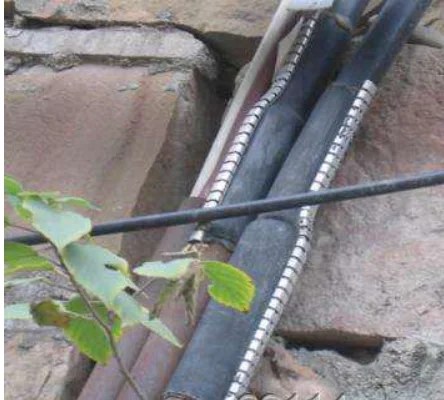

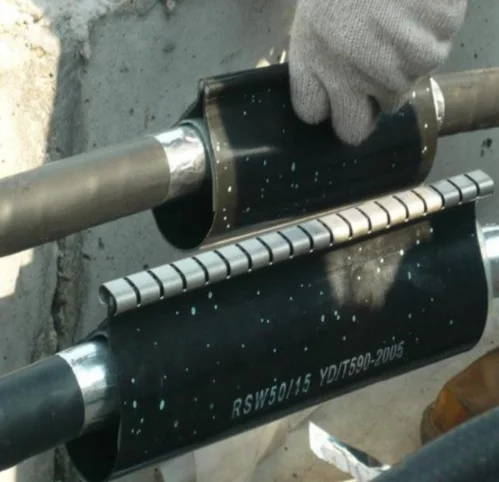

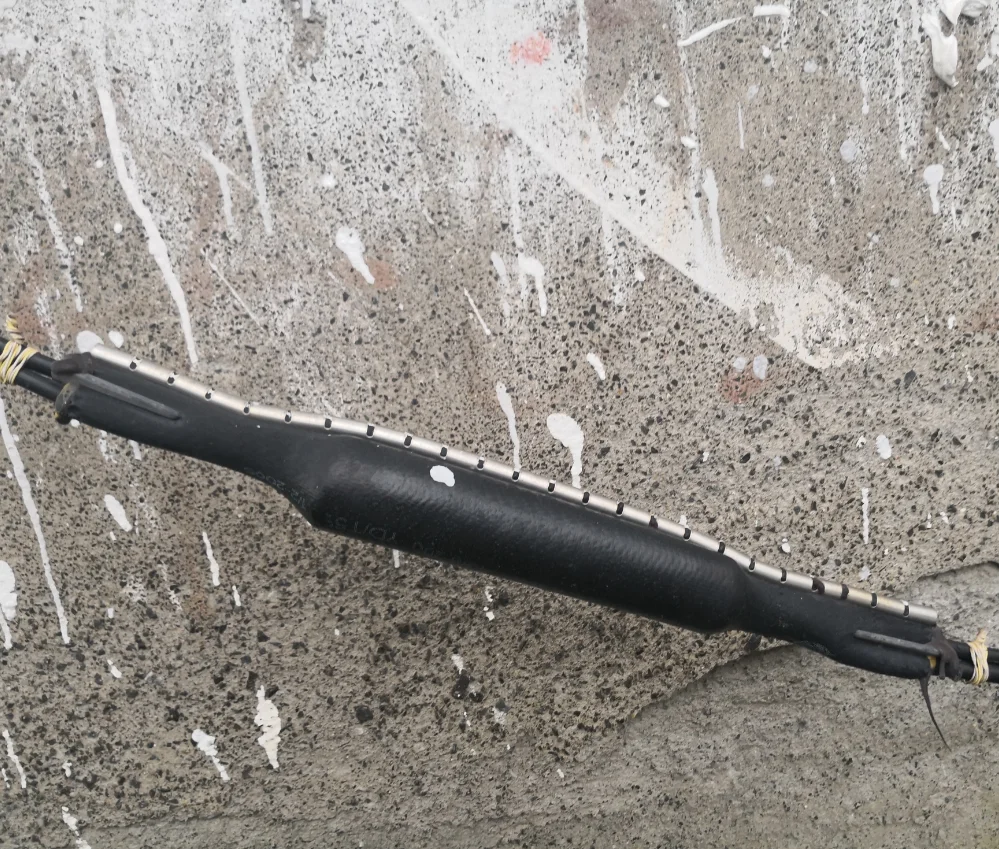

in the industry.which can provide the good mechanical protection and excellent water and moisture proof.It is ideal used for buried insulation of the wire splicing, electrical connection and jacket repair.



Property
Test Method
Typical Data
Bursting Strength
Test temp: 23±5°C
Min 15MPa
Thermal Ageing Bursting Strength
168 Hrs at 150±2°C(After free shrinkage)
Min 13.7MPa
Dielectric strength
Electrode Surface Dia: 6 mm Wight: 50±2gms
Voltage steps: 2 KV/20sec.
Min 12 KV/mm
Split Resistance
Temp: 200±2°C,
Test time: 23±3°C
No split
Propagation
Carbon Content
UV Res of Out/layer
Heating rate: 20°C/min
Gas flow rate: 300cc/min
Min 2.6±0.25%
Cold Crack resistance
Test temp≤-40°C
No cracking
Resistance to aggressive media
Bursting Strength
Test media: Fuel oil, petroleum jelly
Test temp: 70±2°C
Min 13.7MPa
Environmental
Stress cracking
10% Igepal Co 630
solution immersion
Time 30 days
Test temp: 50±3°C
No cracking
Temp. indicating paint conversion
Completely conversion
Completely conversion
Hot melt adhesive
Peel Strength
-PE at 23±2°C
-PE at 23±2°C
-Pb at 23±2°C
Min 100N/25mm
Shear Strength At
23±2°C
Min200N
Corrosive Effect
Copper Mirror test
Test time:16hrs
Test temp:60±2°C
No effect


Size
Max Cable Diam. (mm)
Min Cable Diam. (mm)
Lengths Supplied
42/15
42
15
500-1000-1500-2000 mm
50/15
50
15
500-1000-1500-2000 mm
75/20
75
20
500-1000-1500-2000 mm
93/25
93
25
500-1000-1500-2000 mm
105/30
130
30
500-1000-1500-2000 mm
135/34
135
34
500-1000-1500-2000 mm
146/38
146
38
500-1000-1500-2000 mm
164/42
164
42
500-1000-1500-2000 mm
175/50
175
50
500-1000-1500-2000 mm
198/55
198
55
500-1000-1500-2000 mm
220/65
220
65
500-1000-1500-2000 mm






Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




Company Profile


Material Mixing
Extrude
.
Cross linking


Expand
Whole Production line
Factory




Shanghai Wellco International Limited is a professional Team with 18years experience for R & D, production, sales of special heat shrink Tube and other radiation crosslinking materials manufacturers. We concentrate on to providing all kinds of products and solution for Insulation,Connection ,Waterproof, high temperature ,Chemical resistant ,EMI and mechanical protection for the wire and cable .
The company has strong technical force with 20 years experience and advanced production equipment. We can supply (such as modified PE, PVDF ,FEP ,EPDM,Silicone,FKM.FEP.PTFE Etc materials)heat shrink tube and insulation tube. The products are widely used in the fields of electronic communication, automobile, high-speed rail, electric motor, aviation, medical and other fields, such as insulation, water-proof, electrostatic shielding, oil-resistant, chemical and high-temperature resistant Protection, etc. Our products have passed UL certification ,RoHS ,REACH.
We also can produce customized products or develop products with special requirements according to customer requirements, and we carry out our production according to ISO9001 and IATF16949 quality management system standards to ensure the stability and reliability of product quality.


FAQ


1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Western Europe(15.00%),South America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Northern Europe(5.00%),Eastern Asia(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),Africa(00.00%),Central America(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Heat Shrink Tube/Heat Shrink Mould Part/Marking Sleeve/Cold Shrink Tube

4. why should you buy from us not from other suppliers?
Shanghai Wellco International Limited is a professional R & D, production, sales of special heat shrink Tube and other radiation crosslinking insulation materials manufacturers And the founder have the experience for the insulation more than 20years

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese
