TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Машина для производства косметических коробок машина зачистки
- Категория: Paper Product Making Machinery >>>
- Поставщик: Wenzhou,Qianding,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.54 $* | 0.75 $* |
| Aug-18-2025 | 0.56 $* | 0.25 $* |
| Jul-18-2025 | 0.24 $* | 0.68 $* |
| Jun-18-2025 | 0.80 $* | 0.64 $* |
| May-18-2025 | 0.41 $* | 0.76 $* |
| Apr-18-2025 | 0.0 $* | 0.59 $* |
| Mar-18-2025 | 0.19 $* | 0.76 $* |
| Feb-18-2025 | 0.42 $* | 0.44 $* |
| Jan-18-2025 | 0.71 $* | 0.59 $* |
Характеристики
Details Images

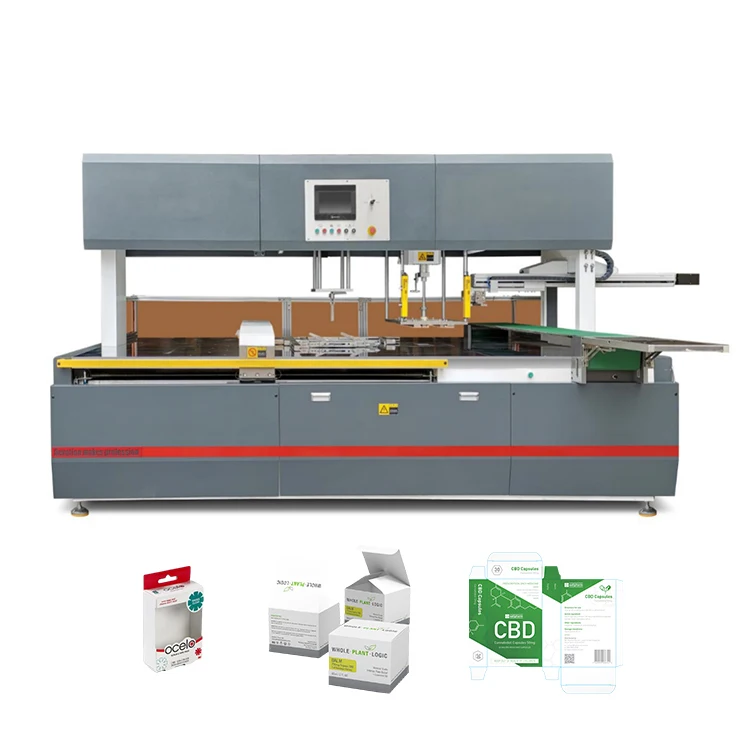

QDQF-1080CTR
Automatic Stripping with Double Heads Hole Cleaning Rotary Head Manipulator
Main Function:
1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die cutted product such as labels, hang tags, business cards,
gift boxes, food boxes, paper cups and other die cutting products in paper or plastic,
PU leather.
3. Two work heads: one inner hole cleaning + one stripping head
4. Rotary head of stripping to take out the opposite direction die cutting products
easily .
5.Automatically taking out product with manipulator arm and stack product onto
delivery belt.
6. PLC controlled with smart & easy operation.
7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
2. Applied for many die cutted product such as labels, hang tags, business cards,
gift boxes, food boxes, paper cups and other die cutting products in paper or plastic,
PU leather.
3. Two work heads: one inner hole cleaning + one stripping head
4. Rotary head of stripping to take out the opposite direction die cutting products
easily .
5.Automatically taking out product with manipulator arm and stack product onto
delivery belt.
6. PLC controlled with smart & easy operation.
7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
Adjustable hydraulic system
Safety fence
Centralized lubrication system
Paper gauge with hidden motor and ball screw
Model | QDQF-920CTR | QDQF-1080CTR |
Machine Size | L4200xW2250xH2020 | L4290xW2490xH2020 |
Max sheet size (X x Y) mm | 920 x 680 | 1080 x 780 |
Min sheet size (X x Y) mm | 550 x 400 | 650 x 450 |
Max pile height / mm | 100 | 100 |
Min pile height / mm | 40 | 40 |
Work table height mm | 850 | 850 |
Max product size to be punched out | 420 x 420 | 390 x 390 |
Min. product size to be punched out | 30*30 | 30*30 |
Stripping speed times/min | 15-22 | 15-22 |
Max. force (bar) | 70 | 70 |
Air consumption L/min | 3 | 3 |
Manipulator Grip Range /mm | 30-260mm | 30-300mm |
Manipulator Grip Weight | 50-1500g | 50-1800g |
Max Power | 5kw 380V | 5kw 380V |
Net Weight | 2.9T | 3.2T |
Package Size | 3700x1900x2200 | |
Gross Weight | 2.5T | 3T |
Gross Weight | 3.6T | 4.0T |
