Характеристики
PV type power class dc 1000v lightning surge arresters supplier
Hot Products
Product Description

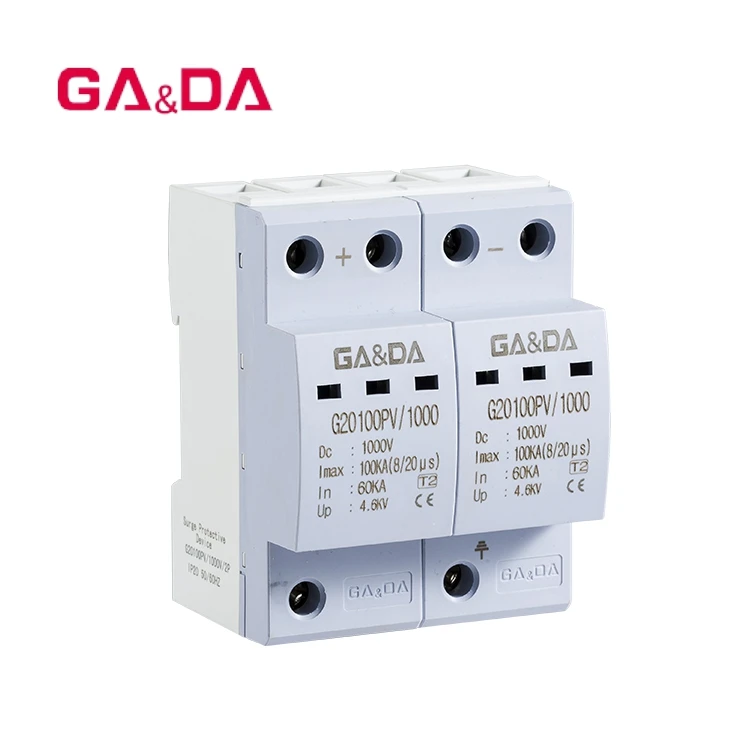

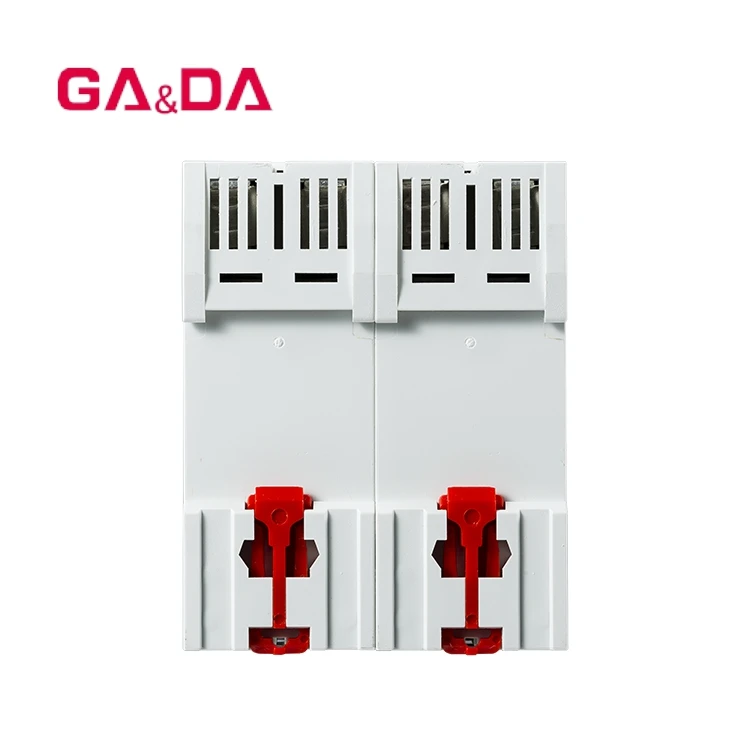

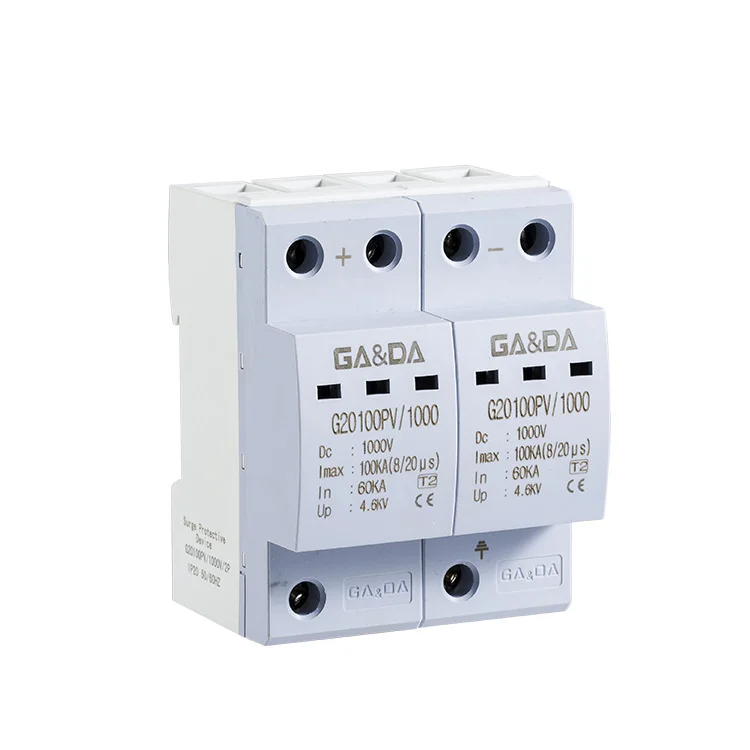

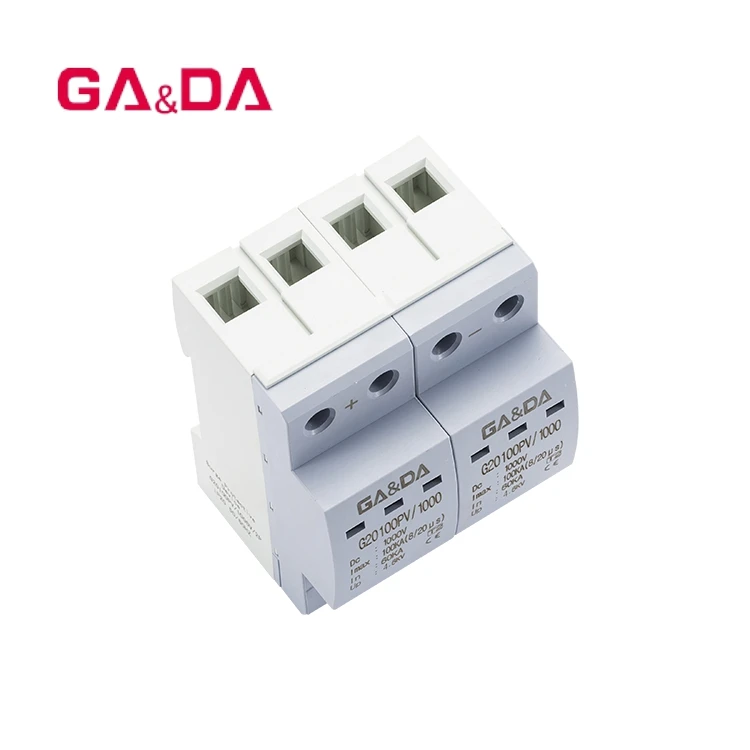

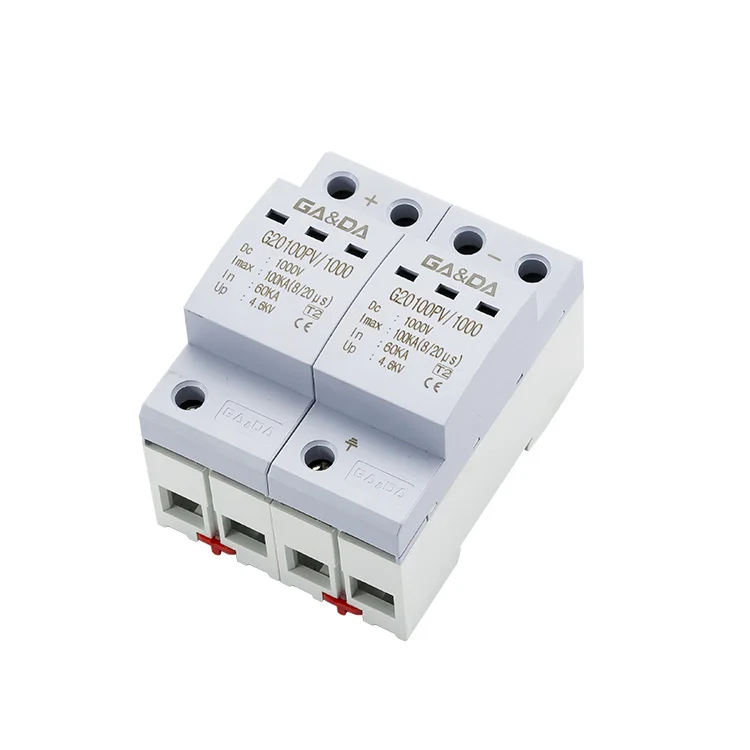

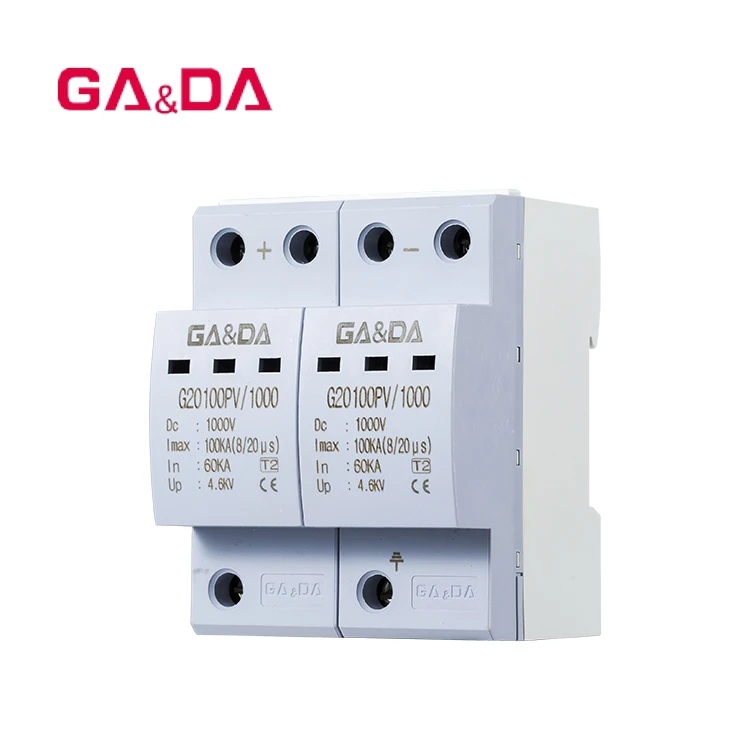

G20100PV/800V/1000V/1500V series surge protector is suitable for the new energy solar power generation system with the working voltage of 800V/1000V/1500V. The installation position is in the total power supply system of direct current circuit, to protect the indirect lightning current, direct lightning current or other instantaneous overvoltage.
Product capability parameter | |||
Product model | G20100PV/800 | G20100PV/1000 | G20100PV/1500 |
Pole | 2p,3p | 2p,3p | 2p,3p |
Maximum continuous operating voltage Uc | 800V | 1000V | 1500V |
Voltage protection level Up | <4.0kV | <4.5kV | <5.0kV |
Limiting voltage Ures(5kA) | <3.0kV | <3.5kV | <3.8kV |
Nominal discharge current In(8/20μs) | 60kA | 60kA | 60kA |
Maximum discharge current Imax(8/20μs) | 100kA | 100kA | 100kA |
Sheathing material | Fire-retardant reinforced nylon | ||
Recommended area | 16mm2 | ||
Max backup protective fuse | 125 A gL | ||
Clearance and creepage distance | >25mm | ||
Protection grade | IP20 | ||
Normal working temperature | -40℃~80℃ | ||
| Model | G20100PV-1000-2P |
| Color | White and bule |
| Certification | TUV,CE,CQCPV type power class home solar system spd |
| purpose | G20 PV/800V/1000V/1500V series surge protector is suitable for the new energy solar power generation system with the working voltage of 800V/1000V/1500V. |
| function | To shunt and pressure limitingthe indirect lightning current, direct lightning current or other instantaneous overvoltage. |
| Characteristic | 1:Surge protective device,plug. 2:The visual window color said protector working state;green(normal),red(fault). 3:Hot melt flow double protection.4:The configuration remote communication interface,can realize remote control. |
| selling point | 1:Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement 2:No load current is considered; plug and pull design, can be charged replacement, easy to maintain 3:Built-in temperature control circuit technology, high safety performance, no after flow. 4:Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish. 5:Optional remote monitoring interface can be used for remote monitoring. 6:High working voltages, high pass flow, high safety performance and high stability. |
| advantage | 1:Over 10 years experience in production and processing |
Company Information
Our Services
FAQ
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading company?MT series class II 160ka single pole single phase ac surge arresters
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.
Q6:Do you accept customized order?
A6:Yes, we do.
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
