Автоматическая промышленная пуговица для джинсов
US $2299-$2399
Металлическая защелкивающаяся пластиковая кнопка для швейной промышленности сделано
- Категория: Button Making Machines >>>
- Поставщик: Guangdong,Kaisheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1453979.94 $* | 1483059.13 $* |
| Jul-17-2025 | 1179211.13 $* | 1202795.8 $* |
| Jun-17-2025 | 1431081.77 $* | 1459703.54 $* |
| May-17-2025 | 1419633.98 $* | 1448026.65 $* |
| Apr-17-2025 | 1133416.99 $* | 1156084.41 $* |
| Mar-17-2025 | 1396735.15 $* | 1424670.45 $* |
| Feb-17-2025 | 1385287.1 $* | 1412993.2 $* |
| Jan-17-2025 | 1373838.0 $* | 1401315.86 $* |
Характеристики
Products Description
Automatic snap button attaching machine
We make manual work into simple and comfort operation:
You simply put on the fabric on attaching position, step on the pedal and IH-B06 do the rest: feeding upper and bottom buttons automatically from both sides, and perfectly detect and adjust the positon based on surface picture, meanwhile the machine is drilling a hole on fabric, then attaching button together, and so on we are able to reach 60-120 buttons/min.
IH-B06 is a popular product with excellent automation, it greatly simplifies the manual operation steps, thus reducing the burden and pressure of everyone, can be widely used in many scenarios.
In this automatic design, not only you can achieve high efficiency, but also high quality.
When you apply such button fasterner, no need of seperated manual work such as punching/drilling fabric then attaching together. Investment on such machine the return cycle will be 1 to 2 years.
Available for top and bottom (male and female) buttons type: 831 633 655 and T3, T5, T8 buttons .
For different button sizes, we just need to simply changing the molding set, very easy to do this locally.
If you need all molds of your sizes, please tell us then we can prepare based on reasonable cost.
Product Paramenters
Item NO.: | IH-B06 | Application: | Button Automatic Attaching |
Voltage/Frequency: | 220V 50Hz | Efficiency: | 60-120pcs/min |
Power: | 0.4KW | Working Pressure: | 4-6kgf/cm² |
Net Weight: | 130kgs | Gross Weight: | 145kgs for wooden box 75*65*132cm |
We provide all solutions for your button fastening requirement:
Simply IH-B06 is advanced version of IH-B05: with automatic button surface detection and position adjustment.

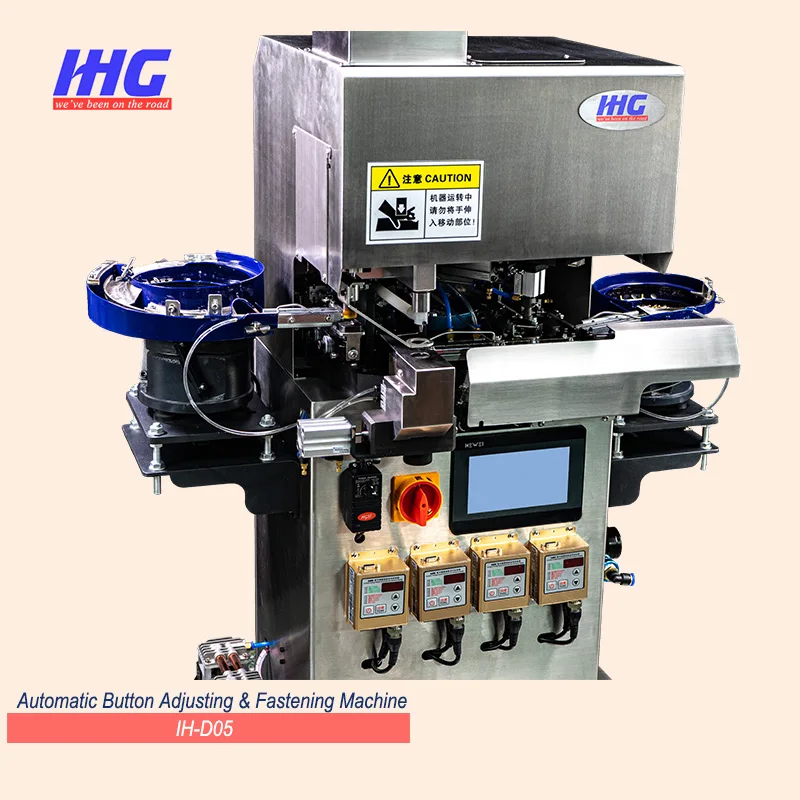

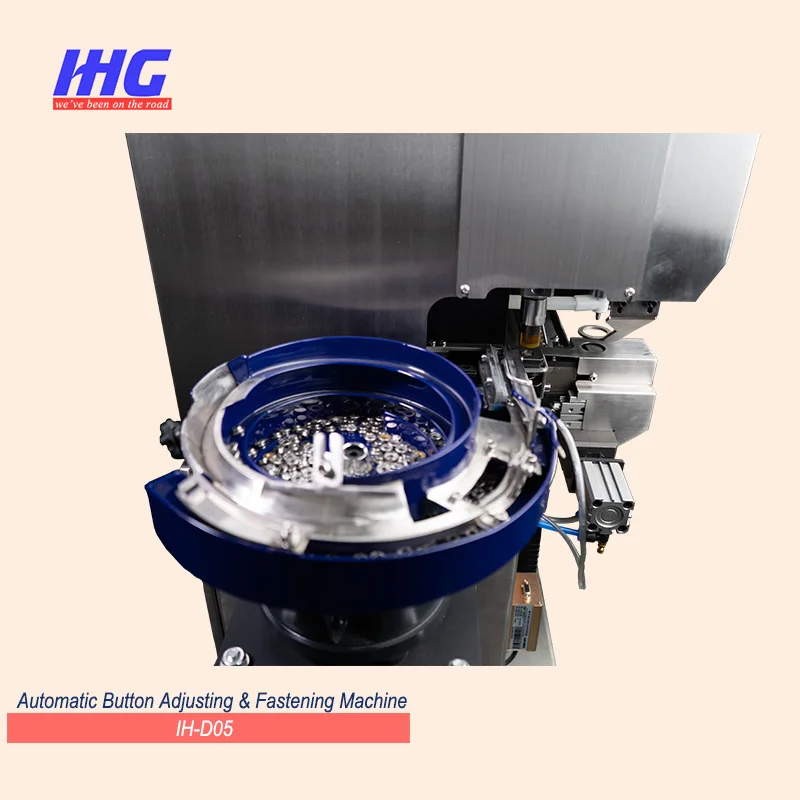

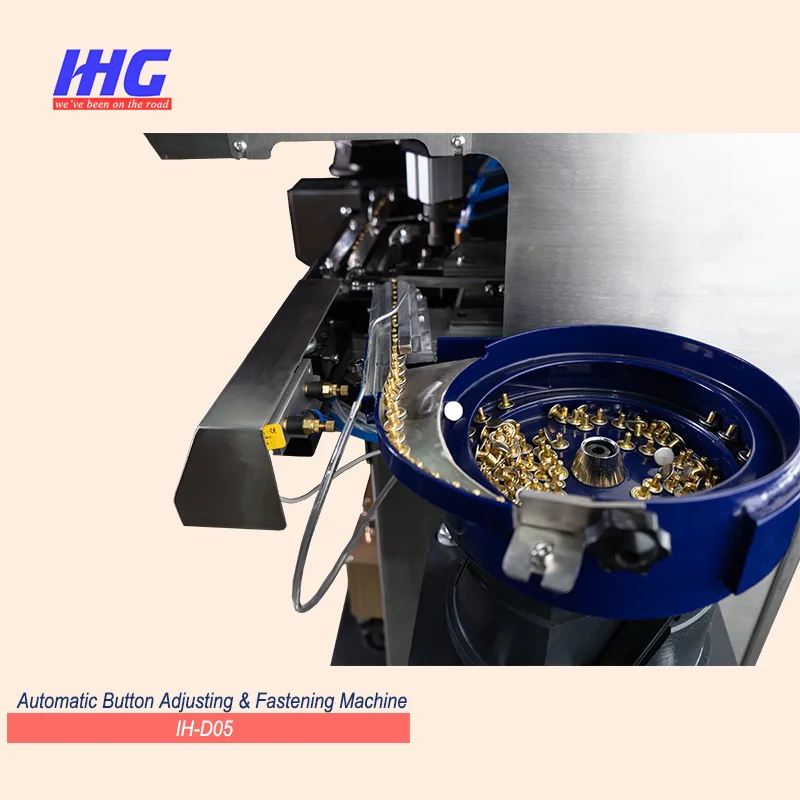

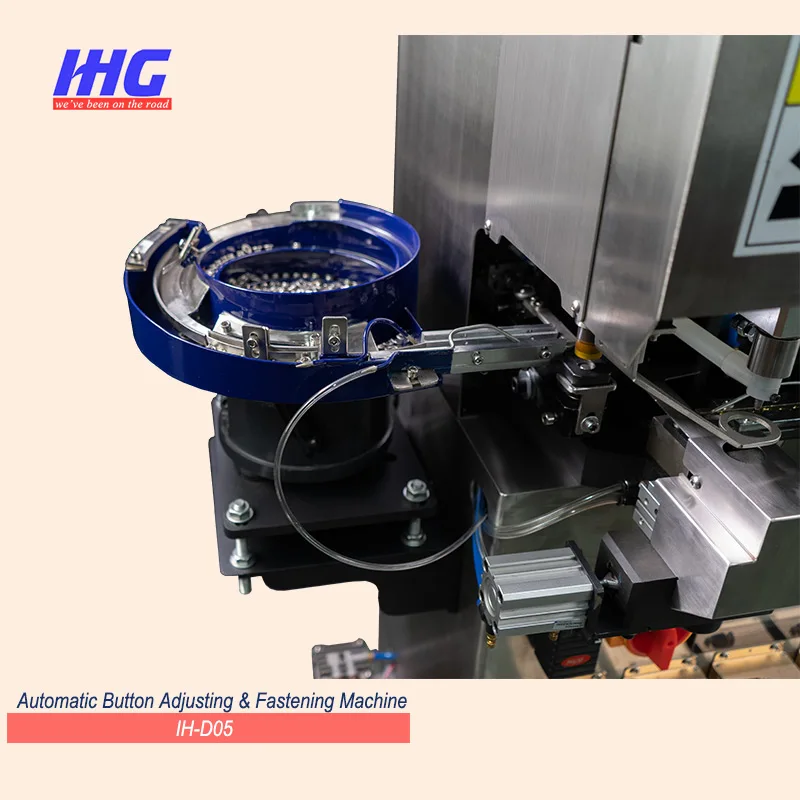

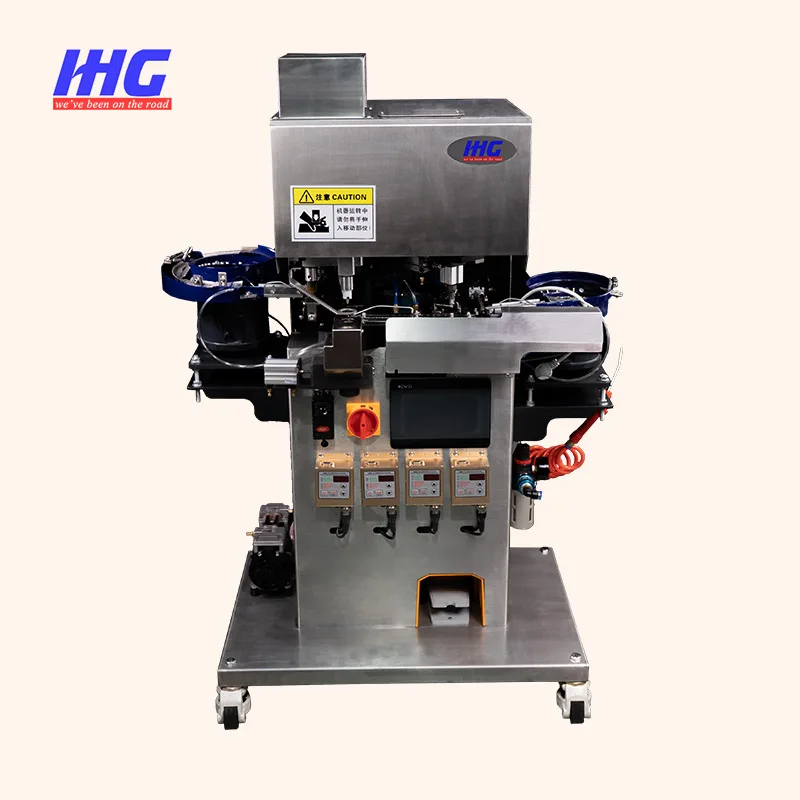

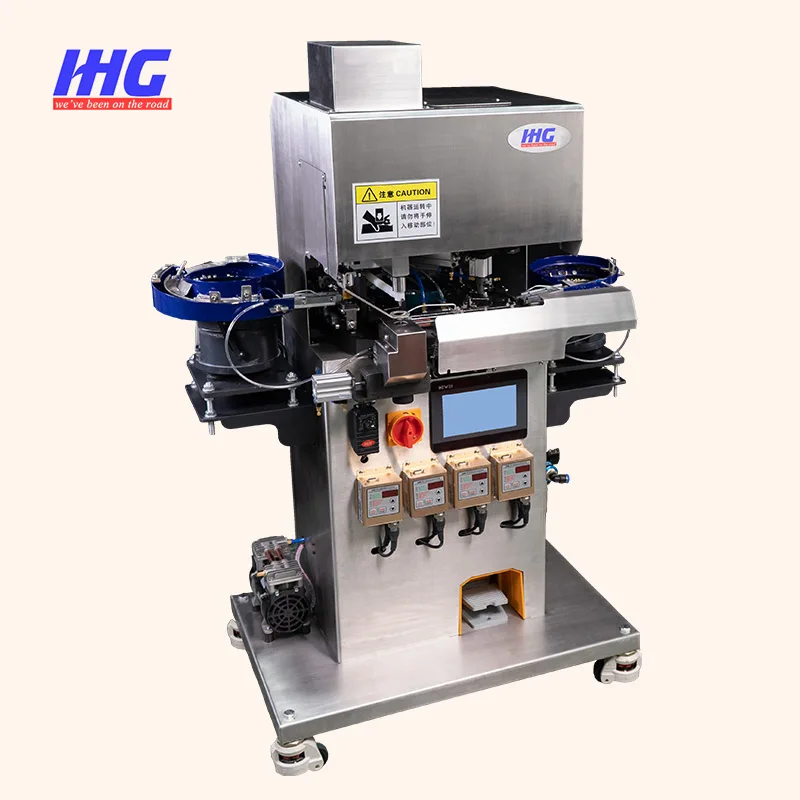

IH-D05 is for button attaching with cushion/gasket between fabric and button, also very high efficiency.
So the tips for your choosing button attaching solution:
1. simply need attaching buttons, choose IH-B05;
2. attaching with unified button position, choose IH-B06;
3. attaching with cushion/gasket requirement, choos IH-D05.
Here's the testing material as you saw in our video.:
IH-B05 and IH-B06 is attaching machine for snap buttons without cushion:
IH-D05 is attaching machine for snap buttons with cushion:
Our Advantages
Automatic Camera Identification and Direction Adjusting Function Inside!
IH-B06 is newly developed snap button fastening / attaching machine for jeans and garment factory with high end quality
requirement: all carved pictures on the button attaching in unified direction.
All buttons attached in the same position as you set in the first place.
Big fashion brands will require such sewing quality for their products standing out.
During the feeding, we protect the buttons very well, no scratch.
Also the worker will be happy to work with such well-designed machines.
Details Images
In fact this patented design is quite simple, thus the performance is stable and reliable.
Through many years of R&D, we are able to make sure all buttons feeding automatically without manual operation. And by changing the mold quickly, we are able to deal with diffrent orders in a short time, you won't wast your time on adjusting the button fastening machines.
Company Profile
We are very specialized in sewing machine production and R&D for 20+ years.
It is a pleasure for us to provide excellent quality machines to our customers.
We'd love to talk business for OEM/ODM orders.
And you are always welcome to visit us for checking our production line and on-site machine test.
Also we'll visit our customers and friends around the world when we go out for exhition or business trip.
IHG Specialized In Jeans Sewing Machine Solution.
Here we are providing the most used sewing machines for the jeans sewing workstation:
* Double needle lockstitch 8422(small hook)/8722(big hook for heavy duty sewing);
* Double needle split bar 8452(small hook)/8752(big hook for heavy duty seweing);
* Feed of the Arm (FOA) - for inseam and back yoke attach, we have 2 needle and 3 needle solutions.
* Bartack machine - for attaching belt loop, as know as item NO. 430D.
* Belt loop trimmer - to cut the extra material of belt loop after attaching.
* Bottom sewing machine 639D - for seaming the bottom with two options, lockstitch type and chainstitch type.
* Waistband sewing machine 8722DP with large hook sewing.
And there are also other choices for your options:
* Single needle lockstitch machine (with/without under bed trimmer)
* Single needle Edge cutter
* Double-needle chain stitch
* 5 thread overlock machine – side seam
* 3 Thread overlock for serging operation, zipper fly serging
* Coverstitch machine / Flatlock machine
* Eyelet hole machine (making eyelets)
* Multi-needle chain stitch machine (Waistband finish)
* Buttonhole
* Pattern sewer – for back pocket pattern making
* Snap button attaching machine
* Loop making (a special machine)
How long a pair of jeans should be completed in?
The Standard Minute Value (SMV) for a typical factory is 11.65 min, so about 12 minutes (excluding the time to move between operations). It requires so much more different kinds of machines to break down all the processes and make efficient improvement.
* Double needle split bar 8452(small hook)/8752(big hook for heavy duty seweing);
* Feed of the Arm (FOA) - for inseam and back yoke attach, we have 2 needle and 3 needle solutions.
* Bartack machine - for attaching belt loop, as know as item NO. 430D.
* Belt loop trimmer - to cut the extra material of belt loop after attaching.
* Bottom sewing machine 639D - for seaming the bottom with two options, lockstitch type and chainstitch type.
* Waistband sewing machine 8722DP with large hook sewing.
And there are also other choices for your options:
* Single needle lockstitch machine (with/without under bed trimmer)
* Single needle Edge cutter
* Double-needle chain stitch
* 5 thread overlock machine – side seam
* 3 Thread overlock for serging operation, zipper fly serging
* Coverstitch machine / Flatlock machine
* Eyelet hole machine (making eyelets)
* Multi-needle chain stitch machine (Waistband finish)
* Buttonhole
* Pattern sewer – for back pocket pattern making
* Snap button attaching machine
* Loop making (a special machine)
How long a pair of jeans should be completed in?
The Standard Minute Value (SMV) for a typical factory is 11.65 min, so about 12 minutes (excluding the time to move between operations). It requires so much more different kinds of machines to break down all the processes and make efficient improvement.
Product packaging
Full set usually packed in wooden box.
We'll test the machine after assembling and send videos to you fro approval. Then we pack the machine into the wooden box, we'll fixed the wheel on the wooden board and make sure no moving around after packing.
Seperated packing in carton box for different parts.
Usually machine head 1* carton box, table and chair 1* carton box, and motor 1*carton box. For mixed orders we also use wooden box to pack up small pieces to obtain all accessories in case of missing.
FAQ
Q: Do you accept low MOQ orders?
A: Yes, for most of our machine, 1 set is ok for us if we have it in stock. We usually have stock and in busy season we are able to do fast delviery.
Q: Do you provide after-sales service?
A: yes. We are always supporting our customers by online live chat, video or specific documents to solve your machine problems.
Q: do you trade with guarantee?
A: Yes, we are able to do Trade Assurance Order for order under 5,000 USD/order.
