Машина для вытягивания ленточных мешков для мусора
US $20600-$21000
Полностью автоматическая машина для изготовления бумажных пакетов цена с квадратным дном из
- Категория: Packaging Material Making Machines >>>
- Поставщик: Zhejiang,Allwell,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.95 $* | 0.17 $* |
| Aug-15-2025 | 0.60 $* | 0.62 $* |
| Jul-15-2025 | 0.51 $* | 0.29 $* |
| Jun-15-2025 | 0.2 $* | 0.30 $* |
| May-15-2025 | 0.26 $* | 0.48 $* |
| Apr-15-2025 | 0.55 $* | 0.29 $* |
| Mar-15-2025 | 0.41 $* | 0.93 $* |
| Feb-15-2025 | 0.75 $* | 0.81 $* |
| Jan-15-2025 | 0.48 $* | 0.49 $* |
Характеристики
Product Overview

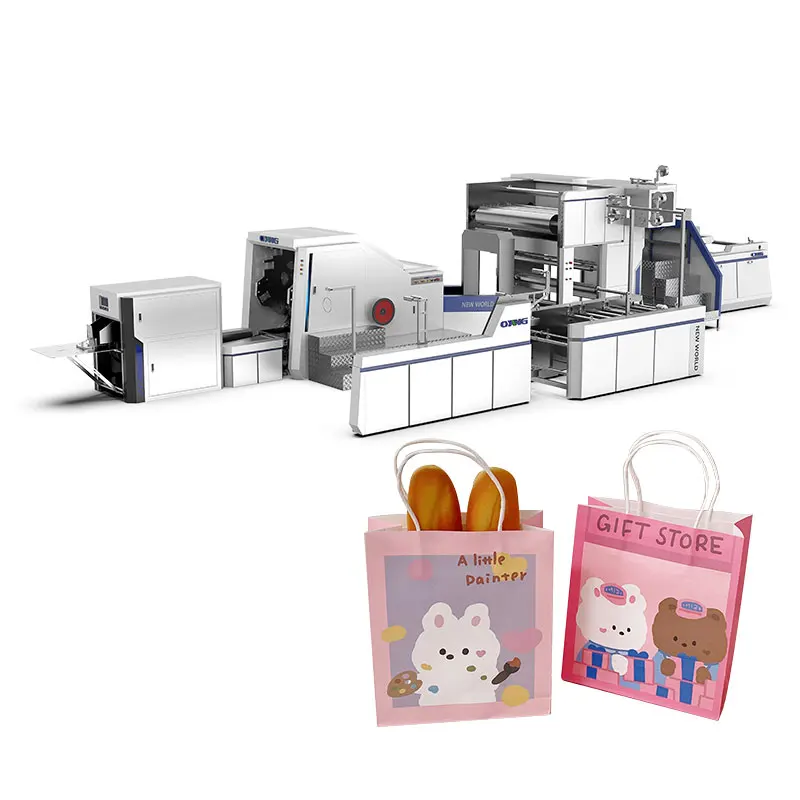

fully automatic paper bag making machine price kraft square bottom paper bag making machinery handle paper bag making machine
NEW WORLD-A series full automatic square bottom paper bag machine, with web, drum head card and paper rope as raw materials, one time complete with handle square bottom paper bag, is the ideal equipment for the rapid production of portable paper bags.Such as shopping bags, shoes and clothing packaging bags, gift packaging bags, business bags and other varieties of hand-held paper bags.
FEATURES AT A GLANCE
*The forming template adopts symmetrical adjustable double-template structure (proprietary technology), so that users of different
sizes of paper bags no longer need to change the template, which can effectively reduce the time of paper bag size adjustment and
increase the machine capacity. *The special type design greatly improves the bag-making range of the machine, which can meet the customer's demand of producing
extra-large hand-held paper bags.
*The electronic control system imported from Japan is adopted to ensure stable and high-speed operation. *Material loading adopts
hydraulic automatic lifting structure.The unwinding device adopts automatic tension control.

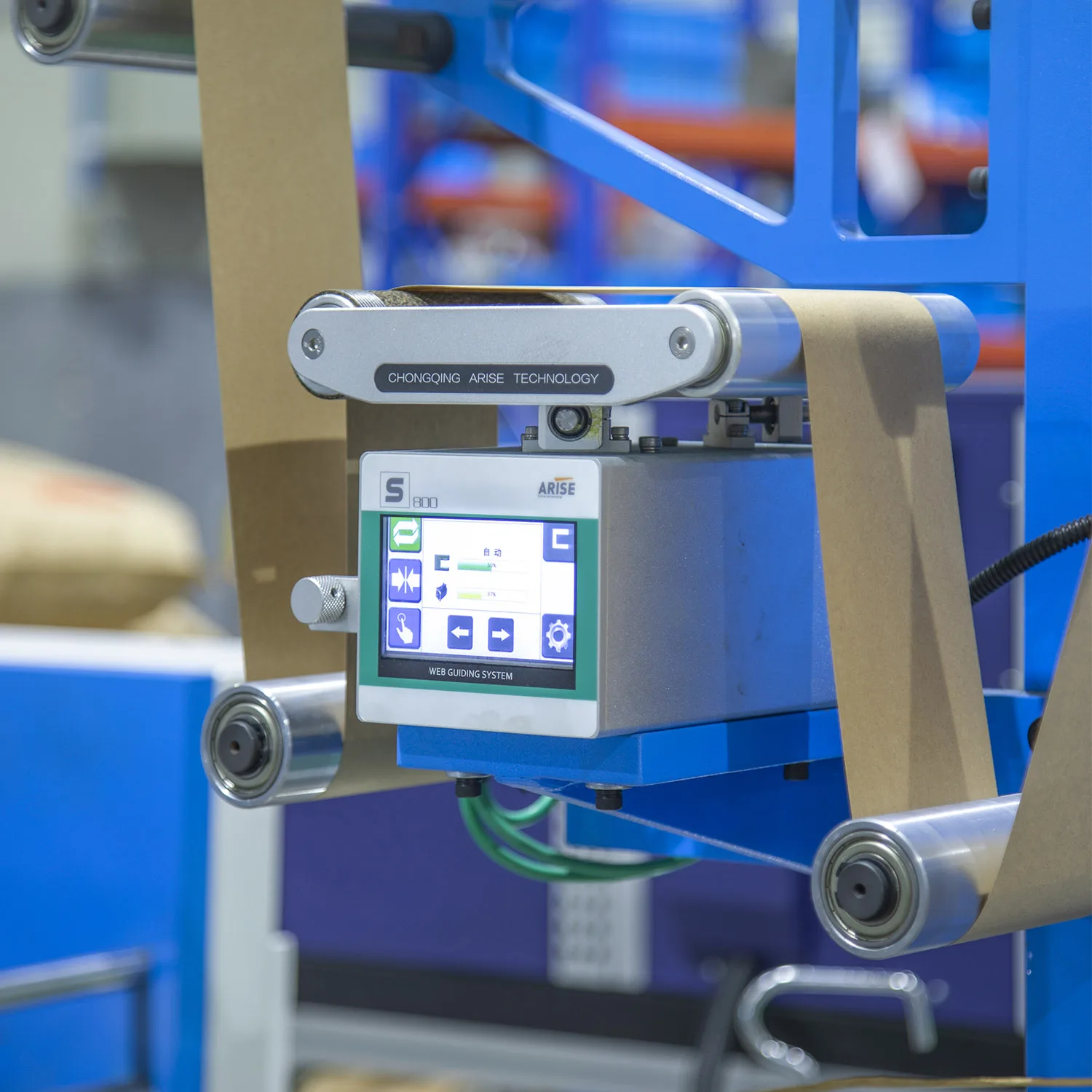

*EPC material unwinding adopts ARISE correction to reduce material alignment time.
sizes of paper bags no longer need to change the template, which can effectively reduce the time of paper bag size adjustment and
increase the machine capacity. *The special type design greatly improves the bag-making range of the machine, which can meet the customer's demand of producing
extra-large hand-held paper bags.
*The electronic control system imported from Japan is adopted to ensure stable and high-speed operation. *Material loading adopts
hydraulic automatic lifting structure.The unwinding device adopts automatic tension control.
*EPC material unwinding adopts ARISE correction to reduce material alignment time.
sample bag
sample bag
sample bag
PRODUCT SPECIFICATIONS
MODEL | New world -A220 | New world -A330 | New world -A400 |
Paper diameter | ≤1500mm | ≤1500mm | ≤1500mm |
Core inner diameter | Φ76mm | Φ76mm | Φ76mm |
Paper weight | 45-130g | 80-140g | 80-140g |
Paper bag width | 120-220mm with handle | 200-320mm with handle | 200-400mm with handle |
80-220mm without handle | 150-320mm without handle | 150-400mm without handle | |
Paper tube length | 191-330mm With handle | 280-410mm With handle | 280-500mm With handle |
191-430mm Without handle | 280-510mm Without handle | 280-600mm Without handle | |
Bottom width of paper bag | 50-120mm | 80-180mm | 90-200mm |
Machine speed | 150pcs/min | 150pcs/min | 150pcs/min |
Total power | 32KW | 32KW | 34KW |
Machine weight | 13000KG | 16000KG | 18000KG |
Machine dimensions | 12 × 5× 2.5 M | 14 × 6× 2.5 M | 15 × 6× 2.5 M |
HANDLE MODEL | 3DH | 5HD | 6HD |
Handle rope height | 102/115/ 125/140 | 102/115/ 125/140 | 115/125/ 140/150 |
Handle patch width | 45-50 | 45-50 | 45-50 |
Handle patch length | 114.3 | 152.4 | 190.5 |
Handle rope diameter | Φ4-6mm | Φ4-6mm | Φ4-6mm |
Diameter of handle patch paper roll | Φ1200mm | Φ1200mm | Φ1200mm |
Handle patch paper roll width | 90-100mm | 90-100mm | 90-100mm |
Handle patch weight | 100-150g | 100-150g | 100-150g |
PRODUCT CONFIGURATION
Bag forming structure
Bag cutting and sealing structure
Big drum structure

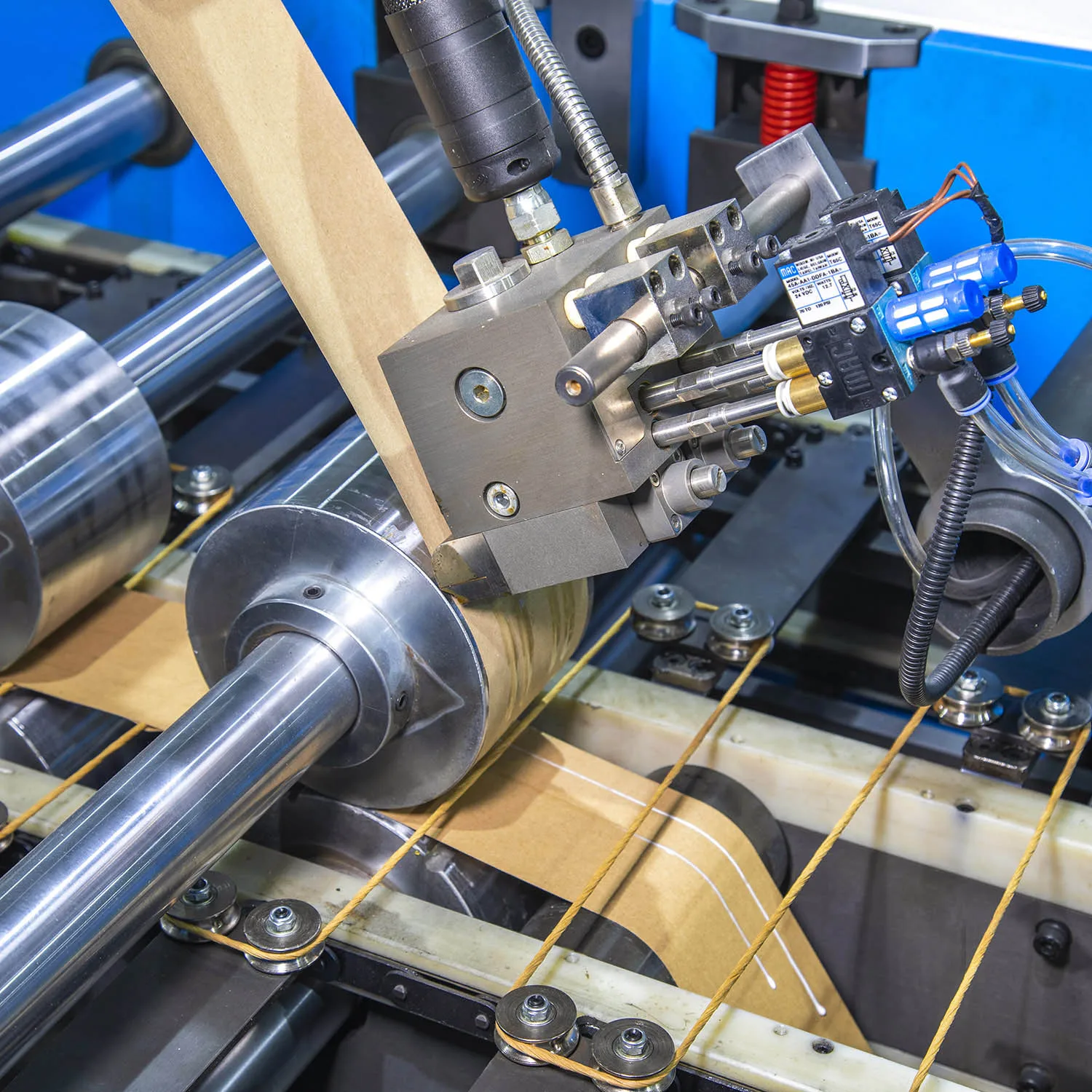

Handle sealing structure
Handle delivery structure
Bag making machine structure
Manufacturing Technique
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1：What kind of this machine can making ?
A1：This machine is mainly for square bottom paper bag.
Q2：Is the bag size adjustable?
A2：The bag size is adjustable within machine size range.
Q3：what is the packing of the delivery?
A3：Wooden packing.
Q4：How many container we need for this machien ?
A4：According to different machine size ,machine may loaidng up to 9m in container.
Q5：How to doing the after service?
A5：We support machine working manual,machine install and running video.Support the technician to install and guildance.
