Машина для прокатки листового металла
US $10000
Станок для изготовления кровельных черепиц из оцинкованной стали
- Категория: Tile Making Machinery >>>
- Поставщик: Haixing,(tianjin),Imp.,&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12495.5 $* | 13120.20 $* |
| Aug-16-2025 | 12390.27 $* | 13010.37 $* |
| Jul-16-2025 | 10395.67 $* | 10915.30 $* |
| Jun-16-2025 | 12180.18 $* | 12789.41 $* |
| May-16-2025 | 10605.23 $* | 11135.13 $* |
| Apr-16-2025 | 11970.1 $* | 12569.40 $* |
| Mar-16-2025 | 11865.20 $* | 12458.78 $* |
| Feb-16-2025 | 11760.97 $* | 12348.54 $* |
| Jan-16-2025 | 11655.27 $* | 12238.19 $* |
Характеристики
Product Description

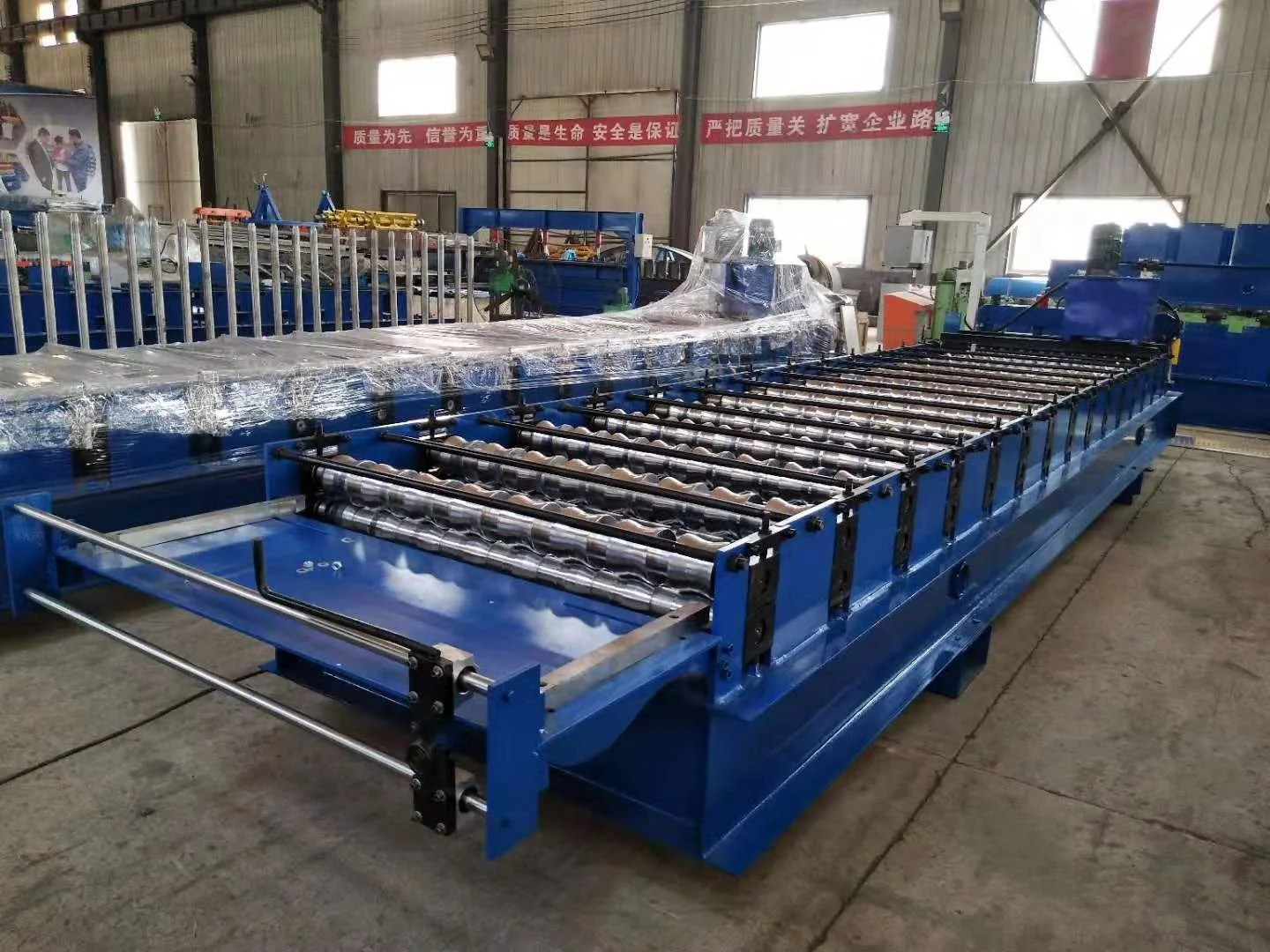

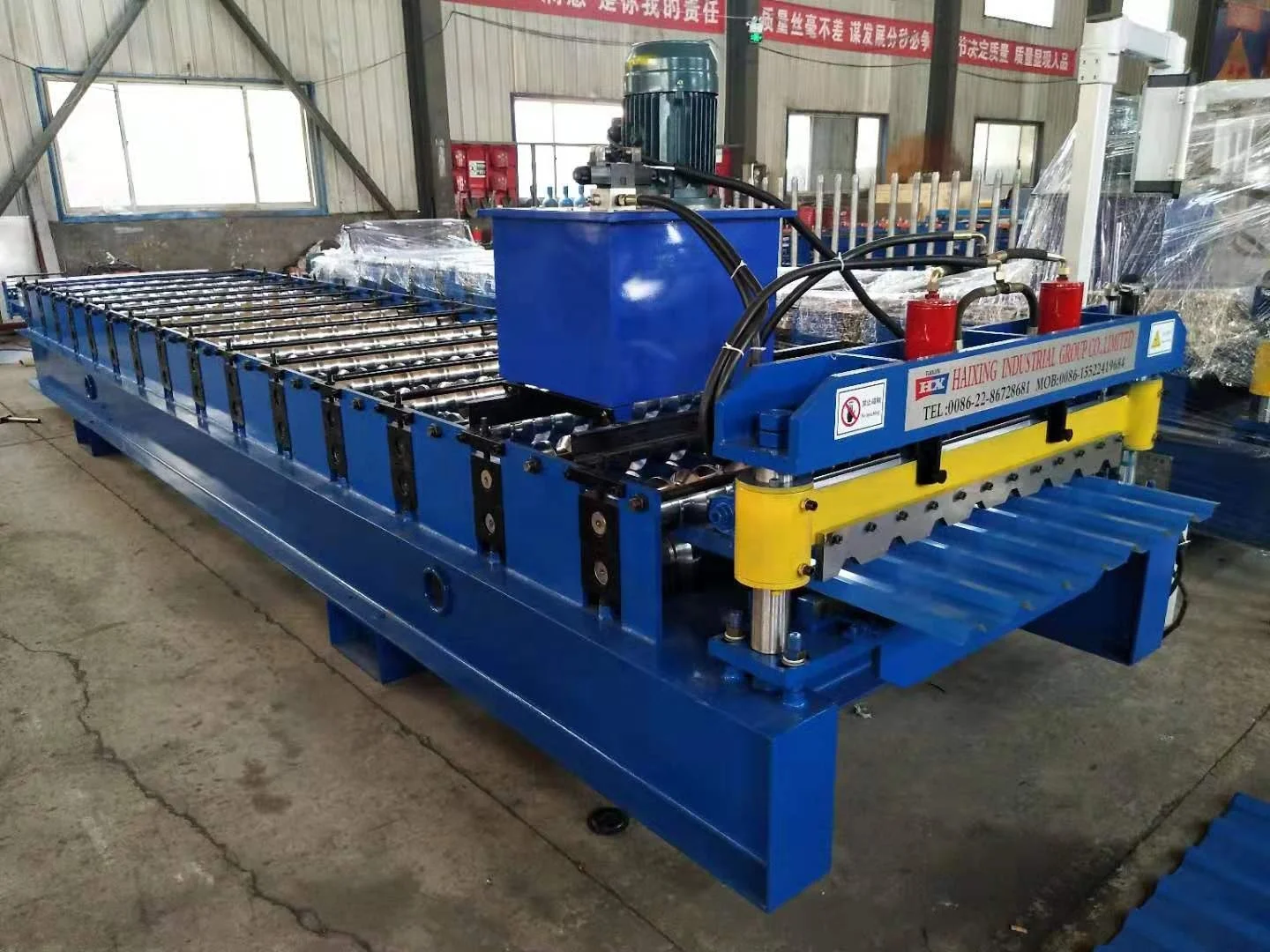

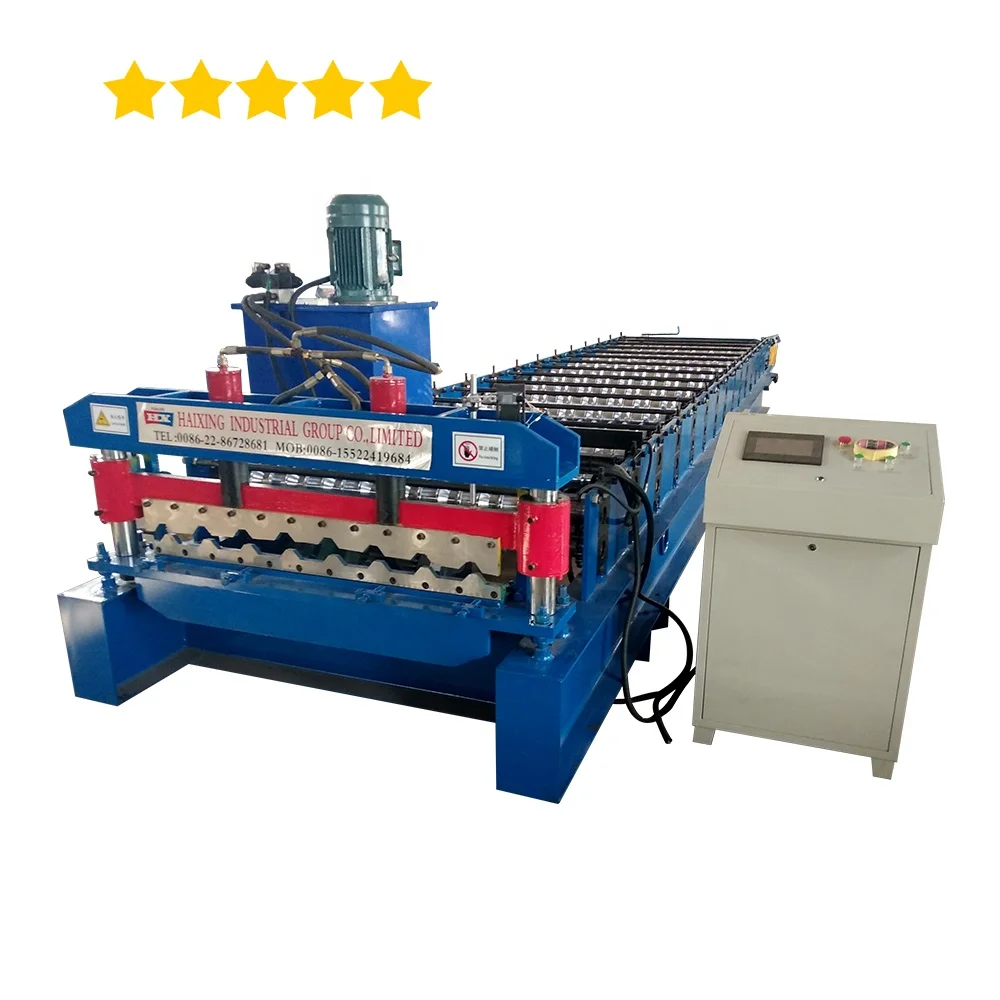

maquina de acanaladora para lamina r101 72 galvanized steel trapezoidal shingles roof making machine
Specification：
Product name | TR4 color steel ibr wall tile forming rolling machine | ||||||
Mainframe | 350mm,45# steel | ||||||
Middle plate | 16mm,or according to machine demands,45# steel | ||||||
wheel | 45# steel,surface heat treatment chfrome plating,hardness HRC 58-60 | ||||||
Shaft diameter | 70mm(depends on different design) | ||||||
Shaft material | Solid shaft,high quality 45# forged steel,with anti-return pad) | ||||||
Chain | 1 inch | ||||||
Voltage | 380V/50HZ/3phase | ||||||
Model | different for you to choose(Our engineer and designer team service for you!! )free!!! | ||||||
Main motor power | 5.5KW | ||||||
Hydraulic motor | 4KW | ||||||
Hydraulic pump station | Gear pump | ||||||
Reducer | 8# Gear Reducer | ||||||
Base material | Hot dipped galvanized steel | ||||||
Hydraulic pressure | 10-12MPa according to the oil pump and pump motor | ||||||
Thickness | 0.3mm-0.8mm | ||||||
Cutting method | Hydraulic guide column cutting | ||||||
PLC Display languages | Chinese,English,(Spanish or Russian) | ||||||
Color | All colors(standard international color)or customers samples’ color | ||||||
Length tolerance | ±2mm | ||||||
Cutting tolerance | ±1mm | ||||||

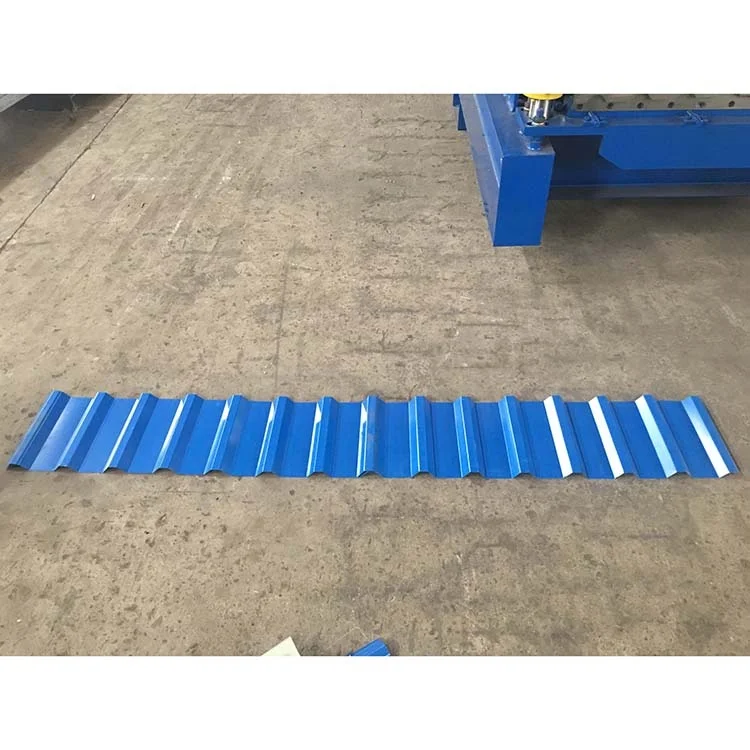

profile：
Machine Parts Detail
Name:Manual decoiler
①Capacity:5T
②Coil diameter:450-550mm
③Coil outer diameter:1220mm
④Coil width:1220mm(as customers' request)
②Coil diameter:450-550mm
③Coil outer diameter:1220mm
④Coil width:1220mm(as customers' request)
Name:Feeding table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat,
parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Remarks:Pre-hand cutting is manual
parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Remarks:Pre-hand cutting is manual
Name: Main rollers
our machine：High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated.
other company 's machine：normal No. 20 steel with Simple polished and have no coating Influence of the machine Roller will have longer use life and ensure the products have same size, no nick on the surface.
other company 's machine：normal No. 20 steel with Simple polished and have no coating Influence of the machine Roller will have longer use life and ensure the products have same size, no nick on the surface.
①Frame:350H steel,with 20mm middle plate support
②Roller stations:18 stations(depend on the profile drawing)
③Roller materila:45# steel with quenched treatment and hard chroming
④Shaft diameter:70mm,solid
⑤Shaft material:45# steel with tempering treatment
⑥Motor power:5.5 kw
⑦Speed:12-15M/min
⑧Transmission:By chain
⑨Voltage:220V,60HZ,3P
②Roller stations:18 stations(depend on the profile drawing)
③Roller materila:45# steel with quenched treatment and hard chroming
④Shaft diameter:70mm,solid
⑤Shaft material:45# steel with tempering treatment
⑥Motor power:5.5 kw
⑦Speed:12-15M/min
⑧Transmission:By chain
⑨Voltage:220V,60HZ,3P
Name:Computer Control Cabinet
We adapt the PLC for the control system, it will be so much helpful for users to handle the machine. The control system will be in charge of the working condition like the speed, cutting length and cutting quantity.
The display screen will be the touch screen or the text screen, the language can be English, or as required.
Note: Use of aviation plug. When do the installation, no need the completed wiring, simple plug in and then you can connect the electricity with the PLC system.
①Control system:PLC
②PLC brand:Delta from Taiwan
③Frequency converter brand:Delta from Taiwan
④Encoder:Omron
⑤Function:Automatic control the length and quantity
③Frequency converter brand:Delta from Taiwan
④Encoder:Omron
⑤Function:Automatic control the length and quantity
Name: Motor driver
①Main motor size :5.5kw
②Brand: The famous brand from Jermany or according to customer's need
③Solenoid valve: 2 groups
④Hydraulic oil: 46#hydraulic oilColor:Blue (or as customer's request)
⑤Working pressure: 12-16Mpa adjustable
②Brand: The famous brand from Jermany or according to customer's need
③Solenoid valve: 2 groups
④Hydraulic oil: 46#hydraulic oilColor:Blue (or as customer's request)
⑤Working pressure: 12-16Mpa adjustable
Name :Hydraulic station power
Hydraulic pump station provide cutting power
①Hydraulic station power: 4Kw②Brand：Lichao, Shanghai
③Motor with pump capacity of tank: 45L

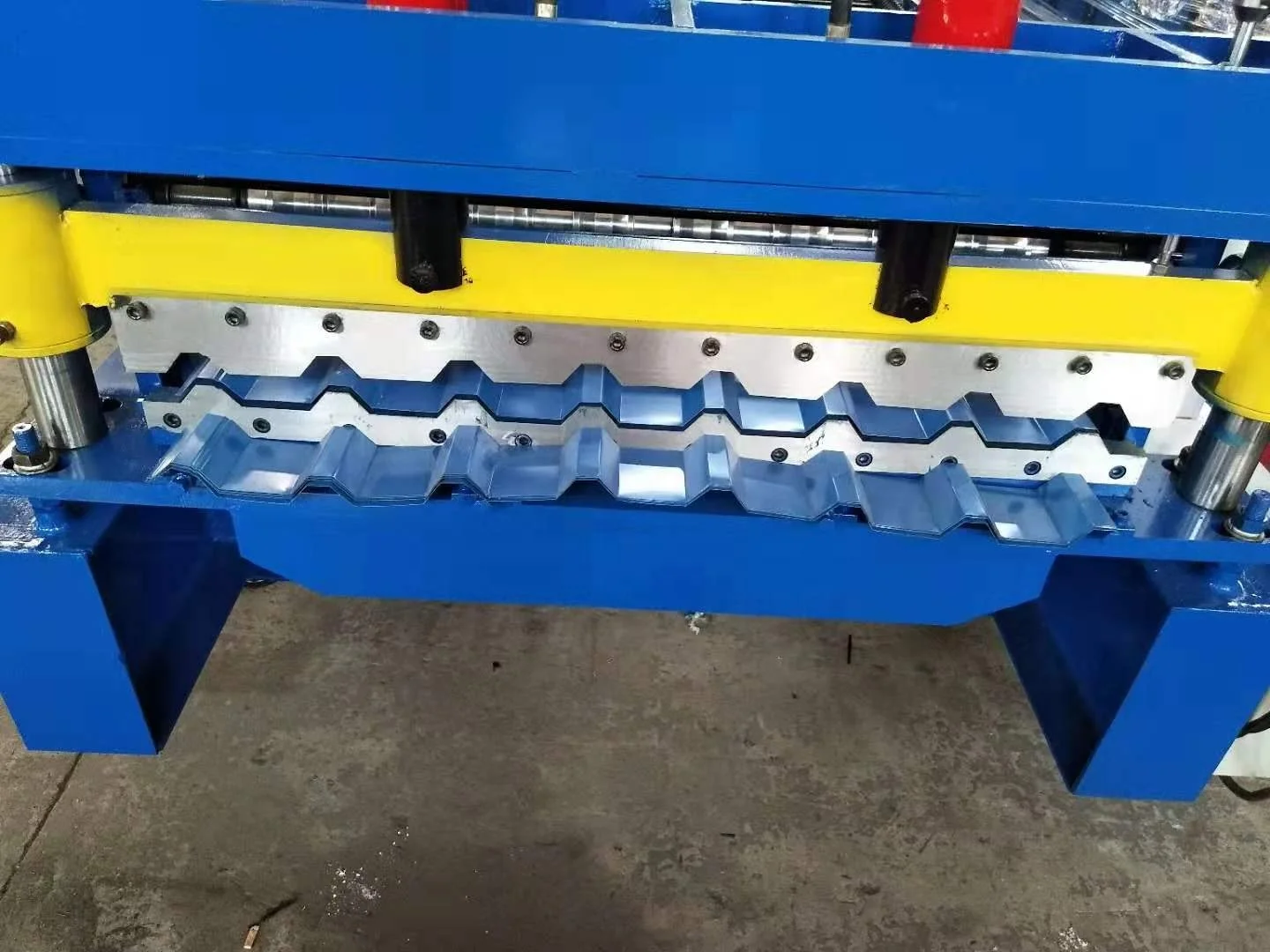

Name: Cutting head
The hydraulic system will be installed on the main roll forming machine. The important is that we install the cooling system on hydraulic oil pump, then it can support the long time working in a high temperature.
Then it can improve the working ability.
①Work type: Hydraulic
②Driving method: By Cylinder
③Motor power: 5.5 kw
④Cutter material : GB-Cr12
⑤Cutting length tolerance: ±0.5 mm/3m
Then it can improve the working ability.
①Work type: Hydraulic
②Driving method: By Cylinder
③Motor power: 5.5 kw
④Cutter material : GB-Cr12
⑤Cutting length tolerance: ±0.5 mm/3m
Name: Received goods table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
Application
More Styles
Company Profile
Our Service
Company advantage：
YEARS OF EXPERUENCE:
More than 10 years experience in cold forming industry, 5 experienced engineers, let us have full confidence to provide roasonable suggestion and good quality machine to customer.VARIETY OF PROOUCTS:
We can provide all kinds of cold forming machines, widely used in building, indoor decoration, electricity, photovoltaic, way guard, automove, windows and door, and so on...BRAND COOPERATION:
Our company used the brand parts about Delta Electronics and so on, According to the customer need to choose.Easy to global sourcing.
ACCEPT CUSTOMIZATION:
We accept OEM, we can provide our reasonable solution accordingto customer" s demand. to produce uniqueness machine forcustomer.
PRE-SALES AND AFTER-SALES:
4500m^2 work plant and 50 staff provide the wonderful service before sale and after sale service.
Our certificates and customer：
Packaging&Delivery
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
