Алн-нитрид алюминия высокой чистоты CAS 24304-00-5
US $20.00-$100.00

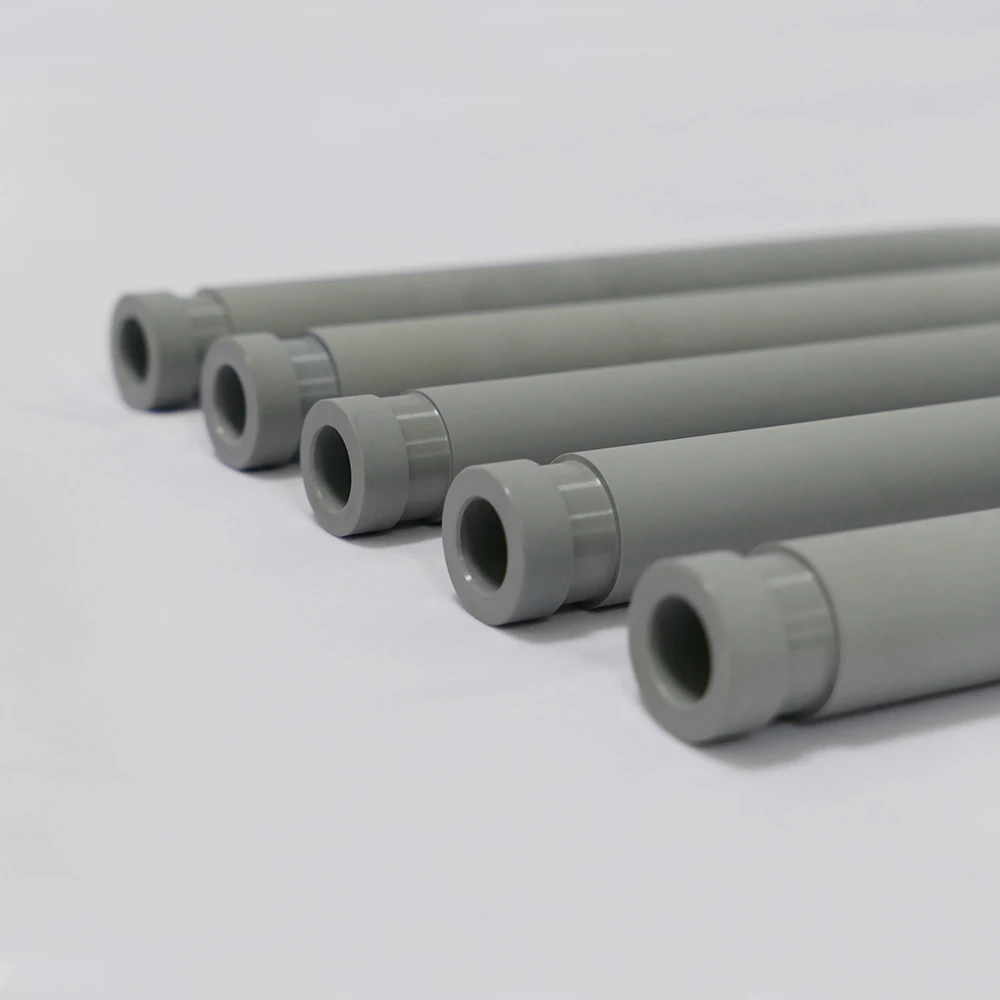

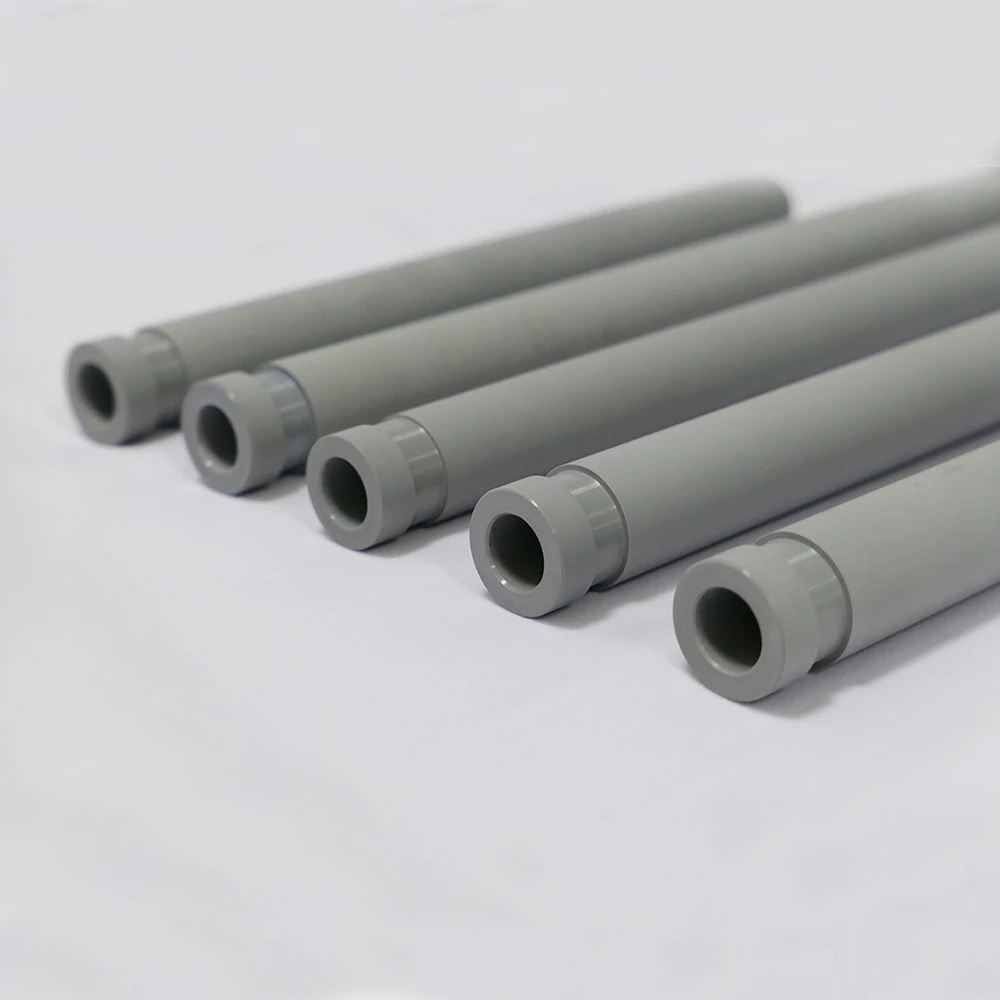

Алюминиевый раствор для литья под низким давлением керамические трубки из нитрида кремния защиты
- Категория: Ceramics >>>
- Поставщик: Yixing,Winner,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 210.11 $* | 214.1 $* |
| Jul-18-2025 | 170.84 $* | 173.85 $* |
| Jun-18-2025 | 206.67 $* | 210.93 $* |
| May-18-2025 | 205.99 $* | 209.70 $* |
| Apr-18-2025 | 163.37 $* | 166.98 $* |
| Mar-18-2025 | 201.51 $* | 205.23 $* |
| Feb-18-2025 | 200.38 $* | 204.31 $* |
| Jan-18-2025 | 198.13 $* | 202.32 $* |
Характеристики
Silicon Nitride Material Analysis | ||||||
Item | Unit | Material and Modle NO. | ||||
Silicon Nitride WNH-200 | Silicon Nitride WNH-500 | |||||
Bulk density | g/cm3 | 3.2 | 3.2 | |||
Water absorption | % | 0 | 0 | |||
Bending strength | Mpa | 750 | 800 | |||
Young modulus | Gpa | 280 | 290 | |||
Fracture toughness | Mpa ∙ m1/2 | 6.5 | 7 | |||
Poisson's ratio | - | 0.28 | 0.28 | |||
Vickers hardness | Gpa | 15 | 15 | |||
Coefficient of linear expansion | ×10-6/℃ | 3.4 | 3.5 | |||
Thermal conductivity | W/(m ∙ k) | 26 | 50 | |||
Specific heat | J/(g ∙ k) | 0.65 | 0.61 | |||
Volume resistivity | Ω ∙ cm | > 1014 | > 1014 | |||
Heat shock resistance | ℃ | 800 | 900 | |||
Maximum operation temperature | ℃ | 1150 | 1150 | |||
Specification

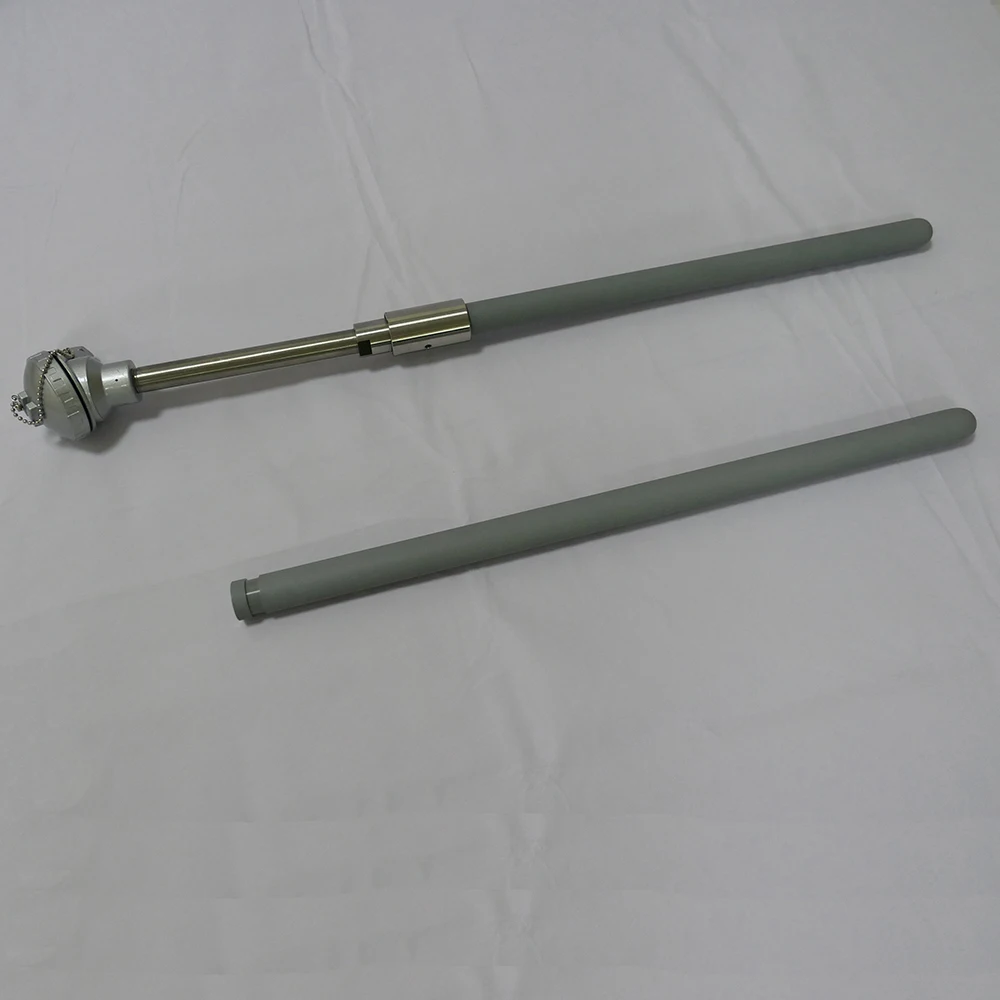

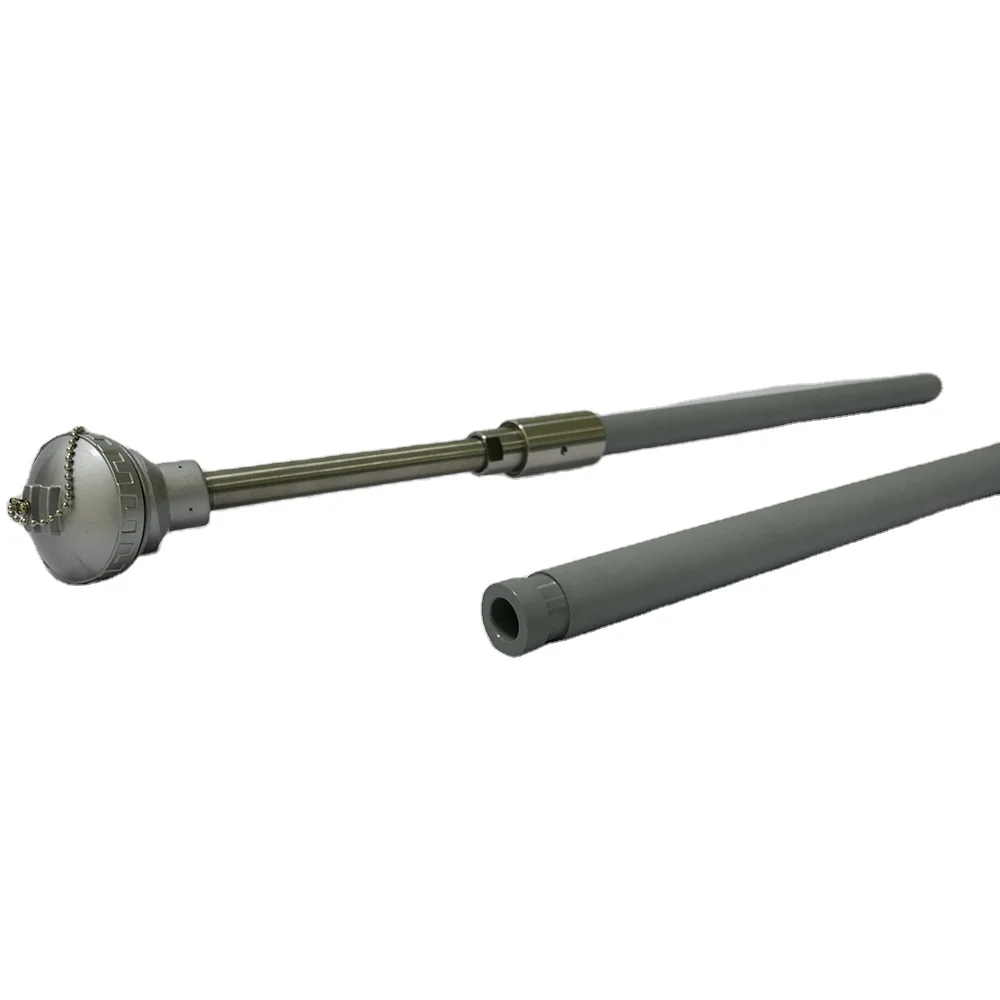

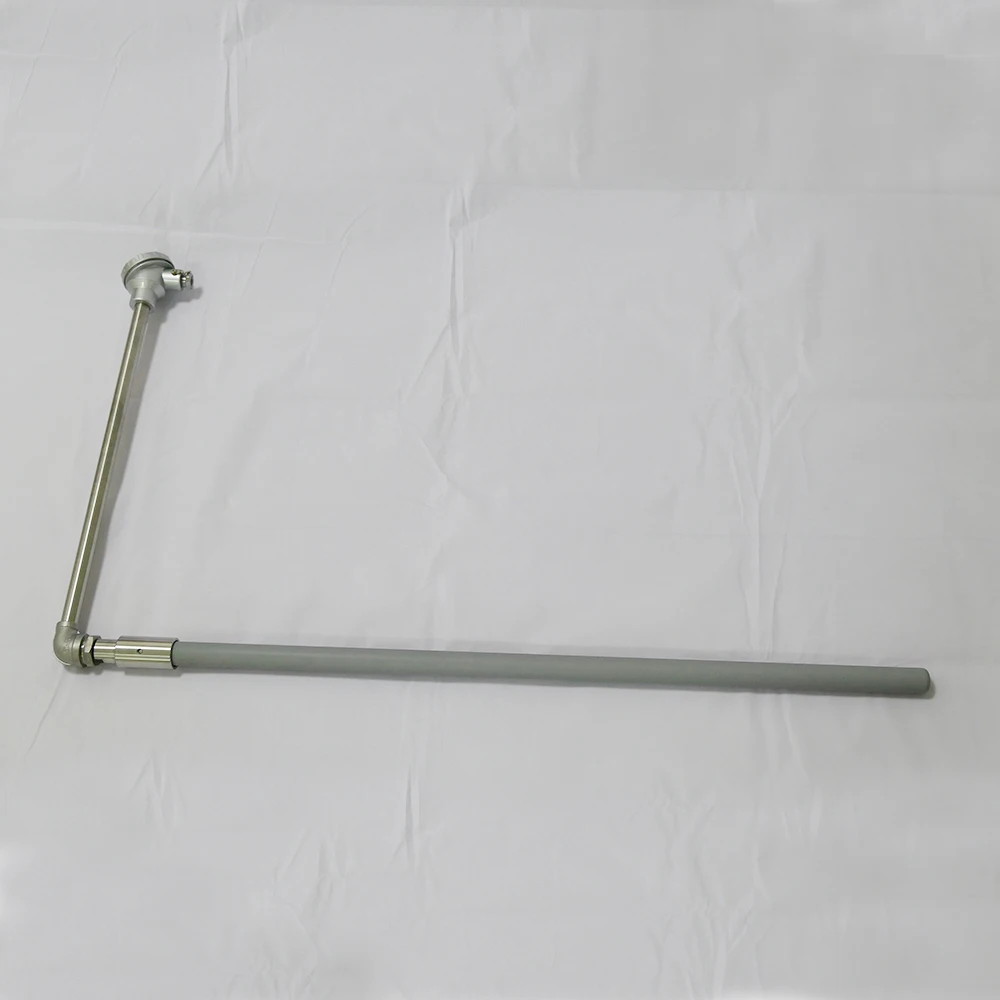

Our silicon nitride ceramic has the best thermal coductivity when it's used for aluminum melting. Its quickly response to the temperature sensor in aluminum and other nonferrous metals melting. Excellent shock resistance and light weight make it easier to operate and maintain, moreover, it has long lifetime.
Dimension Sheet | ||||
Length (mm) | Outer diameter (mm) | Inner diameter (mm) | ||
200 | 28 | 16 | ||
300 | 28 | 16 | ||
350 | 28 | 16 | ||
400 | 28 | 16 | ||
500 | 28 | 16 | ||
600 | 28 | 16 | ||
700 | 28 | 16 | ||
800 | 28 | 16 | ||
900 | 28 | 16 | ||
1000 | 28 | 16 | ||
1100 | 28 | 16 | ||
1200 | 28 | 16 | ||
Product Description
HELP CUSTOMERS TO MELT HIGH QUALITY ALUMINUM PRODUCTS
Silicon nitride ceramic can help customers to make high quality die casting
parts owe to its inertness against molten aiuminum.
HELP CUSTOMERS TO SAVE COST, RAISE EPPICIENCY
Due to the stable property of silicon nitride material,the equipment running
times will not be reduced when replacing new parts.
REDUCE THE WORK INTENSITY
Compare with cast iron, the silicon nitride ceramic is light, it makes
handling easy, help customers to reduce the work intensity.
STABLE QUALITY
Help to ensure the stable quality of die casting parts.
Silicon nitride ceramic can help customers to make high quality die casting
parts owe to its inertness against molten aiuminum.
HELP CUSTOMERS TO SAVE COST, RAISE EPPICIENCY
Due to the stable property of silicon nitride material,the equipment running
times will not be reduced when replacing new parts.
REDUCE THE WORK INTENSITY
Compare with cast iron, the silicon nitride ceramic is light, it makes
handling easy, help customers to reduce the work intensity.
STABLE QUALITY
Help to ensure the stable quality of die casting parts.
ATTENTION
1. It should be preheated to keep it dry before using.
2. It should be preheated before heating the cold kiln.
3. It should be cooled and heated gradually, avoid heat and cold shocks.
4. It should be handled with care, avoid beating by sharp objects.
5. The end of heater must be immersed into the aluminum solution when heating, it must avoid dry heating.
6. To avoid leaking, you should choose the elastic gasket with high temperature resistance when installing the flange.
7. Keep regular cleaning and maintenance, which can increase the service time, otherwise, the lifetime will be shorter.
8. When installing the degassing rotor shaft, make sure every bolt is fastened tightly so that avoiding the bolt loose.
1. It should be preheated to keep it dry before using.
2. It should be preheated before heating the cold kiln.
3. It should be cooled and heated gradually, avoid heat and cold shocks.
4. It should be handled with care, avoid beating by sharp objects.
5. The end of heater must be immersed into the aluminum solution when heating, it must avoid dry heating.
6. To avoid leaking, you should choose the elastic gasket with high temperature resistance when installing the flange.
7. Keep regular cleaning and maintenance, which can increase the service time, otherwise, the lifetime will be shorter.
8. When installing the degassing rotor shaft, make sure every bolt is fastened tightly so that avoiding the bolt loose.
Packing & Delivery
Company Profile
Yixing Winner Technology Co., Ltd. is a professional manufacturer in producing ceramic products, such as silicon nitride products, ceramic balls, catalyst carriers and ceramic glove molds and so on.
Our company have experienced engineers and advanced equipment, which ensure us to make high quality products. Above 90% of our products are exported to more than 50 countries, like Southeast Asia, West Europe, the Middle East, Africa etc. We insist on win-win cooperation, and provide warm, responsible services to customers. Choose us, you will be the winner!
Our company have experienced engineers and advanced equipment, which ensure us to make high quality products. Above 90% of our products are exported to more than 50 countries, like Southeast Asia, West Europe, the Middle East, Africa etc. We insist on win-win cooperation, and provide warm, responsible services to customers. Choose us, you will be the winner!
FAQ
1. Are you the manufacturer?
Yes, we are manufacturer, our factory was established in 2014.
2. Can you customize the products? According to the sample or drawing?
Yes, of course. It’s will be very helpful if you can offer us detailed drawing.
Yes, we are manufacturer, our factory was established in 2014.
2. Can you customize the products? According to the sample or drawing?
Yes, of course. It’s will be very helpful if you can offer us detailed drawing.
3. How to ensure the quality of the products?
We have the most advanced technology and equipments. What’s more, 100% self-inspection will be done before packing and shipping.
We have the most advanced technology and equipments. What’s more, 100% self-inspection will be done before packing and shipping.
4. What’s the delivery time?
We have standards in stock, which will be sent out in 2 days.
If you want to customize according to your demands, it should be negotiation.
We have standards in stock, which will be sent out in 2 days.
If you want to customize according to your demands, it should be negotiation.
5. Do you have after-sales service?
Yes, of course. We will provide relevant technical direction and solutions.
Yes, of course. We will provide relevant technical direction and solutions.
