Распашная дверь из нержавеющей стали для грузового воздушного душа с сертификатом
- Категория: >>>
- Поставщик: Shanghai,Marya,Pharmaceutical,Engineering,&,Project,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3570.12 $* | 3749.65 $* |
| Aug-18-2025 | 3540.65 $* | 3717.23 $* |
| Jul-18-2025 | 2970.16 $* | 3119.47 $* |
| Jun-18-2025 | 3480.57 $* | 3654.84 $* |
| May-18-2025 | 3030.79 $* | 3182.74 $* |
| Apr-18-2025 | 3420.23 $* | 3591.66 $* |
| Mar-18-2025 | 3390.12 $* | 3560.17 $* |
| Feb-18-2025 | 3360.83 $* | 3528.71 $* |
| Jan-18-2025 | 3330.52 $* | 3497.79 $* |
Характеристики
Product Description

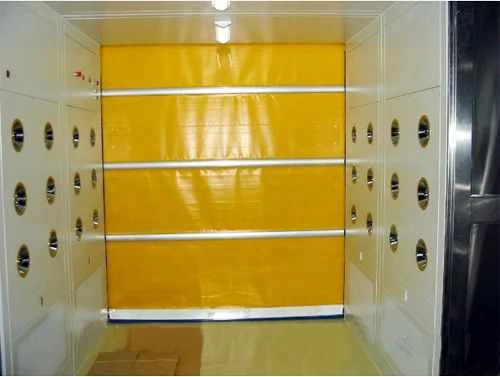

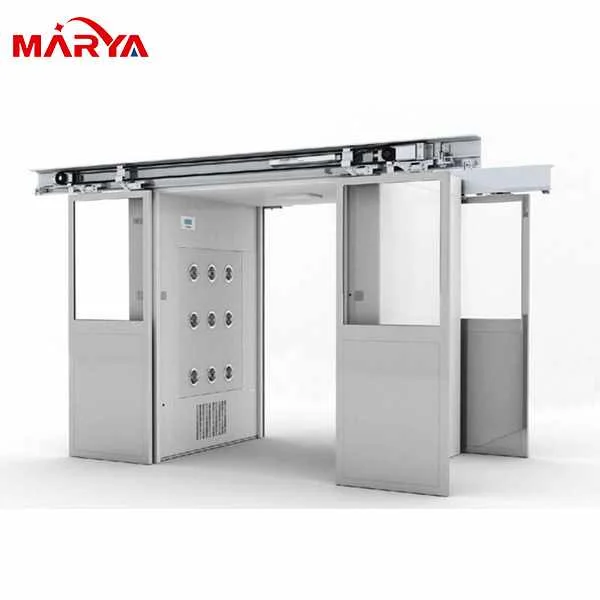

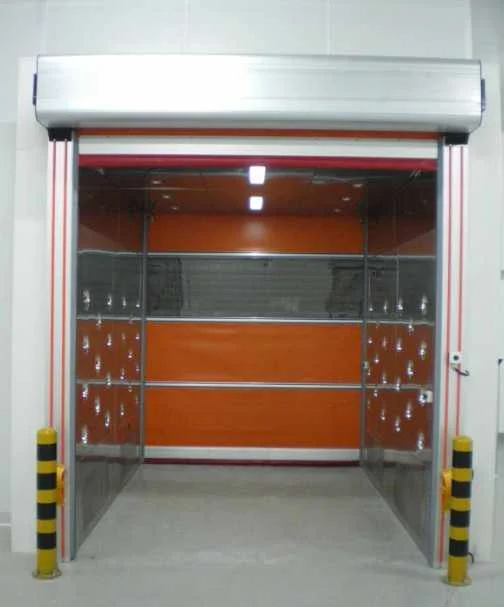

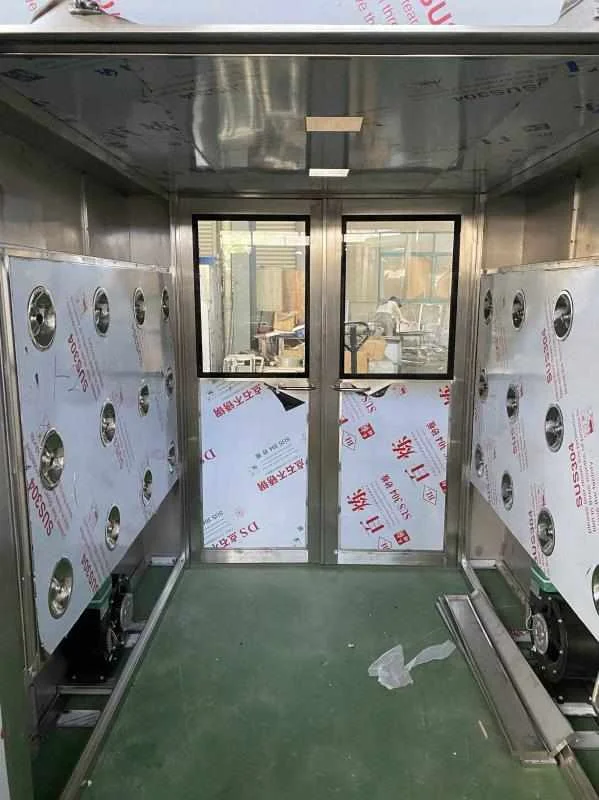

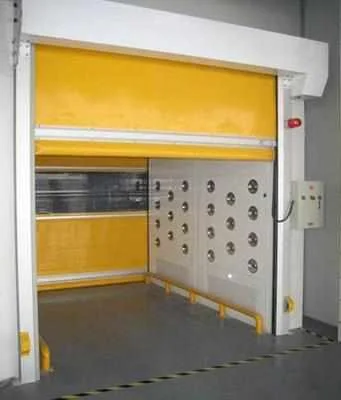

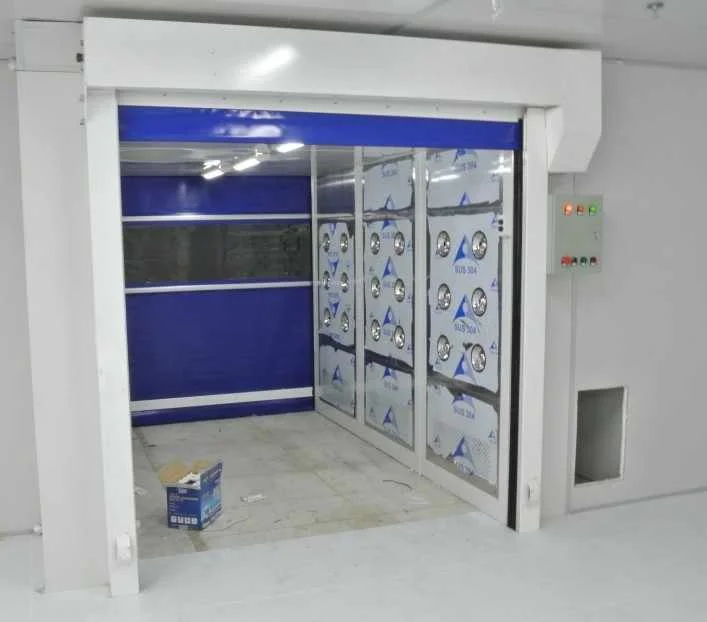

Sliding Auto-door Cargo Air Shower
Introduction
1. Double-speed fan;
2. Primary filter;
3. Stainless steel nozzle (with mesh);
4. Deep pleat HEPA filter;
5. Tempered glass window;
6. Infrared sensor;
7. Control panel (with organic glass cover);
8. Anchor bolt (M12);
9. Imported mechanism
1. Double-speed fan;
2. Primary filter;
3. Stainless steel nozzle (with mesh);
4. Deep pleat HEPA filter;
5. Tempered glass window;
6. Infrared sensor;
7. Control panel (with organic glass cover);
8. Anchor bolt (M12);
9. Imported mechanism
Optional Parts:
1. Stainless steel cabinet;
2. Stainless steel inner wall;
3. UV germicidal lamp;
4. Destaticizing device;
5. Concealed door device
Optional ways to open the door:
1. Remote control;
2. Microwave automatic sensor;
3. Non-contact sensor switch;
4. Contact button switch
1. Stainless steel cabinet;
2. Stainless steel inner wall;
3. UV germicidal lamp;
4. Destaticizing device;
5. Concealed door device
Optional ways to open the door:
1. Remote control;
2. Microwave automatic sensor;
3. Non-contact sensor switch;
4. Contact button switch
Procedure from non-clean areas to clean areas of the air shower:
Walk from non-clean area to the outer door of the air shower booth
Reach the sensing area and the door opens automatically
Enter the air shower and the front door closes automatically at set time
Pass the IR sensor and the fan starts showering
After showering for set time, walk out when the inner door opens
The auto-door closes automatically at set time and returns to standby
Procedure from clean areas of the air shower to non-clean areas:
Walk from clean area to the inner door of the air shower booth
Reach the sensing area and the door opens automatically
Enter the air shower and the inner door closes automatically at set time
When the rear door closes completely, pass through the sensing area of front door, and walk out when the front door opens
The auto-door closes automatically at set time and returns to standby
Walk from non-clean area to the outer door of the air shower booth
Reach the sensing area and the door opens automatically
Enter the air shower and the front door closes automatically at set time
Pass the IR sensor and the fan starts showering
After showering for set time, walk out when the inner door opens
The auto-door closes automatically at set time and returns to standby
Procedure from clean areas of the air shower to non-clean areas:
Walk from clean area to the inner door of the air shower booth
Reach the sensing area and the door opens automatically
Enter the air shower and the inner door closes automatically at set time
When the rear door closes completely, pass through the sensing area of front door, and walk out when the front door opens
The auto-door closes automatically at set time and returns to standby
Technical Parameters:
Model | HJ-2000-2 | HJ-2000-3 | ||
Dimensions (mm) | W2000×L2000×H2180 | W2000×L3000×H2180 | ||
Air shower dimensions (mm) | W1200×L2000×H1980 | W1200×L3000×H1980 | ||
Nozzle air speed (m/s) | 18-22 | |||
Nozzle quantity | 24 | 36 | ||
Air shower time (s) | Default setting is 10s, 10-99s (adjustable) | |||
Cabinet material | 1.2mm cold-rolled steel sheet, with surface powder-coated | |||
Door material | Stainless steel | |||
Auto-door mechanism | 2 sets | 2 sets of door covers | ||
HEPA filter size | 610*610*69*4 | 610*610*69*6 | ||
Filtration efficiency | 99.99at0.3μm | |||
Fan power (W) | 750*4 | 750*6 | ||
LED light power | 12*2 | 12*3 | ||
Power supply voltage | 380V50Hz | |||
Note: Non-standard size can be customized. | ||||
