ZC-408 Intel стандарт 80 шпильки OPS Стыковочная плата конверсионной карты Поддержка 4K

Описание и отзывы

Трекер стоимости

Характеристики

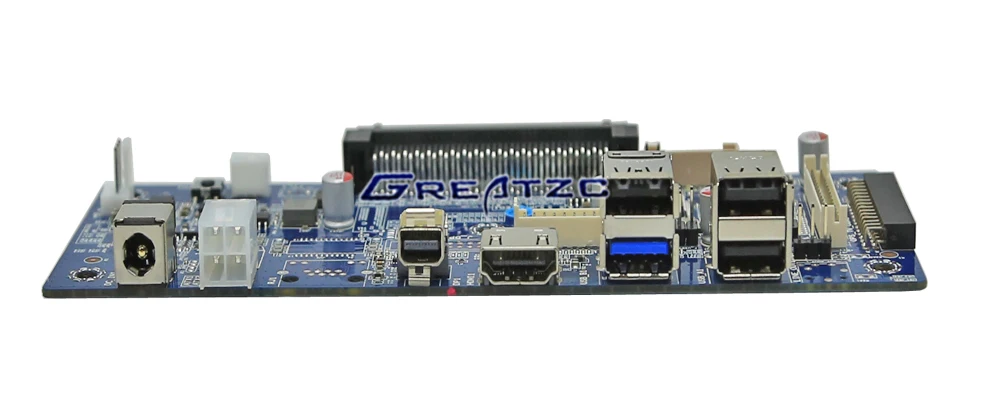

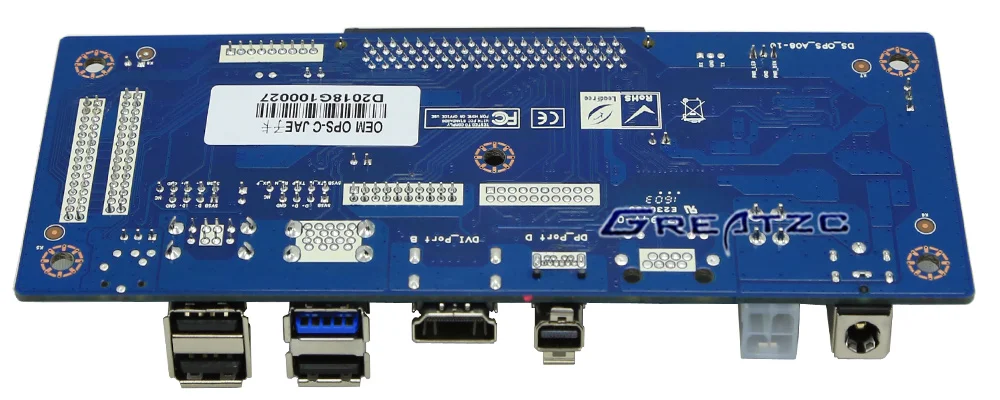

ZC-408 OPS Docking Card

OPS daughter card, also called OPS adapter card, OPS adapter board, OPS expansion card, is produced in accordance with the INTEL (Open Pluggable Specification) open pluggable specification, which connects the OPS computer with the internal circuit of the integrated machine and the TV It is a bridge that can provide all-in-one or TV internal power supply to the OPS computer host through the OPS JAE interface, and at the same time, the OPS computer’s HDMI, DP, Audio, USB, COM, on/off and other signals through the OPS JAE interface The LCD screen driver board, speaker, touch frame, switch and other components of the control all-in-one machine are connected, and the touch-control all-in-one machine, LCD TV and OPS computer host can be connected and used by plugging and plugging!



Compared with the traditional touch all-in-one machine, through the OPS interface plug-in design, the PC computer part and the LCD screen display part can be easily connected and separated, which is conducive to the maintenance, upgrade and replacement of the PC components (OPS computer host). Greatly save labor costs and transportation costs!

There is no need to connect the PC computer part and the display screen with additional wires, which is more beautiful and stable!
