Характеристики
Boring Bar for Line Boring Machine for cylinder heads and blocks
Main Feature:
This machine was specially designed for boring Middle & Small engine blocks, crankshaft bush and camshaft bush; It also can be used for con rod bush with special fixture. The boring carriage adopts guideway moving, center of main shaft already adjusted in advance, vertical column go up and down, Make the work piece to find positive and accurate. Good rigidity, spindle feeding stepless, boring with high accuracy. It purposed used in automotive service and repair filed.
Main specifications
Model | LB1000 |
Dia. Range of boring hole mm | F24 –F110mm |
Max.distance between parallel& shaft center | 450mm |
Max. length of workpiece | 1000mm |
Main shaft max movement length | 100mm |
Main spindle rotating speed | 580,373rpm/min |
Boring shaft feeding | 0.04;0.08;0.12,0.18mm/r |
Main Motor Power | stepless |
Motor power of spindle box | 0.75/0.55KW |
Overall dimensions | 1850mm*600mm*1375mm |
Overall dimensions | 1980mm*750mm*1700mm |
Machine Weight | 600KGS |
Standard accessory:
Boring bar, centering sleeve, boring tool sleeve, boring tools micro adjuster, boring cutter, boring sleeve, Increase tools plate,Align gauge ,centering gauge

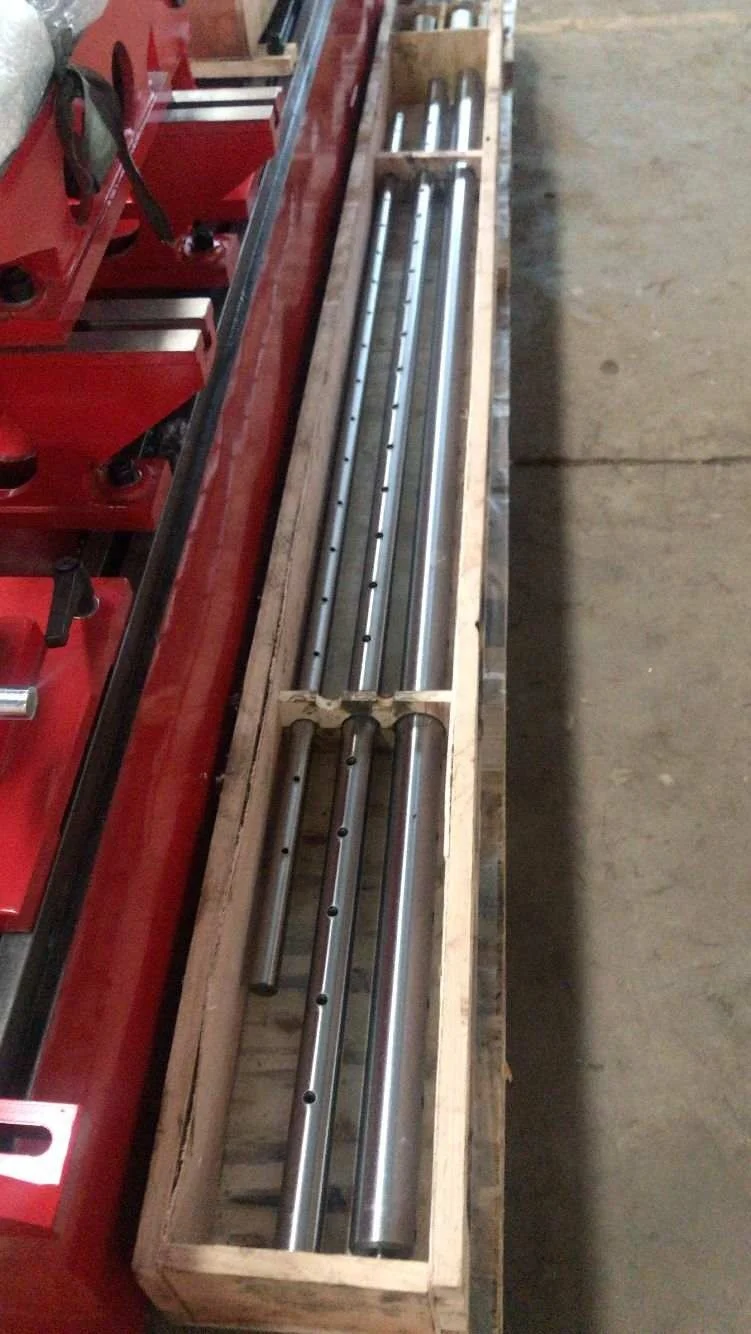

Machine real photos:
