Производитель полиэтиленовых оболочек бронированный волоконно-оптический кабель 6 ядер G652D УФ наружный
- Категория: Communication Cables >>>
- Поставщик: Shenzhen,Unitekfiber,Solution,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.8 $* | 0.90 $* |
| Aug-20-2025 | 0.54 $* | 0.89 $* |
| Jul-20-2025 | 0.51 $* | 0.22 $* |
| Jun-20-2025 | 0.50 $* | 0.44 $* |
| May-20-2025 | 0.9 $* | 0.41 $* |
| Apr-20-2025 | 0.23 $* | 0.66 $* |
| Mar-20-2025 | 0.60 $* | 0.84 $* |
| Feb-20-2025 | 0.83 $* | 0.72 $* |
| Jan-20-2025 | 0.75 $* | 0.47 $* |
Характеристики
Product Description
UnitekFiber's GYTA optical cable is a loose tube made of high modulus material with a 250µm fiber sleeve, and the loose tube is filled with waterproof compound. The center of the cable core is a strengthening core, made of metal, for optical cables with certain core numbers. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking fillers. Plastic-coated aluminum tape (APL) is longitudinally wrapped and then extruded into a cable with a polyethylene sheath.
Application
♦Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
♦Laying method: overhead, pipeline
♦Working temperature: -40℃~+60℃
♦Bend radius: Static 10 times the cable diameter
♦Dynamic 20 times optical cable diameter
♦Laying method: overhead, pipeline
♦Working temperature: -40℃~+60℃
♦Bend radius: Static 10 times the cable diameter
♦Dynamic 20 times optical cable diameter
Features
♦Full section water blocking structure, double-coated aluminum tape longitudinal package, ensuring good water and moisture resistance
♦Loose sleeve filled with special ointment for critical fiber protection
♦Phosphating steel wire center strengthening member high modulus, corrosion resistance
♦Adopt SZ twisted structure, easy to branch and ensure the optical fiber is not stressed under harsh environment
♦Polyethylene sheath makes the cable have good UV resistance
♦Product life more than 30 years
♦Loose sleeve filled with special ointment for critical fiber protection
♦Phosphating steel wire center strengthening member high modulus, corrosion resistance
♦Adopt SZ twisted structure, easy to branch and ensure the optical fiber is not stressed under harsh environment
♦Polyethylene sheath makes the cable have good UV resistance
♦Product life more than 30 years
Specification
No. of cable | 24 | 96 | 144 | ||||||||||
Fiber Model | G.652B | ||||||||||||
Design(StrengthMember+Tube&Filler) | 1+5 | 1+8 | 1+12 | ||||||||||
Central Strength Member | Material | Steel Wire | |||||||||||
Diameter（±0.05）mm | 1.5 | 2.1 | 2.1 | ||||||||||
Additional Sheath | Material | MDPE | |||||||||||
Thickness（±0.03）mm | — | 0.7 | 2.1 | ||||||||||
Loose Tube | Material | PBT | |||||||||||
Diameter（±0.06）mm | 1.8 | 2.1 | 2.1 | ||||||||||
Thickness（±0.03）mm | 0.32 | 0.35 | 0.35 | ||||||||||
The Max.Core NO./Tube | 6 | 12 | 12 | ||||||||||
Filler Rope | Material | LDPE | |||||||||||
Colour | White | ||||||||||||
Diameter（±0.06）mm | 1.8 | —— | |||||||||||
Water Blocking layer（Material） | Flooding Compound | ||||||||||||
Moisture Barrier | Material | Aluminum Tape | |||||||||||
Thickness（±0.03）mm | 0.20 | ||||||||||||
Outer Sheath | Material | LSZH | |||||||||||
Thickness（±0.2）mm | 1.8 | ||||||||||||
Cable Diameter（±0.2）mm | 9.6 | 12.2 | 15.3 | ||||||||||
Cable Weight（±10）kg/km | 107 | 189 | 265 | ||||||||||
Min. bending radius | Without Tension | 10.0×Cable-φ | |||||||||||
Under Maximum Tension | 20.0×Cable-φ | ||||||||||||
Temperature range （℃） | Installation | -20~+60 | |||||||||||
Transport&Storage | -40~+70 | ||||||||||||
Operation | -40~+70 | ||||||||||||
More Products
Company Profile
Production Process

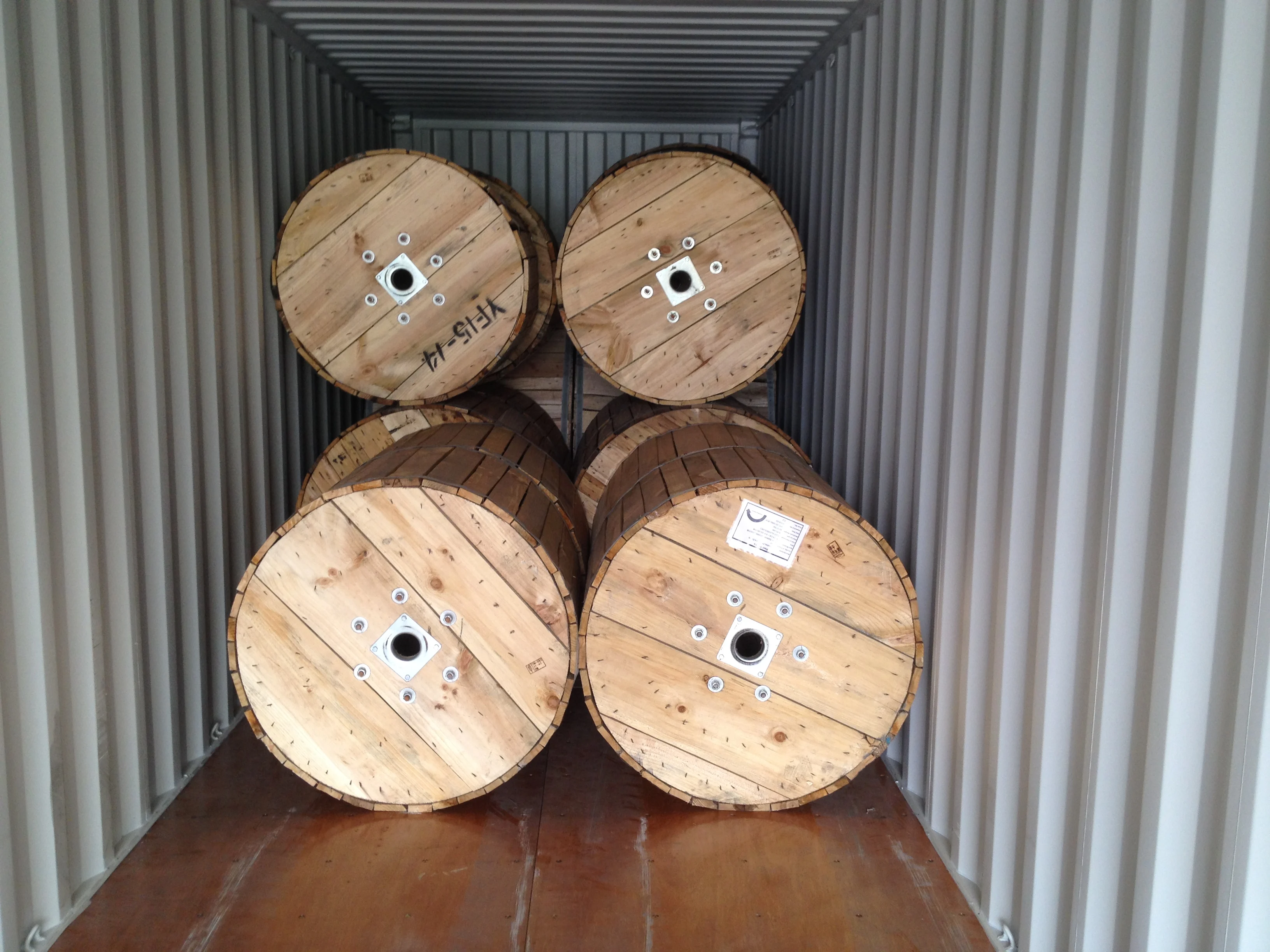

Packing & Delivery
