Гидравлический автомобильный парковочный подъемный механизм гараж оборудование 4-х опорный тройной укладчик автомобиля
- Категория: Автоподъемники >>>
- Поставщик: Qingdao,Gg,Lifters,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 619710.54 $* | 632104.79 $* |
| Jul-16-2025 | 502600.23 $* | 512652.96 $* |
| Jun-16-2025 | 609951.35 $* | 622150.14 $* |
| May-16-2025 | 605072.94 $* | 617173.65 $* |
| Apr-16-2025 | 483081.87 $* | 492743.46 $* |
| Mar-16-2025 | 595312.59 $* | 607218.15 $* |
| Feb-16-2025 | 590433.71 $* | 602242.64 $* |
| Jan-16-2025 | 585553.36 $* | 597264.62 $* |
Характеристики

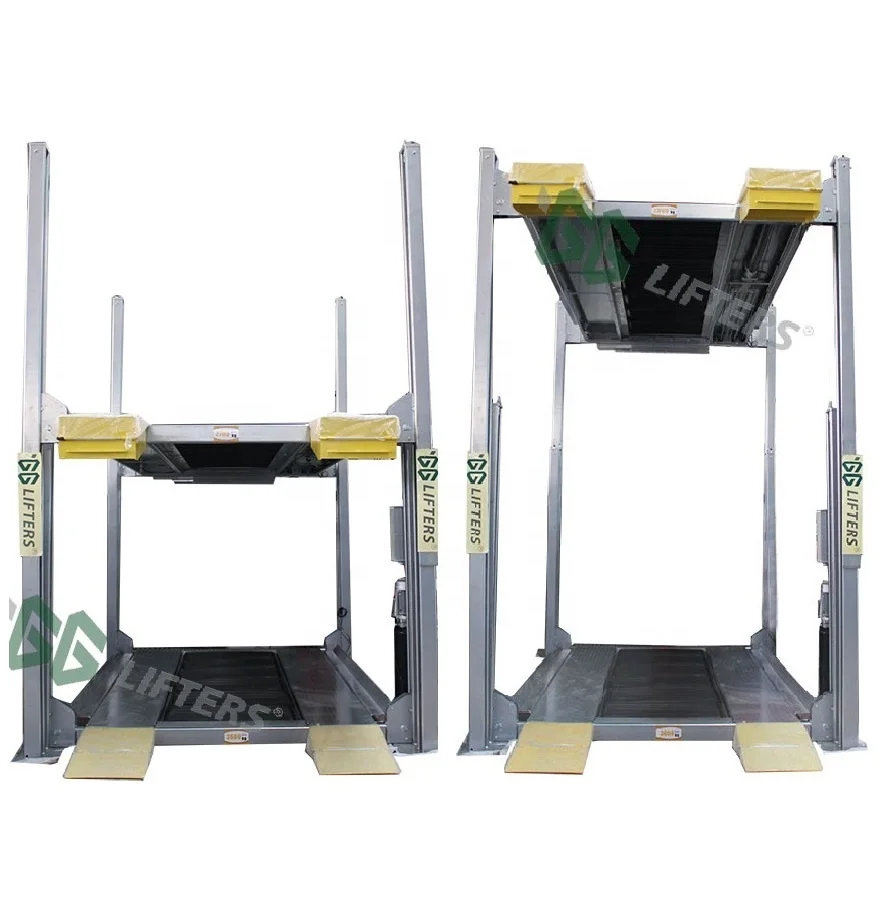

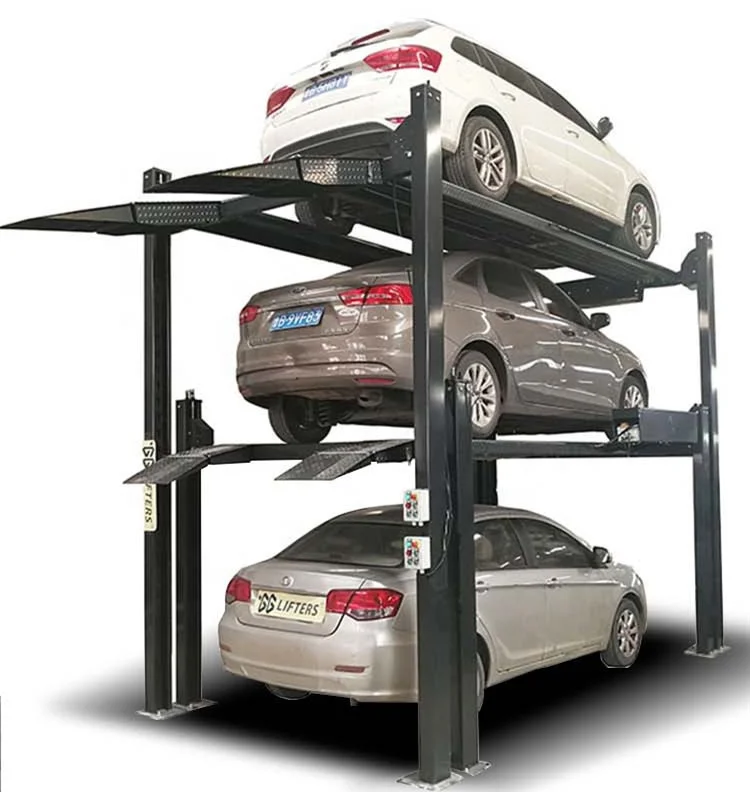

Hydraulic car parking lift garage equipment 4 post triple stacker car parking equipment
Product Description
1.2 separated 4 post car parking lifts installed together, one external and one internal.
2.Hydraulic driven cylinder with wire rope lifting system through sheaves.
3.Double safety locks in each post: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
4.Foldable ramps suitable for sport cars and occupy less space.
5.Automatic locking system of the latches inside ladders while electromagnetic lock release through push button on operation box.
6.Electric control panel& hydraulic power unit of external lift will be placed inside a compartment fixed to the back side of its platform.
7.Electric control panel& hydraulic power unit of internal lift will be placed inside a compartment fixed to the right side of its platform.
8.Separate Operation box for each lift, will be fixed on the front right post.
9.Wheel stoppers on upper platform.
10.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
| CE PEP54 /3500 | PEP54/3900 | |
| Lifting capacity | 3600 kg (8000 lbs ) / lower platform, and 2700 kg (6000 lbs) top platform | 3600 kg (8000 lbs ) / lower platform, and 2700 kg (6000 lbs) top platform |
| Net lifting Height | 1800 / 3500 mm (70.9" / 138") | 1800 / 3900 mm (70.9" / 154") |
| Unit External dimensions | 6575 *2752*4065 mm (259" * 108 " * 163") | 6575 * 2752 * 4552mm (259" * 108 " * 179") |
| Platforms Length x Width | Lower : 4198 x 1966 mm (165" * 77") & Upper : 4780 x 1966 mm (188" * 77") | Lower : 4198 x 1966 mm (165" * 77") & Upper : 4780 x 1966 mm (188" * 77") |
| Runway type | Checkered steel plates | Checkered steel plates |
| Electric parts | Original Chint | Schneider, Omron, Original Chint |
| Brand of oil seals in cylinder | Aston , Italy | |
| Lock release type | Electromagnetic lock release | |
| Middle in the runway | 4 ea plastic oil trays or wave plates in the middle of runway | |
| Type of ramp | Foldable ramps | |
| Safety Devices | One piece adjustable safety lock ladder and the other is activated automatically in case of steel wire rupture | |
| Operation Type | Push buttons on operation box | |
| Power Supply | 380/ 220 V , 50/60 Hz , 1/3 Ph | |
| Motor Capacity | 2 separate units each is 2.2 Kw (2.92 hp). | 2 separate units each is 2.2 Kw (2.92 hp). |
Product Details
CE verifications
Company advantage
Packaging & Shipping
Contact information
Qingdao GG Lifters Co., Ltd. an established factory in Qingdao (China), with state of the art facility to design, manufacture and install world-class solutions for automated & mechanical car parking and car service lifts offered to our customers worldwide. Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese,... etc) is well prepared to anticipate, identify and exceed our customers’ expectations. In addition we implemented Enterprise Resource Planning (ERP) system to integrate data & processes across our multiple departments for better and faster performance. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC plasma, press brake, cutting, drilling and welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages. GG Lifters through its research and development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive solutions.
Units are designed according to BS EN 1493: 2010 & BS EN 14010: 2003 standards and certified according to EC machinery directive 2006/42/CE.
FAQ
Q: Are you a factory?
A: GG Lifters invested good capital to build a factory with an area of 4500 square meters, specializing in the production of various car lifts and car parking lift.
Q: Could you offer customized products?
A: Yes,of course. We have professional group to design according to your requests.
Q: How do you control your production quality?
A: We have an independent QC team. Our QC team is checking all production phases and compare to drawings to assure the quality.In case of non comformity,corrective action will be taken to repair/replace the defective part.
Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit GG LIFTERS. Our factory locates in NO.557 Dazhushan South Road, Huangdao district,Qingdao,China
Q: What kind of support can I get if I am GG LIFTERS’s agent?
A: Very competitive price and 24 hrs after sales service.
Q: May I know the Lead time?
A:Commonly the lead time of our machine is 15 to 30 days.
Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, TT, LC, Paypal etc.
Q: How long is the warranty?
A: 2 years against manufacturing defects as per GG Lifters limited warranty statement.
