8000L 80HL изготовленный на заказ бак для пива из нержавеющей стали с жаккардовым покрытием пивоваренное оборудование
- Категория: >>>
- Поставщик: Ningbo,Xg,Food,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4165.77 $* | 4373.52 $* |
| Aug-15-2025 | 4130.20 $* | 4337.85 $* |
| Jul-15-2025 | 3465.70 $* | 3638.59 $* |
| Jun-15-2025 | 4060.69 $* | 4263.46 $* |
| May-15-2025 | 3535.36 $* | 3712.86 $* |
| Apr-15-2025 | 3990.29 $* | 4190.5 $* |
| Mar-15-2025 | 3955.81 $* | 4153.32 $* |
| Feb-15-2025 | 3920.48 $* | 4116.51 $* |
| Jan-15-2025 | 3885.74 $* | 4079.86 $* |
Характеристики
Product Overview

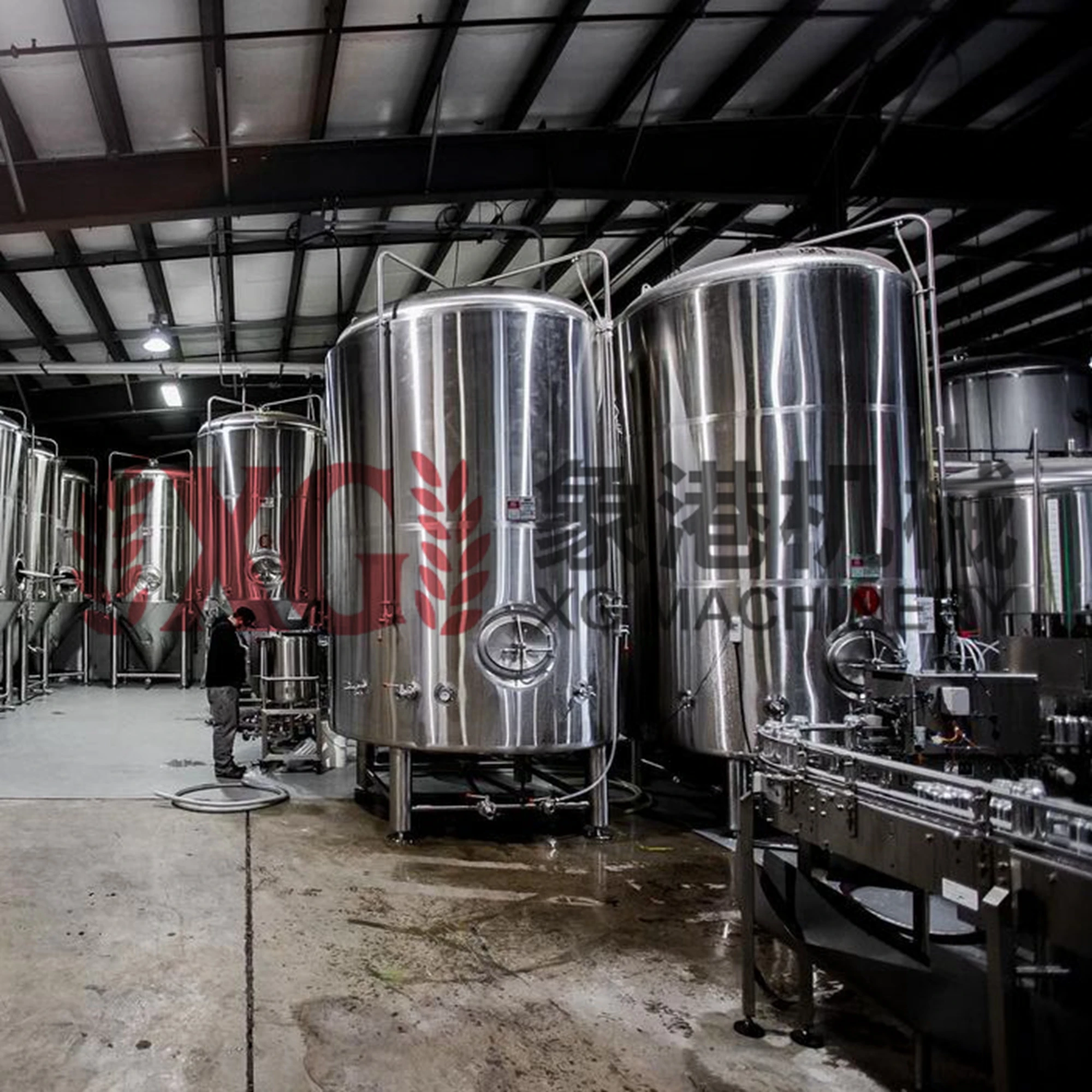

Brite tanks/Serving tanks/Storage tanks
From small, pub-size brite tanks to towering outdoor tanks, we have the manufacturing capability and expertise to build
brite tanks of all sizes. For nano or microbreweries, we create compact, efficient tanks as small as 1BBL in size. For large-scale breweries, we develop outdoor brite tanks. Ningbo XG has years of experience designing insulated outdoor tanks ranging up to 600BBL. We offer specialized brite tank design, customized specs, and fittings, with on-site installation support to maximize the efficiency of your operation.
brite tanks of all sizes. For nano or microbreweries, we create compact, efficient tanks as small as 1BBL in size. For large-scale breweries, we develop outdoor brite tanks. Ningbo XG has years of experience designing insulated outdoor tanks ranging up to 600BBL. We offer specialized brite tank design, customized specs, and fittings, with on-site installation support to maximize the efficiency of your operation.
Diameter | Height | Total Volume | |
400L/3.5bbl | 850mm/33.5’’ | 1790mm/70.5’’ | 541L/4.63bbl |
600L/5bbl | 900mm/35.4’’ | 1880mm/74.0’’ | 775L/6.62bbl |
820L/7bbl | 1100mm/43.3’’ | 1950mm/76.8’’ | 1208L/10.32bbl |
1200L/10bbl | 1200mm/47.3’’ | 2200mm/86.6’’ | 1721L/14.71bbl |
1700L/15bbl | 1300mm/51.2’’ | 2540mm/100.0’’ | 2404L/20.55bbl |
2300L/20bbl | 1400mm/55.2’’ | 2590mm/102.0’’ | 2814L/24.05bbl |
3500L/30bbl | 1600mm/63.0’’ | 3100mm/122.1’’ | 4775L/40.81bbl |
4500L/40bbl | 1600mm/63.0’’ | 3620mm/142.5’’ | 5768L/49.30bbl |
7000L/60bbl | 2050mm/80.7’’ | 3500mm/137.8’’ | 8755L/74.83bbl |
Equipment Specification
Main Features
304 SS TIG weld construction
2mm Exterior, with a #4 sanitary brushed finish
3mm Interior, with a 2B sanitary finish
Dual-zone dimple cooling jackets (Tested to 6 bar/90Psi).
80mm/3.15″ Polyurethane Insulation
Operating pressure rated below 1 bar/15Psi (Tested to 2 bar/30Psi)
20% overstated sized headspace
Adjustable reinforced stainless steel legs
Perlick sample valve
Pressure/ Vacuum relief valve
Temperature gauge port
RTD sensor port(1/2″ NPT optional)
4″ and larger dry hop port capabilities
CIP arm and rotating spray ball provides 360° of coverage
CIP arm with integrated pressure gauge
Butterfly valves
Assembled carbonation stone.
Side Manway door (Top Manway optional)
Lifting Lugs
Ladder hooks(10bbl or larger)
2mm Exterior, with a #4 sanitary brushed finish
3mm Interior, with a 2B sanitary finish
Dual-zone dimple cooling jackets (Tested to 6 bar/90Psi).
80mm/3.15″ Polyurethane Insulation
Operating pressure rated below 1 bar/15Psi (Tested to 2 bar/30Psi)
20% overstated sized headspace
Adjustable reinforced stainless steel legs
Perlick sample valve
Pressure/ Vacuum relief valve
Temperature gauge port
RTD sensor port(1/2″ NPT optional)
4″ and larger dry hop port capabilities
CIP arm and rotating spray ball provides 360° of coverage
CIP arm with integrated pressure gauge
Butterfly valves
Assembled carbonation stone.
Side Manway door (Top Manway optional)
Lifting Lugs
Ladder hooks(10bbl or larger)
