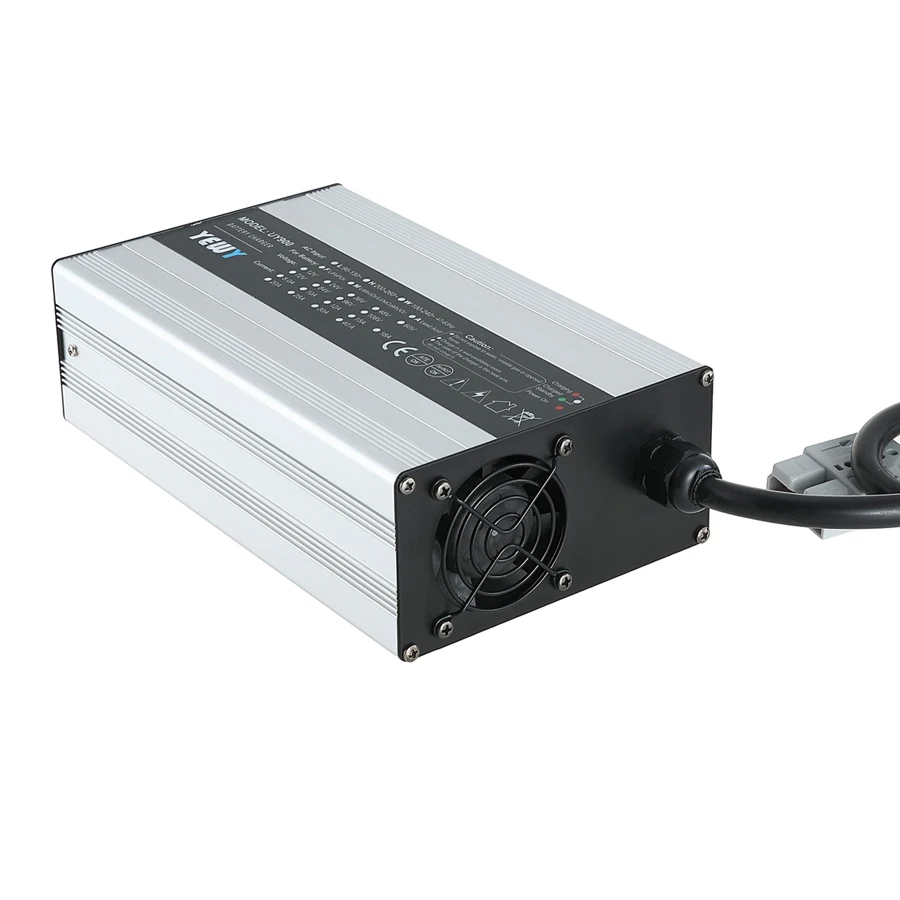

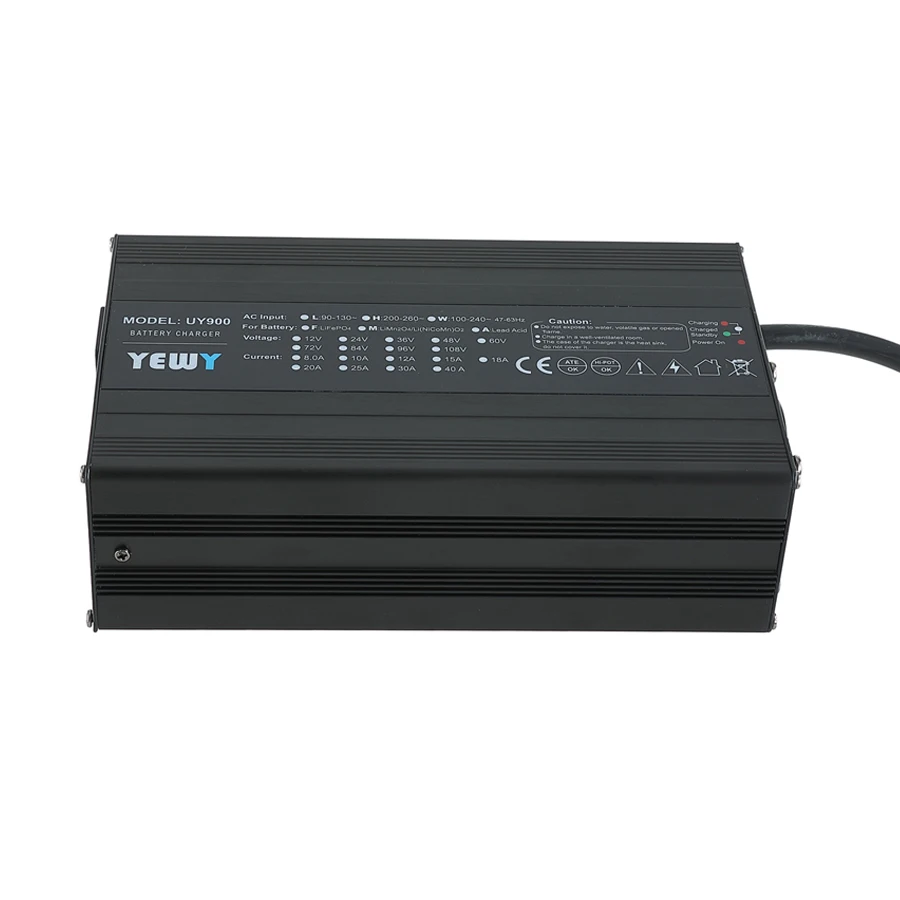

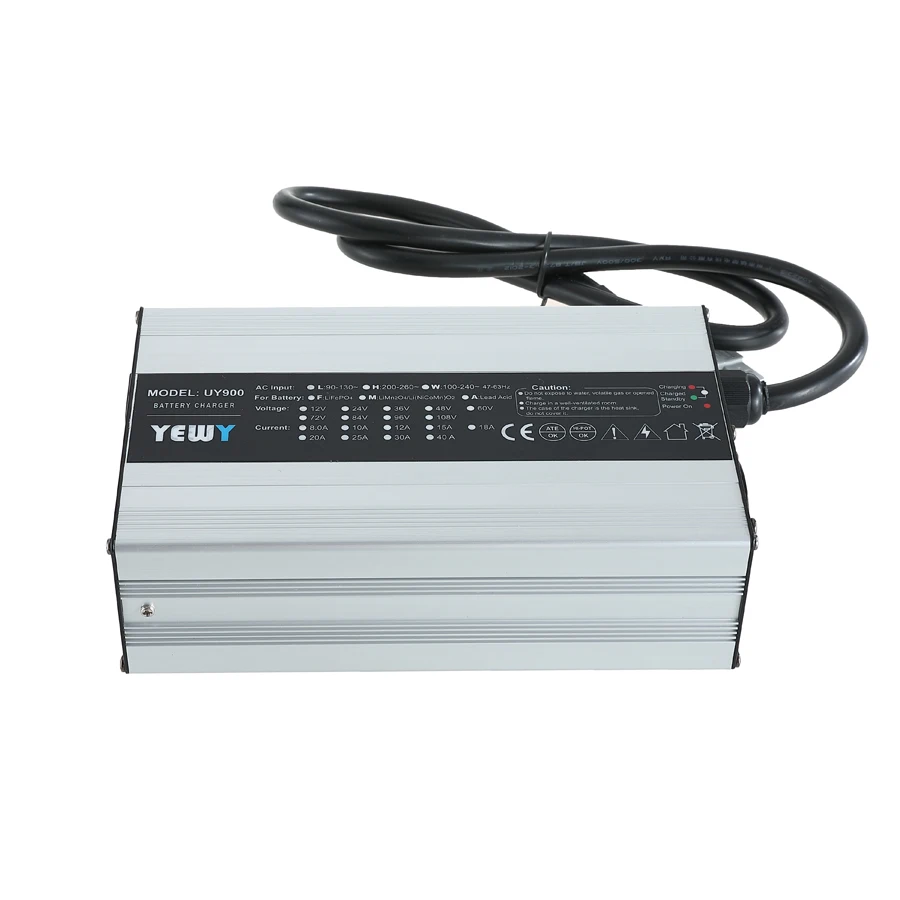

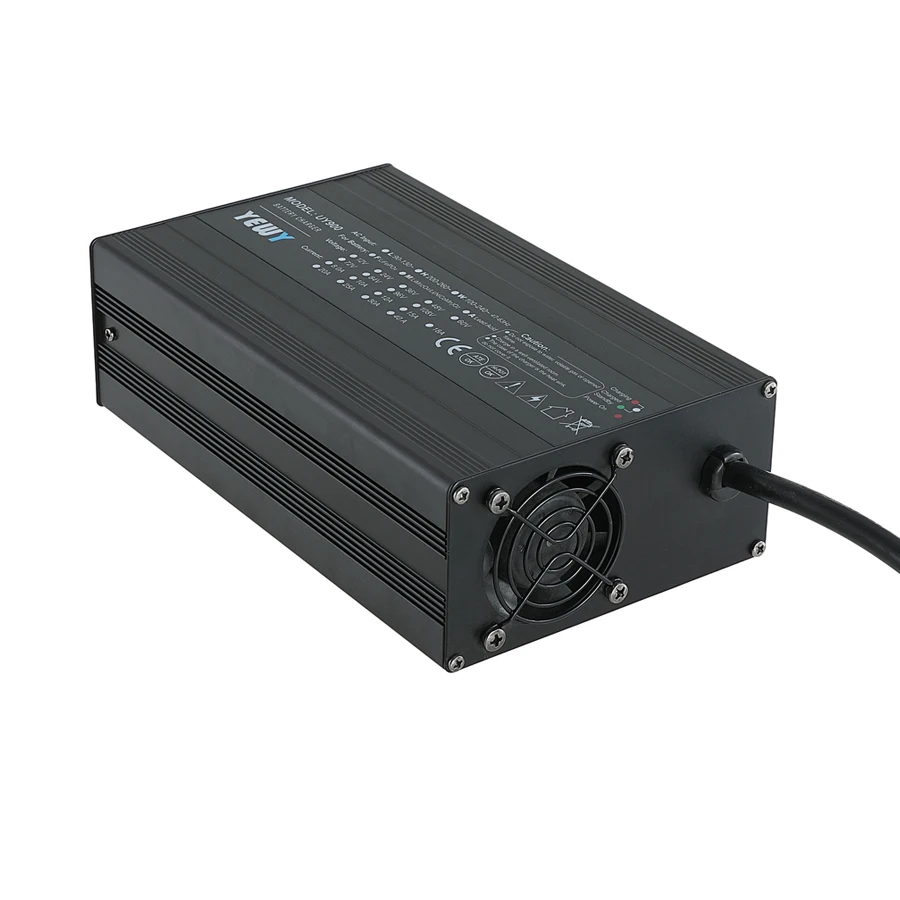

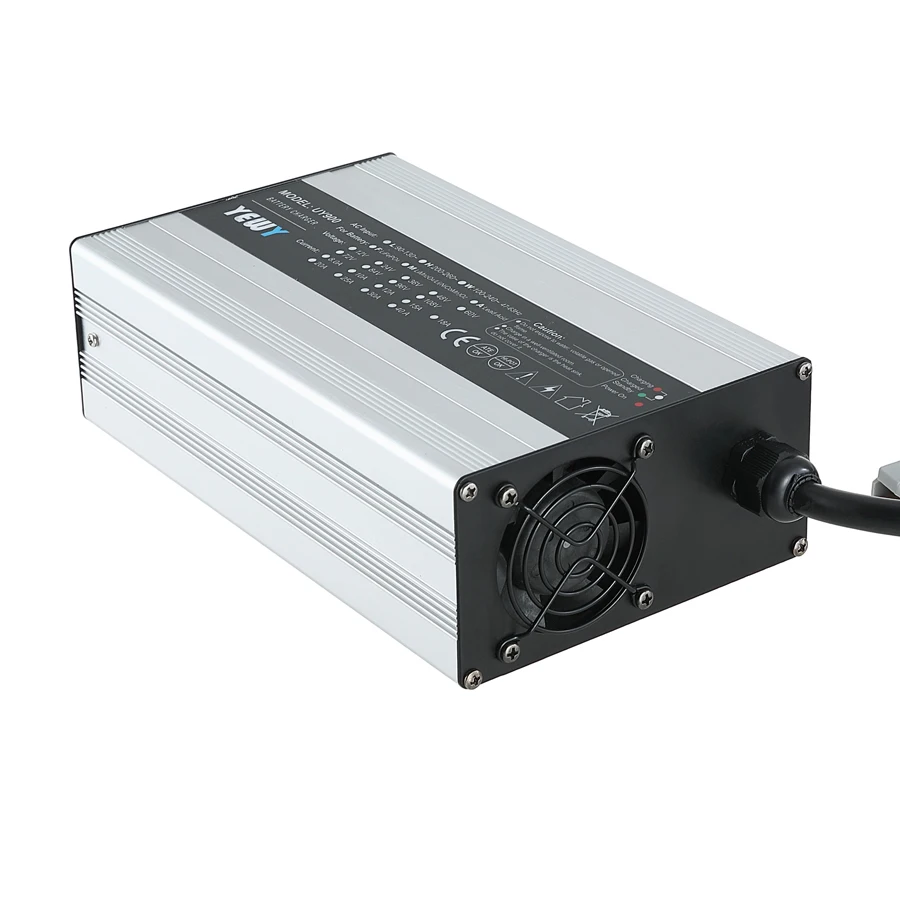

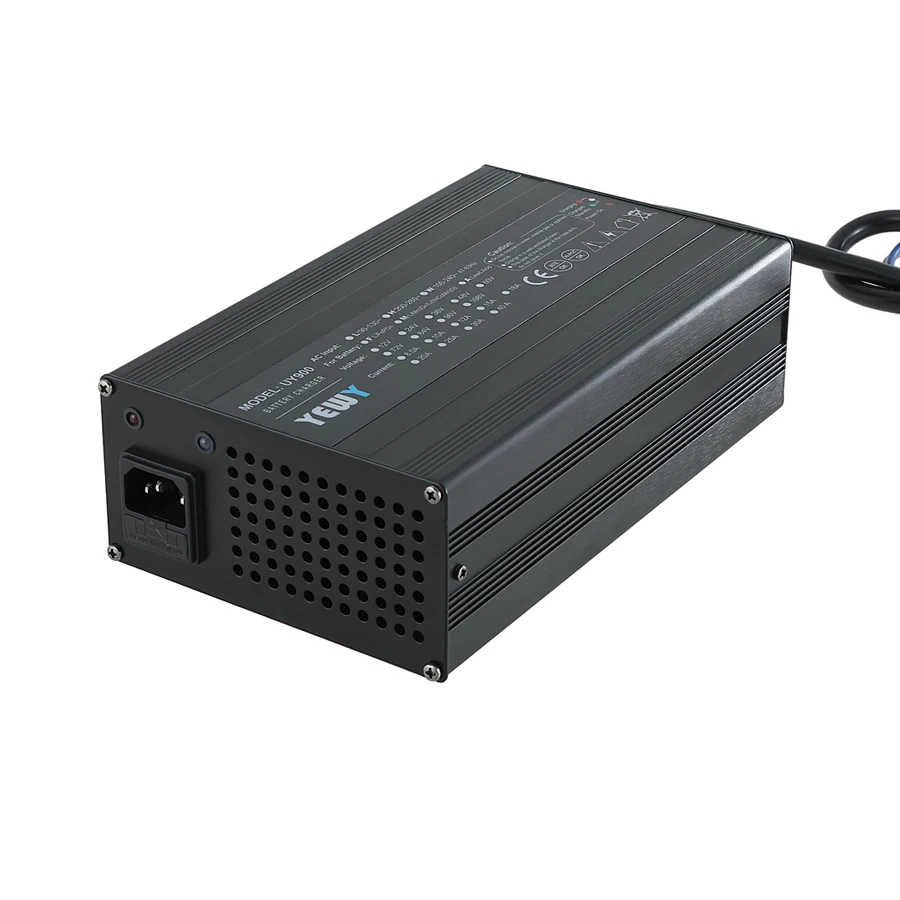

Зарядное устройство для свинцово-кислотных аккумуляторов 60 в 48 36 В 24 12 15 а 20 А 25 40 зарядное литий-ионных


Поделиться:


Цена:80,50 $ - 85,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 95.7 $* 100.47 $*
Aug-15-2025 94.97 $* 99.40 $*
Jul-15-2025 79.65 $* 83.28 $*
Jun-15-2025 93.28 $* 98.94 $*
May-15-2025 81.59 $* 85.8 $*
Apr-15-2025 91.55 $* 96.2 $*
Mar-15-2025 90.27 $* 95.76 $*
Feb-15-2025 90.99 $* 95.86 $*
Jan-15-2025 89.10 $* 93.10 $*

Характеристики












UY900_01





Product Features


l900W


lAluminum case


lCircuit topology: Current Half-bridge type


lOptional function: MCU, CAN Communicate etc


lMCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the


   demands for different Curve


lProtections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off


   or trickle and anti-reverse charge


lVoltage & Current LED meter display (optional)


lIntelligent cooling fan, controlled by temperature



Output Reference



















TypeSpecificationDC Voltage(Max)(CC:A)
Charging current
Light Turning(A)
Li-ionLifepo4Lead acidLithium Lead acid
























































UY90012V 40A12.6V/16.8V14.6V14.7V40A8%CC25%CC
24V 25A25.2V/29.4V/33.6V29.2V29.4V25A
36V 20A 42V/46.2V43.8V44.1V20A
48V 15A50.4V/54.6V/58.8V54.75V/58.4V58.8V15A
60V 12A63V/67.2V/71.4V73V73.5V12A
72V 10A79.8V/84V87.6V88.2V10A
84V 8A88.2V102.2V107.8V8A












































































 Brand Name YEWY Model Number

UY900


 Input Voltage

110/220Vac


 Frequency50~60HZ
 Input fuse

20A


 Dimension222×134×70mm
 Efficiency >=88% Leakage Current<=0.75mA
 Operating humidity 5%-95% RH Non-condensing Altitude2000m
 Operating  Temperature -20℃—+40℃ Storage   Temperature -40℃-+70℃
 Safety certifications CE,  RoHS Directive-compliant
 Suitable battery Type Lead Acid/LiFePo4/Li-ion
 Charging Time Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging   time:3-4 hours)
 Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours)
 Protection   Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut   off or trickle and anti-reverse charge
 Advantage MCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-   off, meet the demands for different Curve.
 Aluminum case, Robust, Elegant and Reliable
 Package Contents

 1*battery charger


 1*Input Wire


 1*User Manual


 This battery charger is your affordable necessity without sacrificing performance.


 It features an integrated MCU and PWM for power control.




 UY900_07UY900_05


UY900_02UY900_03UY900_08UY900_09UY900_10UY900_11
