S4Q08B230-L27 3V DC Micro Driving Electric 4mm Diameter 8mm Long Coreless Mini vibration


Поделиться:


Цена:1,27 $ - 1,43 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 1.15 $* 1.93 $*
Jul-18-2025 1.32 $* 1.1 $*
Jun-18-2025 1.18 $* 1.62 $*
May-18-2025 1.92 $* 1.14 $*
Apr-18-2025 1.85 $* 1.76 $*
Mar-18-2025 1.7 $* 1.98 $*
Feb-18-2025 1.93 $* 1.83 $*
Jan-18-2025 1.34 $* 1.12 $*

Характеристики

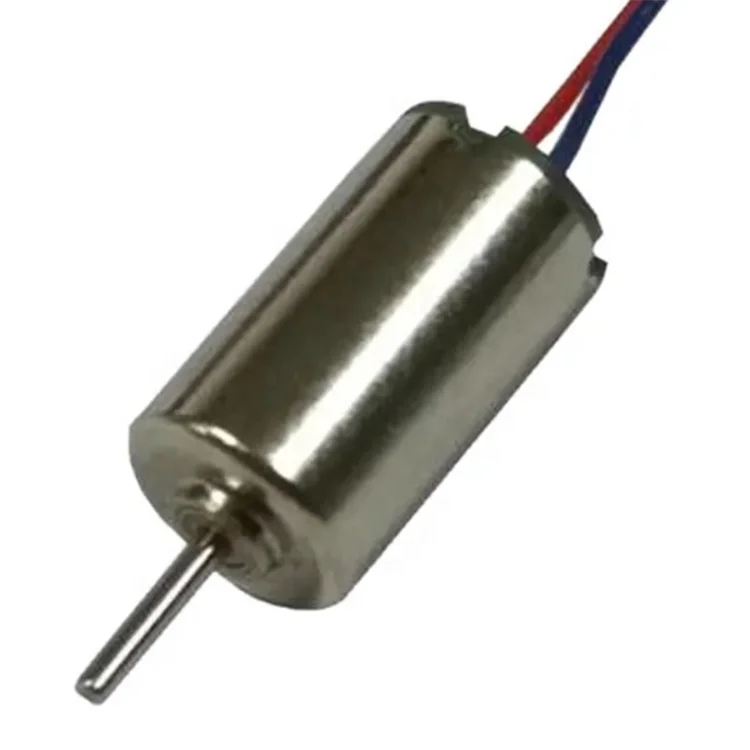

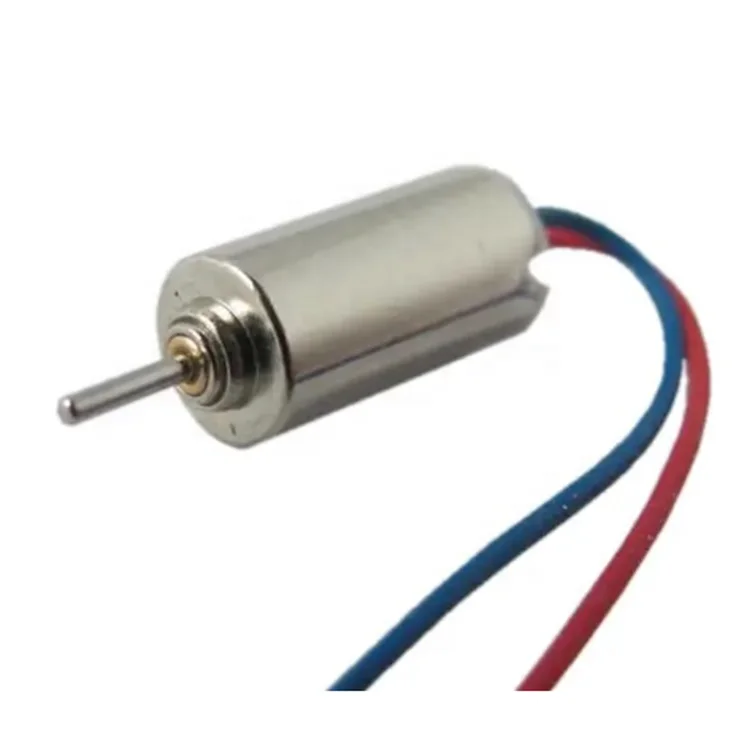

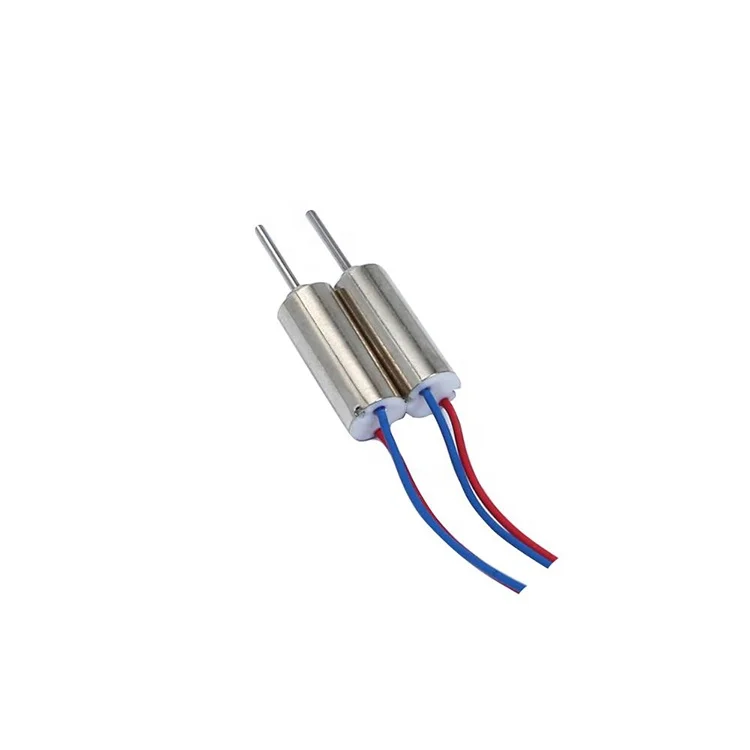

S4Q08B230-L27 3V DC Micro Driving Electric 4mm Diameter 8mm Long Coreless Mini Motor


Product Description


Our DC micro motors are low cost and light weight. They utilize precious metal brushes that provide commutation. There coreless design provides high acceleration with minimal power consumption. Our micro motors are typically used in applications such as drones, fans, electronic locks and any other micro-mechanical assemblies that require a drive motor. The shaft of our DC micro motors can be fitted with propeller / impeller blades, pinion gears or gear heads (please note that we not not manufacture these). We can also supply our DC micro motors with rubber gaskets, PCB mounting brackets, spring contacts or with SMD reflow pads. All possible mounting configurations are pictured in the drawings at the bottom of this page. Custom lead lengths and connectors are also available for large orders.




Electrical Data:


Show Me All Products (Only nine models are shown below : S4Q08B360-L27; S4Q08B380-L27; S4Q08B230-L27; S4Z10A000-L27; S4Q10A210-L27; S4Q11B280-L27; S6Q10B180-L27; S7Q16B180-L27; S7Z16A000-L27. If you want to know other models, please send us an email.)


SAIBOW P/N
Motor Size
Shaft
Voltage
No Load
Dia (mm)
Body (mm)
Overall (mm)
Length (mm)
Dia. (mm)
Range (VDC)
Nominal (VDC)
Speed (RPM)
Current (ma)
S4Q08B360-L27
4
8
12
4
0.6
2.2~3.6
3
37,650
18.2
S4Q08B380-L27
4
8
12
4
0.6
2.2~3.6
3
39,050
31.6
S4Q08B230-L27
4
8
12
4
0.6
2.2~3.6
3
22,067
9.2
S4Z10A000-L27
4
10
13.8
3.8
0.7
1.1~1.6
1.3
20,760
23.8
S4Q10A210-L27
4
10
14.5
4.5
0.7
1.1~1.6
1.3
22,575
17.8
S4Q11B280-L27
4
11
15.2
4.2
0.7
2.2~3.6
3
28,330
14.3
S6Q10B180-L27
6
10
13.7
3.7
0.8
2.2~3.6
3
18,900
13.7
S7Q16B180-L27
7
16.5
20.4
3.9
1
2.2~3.6
3
18,360
16.5
S7Z16A000-L27
7
16.6
21.4
4.8
1
0.9~1.6
1.3
8,600
12.1


The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.


Mounting Configurations of DC Micro Motors




The S4Q08B230-L27 is part of our line of 4mm diameter DC micro-motors that use of precious metal brush contacts. It is the smallest size 4mm diamter we manufacture, and produces the least torque. With a stall torque of 0.20 g.cm and a typical no load speed of 22067 RPM, this motor is suited for such applications as micro-drones and locking mechanisms.

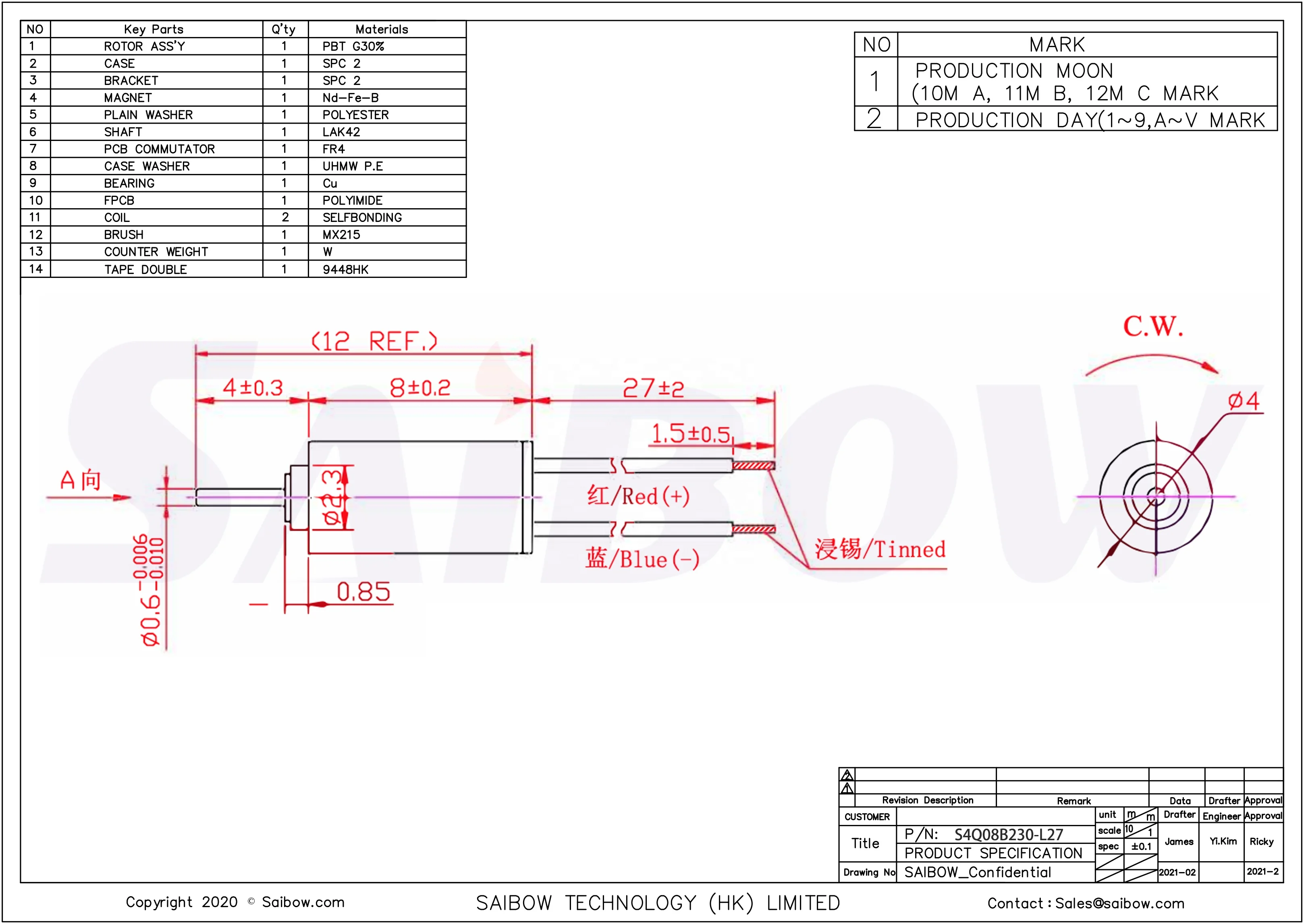

Product Drawing:




APPLICATIONS:

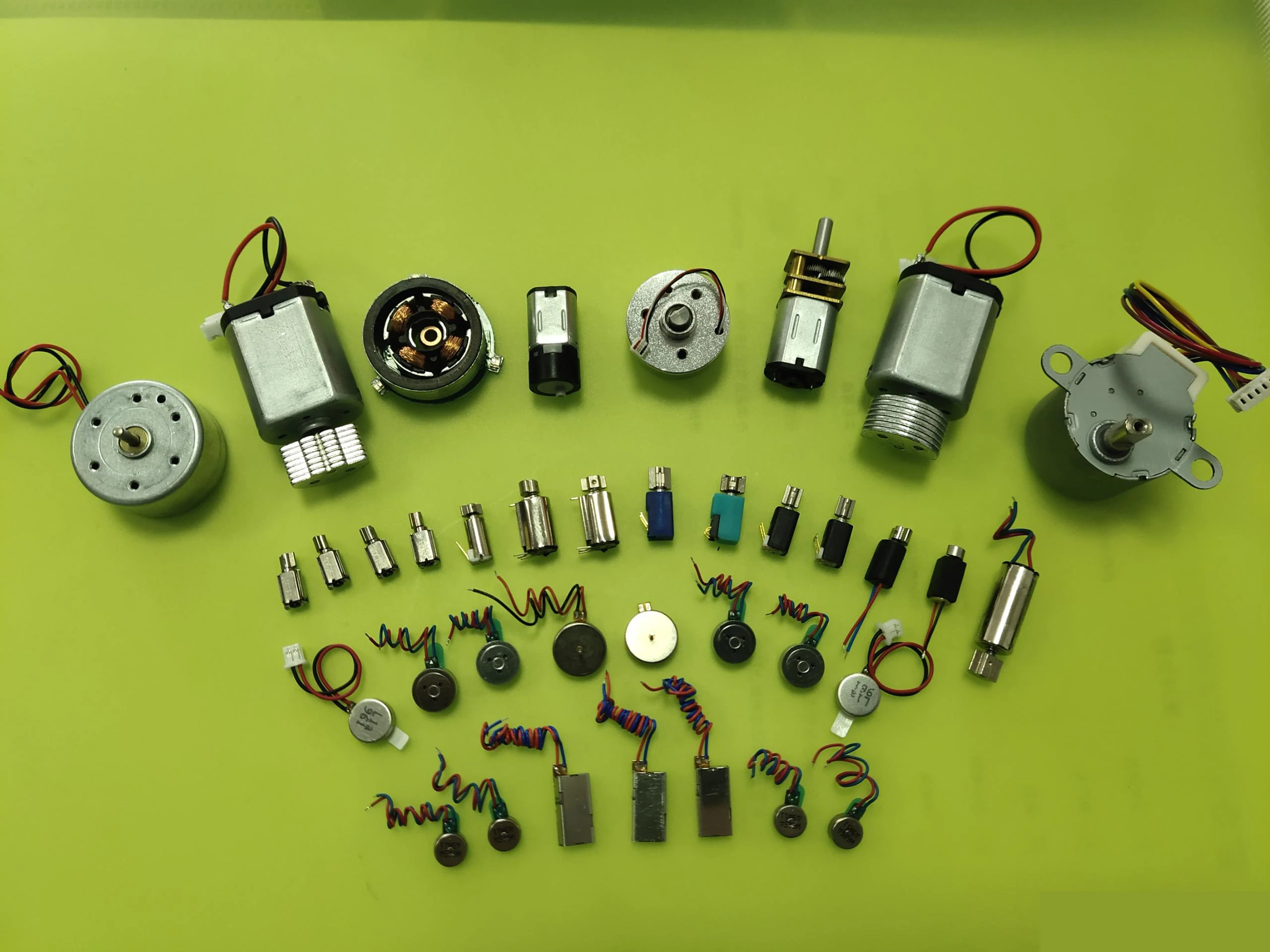

You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.




Company Profile




SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm-
unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).




SAIBOW With the management policy of
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.




Production Workshop




Certificate




Payment & Shipping




● Trade Assurance: The first order, we suggest you to use Trade Assurance.
● T/T: If stocks, 100% payment before shipping; if customized order, 30%  deposit deposit before production and balance 70% should be paid before delivery.
● Western Union, Money Gram, Paypal, all available.
● L/C: for large order.




● In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
● Large order: by air or sea, you could choose it.
● If you have your own forwarder, please tell us the detailed information.




MOTOR TRANSPORT
OCEAN SHIPPING
AIR TRANSPORT


FAQ:
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?
YES. Our company can provide the samples to you.

3. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.

4. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

5.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

6.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
