220 В Вибрационный двигатель для машины
US $22.00-$45.00
S4Q08B380-L27 маленький 4 мм Электрический без сердечника Вибрационный DC микро трубчатый двигатель с
- Категория: Вибрационный Мотор >>>
- Поставщик: Guangdong,Saibow,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.0 $* | 1.70 $* |
| Jul-18-2025 | 1.56 $* | 1.91 $* |
| Jun-18-2025 | 1.6 $* | 1.61 $* |
| May-18-2025 | 1.1 $* | 1.63 $* |
| Apr-18-2025 | 1.35 $* | 1.3 $* |
| Mar-18-2025 | 1.69 $* | 1.57 $* |
| Feb-18-2025 | 1.12 $* | 1.69 $* |
| Jan-18-2025 | 1.88 $* | 1.89 $* |
Характеристики
Product introduction
Product name:

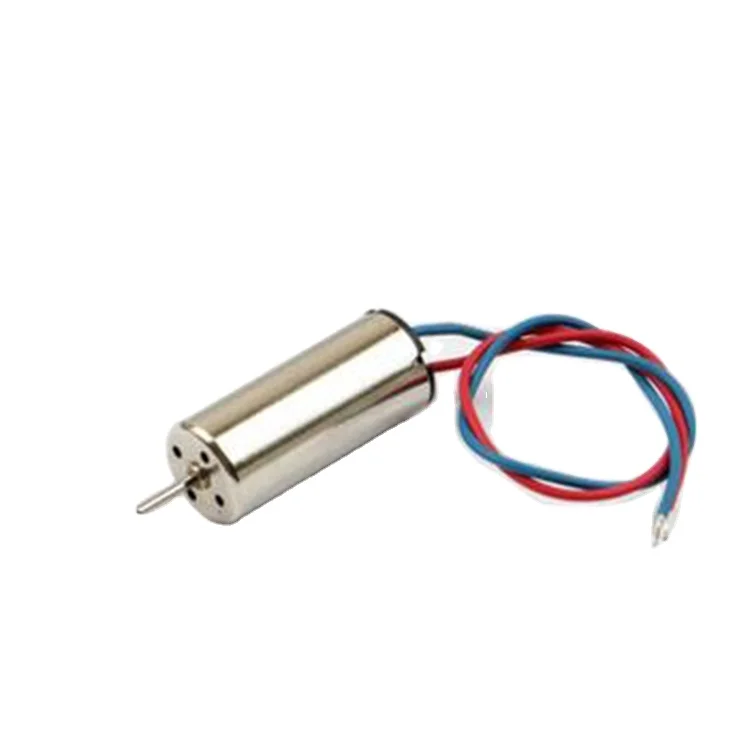

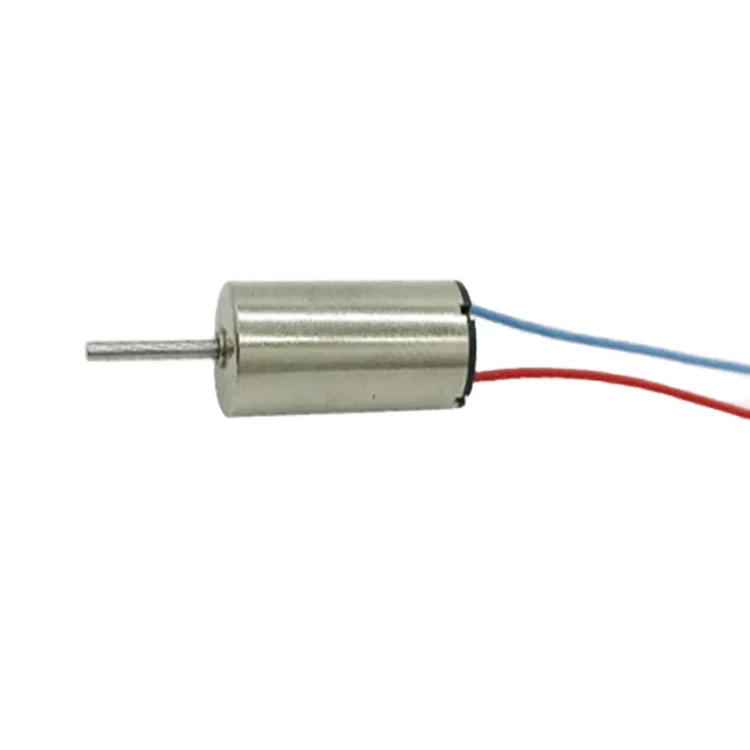

S4Q08B380-L27 Smallest 4mm Electric Coreless Vibrating DC Micro tubular Motor with Connectors
Products Description
Only nine models are shown below : S4Q08B360-L27; S4Q08B380-L27; S4Q08B230-L27; S4Z10A000-L27; S4Q10A210-L27; S4Q11B280-L27; S6Q10B180-L27; S7Q16B180-L27; S7Z16A000-L27. If you want to know other models, please send us an email.
SAIBOW P/N | Motor Size | Shaft | Voltage | No Load | ||||||||||
Dia (mm) | Body (mm) | Overall (mm) | Length (mm) | Dia. (mm) | Range (VDC) | Nominal (VDC) | Speed (RPM) | Current (ma) | ||||||
S4Q08B360-L27 | 4 | 8 | 12 | 4 | 0.6 | 2.2~3.6 | 3 | 37,650 | 18.2 | |||||
S4Q08B380-L27 | 4 | 8 | 12 | 4 | 0.6 | 2.2~3.6 | 3 | 39,050 | 31.6 | |||||
S4Q08B230-L27 | 4 | 8 | 12 | 4 | 0.6 | 2.2~3.6 | 3 | 22,067 | 9.2 | |||||
S4Z10A000-L27 | 4 | 10 | 13.8 | 3.8 | 0.7 | 1.1~1.6 | 1.3 | 20,760 | 23.8 | |||||
S4Q10A210-L27 | 4 | 10 | 14.5 | 4.5 | 0.7 | 1.1~1.6 | 1.3 | 22,575 | 17.8 | |||||
S4Q11B280-L27 | 4 | 11 | 15.2 | 4.2 | 0.7 | 2.2~3.6 | 3 | 28,330 | 14.3 | |||||
S6Q10B180-L27 | 6 | 10 | 13.7 | 3.7 | 0.8 | 2.2~3.6 | 3 | 18,900 | 13.7 | |||||
S7Q16B180-L27 | 7 | 16.5 | 20.4 | 3.9 | 1 | 2.2~3.6 | 3 | 18,360 | 16.5 | |||||
S7Z16A000-L27 | 7 | 16.6 | 21.4 | 4.8 | 1 | 0.9~1.6 | 1.3 | 8,600 | 12.1 | |||||
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
Mounting Configurations of DC Micro Motors
The S4Q08B380-L27 is a member of our line of 4mm diameter DC micro-motors that use of precious metal brush contacts. It is the smallest size 4mm diamter we manufacture, and produces the least torque. With a stall torque of 0.31 g.cm and a typical no load speed of 39050 RPM, this motor is suited for such applications as micro-drones and locking mechanisms.

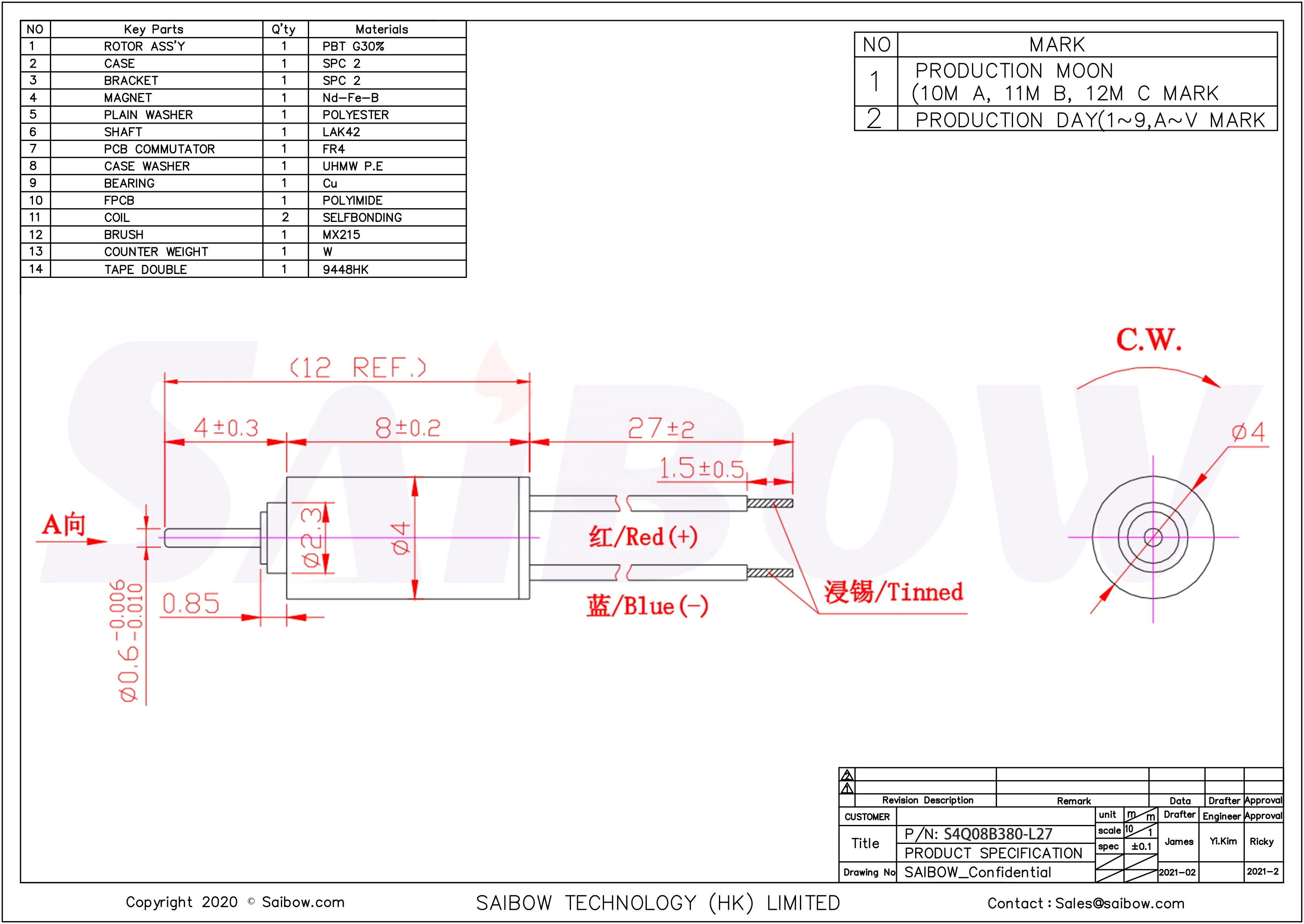

Product Drawing:
Application scenario
If you think our product is not suitable for you, you can click below to find the product you want:
DC Micro Motor
Coin Vibration Motors
Cylindrical Vibration Motors
BLDC&Linear(LRA) Vibration Motors
DC Micro Motor
Coin Vibration Motors
Cylindrical Vibration Motors
BLDC&Linear(LRA) Vibration Motors
