Характеристики

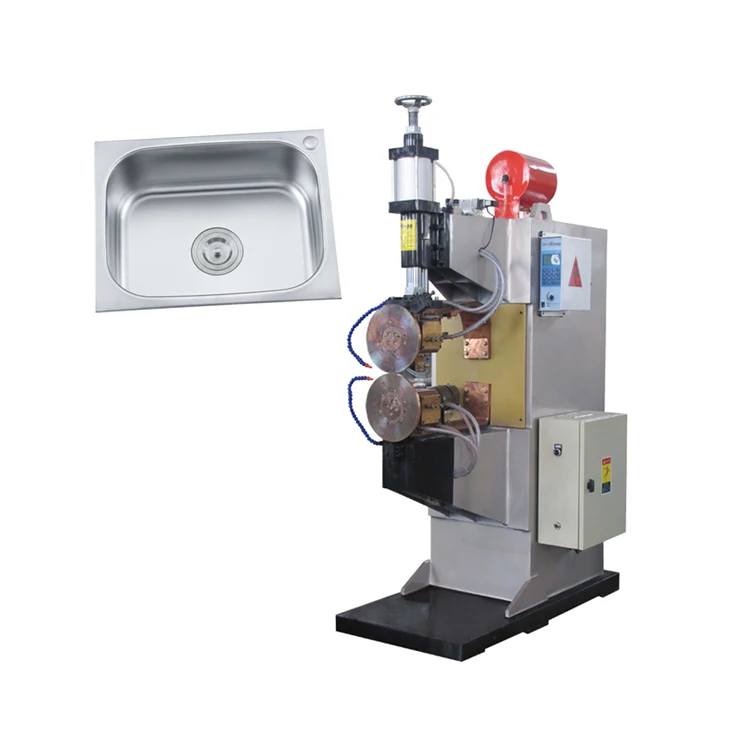

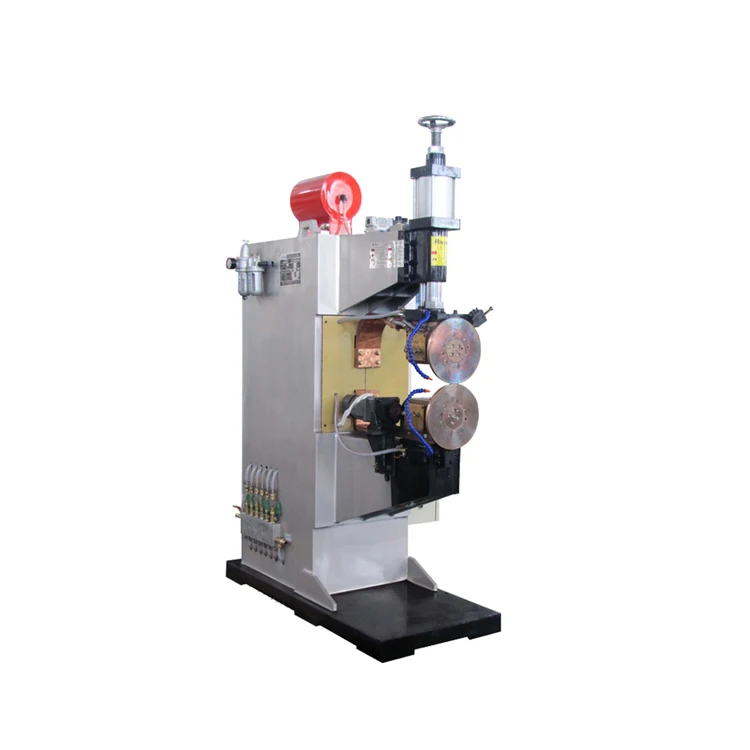

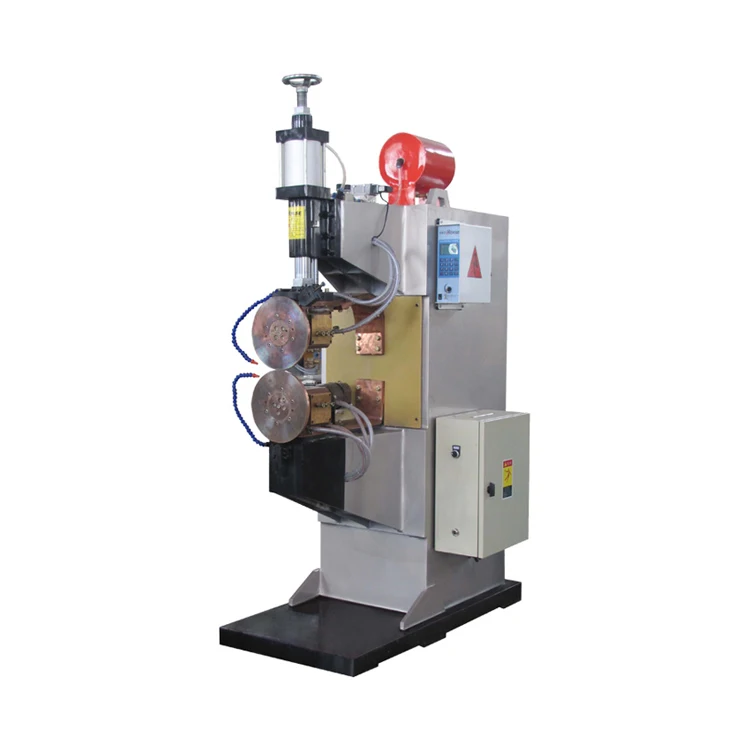

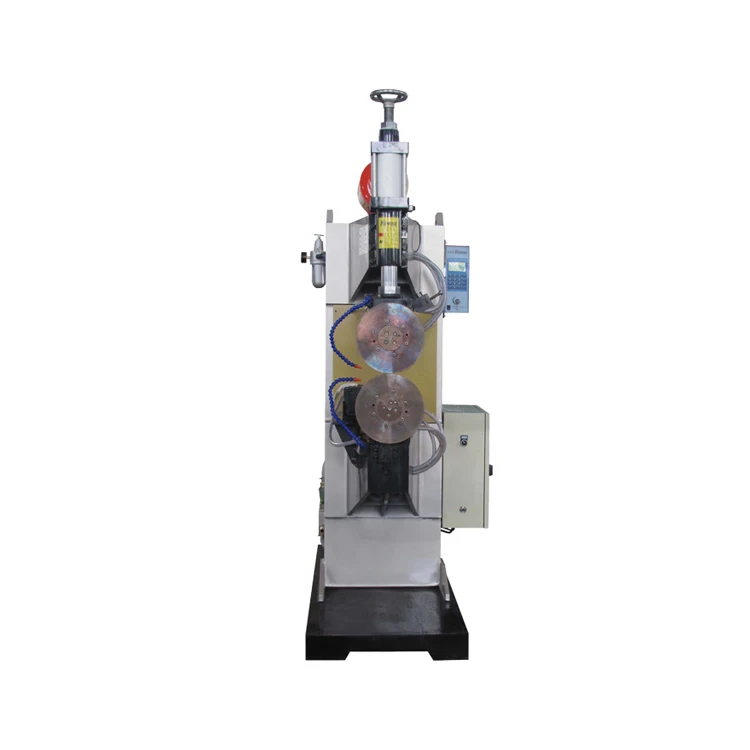

FN SERIES AC ROLLING SEAM WELDING MACHINE
Feature
- 3phase regulator controls the welding speed uniformly and without jerks.
- Longitudinal and horizontal welding make it possible for various jobs and working conditions.
- Robust structure capable to withstand heat and maintain welding performance.
- The rotation conductance or silver axis tile provides excellent contact and reduces electrical energy loss.
- Widely used in Household appliances,auto,and other metal working industries.
Item | Reled capacity | Rated Primary voltage | Rated frequency | Maximum short current | Electrode stroke | Welding speed | Electrode pressure | Motor power resource | Cooling water flow | Weight | |
KVA | V | Hz | A | mm | M/min | N | V | M/min | Kg | ||
FN-50 | 50 | 380 | 50/60 | 13000 | 80 | 0.6-2 | 4700 | 3-380V | 30 | 368 | |
FN-75 | 75 | 380 | 50/60 | 16000 | 80 | 0.6-2 | 6280 | 3-380V | 30 | 520 | |
FN-100 | 100 | 380 | 50/60 | 18000 | 80 | 0.6-2 | 6280 | 3-380V | 30 | 880 | |
FN-150 | 150 | 380 | 50/60 | 23000 | 100 | 0.6-2 | 12000 | 3-380V | 30 | - | |
FN-200 | 200 | 380 | 50/60 | 26000 | 100 | 0.6-2 | 12000 | 3-380V | 30 | - |
Appication
Widely used in Household appliances,auto,and other metal working industries.
