Характеристики
Order Note：
Our RTS order is for 22mm,12V Green Led color ,if you need other color , pls inform us by message,tks!
Momentary : Push--ON, release--the actuator surface spring to original position;
LED Color : Default Green(Or Red / Blue / Yellow / Black / White / Orange / Purple, pls inform us by message );
LED Voltage : Default 12V (or 3V / 6V/ 24V / , pls inform us by message );
LED Color : Default Green(Or Red / Blue / Yellow / Black / White / Orange / Purple, pls inform us by message );
LED Voltage : Default 12V (or 3V / 6V/ 24V / , pls inform us by message );
Product Display

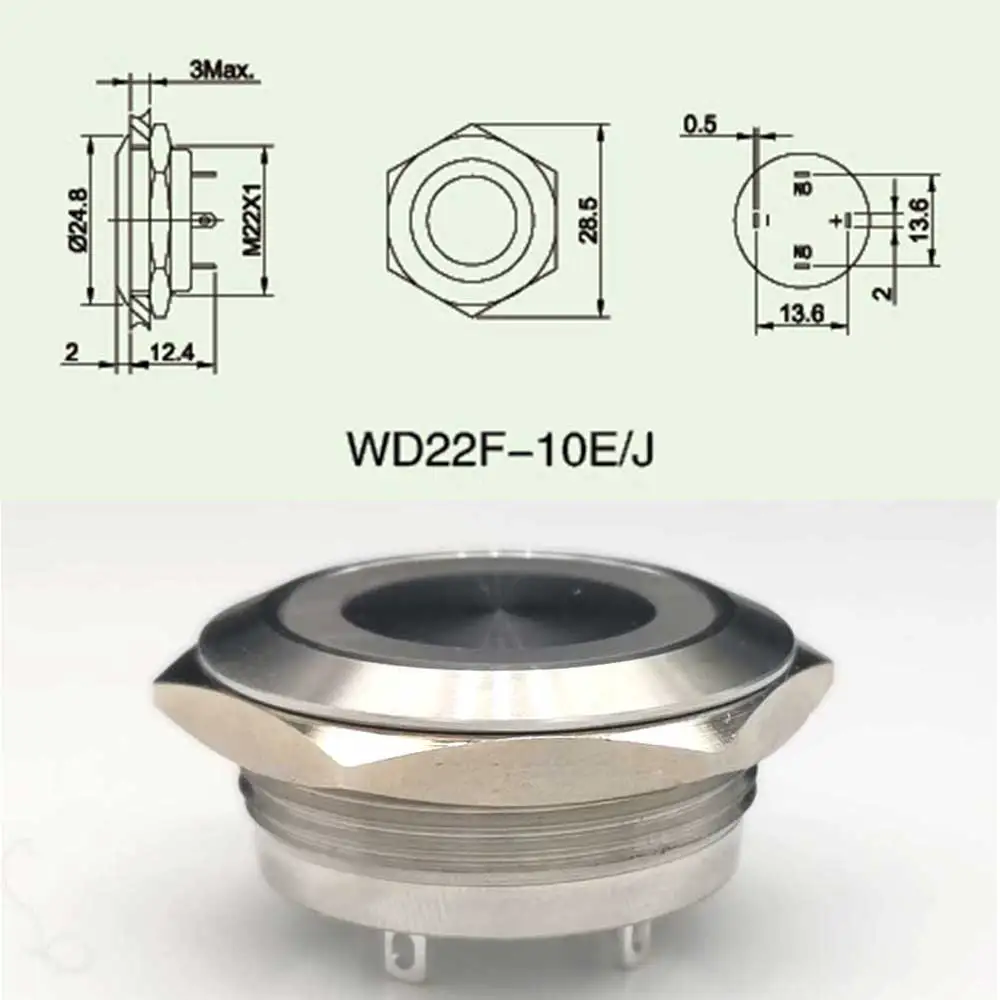

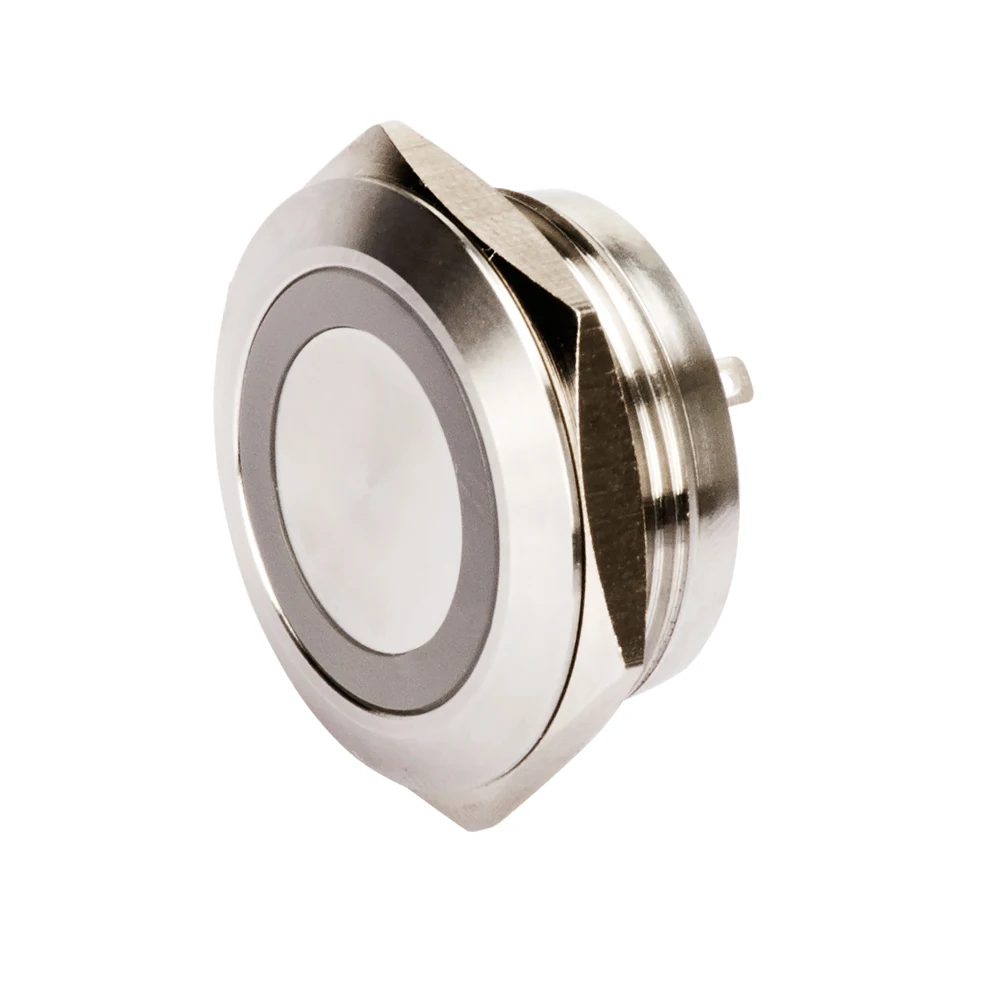

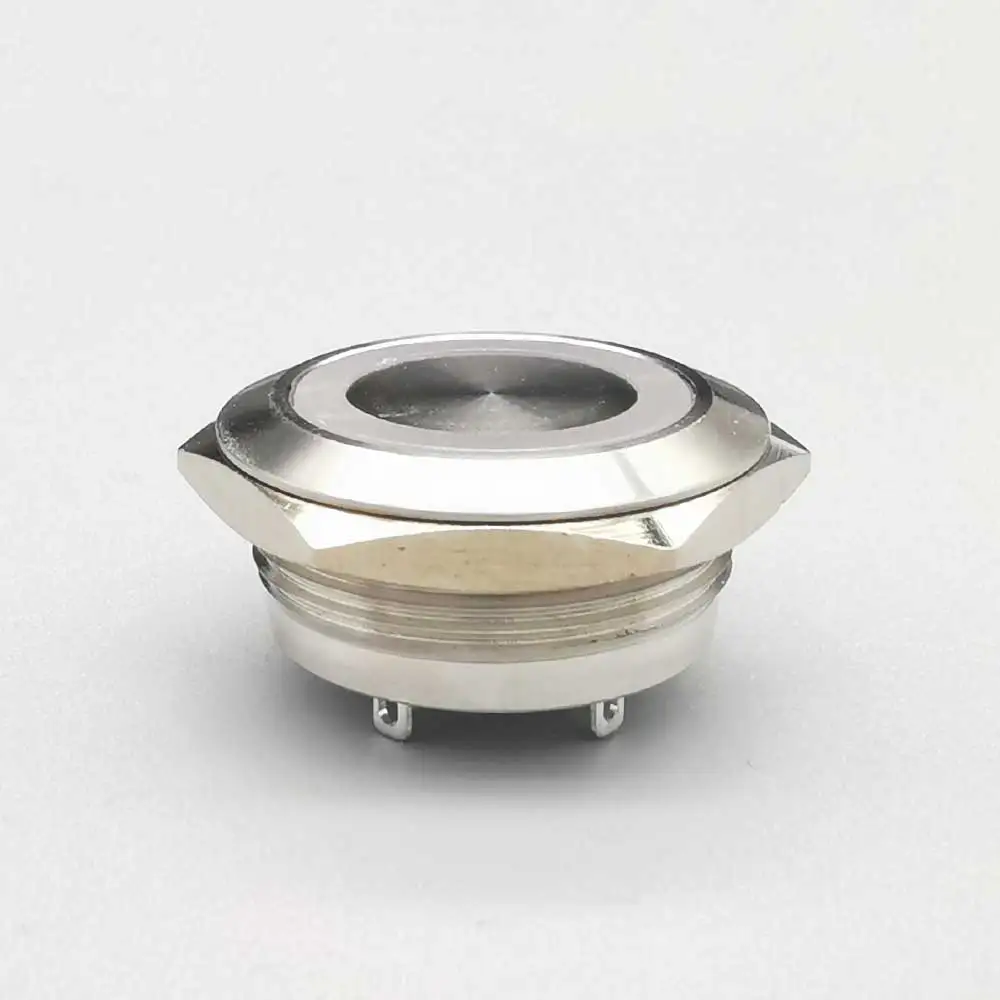

22mm Ultrathin Short body stainless steel flat round ring illuminated metal push button
★All our products have passed the CE, CCC, ROHS etc. certifications
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
Model Number | WD22F-10E/J/S |
Brand Name | YUESHUN |
Mounting Hole Size | 22mm |
Max Switch Rating | 500mA / 24V DC |
Contact Configuration | 1NO |
Operation Type | Momentary |
Head Shape | Flat Head |
Terminal Type | 4 Pin Terminal (2.0*0.5mm) |
LED Type | Ring LED Type |
LED Color | Default Green(Or Red / Blue / Yellow / Black / White / Orange / Purple available.) |
LED Voltage | Default 12V (or 3V / 6V/ 24V available.） |
Body Material | Stainless Steel |
Button Material | Stainless Steel |
Base Material | PBT |
Contact Material | Cross Spring Plate |
IP Degree | IP67 |
Contact Resistance | ≤ 50mΩ |
Insulation Resistance | ≥ 10000mΩ |
Dielectric Strength | 2000VAC |
Operation Temperature | -20℃～+55℃ |
Mechanica Life | More than 1000,000 cycles |
Electrical Life | More than 500,000 cycles |

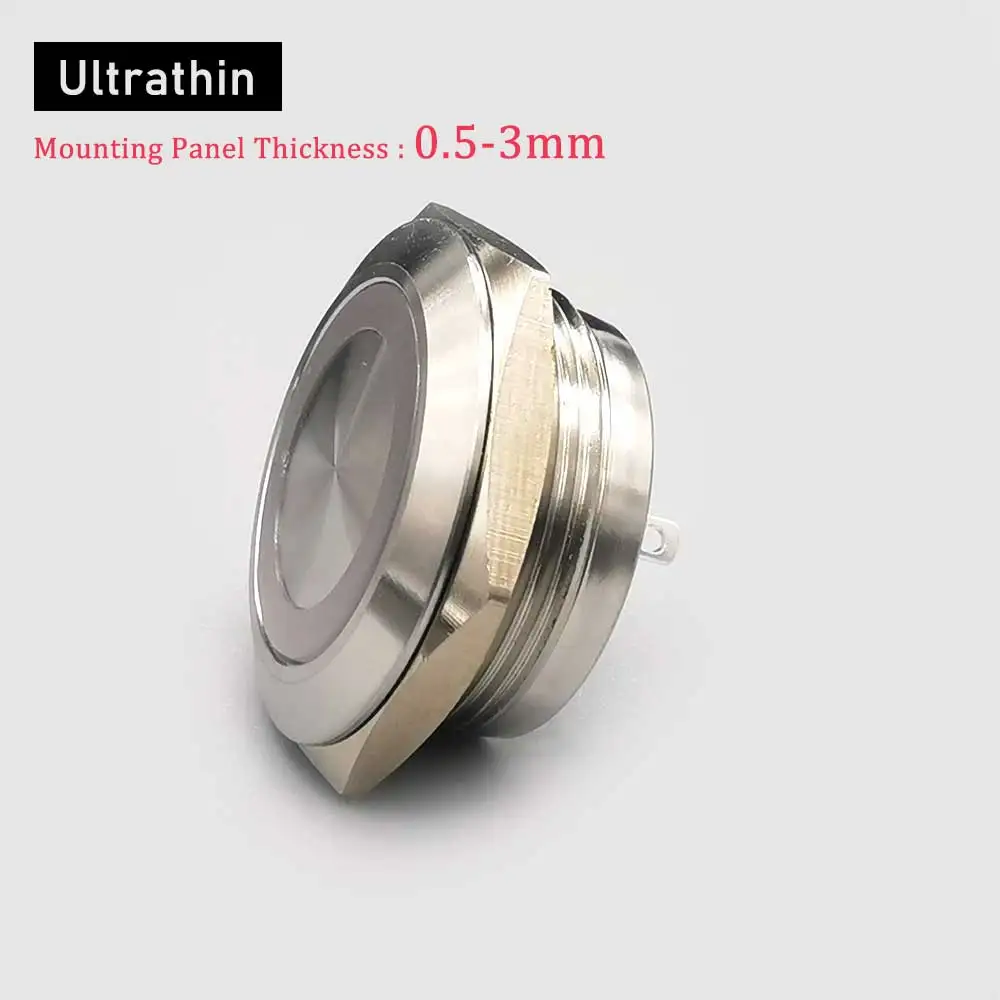

Panel Thickness | 0.5-3mm |
Torque | 5-14Nm |
Operating Pressure | About 3N |
Operating Distance | About 0.3mm |

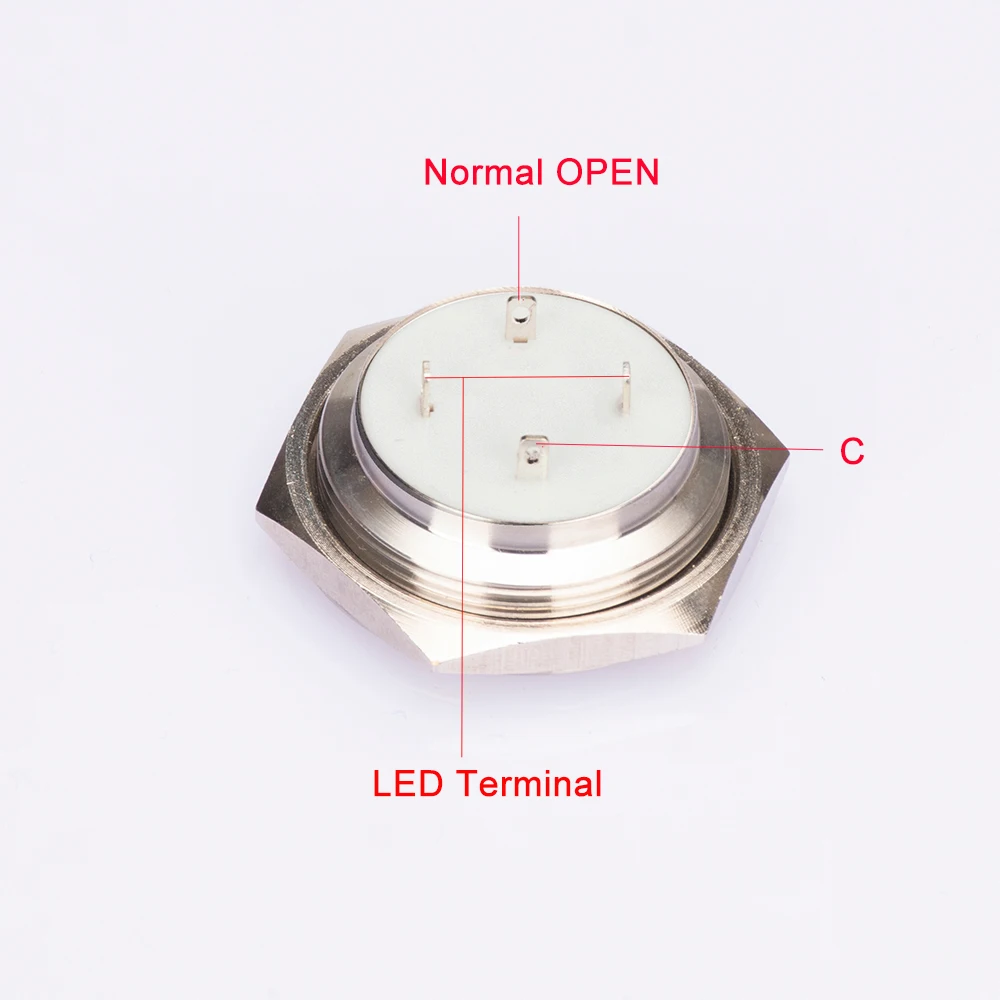

Wire Connection Reference
Company Profile
Yueqing YueShun Electric Co., Ltd
Established in 2005, we focus on manufacturing high quality metal push button switches for more than 15years. We are one of thefamous domestic manufacturer in this area, and we have many stable customers overseas too, with cooperation for more than 10years.
We have professional engineers, workers, sales and service team to supply you with variety push button switches which are either
industry and market focused, as well as excellent quality and professional service.
industry and market focused, as well as excellent quality and professional service.

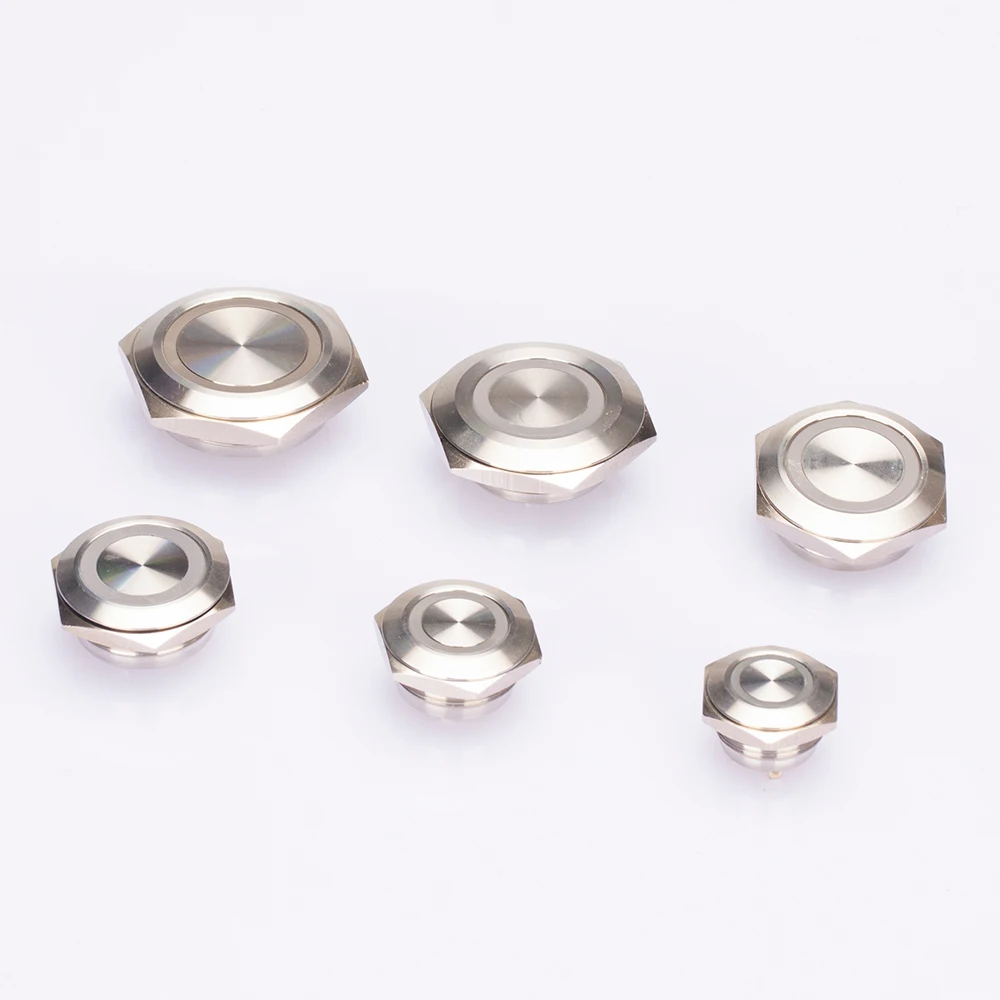

We enjoy a complete line of 8mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm 35mm 40mm push button switches and indicator.
