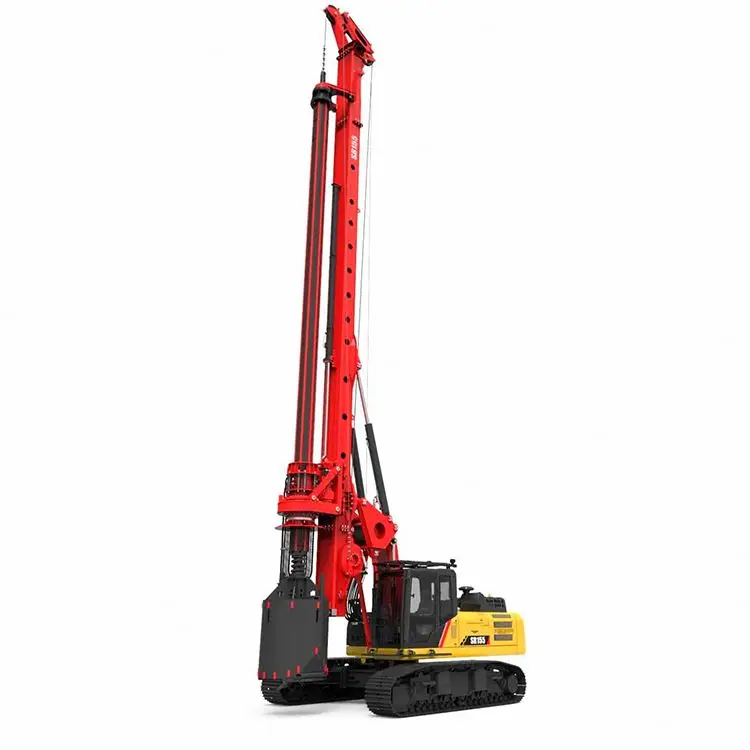

Новая роторная буровая установка SR155 на гусеничном ходу диаметром 1500
- Категория: Pile Driver >>>
- Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 267750.66 $* | 281138.14 $* |
| Aug-17-2025 | 265500.25 $* | 278775.45 $* |
| Jul-17-2025 | 222750.83 $* | 233888.54 $* |
| Jun-17-2025 | 261000.30 $* | 274050.16 $* |
| May-17-2025 | 227250.0 $* | 238613.44 $* |
| Apr-17-2025 | 256500.78 $* | 269325.15 $* |
| Mar-17-2025 | 254250.43 $* | 266963.86 $* |
| Feb-17-2025 | 252000.78 $* | 264600.35 $* |
| Jan-17-2025 | 249750.86 $* | 262238.7 $* |
Характеристики
Product Description
1.Product Feature:
1. High drilling capacity
2. Safe and reliable
3. safe and stable operation.
4. Easy to transport&operate
2.Product Parameters:
| Model | SR155 | |
| Pile | Max.pile diameter | 1500mm |
| Max.pile depth | 56/44m | |
| Rotary Drive | Max.output torque | 155kN.m |
| Speed of rotation | 5-35rpm | |
| Crowd System | Crowd force | 155kN |
| Line pull | 160kN | |
| Stroke | 4200mm | |
| Main Winch | Line pull | 160kN |
| Rope diameter | 26mm | |
| Max.line speed | 80m/min | |
| Auxiliary Winch | Line pull | 60kN |
| Rope diameter | 14mm | |
| Max.line speed | 75m/min | |
| Mast Inclination | Forward/Backward | 5/90° |
| Lateral | ±3° | |
| Main Chassis | Engine power | 147/2050 kw/rpm |
| Engine displacement | 6373L | |
| Chassis length | 5972mm | |
| Extended width | 4100mm | |
| Track shoe width | 700mm | |
| Swing radius | 3717mm | |
| Overall Machine | Overall height | 18592mm |
| Operating weight | 48t | |
| Transport width | 3140mm | |
| Transport height | 3262mm | |

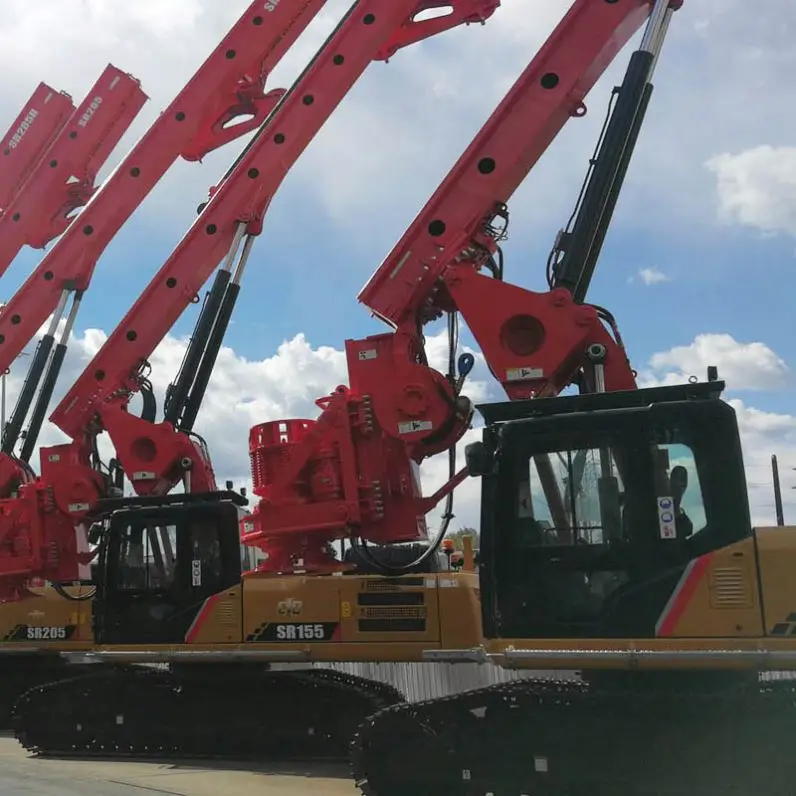

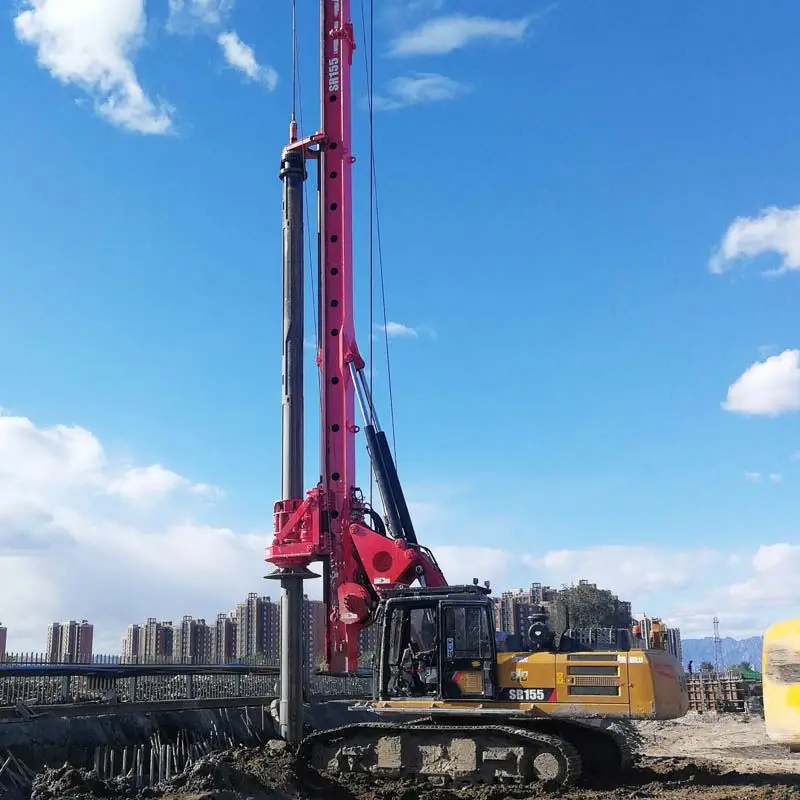

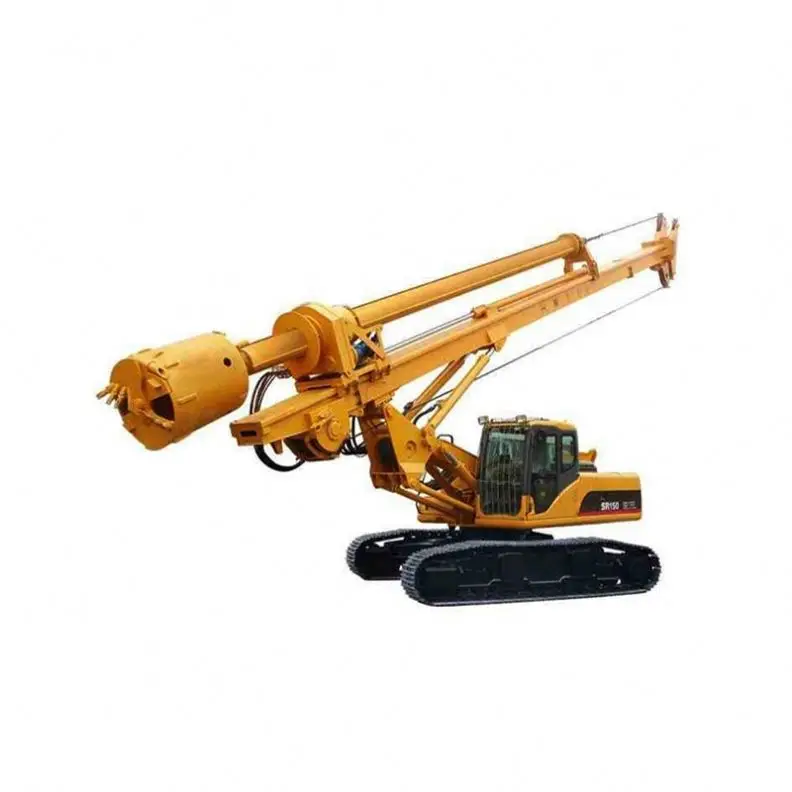

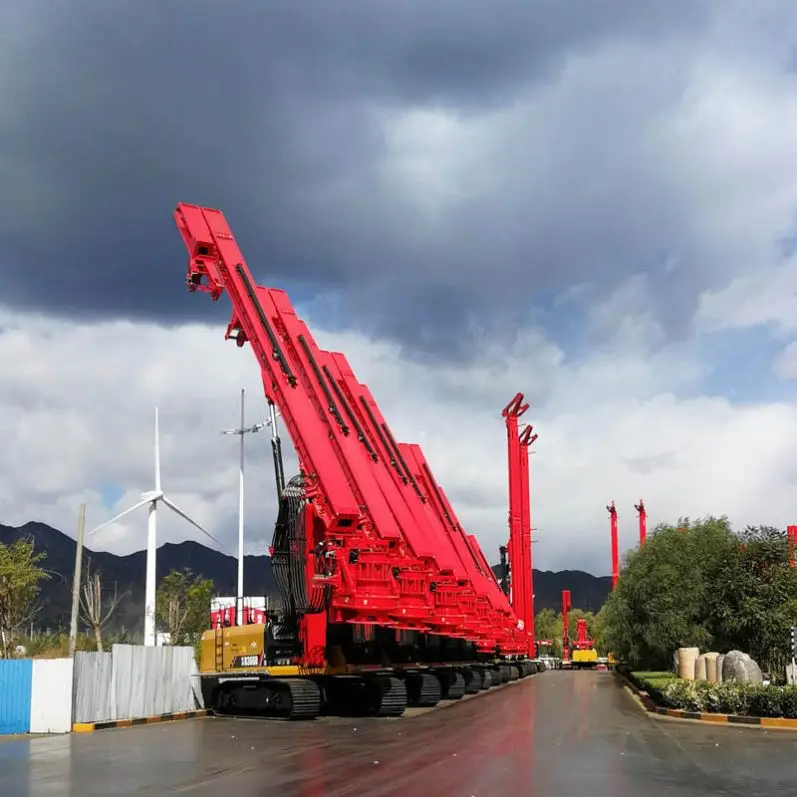

3.Clear Photo:
Packaging & Shipping
Company Information
Company Advantage:
1. Professionally export construction machinery and spare parts for more than 10 years to over a hundred countries.
2. Experienced in customs ance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.
