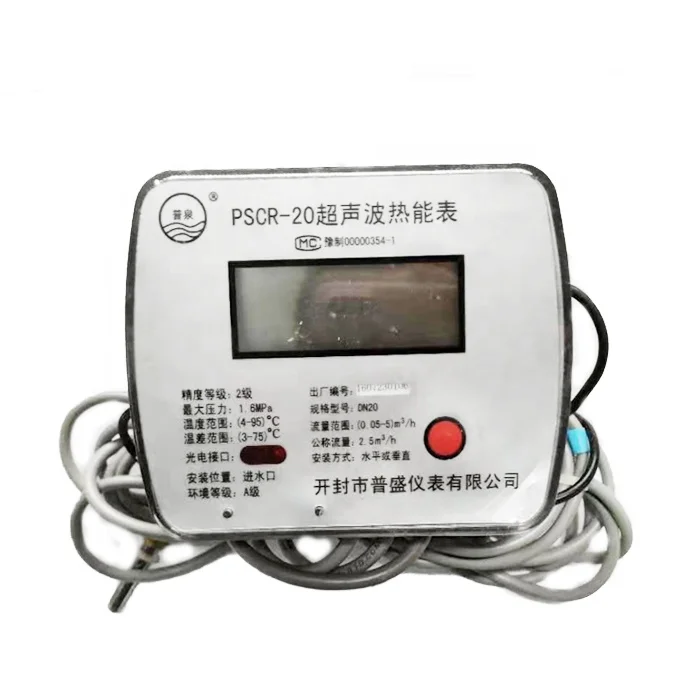

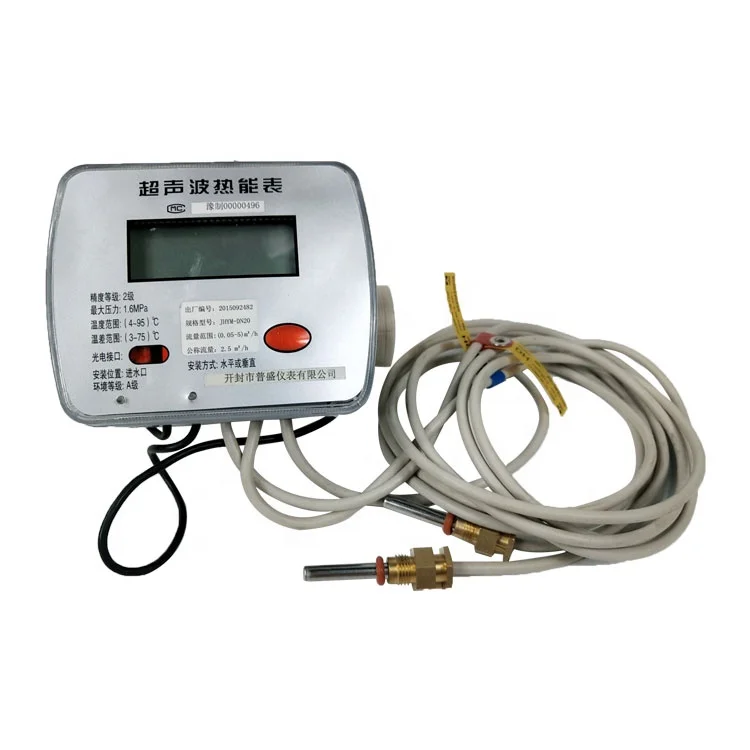

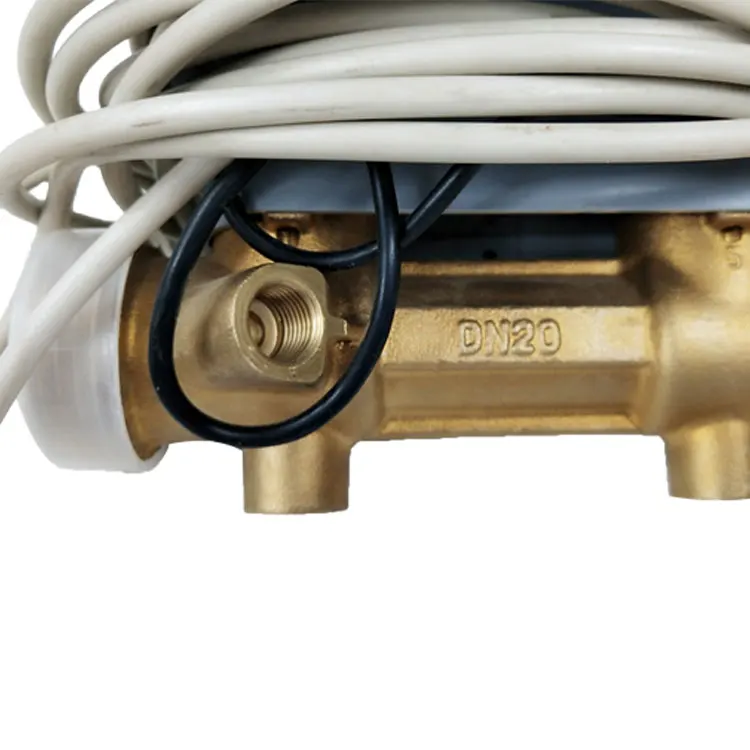

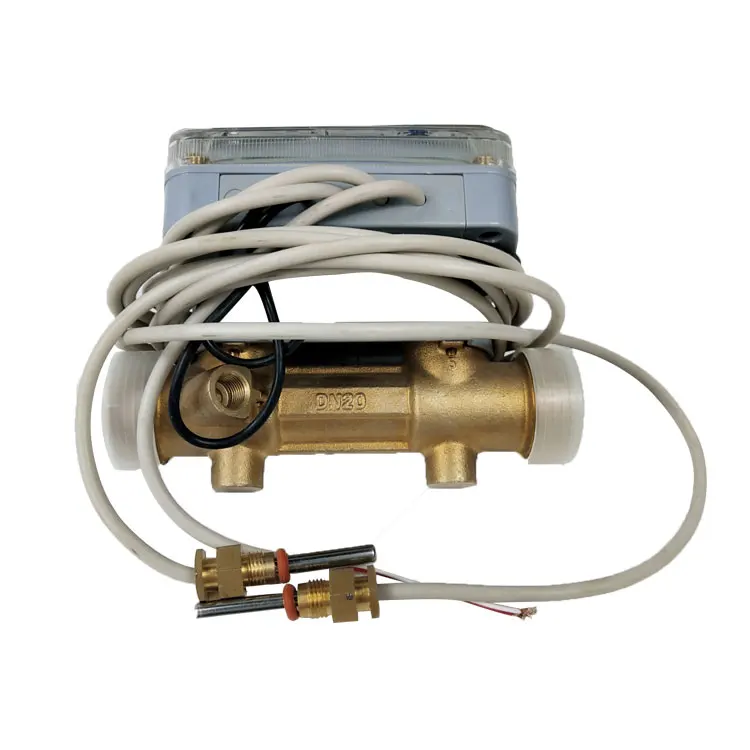

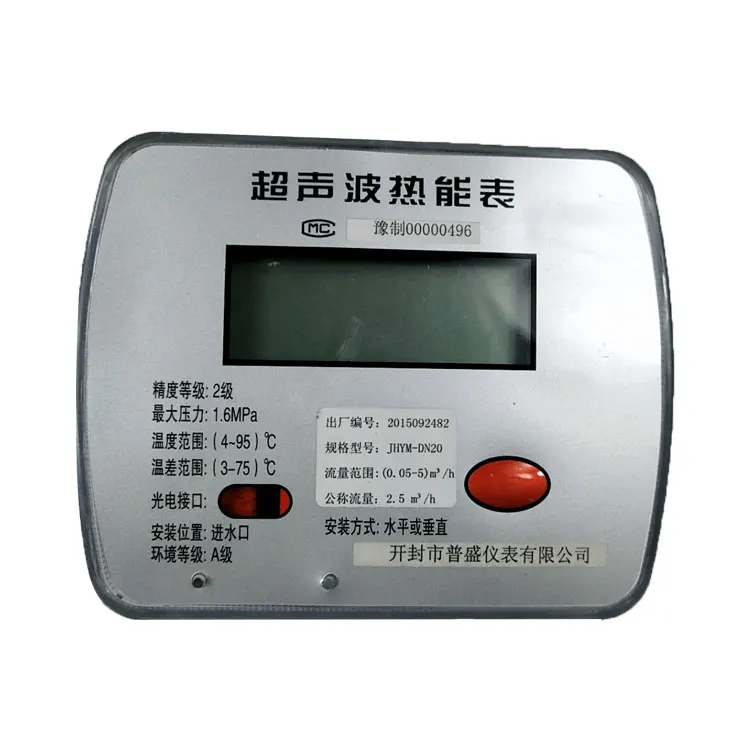

DN20 ультразвуковой измеритель тепловой энергии modbus 485 ip68 жидкий расходомер для
- Категория: Flow Meters >>>
- Поставщик: Kaifeng,Pusheng,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 32.89 $* | 33.42 $* |
| Jul-18-2025 | 26.83 $* | 27.68 $* |
| Jun-18-2025 | 31.57 $* | 32.86 $* |
| May-18-2025 | 31.75 $* | 32.27 $* |
| Apr-18-2025 | 25.19 $* | 26.47 $* |
| Mar-18-2025 | 31.67 $* | 32.87 $* |
| Feb-18-2025 | 30.22 $* | 31.54 $* |
| Jan-18-2025 | 30.37 $* | 31.81 $* |
Характеристики
Features
1. The flow sensor of this watch adopts a high-quality transducer with long service life and stable conditions, with high accuracy and stability. No mechanical movement, no abrasion, no requirements for water flow medium.
2. The MCU selects the MSP430 series ultra-low power microprocessor of the American TI company, with strong function, low power consumption, strong anti-electromagnetic interference ability, m-bus, rs485 bus output interface, photoelectric isolation pulse interface, infrared interface can realize remote management ,data collection.
3. With self-diagnosis, fault display and power-off data protection functions, when the ultrasonic heat meter accidentally fails, it displays the fault code and automatically saves the current data.
4. The use of environmentally friendly lithium batteries, battery life of more than 6 years (theoretical calculation is greater than 10 years).
One-piece or split structure, beautiful appearance. Both heating and cooling can be measured, and can be installed horizontally and vertically.
2. The MCU selects the MSP430 series ultra-low power microprocessor of the American TI company, with strong function, low power consumption, strong anti-electromagnetic interference ability, m-bus, rs485 bus output interface, photoelectric isolation pulse interface, infrared interface can realize remote management ,data collection.
3. With self-diagnosis, fault display and power-off data protection functions, when the ultrasonic heat meter accidentally fails, it displays the fault code and automatically saves the current data.
4. The use of environmentally friendly lithium batteries, battery life of more than 6 years (theoretical calculation is greater than 10 years).
One-piece or split structure, beautiful appearance. Both heating and cooling can be measured, and can be installed horizontally and vertically.
Overall dimensions | ||||||
Nominal diameter | Length(mm) | Width(mm) | Weight(kg) | |||
15 | 130 | 50 | 0.7 | |||
20 | 130 | 90 | 0.7 | |||
25 | 160 | 110 | 1.5 | |||
32 | 180 | 130 | 1.8 | |||
40 | 200 | 140 | 2.5 | |||
50 | 200 | 205 | 6 | |||
Technical parameters | ||||||
Nominal diameter | Overload traffic | Commonly traffic | Minimum traffic | |||
15 | 3m³/h | 1.5m³/h | 0.03m³/h | |||
20 | 5m³/h | 2.5m³/h | 0.05m³/h | |||
25 | 7m³/h | 3.5m³/h | 0.07m³/h | |||
32 | 12m³/h | 6m³/h | 0.12m³/h | |||
40 | 20m³/h | 10m³/h | 0.2m³/h | |||
50 | 30m³/h | 15m³/h | 0.6m³/h | |||
(1) The selection of the ultrasonic heat meter flowmeter specification should be based on the actual flow of the pipeline equal to or slightly less than the common flow rate of the ultrasonic heat meter, and the diameter of the ultrasonic heat meter should not be determined solely on the pipe diameter.
(2) The direction of the arrow on the case is the same as the direction of water flow during installation.

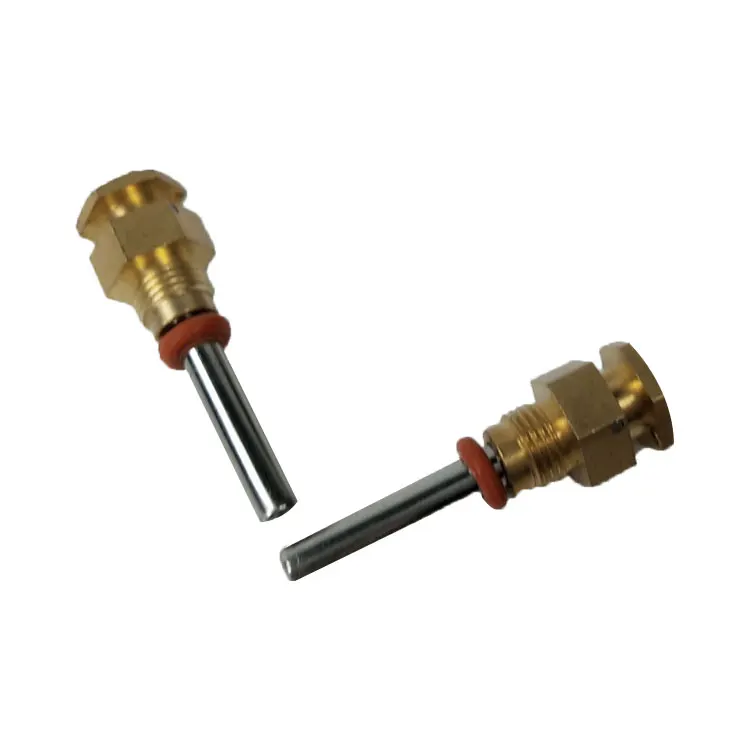

(3) The temperature sensor with a red label on the ultrasonic heat meter must be installed on the same pipe as the meter body.
(4) After installation, lead seals should be made between the body of the ultrasonic heat meter and the connecting nut, and between the temperature measuring ball valve and the temperature sensor.
(5) All components of the ultrasonic heat meter (flow meter components, temperature sensor components and calculator components) should be installed at locations that avoid exposure, flooding, freezing, chemical pollution, and facilitate disassembly and meter reading.
(6) Users can refer to the installation diagram.
(7) During the construction of the water supply system, a straight pipe section should be installed instead of the ultrasonic heat meter for pipeline cleaning or the system pipeline should be thoroughly cleaned before installation to remove the debris such as hemp, sand and gravel in the branch pipe to avoid causing flow meters Failure; when using it, you should remove the debris in the filter frequently (it is recommended to clean it twice every heating season) according to the water quality. It is recommended that 10DN should be left in front of the meter and 5DN should be left behind the meter (DN is the nominal diameter of the ultrasonic heat meter).
(2) The direction of the arrow on the case is the same as the direction of water flow during installation.
(3) The temperature sensor with a red label on the ultrasonic heat meter must be installed on the same pipe as the meter body.
(4) After installation, lead seals should be made between the body of the ultrasonic heat meter and the connecting nut, and between the temperature measuring ball valve and the temperature sensor.
(5) All components of the ultrasonic heat meter (flow meter components, temperature sensor components and calculator components) should be installed at locations that avoid exposure, flooding, freezing, chemical pollution, and facilitate disassembly and meter reading.
(6) Users can refer to the installation diagram.
(7) During the construction of the water supply system, a straight pipe section should be installed instead of the ultrasonic heat meter for pipeline cleaning or the system pipeline should be thoroughly cleaned before installation to remove the debris such as hemp, sand and gravel in the branch pipe to avoid causing flow meters Failure; when using it, you should remove the debris in the filter frequently (it is recommended to clean it twice every heating season) according to the water quality. It is recommended that 10DN should be left in front of the meter and 5DN should be left behind the meter (DN is the nominal diameter of the ultrasonic heat meter).
Our company is located in Yuwangtai District, Kaifeng City, an ancient capital of the Eight Dynasties. It is a professional company that produces and develops various types of water meter instruments. Products implement new national standards.
Mainly produce various types of photoelectric read-only remote transmission water meters, wireless remote transmission water meters, split-type radio frequency ic card water meters, ic card radio frequency, contact smart water meters and various types of ultrasonic waves of various calibers, mechanical heat meters and rotor-type cold and hot water meters Meters, liquid-sealed water meters, dry-type water meters, highly sensitive drip water meters, plug-in type, horizontal screw-wing type, etc. hundreds of meters, at the same time, all kinds of meters and smart device software and hardware development and general software, smart device APP , CMS application, CV field development.
Mainly produce various types of photoelectric read-only remote transmission water meters, wireless remote transmission water meters, split-type radio frequency ic card water meters, ic card radio frequency, contact smart water meters and various types of ultrasonic waves of various calibers, mechanical heat meters and rotor-type cold and hot water meters Meters, liquid-sealed water meters, dry-type water meters, highly sensitive drip water meters, plug-in type, horizontal screw-wing type, etc. hundreds of meters, at the same time, all kinds of meters and smart device software and hardware development and general software, smart device APP , CMS application, CV field development.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
Packing :
packing in bulk in container or in steel frame in container or as customized .
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
Packing :
packing in bulk in container or in steel frame in container or as customized .
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
