Характеристики
Product Description
CubeCell GPS-6502 |
2020 NEW Heltec HTCC-AB02S Dev-Board |
Integrated AIR530 GPS module |
Perfect Arduino-Compatible |
Based on ASR6052 |
support LoRaWAN 1.0.2 |
50uA in deep sleep |
Onboard solar energy management system |
Micro USB interface with complete ESD protection |
Onboard 0.96-inch 128*64 dot matrix OLED display |
CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.
CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels.
HTCC-AB02S is a Dev-Board. Already integrated AIR530 GPS module, friendly designed for developers, easy to verify communication solutions.
Product Parameters
Source | Parameter | ||
MCU | ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM ) | ||
LoRa Chip | ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262) | ||
LoRa working band | EU_433, CN_470_510, EU_863_870, US_902_928 | ||
LoRa maximum output power | 22 ± 1dB | ||
Hardware resources | UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1 | ||
12 – bits ADC; 8 – channel DMA engine | |||
14 x GPIO | |||
FLASH | 128KB internal FLASH | ||
Interface | Micro USB x 1; LoRa (IPEX) x 1 | ||
Size | 55.9 x 27.9 x 9.5 mm | ||
USB-UART bridge | CP2102 | ||
Battery Type | 3.7V Lithium (SH1.25 x 2 socket) | ||
Battery detection circuit | √ | ||
External device power control（Vext） | √ | ||
Low power design | Deep Sleep 50uA | ||
Electrical Characteristics
Electrical characteristics | condition | Minimum | Typical | Maximum |
Power Supply | USB powered (≥500mA) | 4.7V | 5V | 6V |
Lithium powered（≥250mA） | 3.3V | 3.7V | 4.2V | |
3.3V（pin）powered（≥150mA） | 2.7V | 3.3V | 3.5V | |
5V（pin）powered（≥500mA） | 4.7V | 5V | 6V | |
Power consumption(mA) | LoRa Rx Mode | 10mA | ||
LoRa 10dBm output | 70mA | |||
LoRa 14dBm output | 90mA | |||
LoRa 17dBm output | 100mA | |||
LoRa 20dBm output | 105mA | |||
Sleep Mode (USB powered) | 9.6mA | |||
Sleep Mode (VBAT/battery powered) | 56uA | |||
Sleep Mode (3.3V header powered) | 50uA | |||
Output | 3.3V pin output | 500mA | ||
5V pin output （USB powered only） | Equal to the input current | |||
External device power control (Vext 3.3V） | 350mA |
》Perfect Arduino-Compatible! | ||||||||
》CE and FCC certification; | ||||||||
》Based on ASR6052, those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262; | ||||||||
》LoRaWAN 1.0.2 support; | ||||||||
》Ultra low power design, 50uA in deep sleep; | ||||||||
》Onboard solar energy management system, can directly connect with a 5.5~7V solar panel; | ||||||||

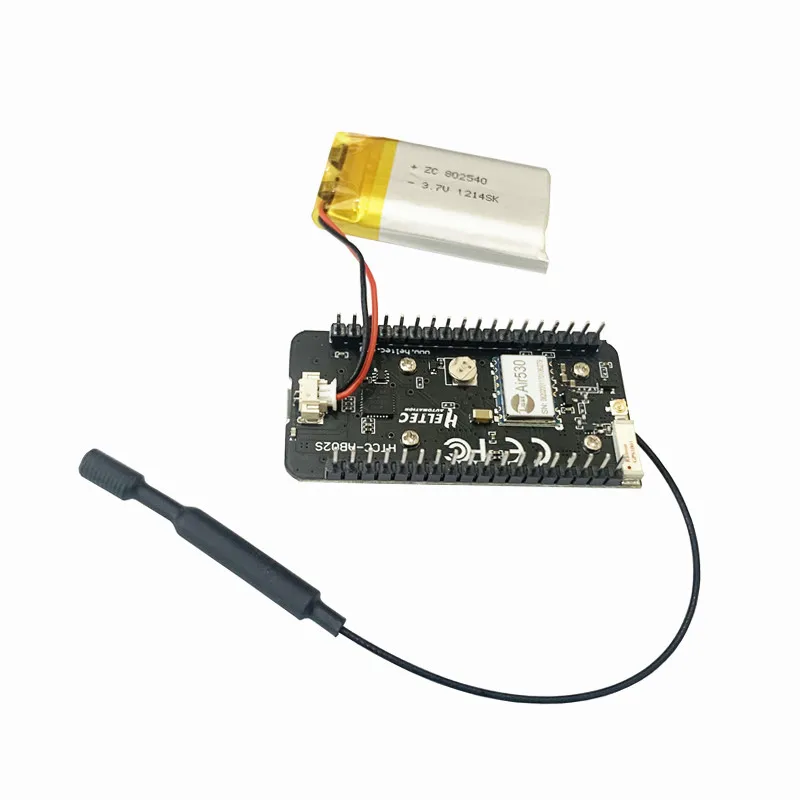

》Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching); | ||||||||
》Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures; | ||||||||
》Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing; | ||||||||
》Good impendence matching and long communication distance. | ||||||||
》Use Air530 GPS module, GPS / Beidou Dual-mode position system support; | ||||||||

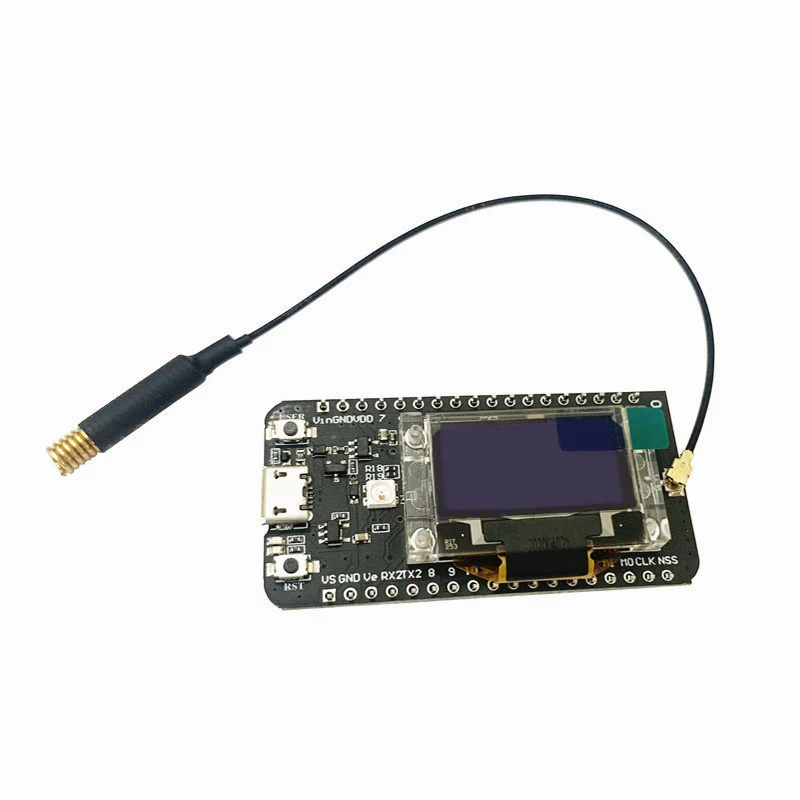

》Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information; | ||||||||

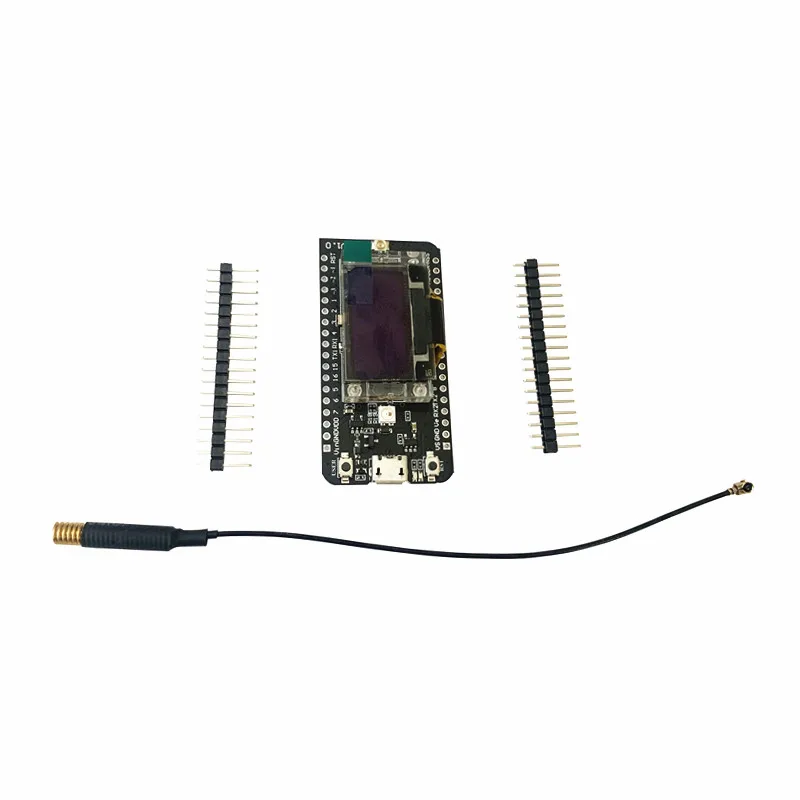

Package:
