Муфта адаптера из хромистой стали H213 для метрических валов 65 мм OEM под заказ производство
- Категория: Комплектующие для подшипника >>>
- Поставщик: Shandong,Gert,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.10 $* | 0.99 $* |
| Aug-19-2025 | 0.71 $* | 0.8 $* |
| Jul-19-2025 | 0.64 $* | 0.66 $* |
| Jun-19-2025 | 0.97 $* | 0.76 $* |
| May-19-2025 | 0.22 $* | 0.31 $* |
| Apr-19-2025 | 0.41 $* | 0.77 $* |
| Mar-19-2025 | 0.91 $* | 0.50 $* |
| Feb-19-2025 | 0.16 $* | 0.50 $* |
| Jan-19-2025 | 0.94 $* | 0.62 $* |
Характеристики
Specification
Product Type | Adapter Sleeve |
Model NO. | H213 |
Brand | OEM |
Material | chrome steel |
d | 65 mm |
d1 | 60 mm |
d3 | 85 mm |
B1 | 40 mm |
B | 12 mm |
G | M 65X2 |
About Adapter Sleeve H213:
Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on :
• plain shafts
• stepped shafts
They are easy to install and require no additional location on the shaft:
• When used on plain shafts, the bearing can be located at any position on the shaft
• When used on stepped shafts together with an L-shaped spacer ring, the bearing can be accurately positioned axially, thereby facilitating bearing mounting and dismounting.
• plain shafts
• stepped shafts
They are easy to install and require no additional location on the shaft:
• When used on plain shafts, the bearing can be located at any position on the shaft
• When used on stepped shafts together with an L-shaped spacer ring, the bearing can be accurately positioned axially, thereby facilitating bearing mounting and dismounting.
Ranges and features of Adapter Sleeve H213:
• Standard metric assortment includes dimension series, H2, H3, H23, H30 and H31.
• Dimension series H32 is available on request
• Standard imperial assortment includes dimension series, HE2 and HE23
• All adapter sleeves are supplied complete with lock nut and lock washer
Adapter sleeves H213 are the most commonly used components for locating bearings with a tapered bore into a cylindrical shafts seating.They are easily to mount, and require no additional location on the shafts. Adapter sleeves H213 are produced from high-quality steel, have a very precise form, and an excellent price/performance factors ratio. Adapter sleeves H213 are made as complete product, with lock nut and locking washer. supplies metric adapter sleeves, series designations H.The dimensions are in accordance with ISO 2982-1:1995. Adapter sleeves H213 consist of three elements: the actual sleeve, toothed washer MB. (for large sleeves lock washer of MS-type) and lock nut of KM or HM-type. The adapter number denotes the complete assembly of adapter sleeve, locknut and lockwasher. As the name implies, adapter sleeves adapt themselves to the shaft diameter, so that wider diameter tolerances can be permitted than for the seat of a bearing with a cylindrical bore. However, the form tolerances must be kept within narrow limits as the accuracy of form directly affects the running accuracy of the bearing.
The using of Adapter sleeves H213:
Adapter sleeves H213 are always supplied with a locknut and locking device. They can be ordered in metric or imperial dimensions, or to a customised design. A hydraulic process also enables easy installation and removal. With this design, the adapter sleeves and withdrawal sleeves have oil grooves and oil ducts. As adapter sleeves are used as bearing accessories, their product codes are based on the system for coding bearings. The product codes for adapter sleeves with metric dimensions start with H, even if the bore is given in imperial dimensions.

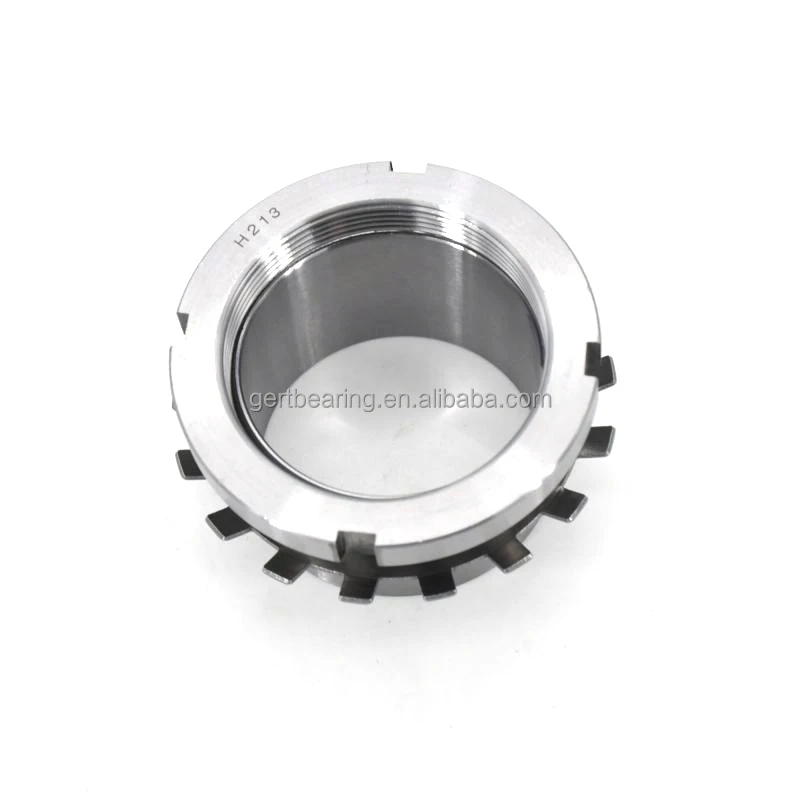

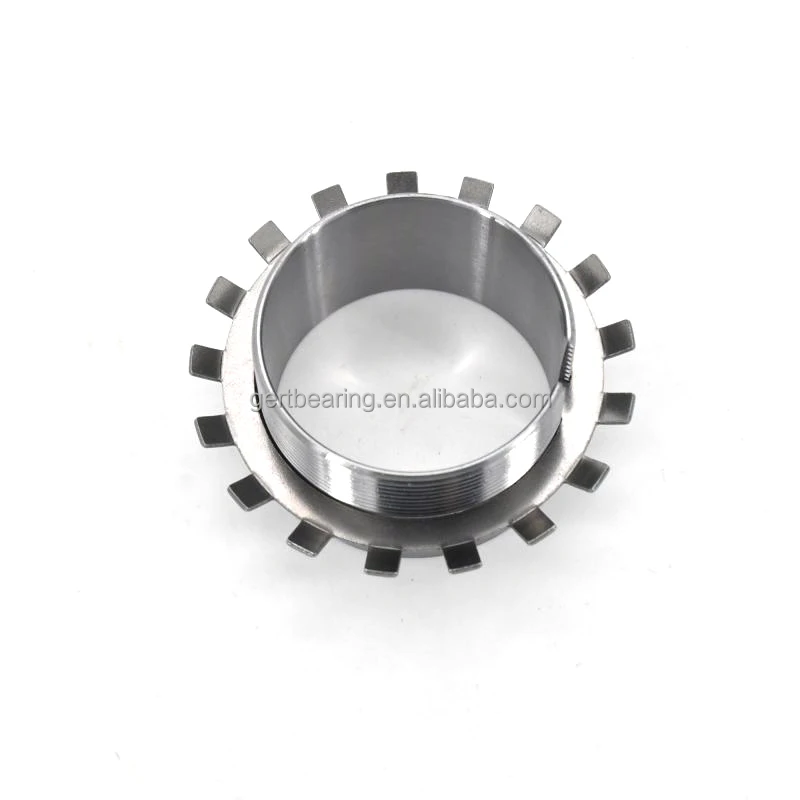

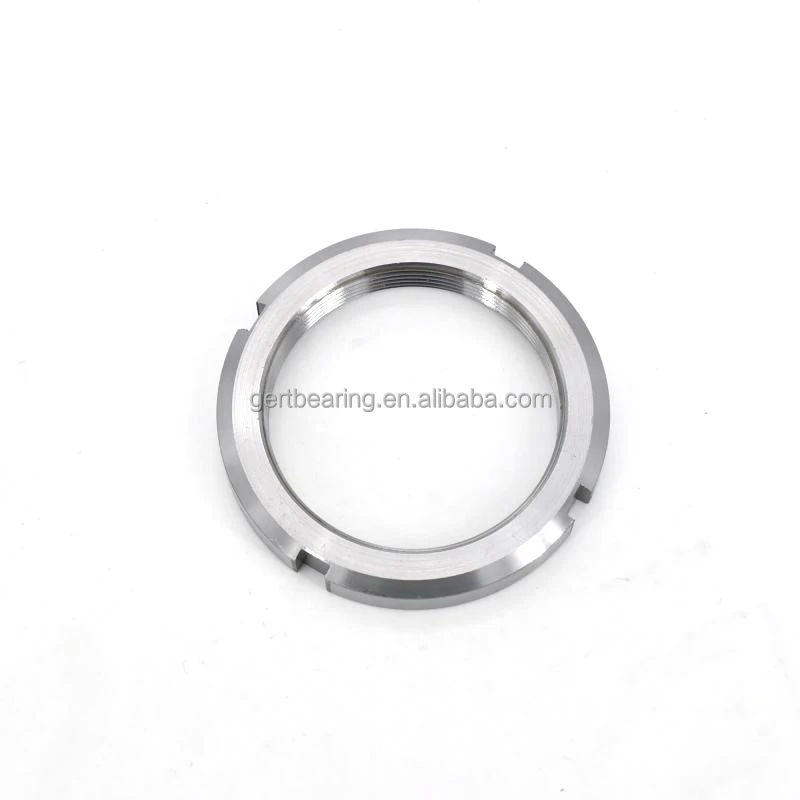

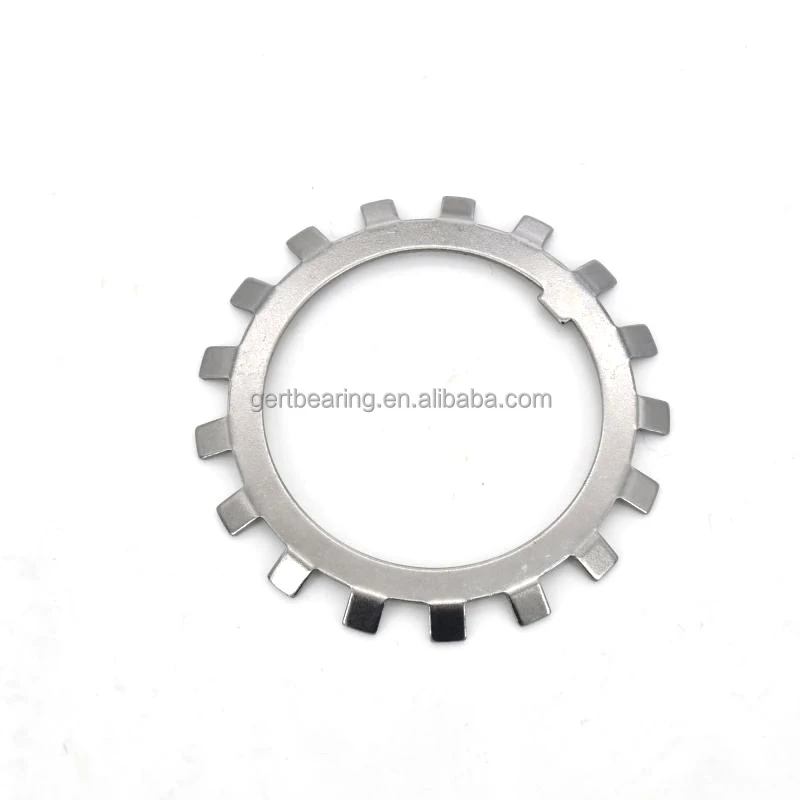

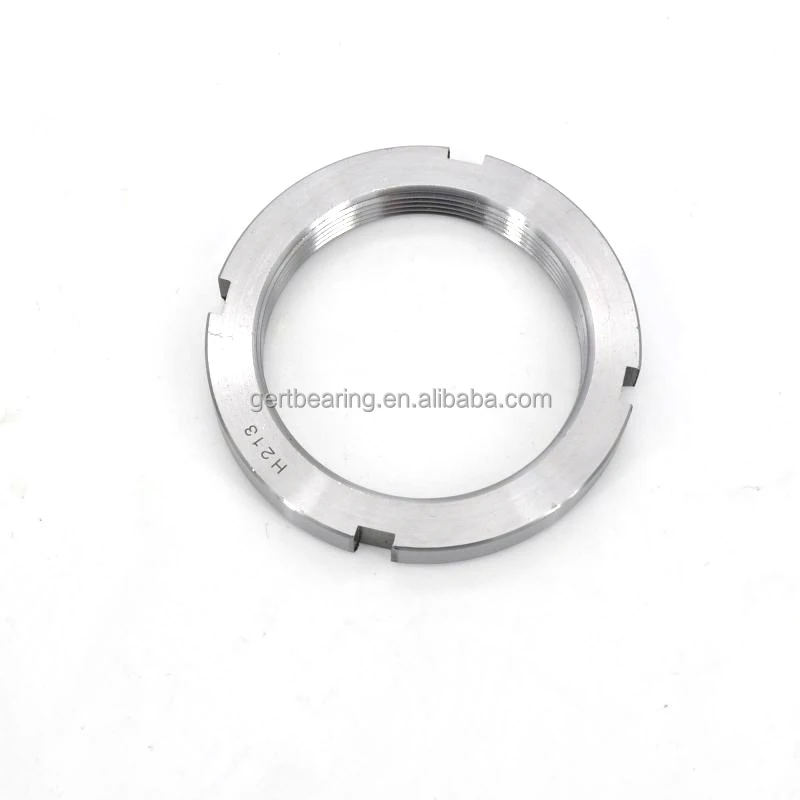

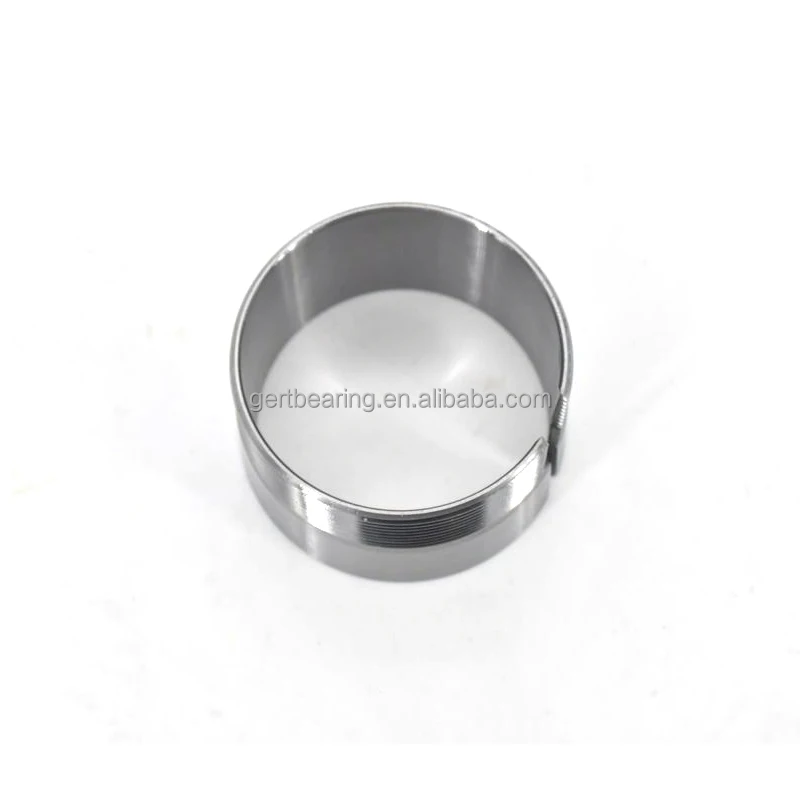

Bearing Pictures
Packing & Delivery
The Package of Adapter sleeves H213:
1. Usually, Adapter sleeves H213 has its individual box.
2. Put Adapter sleeves H213 into carton boxes
3. Put woven bags on the carton boxes
4. Package all the boxes into one wooden box
5. Package wooden boxes into one pallet
We guarantee that our customers will receive clean, new and no damaged products.
1. Usually, Adapter sleeves H213 has its individual box.
2. Put Adapter sleeves H213 into carton boxes
3. Put woven bags on the carton boxes
4. Package all the boxes into one wooden box
5. Package wooden boxes into one pallet
We guarantee that our customers will receive clean, new and no damaged products.
The Adapter sleeves H213 can be sent to customers in many ways:
1. For small quantity, we can send to you by express, DHL/ FedEx/EMS/ UPS/ ARAMEX. All these express are door to door. The freight charge is higher than other ways.
2. For bigger quantity, we can send to you by airport. This way is fast and cheaper than express. But the customer should pick up bearings at airport.
3. For large quantity, we can send to you by sea. This way is the cheapest one, but also spends the longest time.
1. Usually, the payment terms is 100% T/T in advance.
2. For big amount, we accept 50% in advance, the balance before shipment.
3. We can make order on alibaba.
4. We also accept Paypal. western union and others.
Company Profile
GERT company is specialized in exporting various bearings. With nearly 20 years experience, we can easily tell you which bearing is good quality and which bearing is suitable for you. QUALITY FIRST is our company's rule. Customer Super is our company's belief. Whatever questions or problem about bearings, you can contact with us. What we offered are not only bearings, but reputation. We sincerely hope can have a long term business with you, and to be your partner and friend. Ball Bearings, roller bearings, auto bearings, wheel hub bearings and pillow blocks are available. At the same time, we agent International brands. If you have any interest, please send inquiry to us. We will reply you soon.
