Машина для прокатки листового металла
US $10000
Машина для кровельного листа машина формования гофрированной металлической плитки Высококачественная формовки оцинкованной кровли цветной стали рулонная 15
- Категория: Tile Making Machinery >>>
- Поставщик: Cangzhou,Huanuo,Cold,Bending,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.90 $* | 0.4 $* |
| Aug-19-2025 | 0.91 $* | 0.31 $* |
| Jul-19-2025 | 0.7 $* | 0.54 $* |
| Jun-19-2025 | 0.27 $* | 0.45 $* |
| May-19-2025 | 0.92 $* | 0.67 $* |
| Apr-19-2025 | 0.84 $* | 0.18 $* |
| Mar-19-2025 | 0.94 $* | 0.62 $* |
| Feb-19-2025 | 0.64 $* | 0.1 $* |
| Jan-19-2025 | 0.40 $* | 0.3 $* |
Характеристики

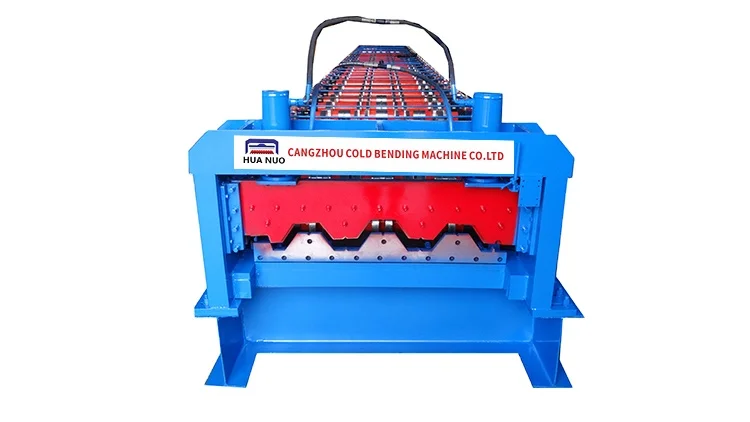

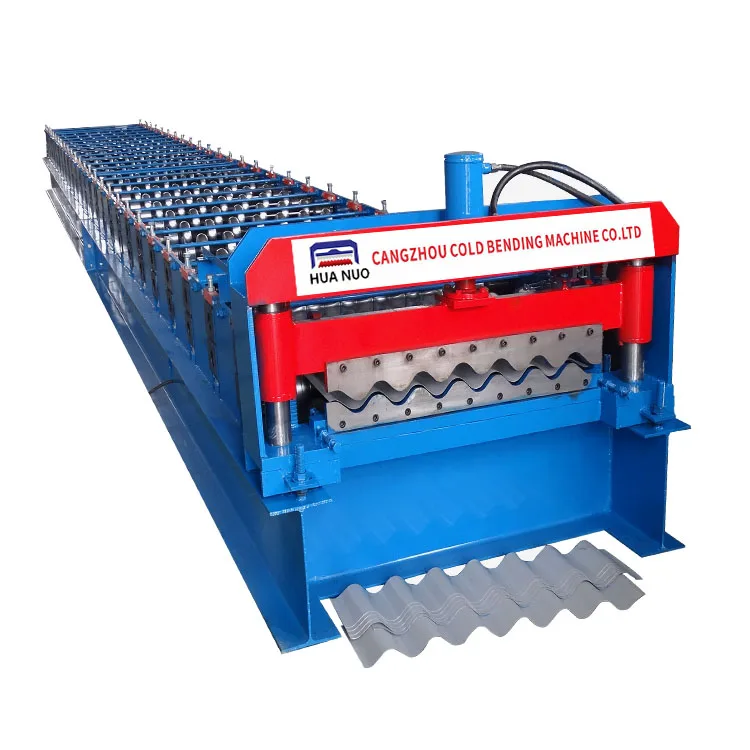

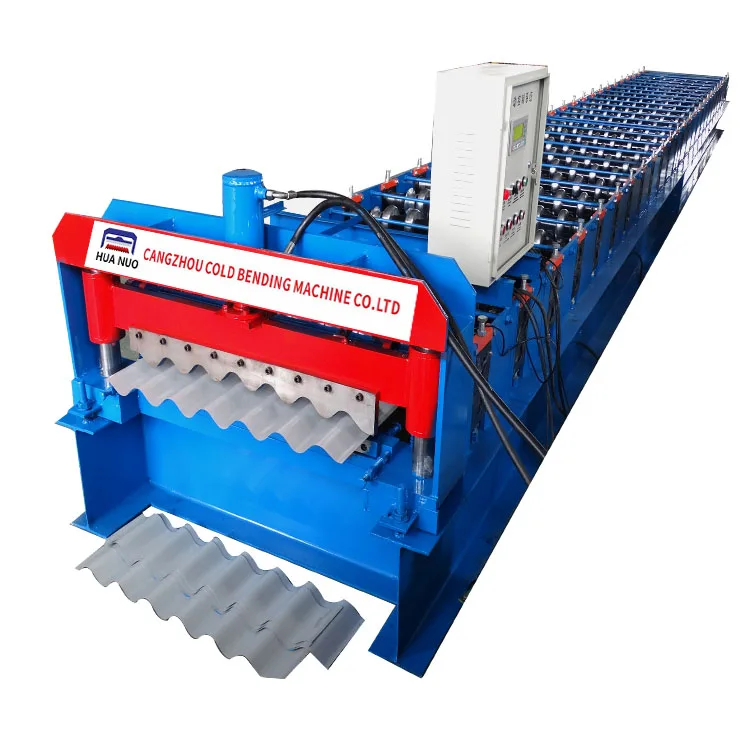

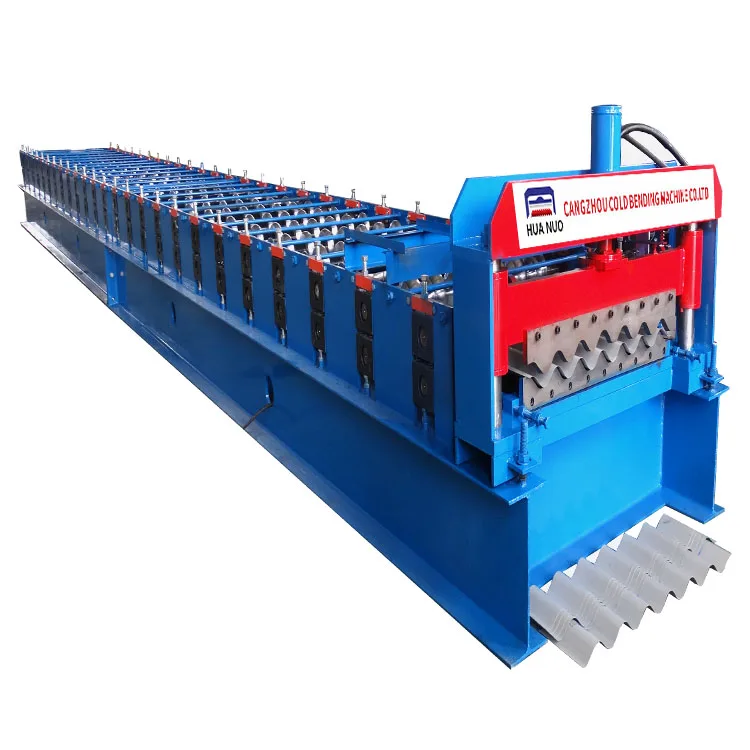

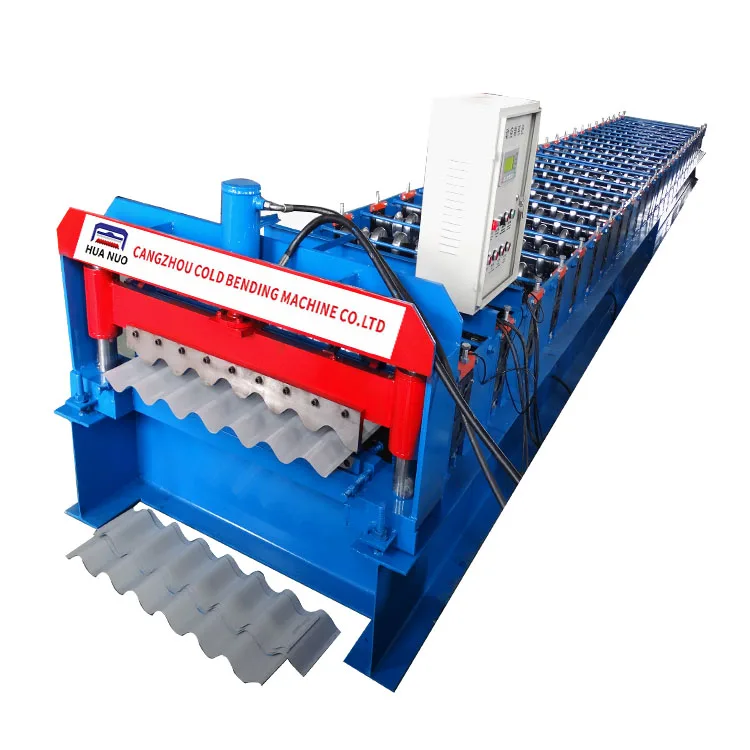

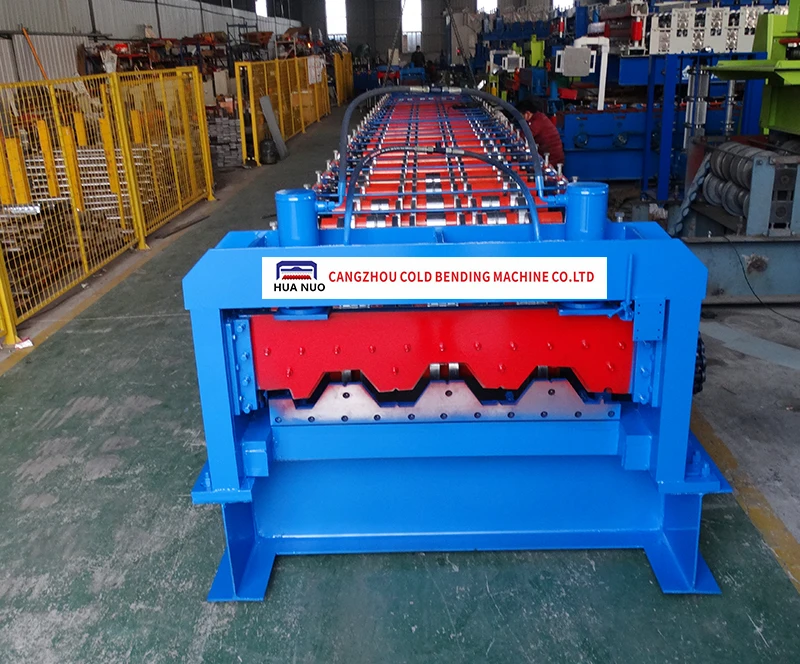

High Quality Zinc Roofing Color Steel Roll Forming Machine
1. Flow Chart
Manual Decoiler—Roll Forming Machine—Computer Control System—Hydraulic Cutting System—Receive Table
2. Machine Specifications
1 | Coil Type | Pre-painted coil,Galvanized steel |
2 | Width | 1200/1220mm |
3 | Thickness range | 0.3-0.8mm |
4 | Yield stress(mm) | Q235 |
5 | Effective width | as drawing |
1 |
Power Requirement
| Voltage | (380V 50HZ),or according client require |
Main Motor power | 5.5kw | ||
Cutter power | 3.0kw | ||
2 | Forming speed | 12-18m/min | |
3 | Forming stations | 16rows | |
4 | Main Frame | 350H beam | |
5 | Sidewall thickness | 16mm | |
6 | Forming shaft diameter | 70mm 0.01mm-0.03mm(Grinding) | |
7 | Chains | 1inch chain drive | |
8 | Type of cutting | Roll formed and length-set cutting | |
9 | Control system | PLC control | |
10 | Install dimension(depend on the final design) | 8.0m×1.5m×1.3m | |
11 | Total weight (Approx) | 4.0T | |
12 | Roller | High grade 45# steel, hard chrome plated | |
13 | Feeding system | Guide type | |
14 | Cutting blade | Cr12Mov | |
15 | Frequency changer | Delta | |
