Вертикальный резервуар прямой драйвер 1HP горячая распродажа портативные воздушные компрессоры 2HP для

Описание и отзывы

Трекер стоимости

Характеристики















Kaishan  the only manufaturer of air compressor which can comparable Jiebao

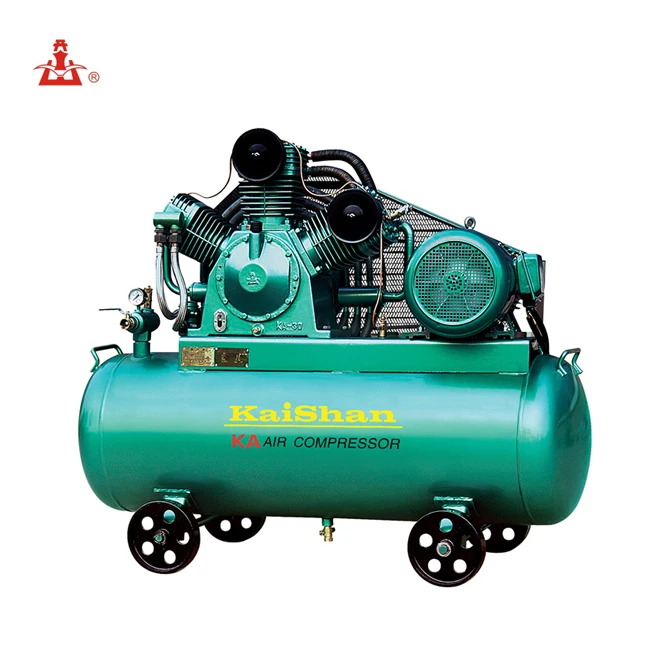

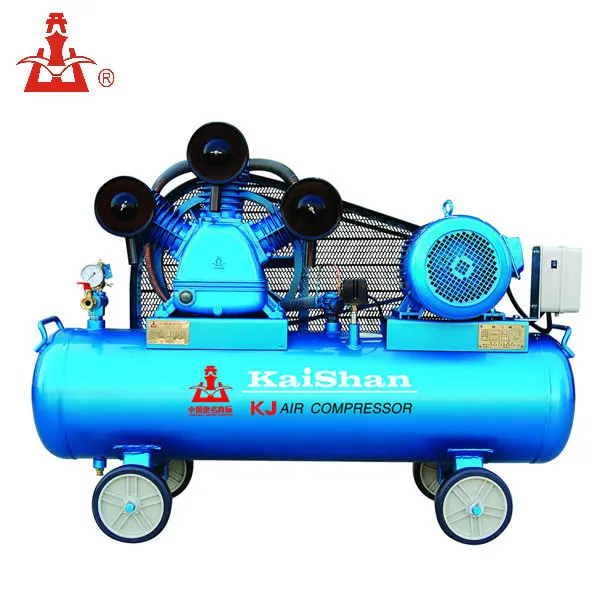

The features of KS series industrial air compressor:

Low speed design, quieter running and longer life;

Reed valve design, more efficiency.

Air filter use imported filter paper production, good filtering and sound attenuation effect, durable;

Electromagnetic switch adopts imported brands, such as Schneider, Teco, etc;

Piston ring use Japan’s riken ring, durable, non-refuelling;

Respirator channel using labyrinth structure, guarantee not leak oil.

About moving parts precision and balance, stable running and low noise.

One-way valve core adopts new type of composite materials, guarantee not leak air.

Fan wheel adopts the patent technology of Zhejiang university, better cooling effect.

Suitable for 16 hours continuous running.



This seires air compressor widely used in pneumatuic lock, pneumatic tool, tire inflation,blowing process,spray, paint,sand bklsting and fluidic element.



KS series industrial piston air compressor technical parameters
Serial	Model	Motor power	Capacity	Max working pressure	Dimension
		HP/kW	m3/min	MPa(kg/cm2G)	mm×mm×mm
1	KS10	1.5/1.1	0.08	0.8(8)	810×240×800
2	KS15	2.0/1.5	0.12	0.8(8)	860×350×710
3	KS20	3.0/2.2	0.18	0.8(8)	980×370×800
4	KS30	3.0/2.2	0.25	0.8(8)	1000×450×750
5	KS40	4.0/3	0.40	0.8(8)	1500×520×1050
6	KS55	5.5/4	0.55	0.8(8)	1500×520×1050
7	KS75	7.5/5.5	0.75	0.8(8)	1600×570×1110
8	KS100	10/7.5	1.00	0.8(8)	1650×600×1200
9	KS150	15/11	1.50	0.8(8)	1850×650×1370
10	KS200	20/15	2.00	0.8(8)	1850×680×1420
11	KS240	20/15	2.40	0.8(8)	1850×710×1440
11	W327-D1	25/18.5	3.20	0.7(7)	1900×880×1650
12	KSH30	3.0/2.2	0.21	1.25(12.5)	1500×520×1050
13	KSH40	4.0/3	0.30	1.25(12.5)	1500×520×1050
14	KSH55	5.5/4	0.45	1.25(12.5)	1500×520×1050
15	KSH75	7.5/5.5	0.60	1.25(12.5)	1650×600×1200
16	KSH100	10/7.5	0.80	1.25(12.5)	1650×600×1200
17	KSH100D	10/7.5	1.05	1.0(10)	1650×600×1200
17	KSH150	15/11	1.20	1.25(12.5)	1650×650×1400
17	KSH150D	15/11	1.60	1.0(10)	1650×700×1400
18	KSH200	20/15	1.70	1.25(12.5)	1850×800×1550
19	KSH240	20/15	2.10	1.25(12.5)	1850×800×1600

1.  Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a

     Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our

     company has accumulated much experience in the business of air compressors

     and drilling rig machines

2.  National Free-inspection Product,Have passed ISO9001 certification.

3.  Good Service, competitive price, high quality, fast shipping and perfect after

     sale service.



Welcome to visit our factory and would like to start the cooperation with you in the near future.
